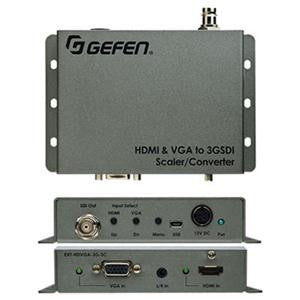

Gefen EXT-HDVGA-3G-SC HDMI VGA to 3G-SDI Scaler/Converter
This is a Gefen HDMI & VGA to 3GSDI Scaler/Converter (EXT-HDVGA-3G-SC) that switches video and audio from HDMI or VGA sources, scales the picture up to 1080p Full HD, and outputs to SDI devices including 3G-SDI and single-link HD-SDI formats. It embeds HDMI audio or analog L/R audio into the SDI stream. MPN: EXT-HDVGA-3G-SC; UPC: 888814180831. Features an intuitive on-screen display (OSD) menu for setup, Gefen Syner-G software compatibility for configuration, and a wide 6V-24V DC power range for flexible installations.
Key Features
- Dual Input Switching – Select between HDMI and VGA sources via front panel buttons with status LEDs.
- Video Scaling – Supports up to 1920 x 1200 resolution, scales to 1080p Full HD for SDI output.
- Audio Embedding – Embeds HDMI audio or analog L/R stereo from 3.5mm input into SDI stream.
- On-Screen Display (OSD) – Navigate with Menu, Up, and Down buttons for easy configuration.
- Gefen Syner-G Software – Discover, configure, manage, monitor, and upgrade via USB.
- Flexible Power – 6V to 24V DC input with locking connector; includes 12V power supply.
- Compact Design – Surface-mountable enclosure with small footprint for secure pro AV installs.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Gefen |
| Manufacturer | Nice S.p.A. |
| MPN | EXT-HDVGA-3G-SC / EXTHDVGA3GSC |
| UPC | 888814180831 |
| Product Type | Video Scaler |
| Functions | Video Scaling |
| Maximum Resolution | 1920 x 1200 |
| Inputs | HDMI, VGA, Audio Line In (1 x 3.5mm stereo), USB |
| Outputs | 3G-SDI / HD-SDI (BNC connector) |
| Power Supply | 6V to 24V DC; 12V DC included (EXT-PS121.5AIP-3P) |
| Form Factor | External |
| Unit Dimensions (H x W x D) | 1.2" x 5.6" x 3.7" |
| Unit Weight | 0.50 lb (approximate) |
| Shipping Weight | 2.60 lbs / 2.6 lbs |
| Shipping Dimensions (H x W x D) | 4.0" x 7.1" x 10.6" / 4.00" x 7.10" x 10.60" |
| Country of Origin | Taiwan |
Setup and Operation Guide
Pro AV installers note straightforward connection for broadcast and studio use.
- Connect HDMI source to HDMI input and/or VGA source to VGA input using included cables.
- For analog audio, connect 3.5mm mini-stereo cable to L/R audio input.
- Connect SDI display or equipment to BNC output.
- Plug in 12V DC power supply; power LED glows blue.
- Select input with HDMI/VGA buttons; selected LED glows green.
- Access OSD with Menu button; navigate with Up/Dn buttons.
Package Contents
- HDMI & VGA to 3GSDI Scaler/Converter
- 1 x 6 ft. Locking HDMI Cable (CAB-HD-LCK-06MM)
- 1 x 6 ft. VGA Cable (M-M) (CAB-VGA-06MM-O)
- 1 x 6 ft. 3.5mm Mini Stereo Audio Cable (M-M) (CAB-MP-ST-06MM-BC)
- 1 x 12V DC Power Supply (EXT-PS121.5AIP-3P)
- 1 x Quick-Start Guide (QSG-EXT-HDVGA-3G-SC)
Enhance your SDI workflow with Gefen EXT-HDVGA-3G-SC—add to cart now!
Brand: Gefen
Type: Scaler
Model: EXT-HDVGA-3G-SC
Features: Display
MPN: EXT-HDVGA-3G-SC
Country of Origin: Taiwan
Input Interfaces: HDMI
Output Interfaces: 3G-SDI
Connectivity: HDMI
Number of Inputs: 2
Number of Outputs: 1
Video Format: HD
Signal Format Type: Analog to Digital
Functions: De-embedder/Embedder
Item Height: 1.2 in
Item Width: 5.6 in
Item Length: 3.7 in
Item Weight: 0.50 lb
UPC: 888814180831
