Front Right CV Axle Shaft for Chevrolet Impala 2000-11, Buick Century 1997-05
Front Right CV Axle Shaft for Chevrolet Impala 2000-11, Buick Century 1997-05
Low stock: 1 left
Save 30%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

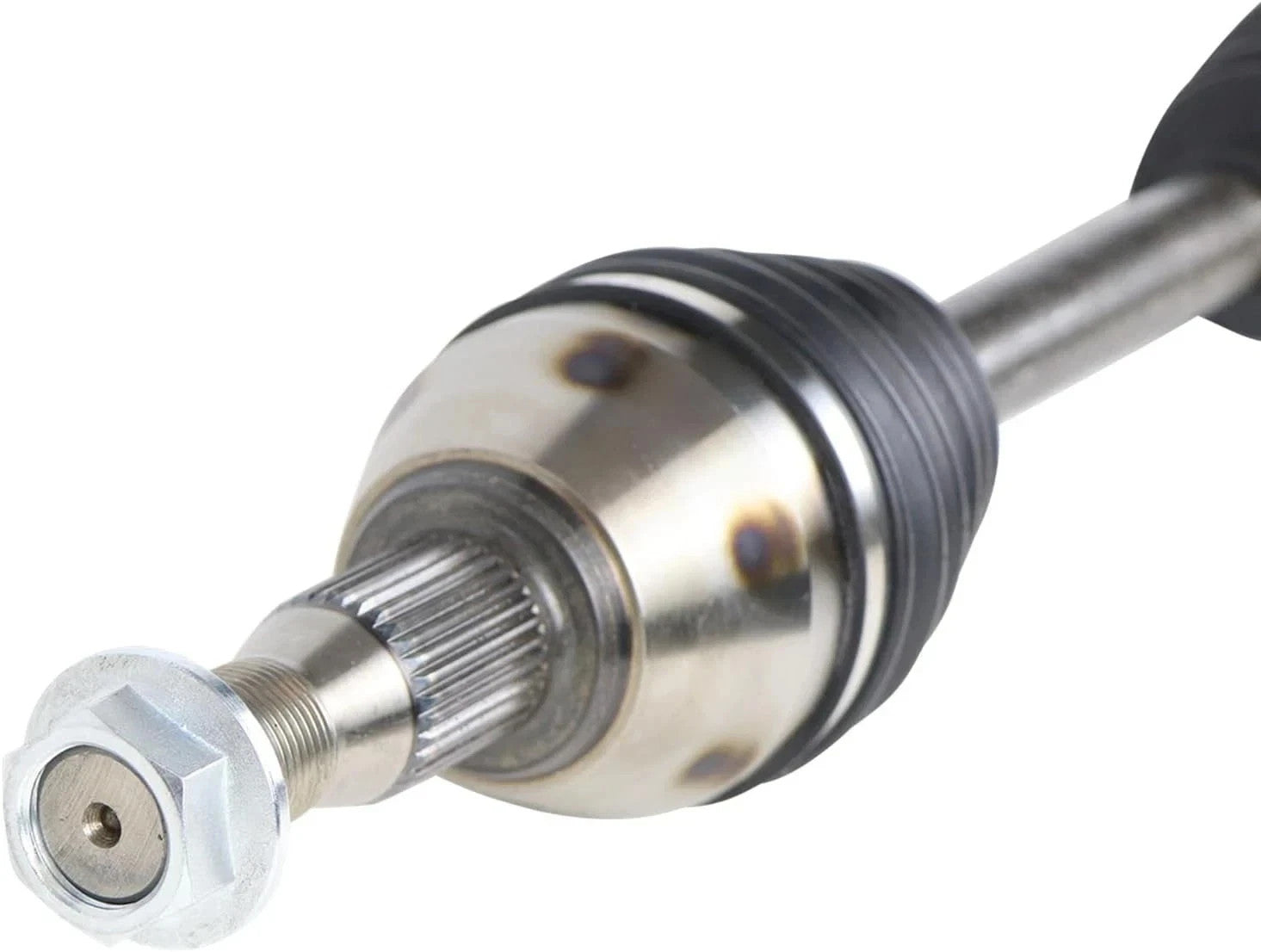

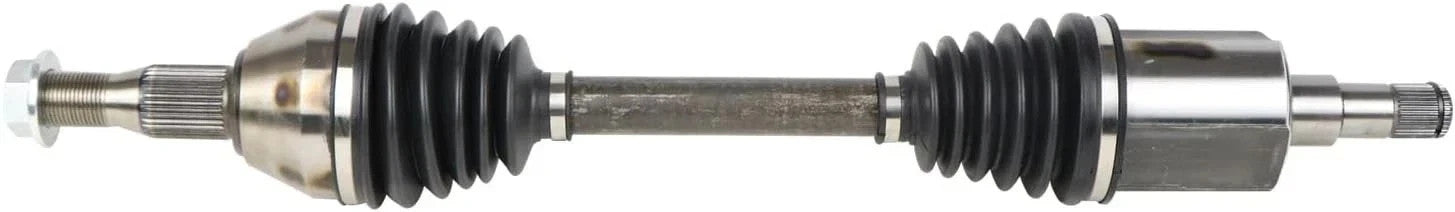

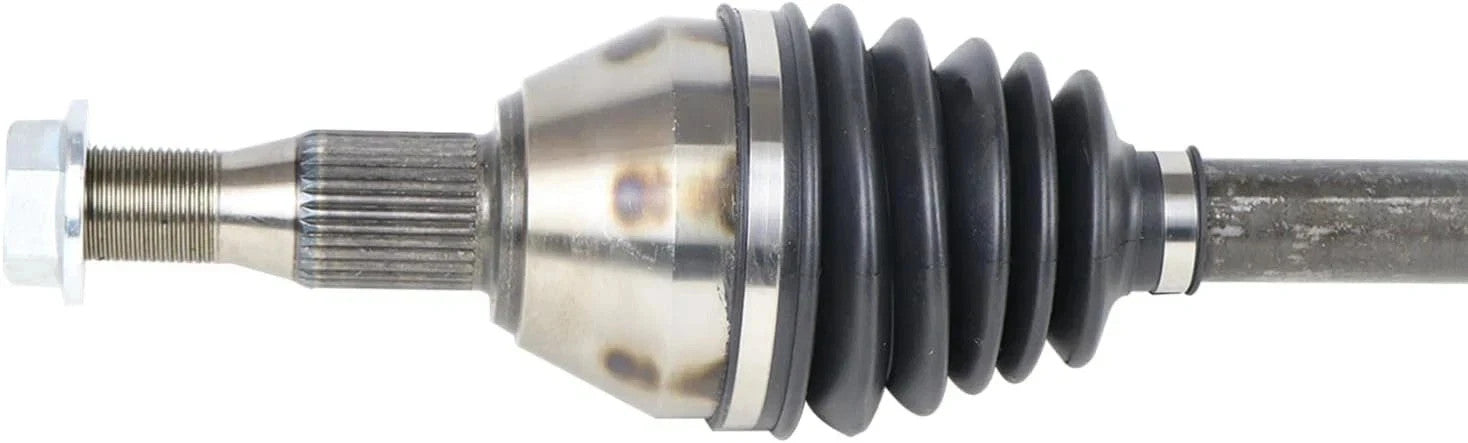

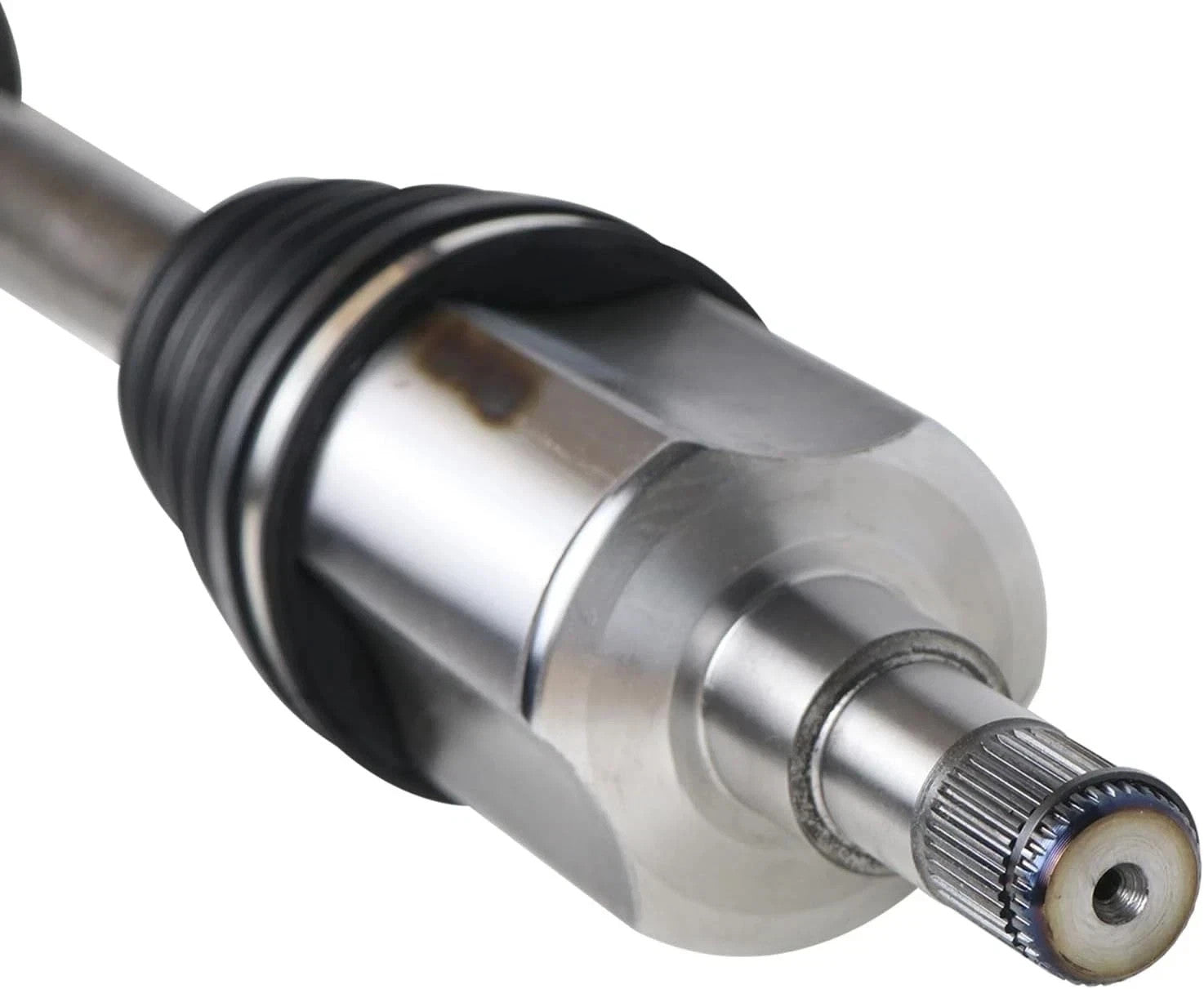

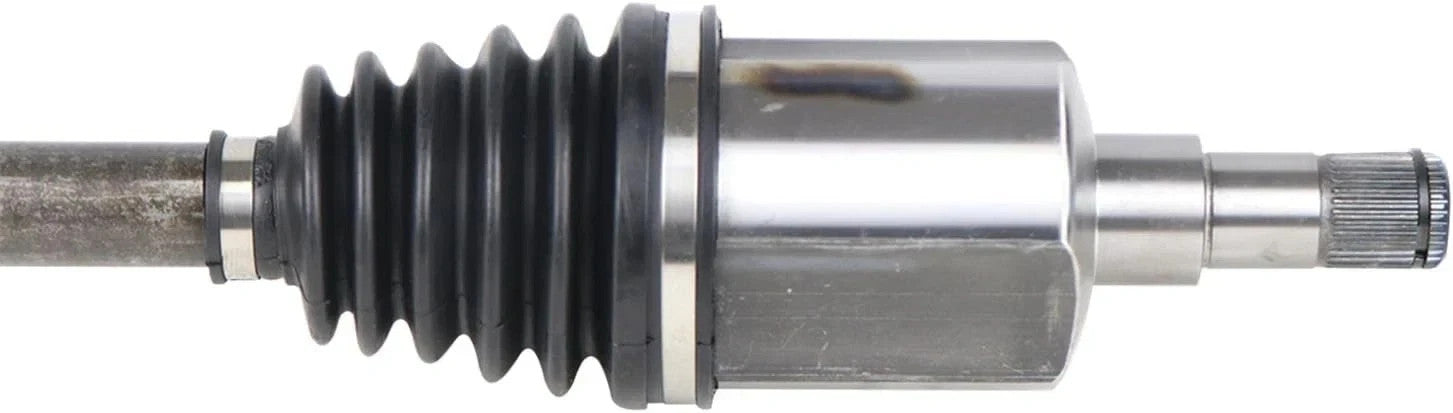

Front Right CV Axle Shaft Assembly for Buick, Cadillac, Chevrolet, Pontiac
Upgrade your vehicle’s drivetrain with this GSP NCV10232 CV Axle Shaft Assembly, designed for the front right (passenger side) of select Buick, Cadillac, Chevrolet, and Pontiac models. Engineered for OE fit and performance, this axle ensures smooth, vibration-free driving with premium materials and rigorous quality testing.
Key Features
- OE Fitment - Precision-engineered for select Buick, Cadillac, Chevrolet, and Pontiac vehicles with a 3.06 final drive ratio.
- Premium Materials - High-strength steel with premium-grade neoprene boots for abrasion and temperature resistance.
- Smooth Performance - Assembled with high-temperature Moly grease to reduce friction and ensure long-lasting operation.
- Silent Ride Technology - Reduces noise, vibration, and harshness for a comfortable driving experience.
- ABS Compatible - Includes an ABS sensor ring for vehicles equipped with anti-lock brakes (does not affect non-ABS vehicles).
Technical Specifications
| Specification | Details |
|---|---|
| Position | Front Right (Passenger Side) |

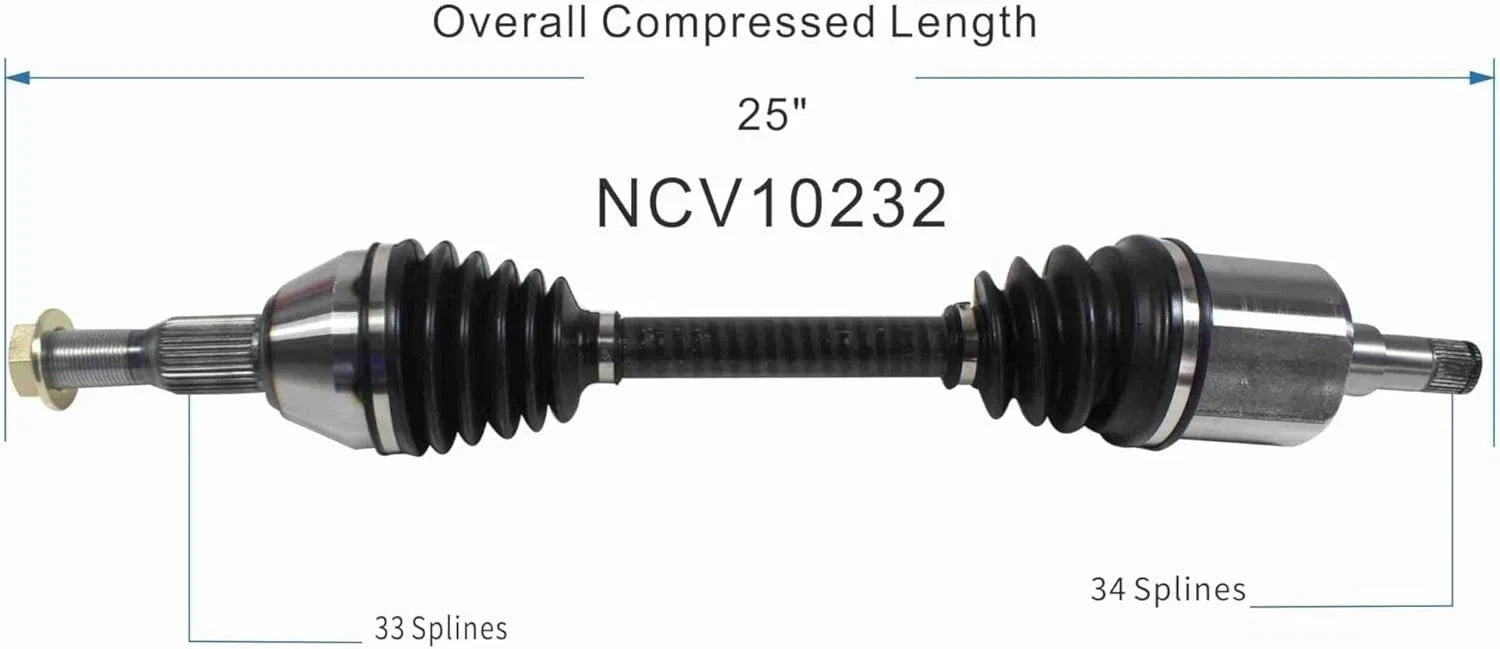

| Compressed Length | 25.00 inches |
| Outer Joint Splines | 33 |
| Inner Joint Splines | 34 |
| Material | High-Strength Steel, Neoprene Boots |
| Weight | 15.39 lbs |
| OEM Part Numbers | 15870194, 23191340, 26027053, 88965658, 88965660 |
| ABS Compatibility | Includes ABS Sensor Ring |
Compatibility
This CV axle is compatible with the following vehicles (with 3.06 final drive ratio):
| Brand | Model | Years |
|---|---|---|
| Buick | Allure | 2008-2009 |
| Buick | Century | 1997-2005 |
| Buick | LaCrosse | 2005-2009 |
| Buick | LeSabre | 1996-1999 |
| Buick | Park Avenue | 1991-1996 |
| Buick | Regal | 1997-2003 |
| Buick | Riviera | 1992-1993 |
| Cadillac | 60 Special | 1993 |
| Cadillac | Commercial Chassis | 1992-1993 |
| Cadillac | DeVille | 1992-1995 |
| Cadillac | Eldorado | 1992-1993 |
| Cadillac | Fleetwood | 1992 |
| Cadillac | Seville | 1992-1993 |
| Chevrolet | Impala | 2000-2011 |
| Chevrolet | Monte Carlo | 2000-2007 |
| Chevrolet | Venture (FWD) | 1997-2005 |
| Pontiac | Bonneville | 1992-1999 |
| Pontiac | Grand Prix | 1997-2008 |
| Pontiac | Montana (FWD) | 1999-2005 |
| Pontiac | Trans Sport | 1997-1998 |
Note: Verify your vehicle’s final drive ratio and model specifics to ensure compatibility.
Installation Guide
Install your new CV axle shaft assembly with these steps:
- Prepare Tools: Gather a socket wrench, torque wrench, jack and jack stands, pry bar, and screwdriver.
- Lift Vehicle: Securely lift the front right side of the vehicle and remove the wheel.
- Remove Old Axle: Disconnect the hub nut, separate the lower ball joint, and remove the axle from the transmission and hub.
- Install New Axle: Insert the new axle into the transmission, ensuring the splines engage, then connect it to the hub.
- Secure Components: Reattach the ball joint, tighten the hub nut to the manufacturer’s torque specs, and reinstall the wheel.
- Test Drive: Lower the vehicle and test drive to confirm smooth operation and no vibrations.
- Check Alignment: Verify wheel alignment to prevent uneven tire wear.
Why Choose This CV Axle?
The GSP NCV10232 CV Axle is built for durability and performance, using heat-treated components and premium neoprene boots to prevent premature wear. Its precision machining and high-temperature Moly grease ensure vibration-free operation, while the ISO/TS16949 certification guarantees quality. Perfect for replacing a worn or damaged axle, this assembly restores your vehicle’s drivability with confidence.
Revive your vehicle’s performance with this reliable GSP CV axle shaft assembly today!
Brand: GSP
Type: Front Right CV Axle Shaft Assembly
OE/OEM Part Number: 15870194, 23191340, 26027053, 88965658, 88965660
Items Included: Nut
Manufacturer Part Number: NCV10232
