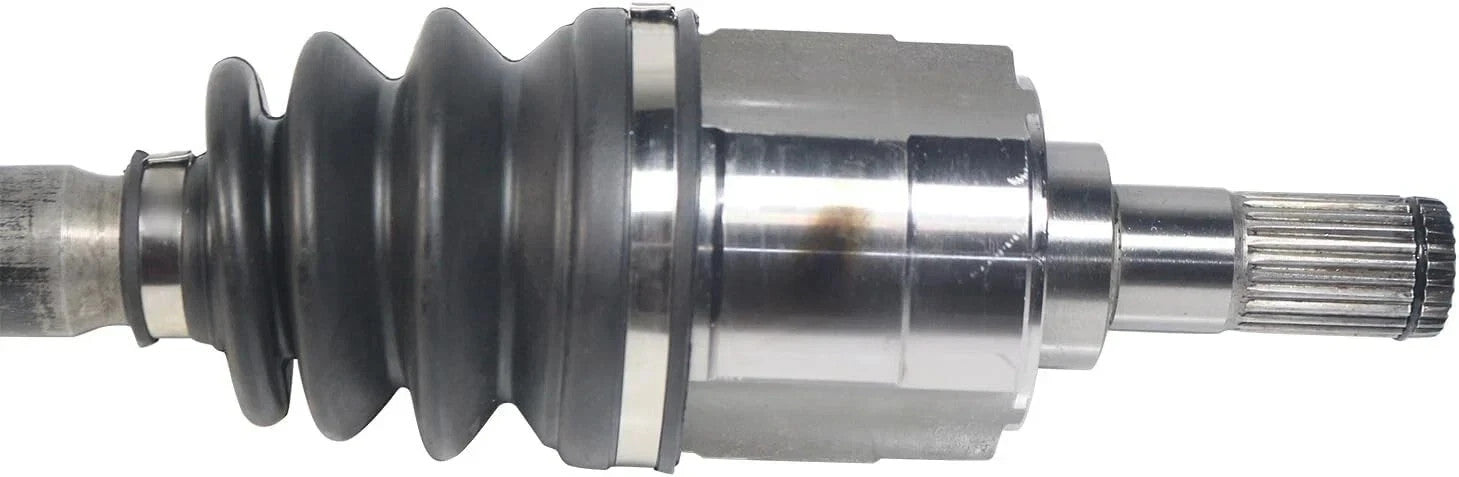

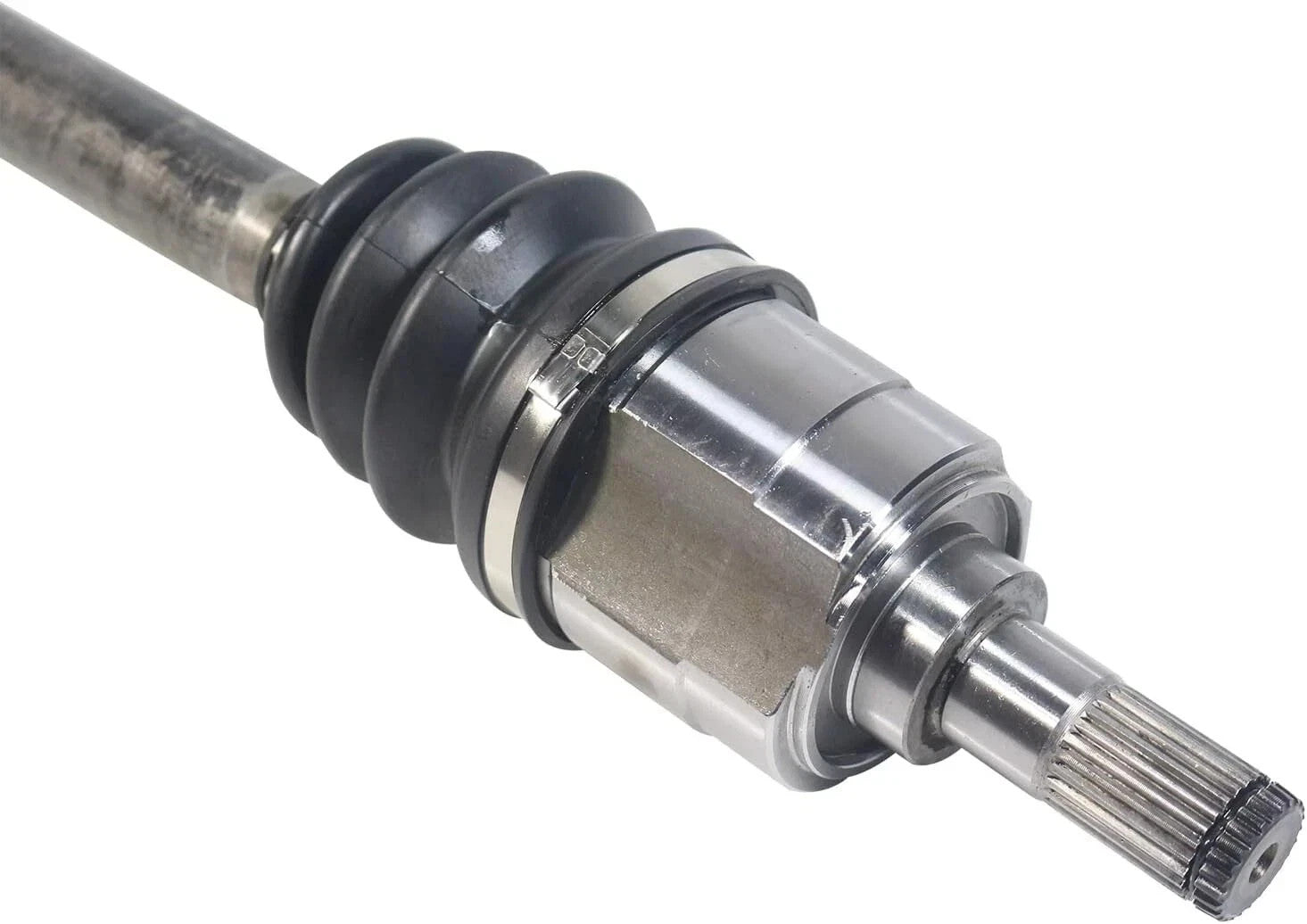

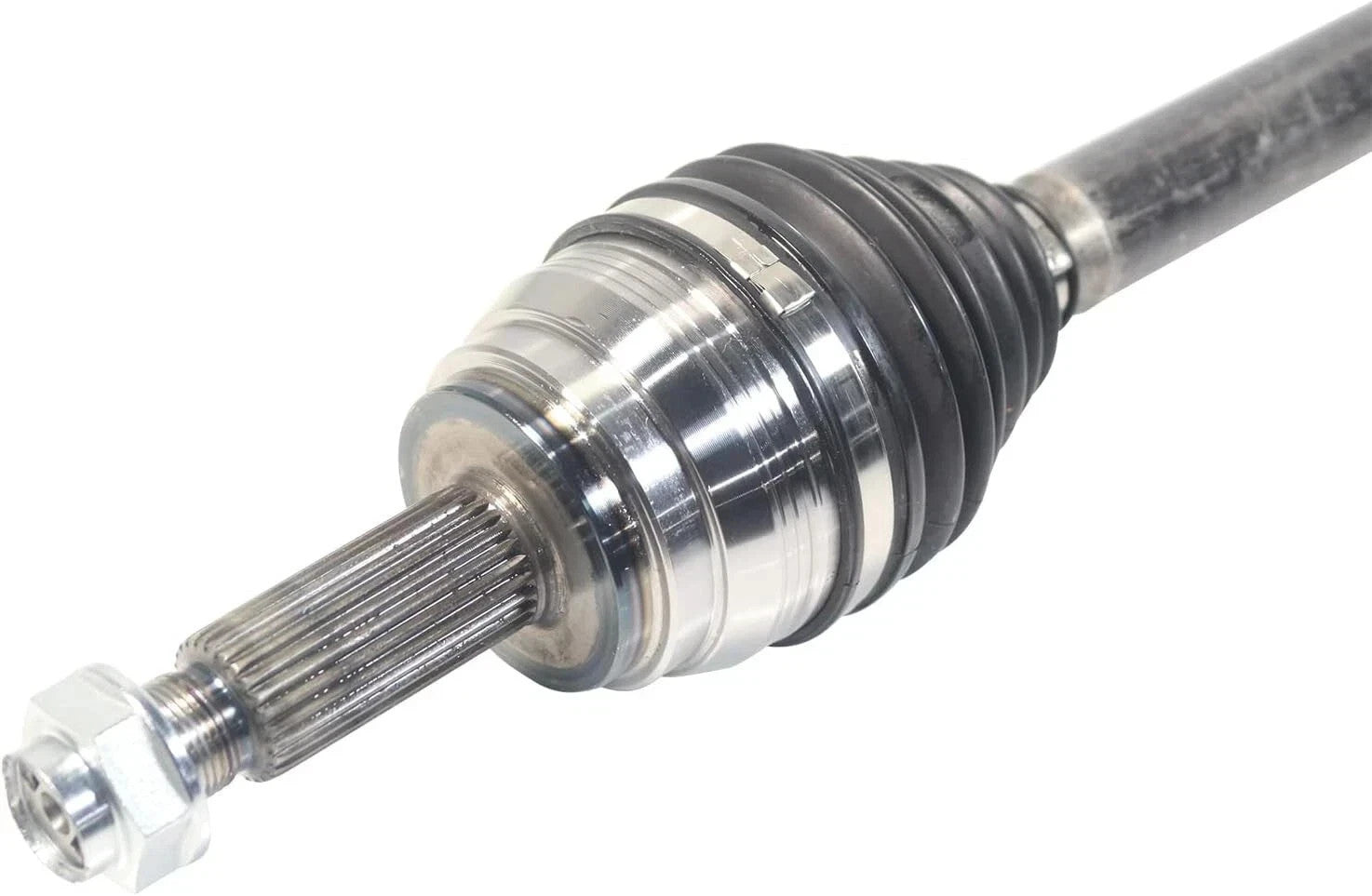

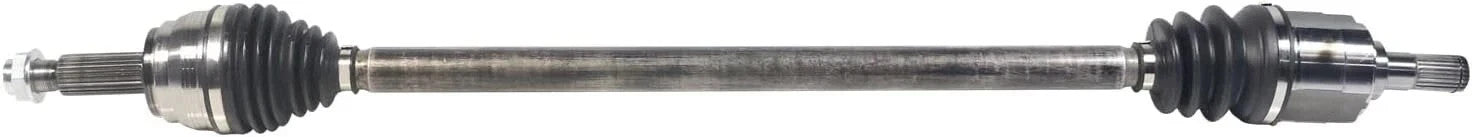

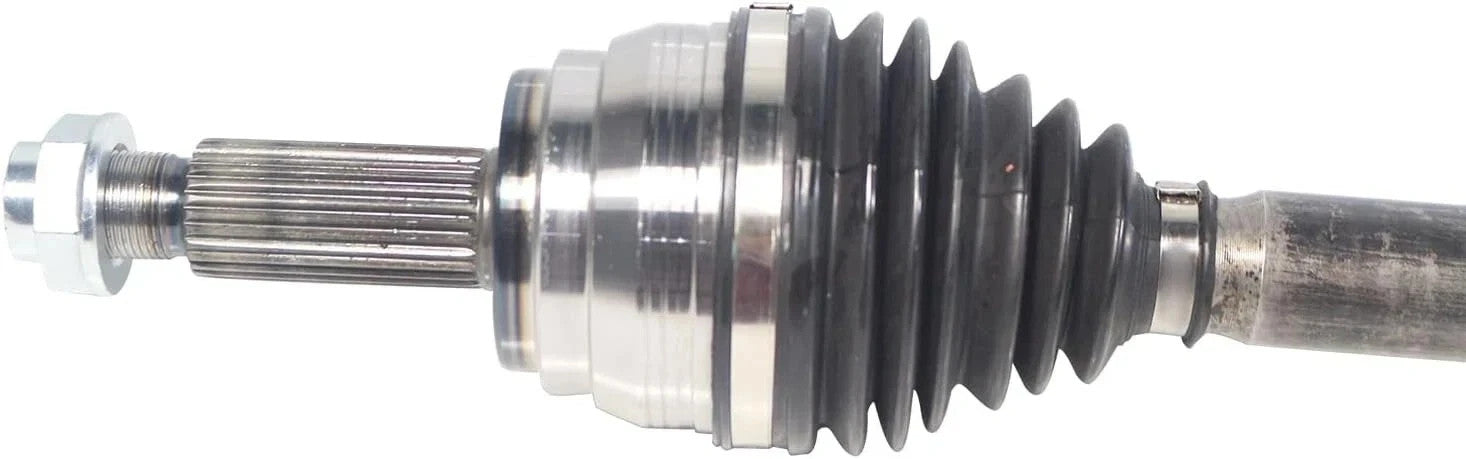

Key Features

• OEM-Grade Engineering - Exact fit, form, and function for Hyundai Ioniq vehicles.
• Robust Steel Construction - High-grade steel shaft for superior strength and torque handling.
• Durable Neoprene Boots - Abrasion-resistant and temperature-proof to prevent leaks and failures.
• Premium Moly Grease - High-temperature formula minimizes friction and extends joint lifespan.
• ABS-Ready Design - Includes integrated sensor ring for anti-lock brake compatibility.

Technical Specifications

Compatible Models and Trims

This CV axle shaft assembly is designed specifically for the following Hyundai Ioniq models:

• 2017-2022 Hyundai Ioniq Hybrid (All trims: Blue, SEL, Limited)
• 2017-2022 Hyundai Ioniq Plug-in Hybrid (All trims: SEL, Limited)
• 2017-2022 Hyundai Ioniq Electric (All trims: SEL, Limited)

Compatibility Notes: Fits Front-Wheel Drive (FWD) configurations only. Verify using your vehicle's VIN or OEM part number 49501-G7100. Does not fit other Hyundai models or non-FWD variants.

Installation Guide

Professional installation recommended for optimal safety. Here's a step-by-step overview:

1. Gather Tools: Jack, jack stands, socket set, torque wrench, pry bar, and drain pan.
2. Lift Vehicle: Safely elevate the front passenger side and secure with jack stands.
3. Remove Wheel: Detach the front right wheel for access to the axle.
4. Disconnect Parts: Remove the hub nut, separate the tie rod end, and detach the lower ball joint.
5. Extract Old Axle: Gently pry the inner CV joint from the transmission, catching any fluid drips.
6. Insert New Axle: Align and push the new axle into the transmission until fully seated, then connect to the wheel hub.
7. Reassemble: Reinstall components, torque the hub nut to OEM specifications, and remount the wheel.
8. Verify Operation: Lower the vehicle, check for leaks, and test drive to ensure quiet, smooth performance.

Why Choose This CV Axle?

Manufactured with rigorous quality controls, this CV axle assembly eliminates common issues like vibrations, clicks, or grease leaks. Ideal for daily drivers or eco-conscious commuters, it restores your Hyundai Ioniq's original handling and efficiency, providing long-term reliability on every road.
