Front Left Driver Side CV Axle Shaft for Toyota Sienna 2004-2010
Front Left Driver Side CV Axle Shaft for Toyota Sienna 2004-2010
Low stock: 1 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

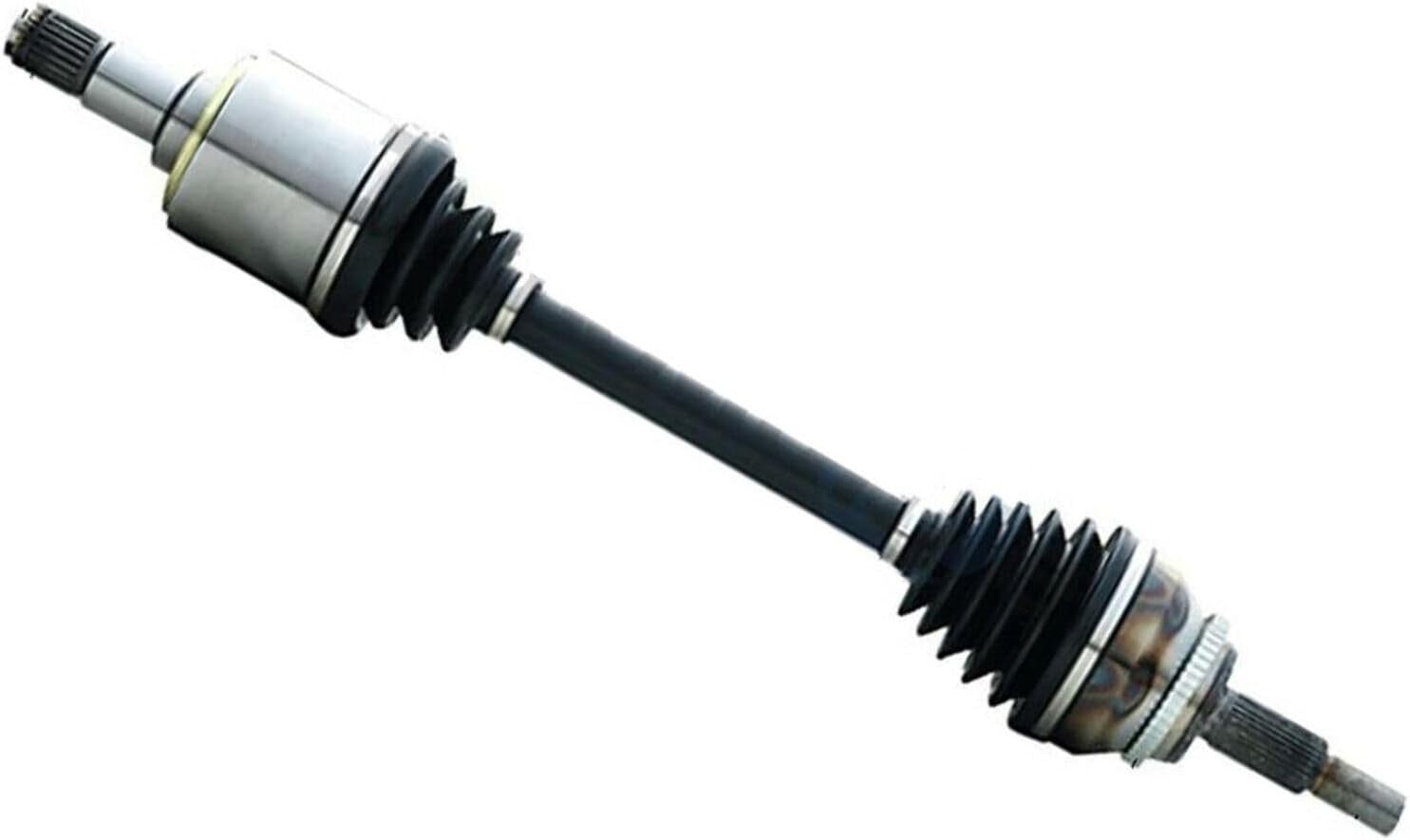

Front Left CV Axle Shaft Assembly – Driver Side for Toyota Sienna
Eliminate front-end clicking, harsh vibrations, and restore smooth power delivery to your minivan with this GGDZTMNB Premium Front Left CV Axle Assembly. Engineered to meet or exceed strict OEM specifications, this complete half-shaft features high-strength alloy steel, precision-machined CV joints, and heavy-duty neoprene boots designed to resist tearing and thermal breakdown over long distances.
Please verify your vehicle's drive type (FWD vs AWD) and engine size before purchasing.
Detailed Vehicle Compatibility
| Make | Model | Year Range | Engine / Position |
|---|---|---|---|
| Toyota | Sienna | 2004 – 2006 | 3.3L V6 – Front Left (Driver Side) |
| Toyota | Sienna | 2007 – 2010 | 3.5L V6 – Front Left (Driver Side) |
Key Product Features
- High-Strength Steel Shaft – Precision-ground and heat-treated alloy steel resists twisting under load and high-torque acceleration.
- Durable Neoprene Boots – Formulated with extra bellows to prevent cracking, seal out dirt and moisture, and retain protective grease.
- Pre-Greased Joints – Packed with premium high-temperature moly grease for smooth operation and minimal internal friction.
- Direct OEM Fit – Machined spline counts and thread dimensions match factory hubs and transaxle outputs for a straightforward replacement.
- Anti-Corrosion Finish – Treated surface prevents rust and corrosion caused by road salt and moisture.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | GGDZTMNB |
| Manufacturer Part Number | VRVA86678-FLDDCASFTS |
| Interchange Part # | H10540 |
| Position | Front Left (Driver Side) |
| Component Type | CV Axle Shaft Assembly (Half Shaft) |
| Finish | Painted / Protective Coating |
Installation Guidelines
Recommended steps for safe and proper installation:
- Safety First: Jack up the vehicle and secure it on jack stands. Remove the driver-side front wheel.
- Disconnecting: Remove the axle nut, lower ball joint, and sway bar link to allow movement in the steering knuckle.
- Removal: Carefully pry the inner CV joint out of the transmission using an axle pry bar or wedge tool.
- Installation: Slide the new GGDZTMNB CV Axle inner joint into the transaxle until the c-clip snaps securely into place.
- Reassembly: Insert the outer spline into the wheel hub, torque the axle nut to factory specification, and reinstall suspension linkage.
Why Replace Your CV Axle?
A failing CV axle can cause severe clicking noises while turning, excessive vibration during acceleration, or grease leaks that ruin nearby brake components. Replacing your worn shaft with this GGDZTMNB H10540 restores factory drivability, safety, and confidence on long family road trips.
Restore smooth power and ride comfort—Order your Toyota Sienna CV Axle today!
Brand: GGDZTMNB
Type: Front Left Driver Driveshaft CV Axle Shaft
Manufacturer Part Number: VRVA86678-FLDDCASFTS
OE/OEM Part Number: H10540
MPN: Does not apply
