Key Features

• Severe-Duty Rated – Built stronger than standard axles for lifted trucks, heavy loads, and aggressive driving.
• Extra Bellows Neoprene Boots – Resist cracking and tearing even under extreme flex and temperature changes.
• New Axle Nut Included – Hassle-free installation (original nuts are usually damaged or stripped).
• Pneumatically Crimped Clamps – Perfect seal every time, no leaks.
• 100% Measured & Validated – Each axle is checked after assembly to guarantee perfect fit and balance.

Technical Specifications

Compatible Vehicles – Confirmed Fitment

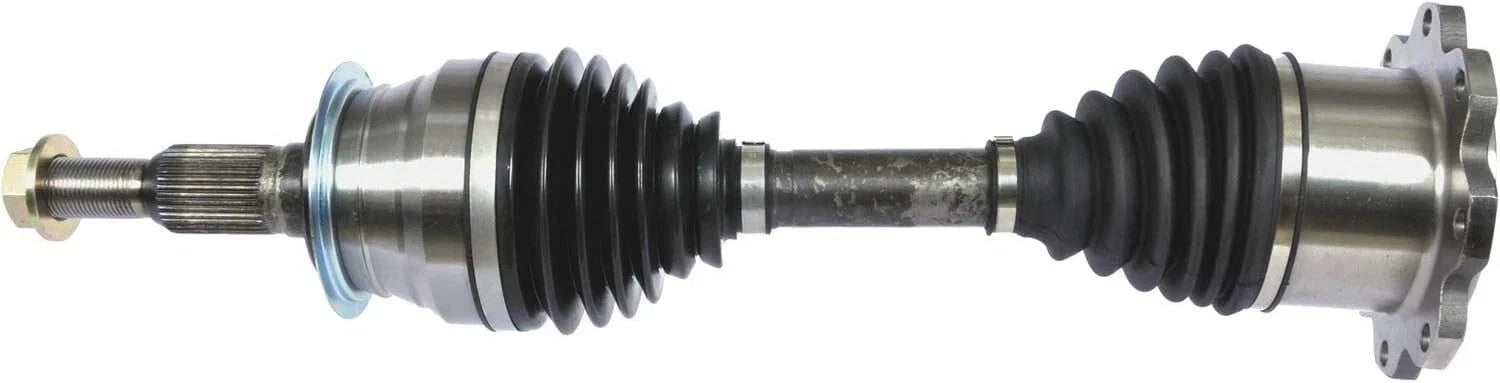

This Cardone 66-1626HD Severe-Duty CV Axle fits the following models exactly:

• 2007-2012 Dodge Caliber – All engines (1.8L, 2.0L, 2.4L, 2.4L Turbo)
• 2007-2017 Jeep Compass – All engines (FWD & 4WD)
• 2007-2017 Jeep Patriot – All engines (FWD & 4WD)
• 2007-2012 Jeep Compass / Patriot with CVT transmission

Important: Direct replacement for OEM part numbers 5105251AA, 5105251AB, 5105251AC.

Installation Guide

1. Safely lift and support the front driver side.
2. Remove wheel, brake caliper (hang with wire), and rotor if needed.
3. Remove the old axle nut (included new nut makes this easier).
4. Separate lower ball joint and/or tie rod end.
5. Pry inner joint out of transmission (catch fluid).
6. Install new Cardone 66-1626HD axle – inner joint snaps in, outer spline slides into hub.
7. Reassemble in reverse order, torque new nut to spec (usually 180-200 ft-lbs).
8. Test drive – enjoy smooth, quiet, vibration-free performance.

Why Choose Cardone Severe-Duty?

When regular axles fail from lifted suspensions, bigger tires, or heavy use, the Cardone Severe-Duty line is the proven upgrade. Thousands of mechanics and off-road enthusiasts trust the 66-1626HD for its bulletproof boots and perfect fit on Jeep Patriot/Compass and Dodge Caliber platforms.
