Front Left CV Axle Shaft Assembly for Honda Element 2003-2011 L4 2.4L
Front Left CV Axle Shaft Assembly for Honda Element 2003-2011 L4 2.4L
Low stock: 1 left
Save 30%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

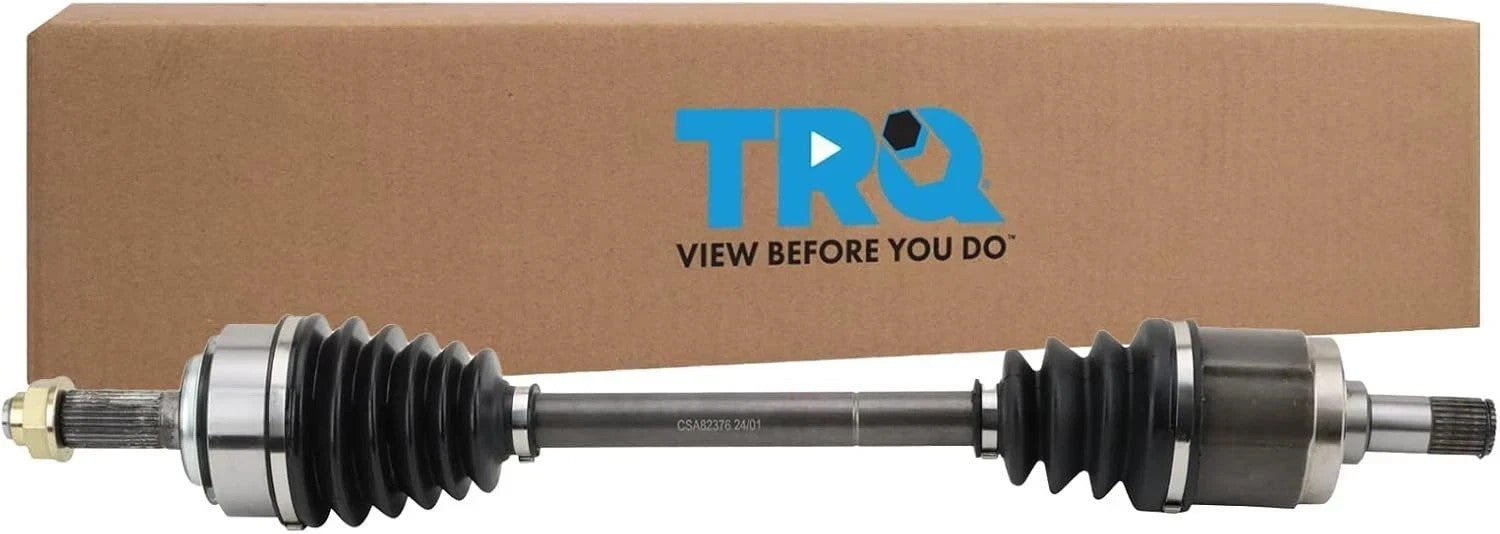

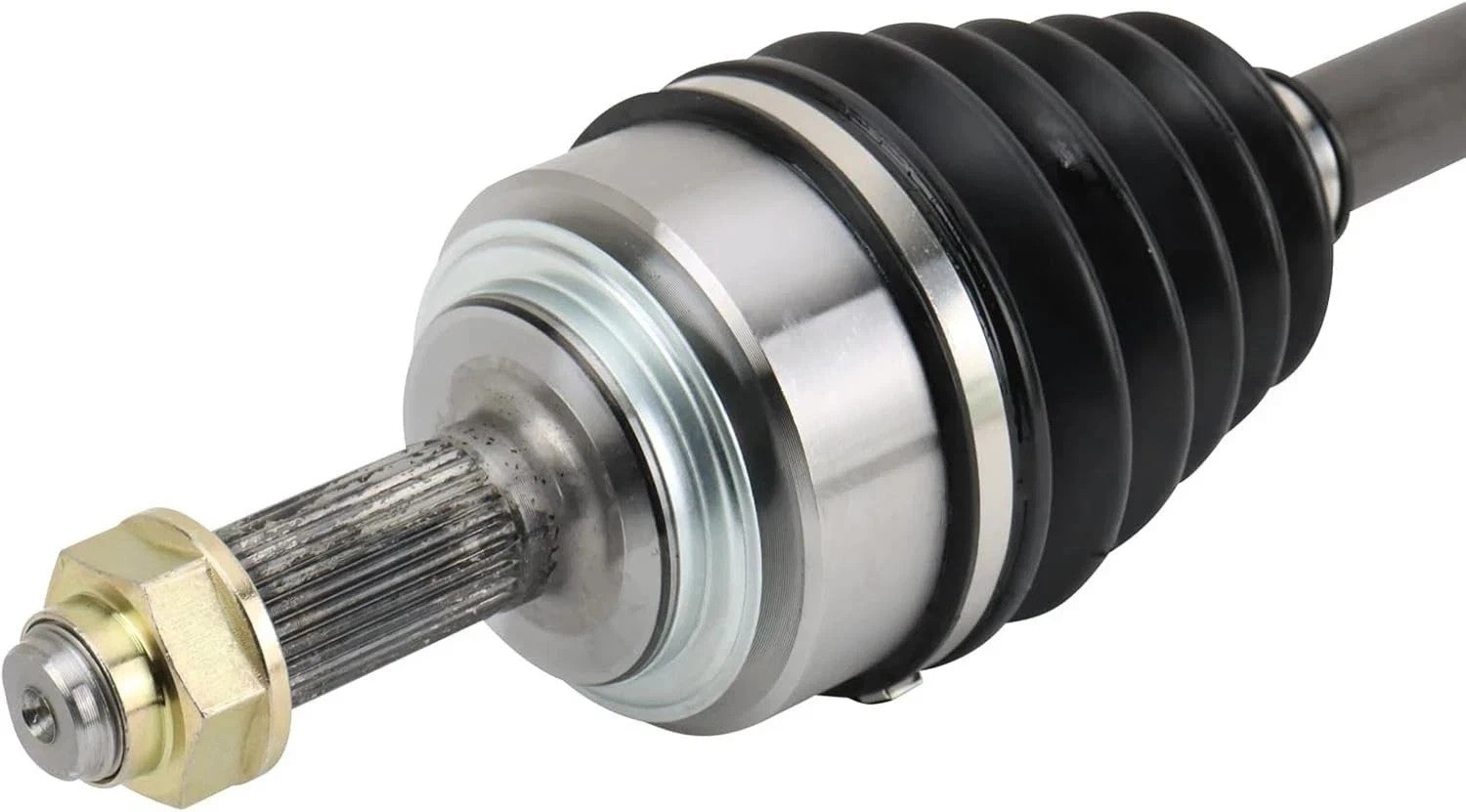

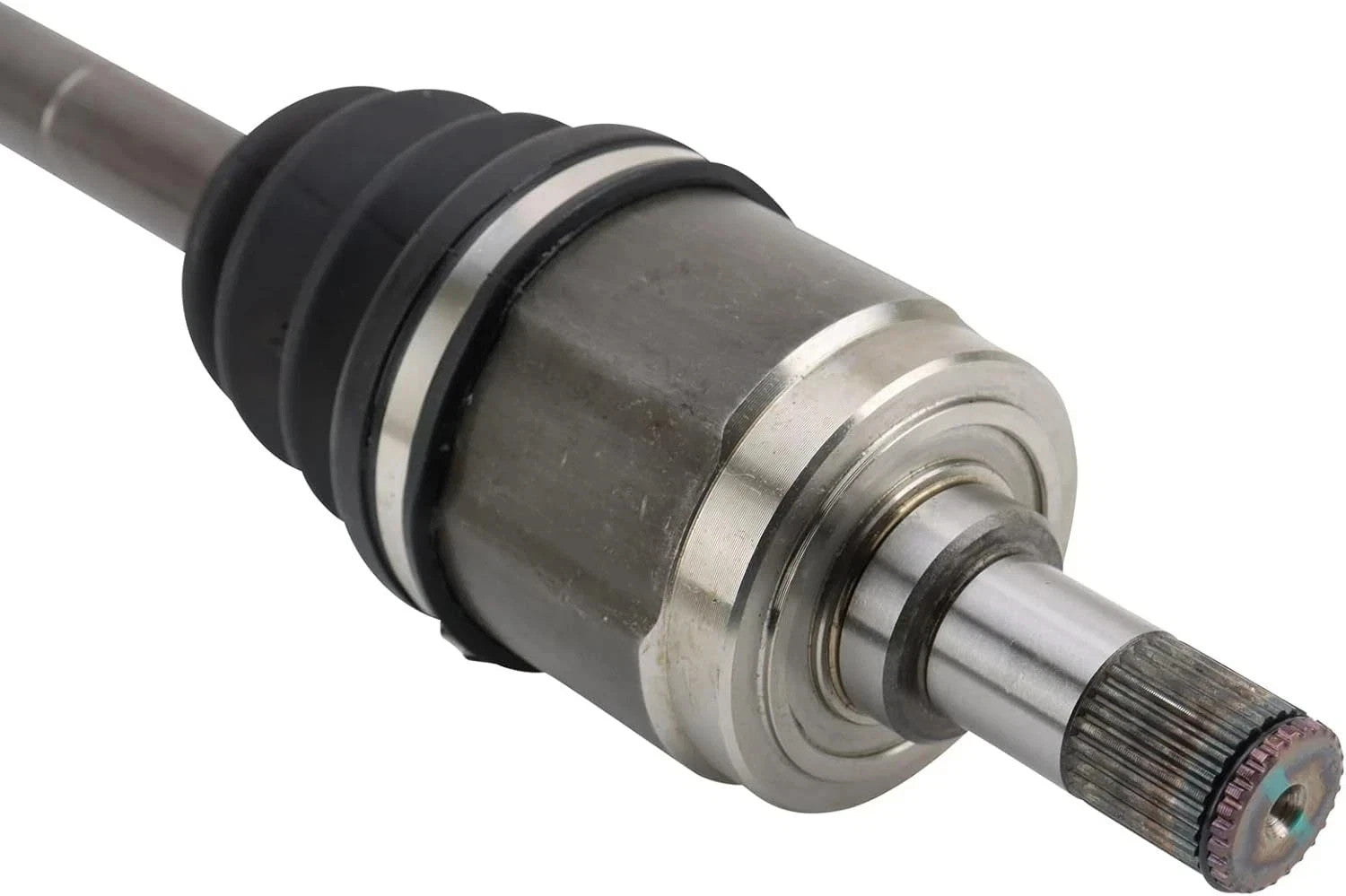

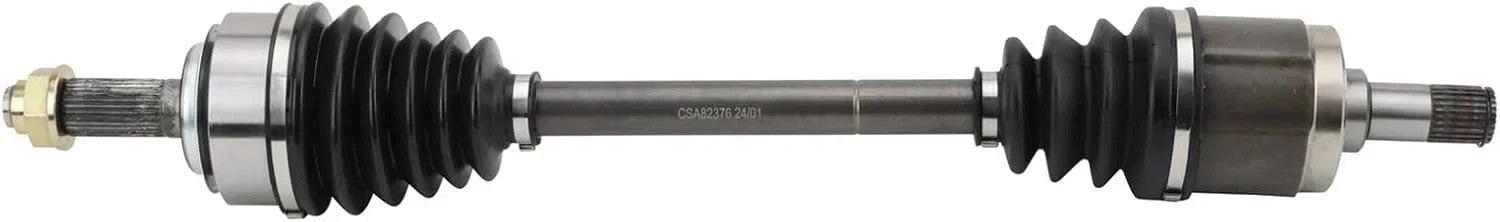

Front Left CV Axle Shaft Assembly for Honda Element 2003-2011
Restore smooth, quiet, and reliable power delivery to your Honda Element with this Front Left (Driver Side) CV Axle Shaft Assembly. Precision-engineered as a direct replacement for 2003–2011 models, this high-quality axle eliminates clicking noises, vibrations, and clunking while providing long-lasting durability for daily driving and light off-road use.
Key Features
- Perfect Direct Fit — Designed specifically for Honda Element 2003-2011 (front left/driver side)
- Premium Neoprene Boots — Resistant to tearing, cracking, and extreme temperatures
- High-Temperature Moly Grease — Pre-packed for reduced friction and extended joint life
- Heat-Treated Steel Shaft — Strong, durable construction built to handle torque demands
- Stainless Steel Clamps — Secure boot attachment for leak-proof performance
Technical Specifications
| Specification | Details |
|---|---|
| Position | Front Left (Driver Side) |
| Compatibility | Honda Element 2003-2011 (2.4L L4, All Trims & Drivetrains) |
| Material | Heat-Treated Steel Shaft, Neoprene Boots, Stainless Steel Clamps |
| OEM Part Numbers | 44306-SCV-A50, 44306-SCV-A51, 44306-SCV-A90, 44306-SCV-A91 |
| Aftermarket References | 66-4213, NCV36500 |
| Inboard Spline Count | 27 |
| Outboard Spline Count | 28 |
| Axle Nut Thread | M24 × 1.5 |
Compatible Vehicles
This CV axle fits the following Honda Element models:
- Honda Element (2003 2004 2005 2006 2007 2008 2009 2010 2011)
- Engine: 2.4L Inline-4 (K24A4 / K24A8)
- All trim levels: DX, EX, LX, SC (including 2WD and 4WD/AWD versions)
This axle is for the Front Left (Driver Side) only.
Always verify your exact year and drivetrain (2WD or 4WD) before purchase.
Incorrect side or application can cause severe drivetrain damage.
Installation Guide
Professional installation recommended for best results. Basic replacement steps:
- Safely lift and support the front left side of the vehicle
- Remove the front left wheel
- Remove the axle nut (36 mm socket – torque spec ~134 ft-lbs on reinstall)
- Separate lower ball joint and tie rod end from steering knuckle
- Pry the inner CV joint out of the transmission (catch any fluid drip)
- Remove old axle from hub assembly
- Install new axle – ensure inner splines fully seat in transmission (you'll hear/feel a click)
- Reattach hub, ball joint, tie rod; torque all fasteners to factory specs
- Reinstall axle nut and wheel
- Lower vehicle and test drive — check for vibrations, clicking, or leaks
Why Choose This CV Axle?
This front left CV axle is a high-quality, direct-fit replacement trusted for restoring original handling and eliminating common Element CV joint symptoms (clicking on turns, vibration, grease leakage). With durable neoprene boots, moly grease, and precision engineering, it offers excellent value, long service life, and confident performance — whether you're commuting, hauling gear, or enjoying weekend adventures.
Fix that clicking noise and get your Honda Element back to smooth driving — order this front left CV axle today!
Brand: TRQ
Type: Front Left CV Axle Shaft Assembly
OE/OEM Part Number: 44306scva50, 44306scva51, 44306scva90, 44306scva91, 664213
Items Included: Nut
Manufacturer Part Number: CSA82376
