Key Features

• Designed for 1/4 Inch (6mm) Frameless Glass Doors – Slides directly onto 6mm thick frameless shower door glass with no tools, adhesives, or drilling required.

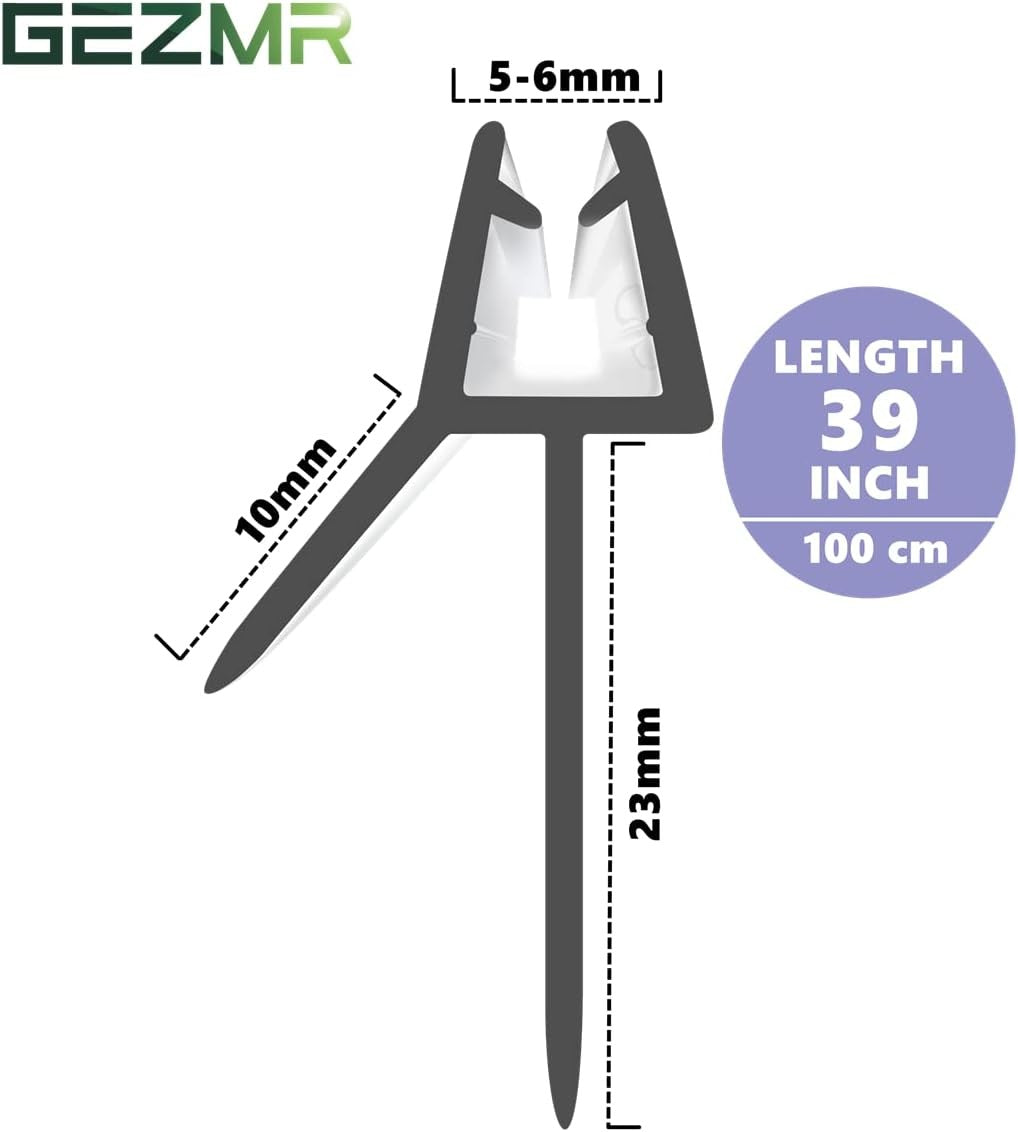

• Covers Gaps Up to 23mm – Flexible fins and integrated drip rail bridge the space between the door bottom and the shower floor, blocking water from escaping onto the bathroom floor.
• Clear Vinyl Construction – Transparent, durable vinyl material matches the appearance of frameless glass without discoloration, maintaining a clean, modern look.
• Soft Flexible Fins for Leak Prevention – Pliable fins bend to conform to uneven floor surfaces and seal smaller gaps effectively; the soft bottom edge can be trimmed for precise floor clearance.
• Integrated Drip Rail – Built-in drip rail channels water back into the shower enclosure, creating a continuous waterproof barrier along the full door width.

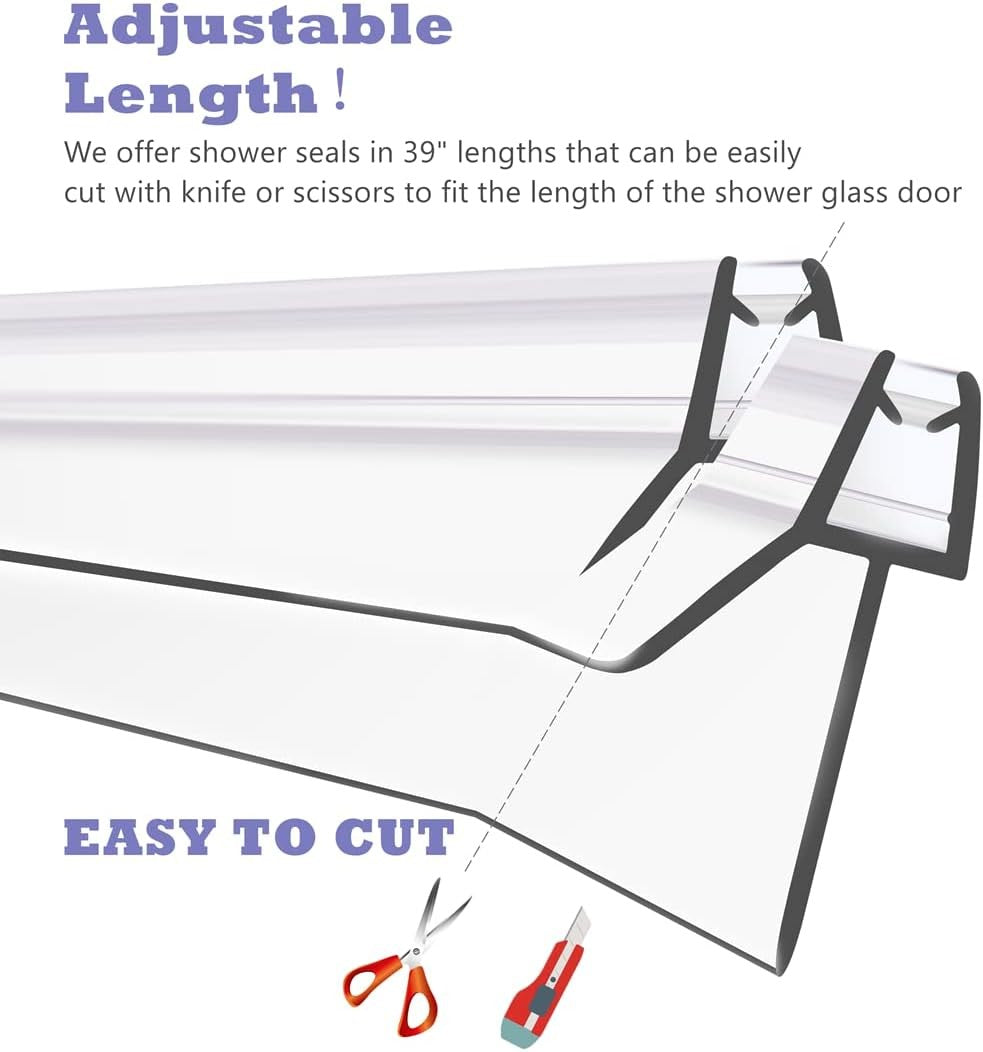

• Easy-Cut 39-Inch Length – Each strip measures 39 inches (approx. 6.5 feet total for the 2-pack) and can be trimmed to exact door width using scissors or a utility knife.
• Quiet, Smooth Door Operation – Vinyl material allows the door to open and close without scraping or noise against the shower floor.
• 2-Pack Value – Two strips included; suitable for a single door replacement with a spare, or for double-door frameless shower enclosures.
• Low-Maintenance Material – Clean periodically with mild soap and water; no abrasive cleaners needed to maintain performance and clarity.

Technical Specifications

Compatibility & Fitment

This GEZMR bottom seal is compatible with frameless glass shower doors that are 1/4 inch (6mm) thick. It is suitable for:

• Frameless shower enclosures with a bottom gap of up to 23mm between the door and the shower floor or threshold
• Single-panel frameless shower doors up to 39 inches wide (trim to fit shorter doors)
• Double-door frameless shower setups when both strips from the 2-pack are used
• Replacement of worn, cracked, or leaking existing bottom sweep seals on 6mm frameless glass doors

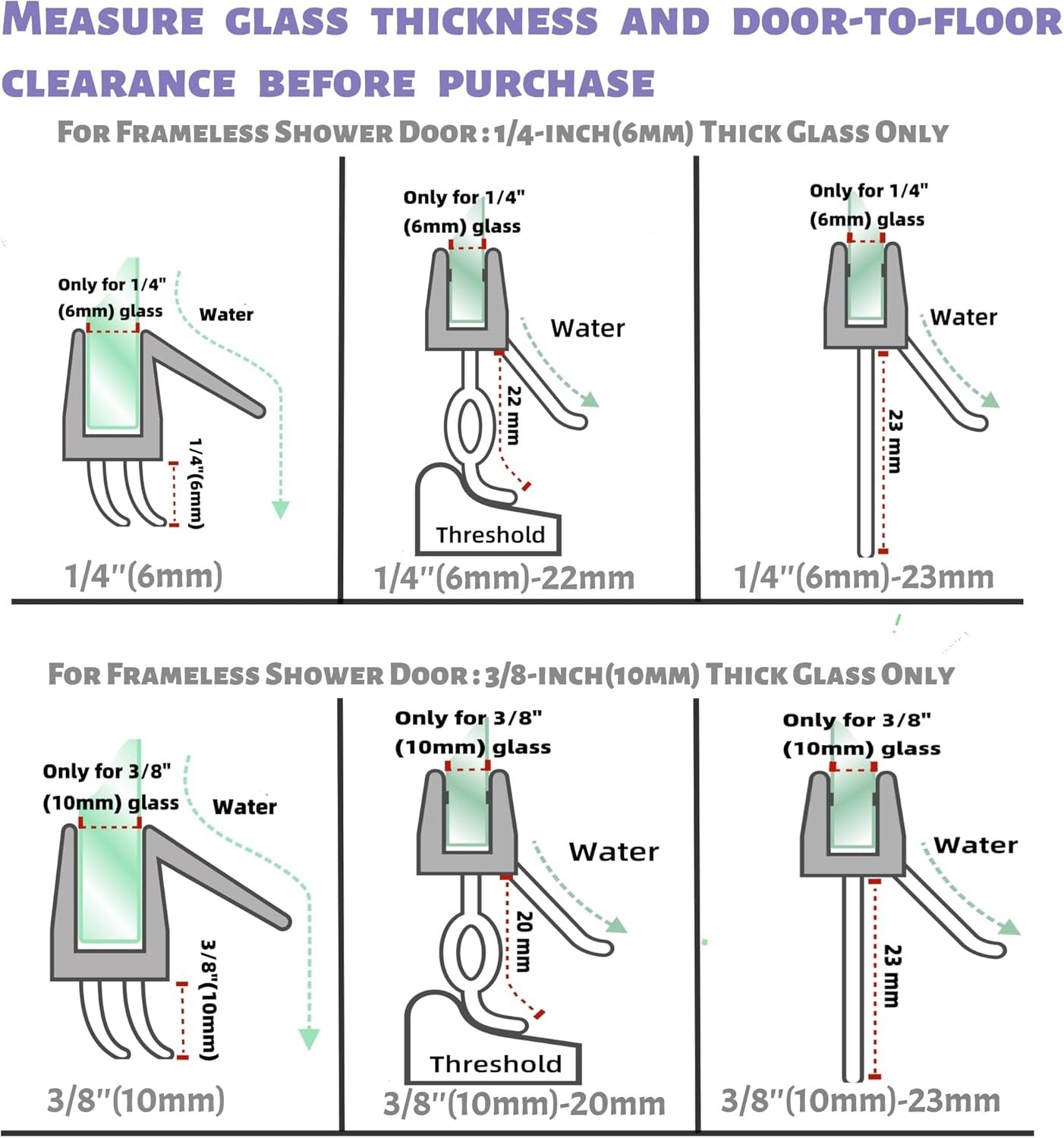

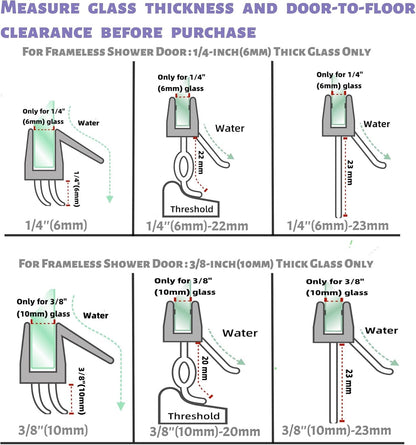

Note: This seal is designed specifically for 1/4 inch (6mm) glass thickness. Verify your door's glass thickness and bottom gap measurement before purchasing to ensure correct fit.

Installation Guide

1. Measure your shower glass door width, confirm glass thickness is 1/4 inch (6mm), and measure the bottom gap height from the door to the floor.
2. Cut each seal strip to the exact door width using scissors or a utility knife.
3. Clean the bottom edge of the glass thoroughly and wipe completely dry.
4. Starting at the hinge side, align the seal channel onto the glass bottom edge and press firmly upward until the seal is fully and evenly seated.
5. If needed, trim the soft flexible bottom fin to achieve the correct floor clearance for smooth door operation.
6. To maintain the seal, clean periodically with mild soap and water; avoid abrasive cleaners or harsh chemicals.

What Is Included

• 2 × GEZMR Clear Vinyl Frameless Shower Door Bottom Seal Strips (39 inches each)
