Fractal Design North XL E-ATX Gaming PC Case Black 3x140mm Fans

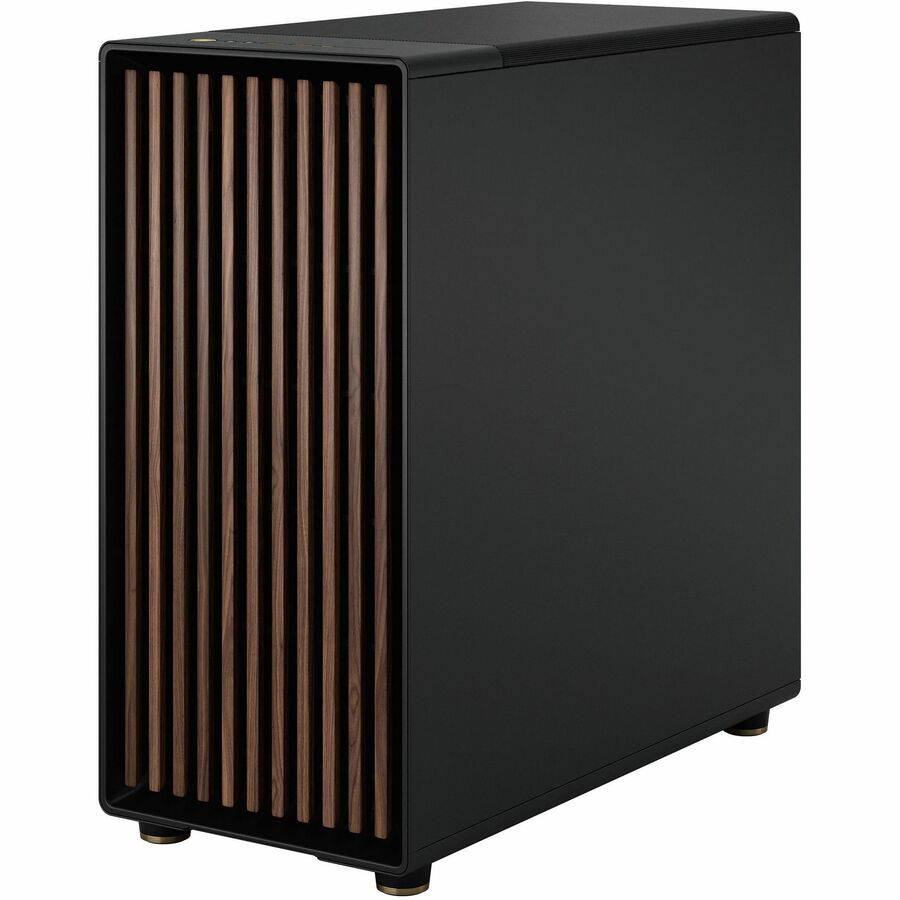

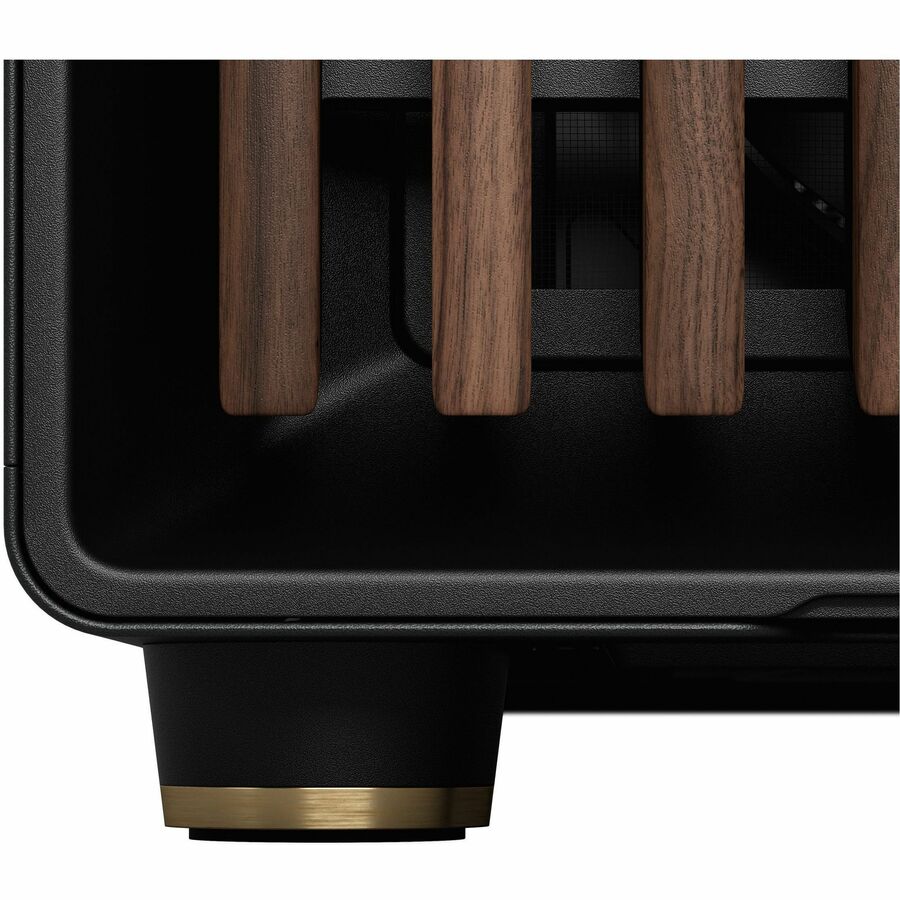

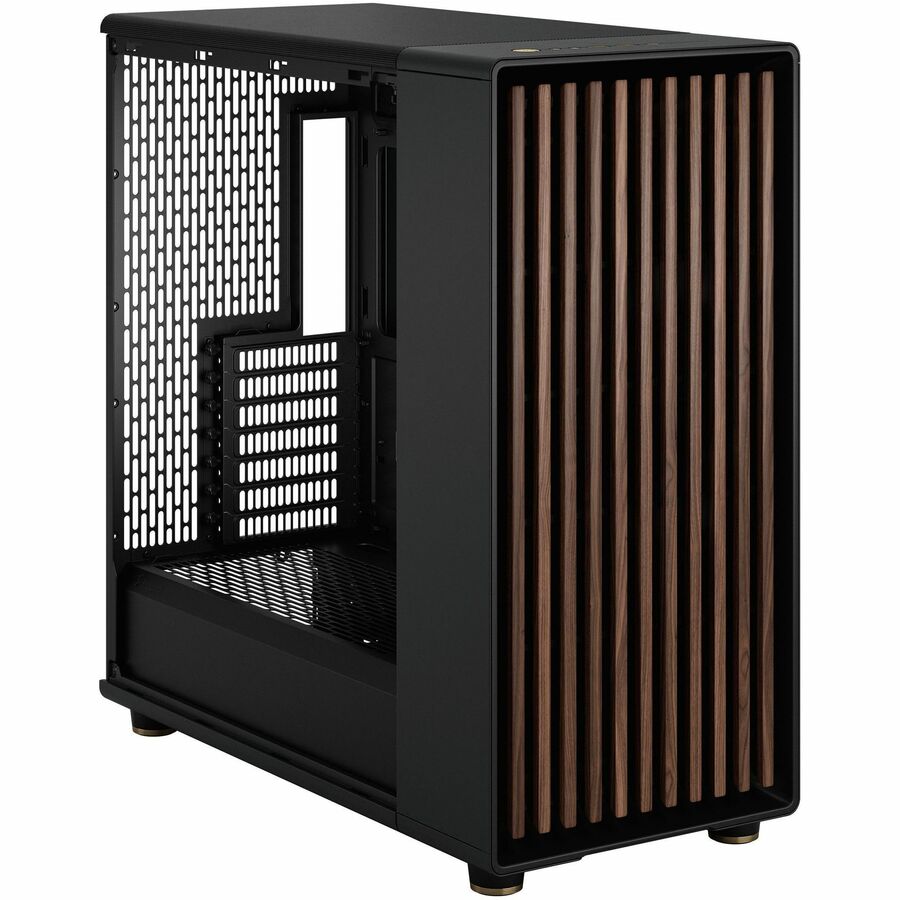

This is a Fractal Design North XL gaming computer case featuring a sophisticated natural design with FSC- oak front panel bars, faux leather tab, and sleek steel or brass details in Charcoal Black. It supports full E-ATX motherboards, includes three preinstalled Aspect 14 PWM 140mm fans, and offers extensive cooling options with front radiators up to 420mm and top up to 360mm. MPN: FD-C-NOR1X-02; UPC: 843276106546. Ideal for gamers and builders seeking a spacious, ventilated mid-tower chassis that blends into living spaces.
Premium Design and Gaming-Ready Features
- Natural Design Integration – FSC- oak front, faux leather tab, and premium materials for a sophisticated look that fits any living space.
- Gaming Ready Layout – Accommodates GPUs up to 413mm (or 380mm with 420mm front radiator) and full E-ATX motherboards for high-end builds.
- Extended Cooling Support – Front radiators up to 420mm, top up to 360mm; preinstalled with three Aspect 14 PWM 140mm fans, expandable to eight 140mm or nine 120mm fans.

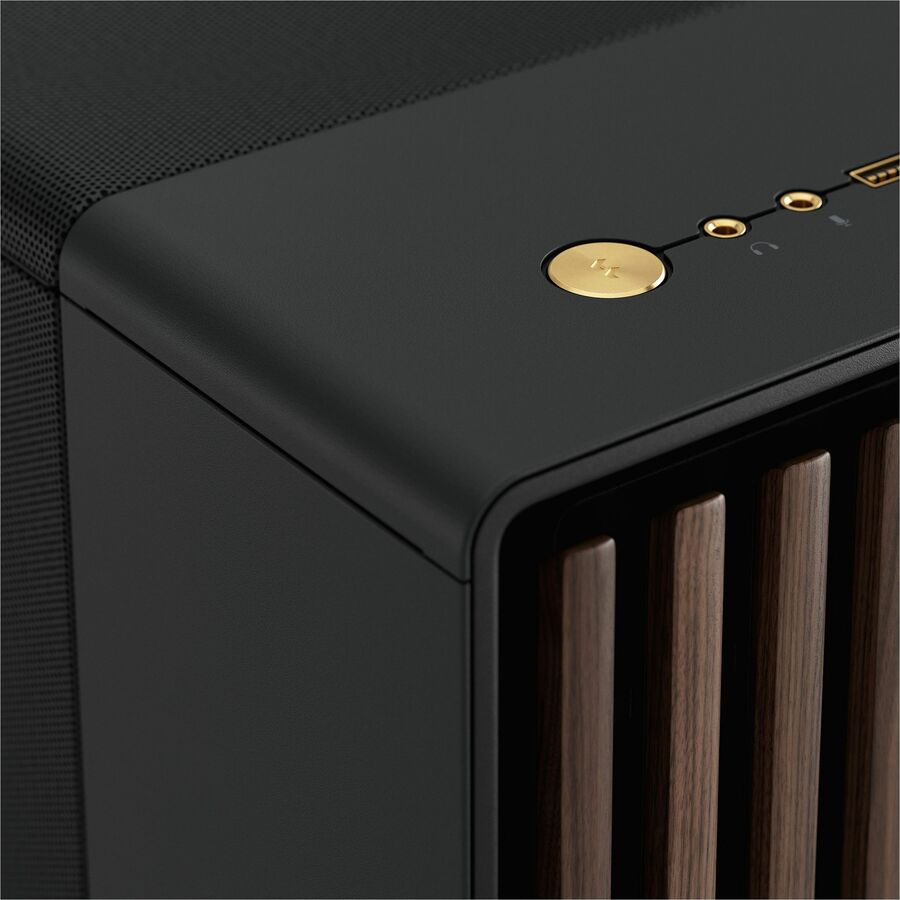

- Type-C Connectivity – Three front USB ports: one USB 3.2 Gen 2x2 Type-C (up to 20Gbps), two USB 3.0; plus audio in/out and microphone support.

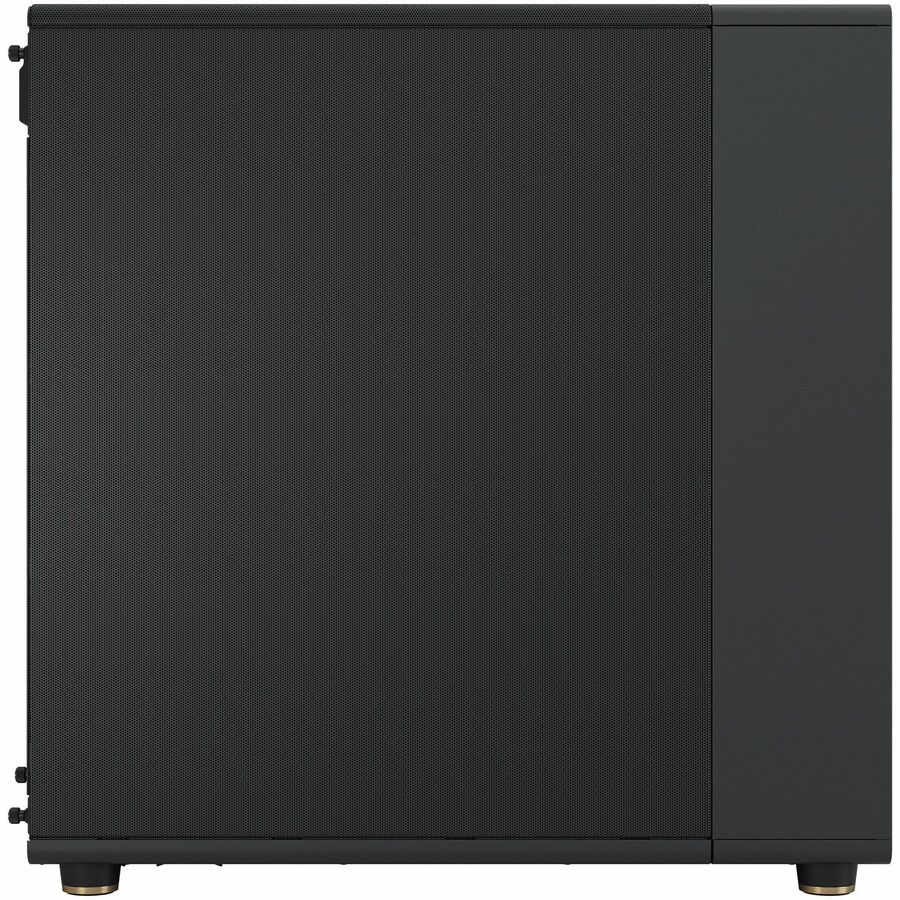

- Ventilated Performance – Open front and integrated mesh top panel for natural airflow; this model includes a tempered glass side panel.
- Dust Filters – Integrated filters on front, top, and bottom for clean internals.
Build Versatility and Easy Access

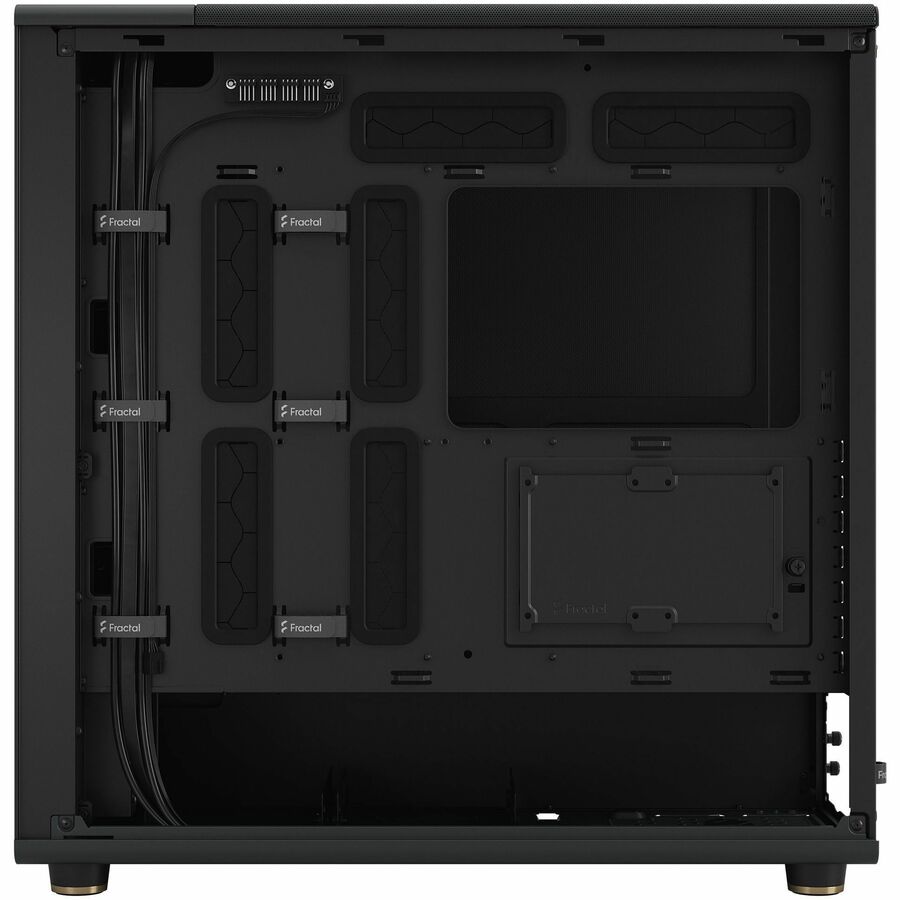

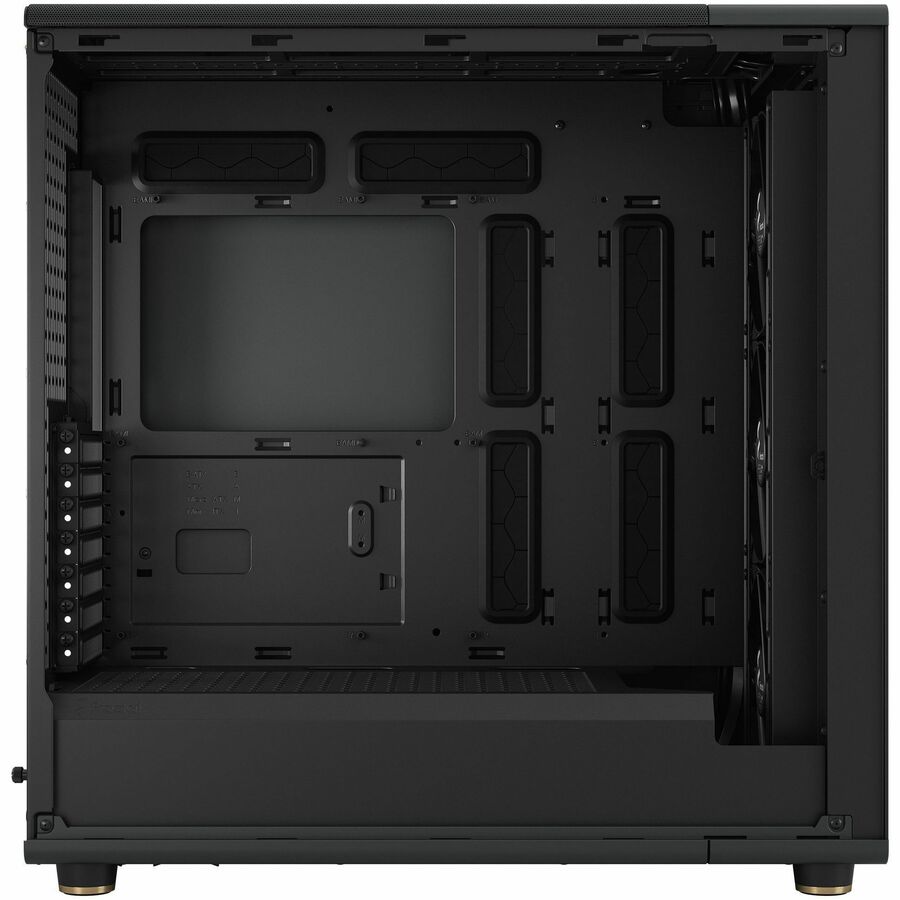

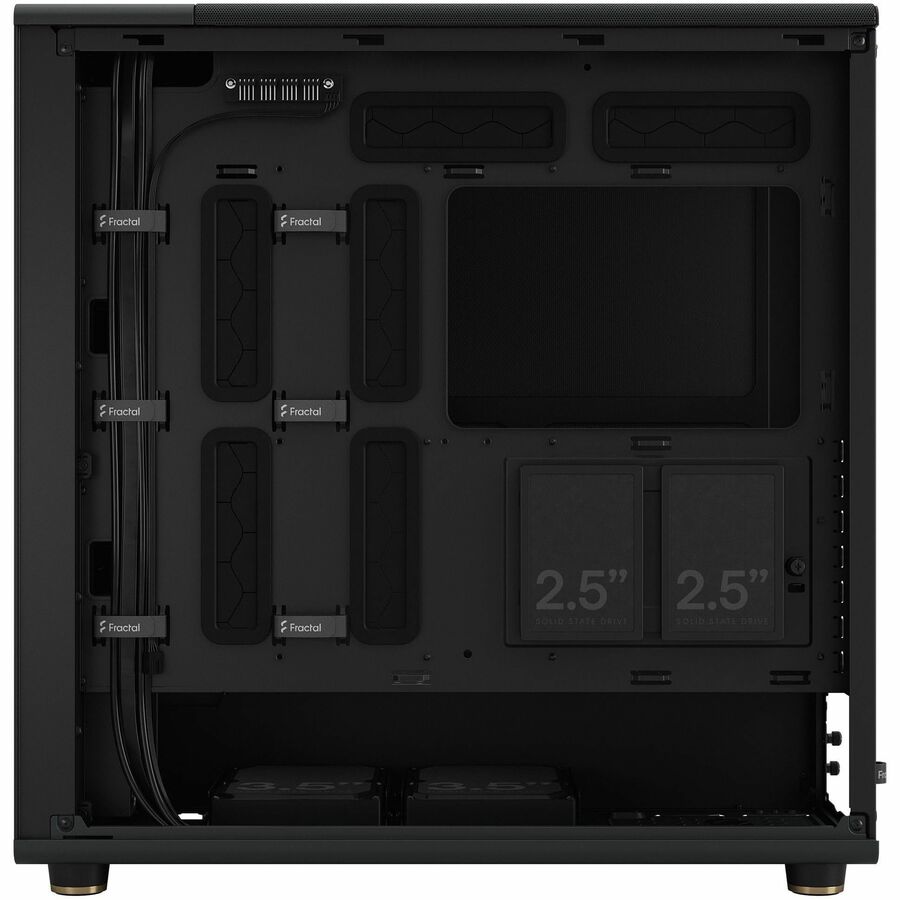

- Intuitive Interior – Supports E-ATX/ATX/mATX/mITX motherboards with 7 expansion slots; 2x dedicated 2.5" bays and 2x combo 2.5"/3.5" bays.

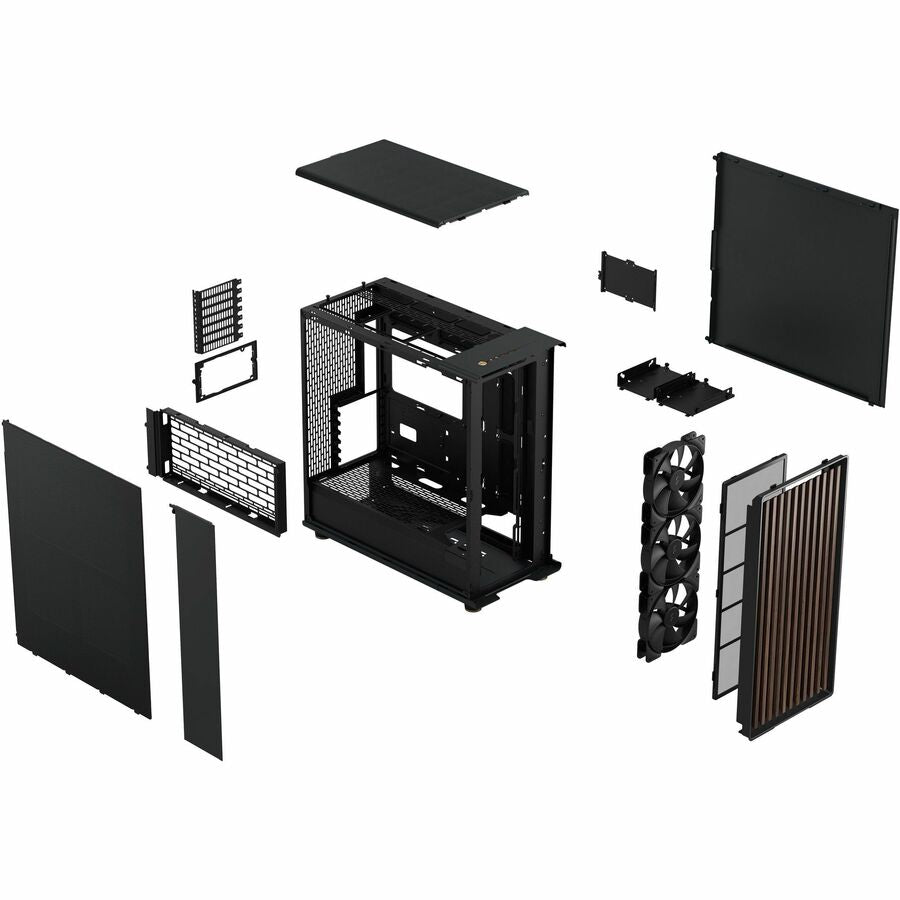

- Tool-Free Access – Remove side panels easily, unclip front, and pop off top panel via integrated tab for straightforward building.
- Generous Clearances – CPU cooler up to 185mm (7.28"), PSU up to 290mm (11.42"), GPU up to 413mm (16.26").
- Naturally Unique Finish – Wood accents from FSC- oak combined with steel, tempered glass, alloy, and faux leather.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Fractal Design |
| Brand Name | Fractal Design |
| Product Line | North XL |
| Product Name | North XL |
| Manufacturer Part Number | FD-C-NOR1X-02 |
| UPC | 843276106546 |
| Product Type | Gaming Computer Case |
| Color Family | Black |
| Product Color | Charcoal Black |
| Product Material | Steel, Tempered Glass, Wood (FSC- oak), Alloy, Faux Leather |
| Motherboard Supported | E-ATX, ATX, Micro ATX, Mini ITX |
| Total Number of Expansion Slots | 7 |
| Number of Fans Installed | 3 |
| Installed Fan Size Details | 3 x 140mm Aspect 14 PWM |
| Fan Size Supported | 120mm (4.72"), 140mm (5.51") |
| Number of Fans Supported | 6 (expandable to 8x140mm or 9x120mm positions) |
| Features | Dust Filter |
| Number of Internal 2.5" Bays | 2 |
| Number of Internal 2.5"/3.5" Bays | 2 |
| Total Number of USB Ports | 3 |
| USB Port Details | 2 x USB 3.0, 1 x USB 3.2 Gen 2x2 Type-C (20Gbps) |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| Microphone | Yes |
| Maximum CPU Cooler Height | 7.28" (185mm) |
| Maximum GPU Length | 16.26" (413mm) |
| Maximum PSU Length | 11.42" (290mm) |
| Height | 20" (508mm) |
| Width | 9.4" (240mm) |
| Depth | 19.8" (503mm) |
| Weight (Approximate) | 20.94 lb (9.5 kg) |
| Package Contents | North XL, Accessory Box, User Manual, Warranty |
Build your ultimate gaming PC with the Fractal Design North XL—Order now!
Brand: Fractal Design
Color: Black
MPN: FD-C-NOR1X-02
Case Material: Steel
Form Factor: Extended ATX
Case Type: Gaming Case
Number of 3.5 in Drive Bays: 2
Model: North XL
Front Ports: Audio
UPC: 843276106546
