Eaton Tripp Lite SmartRack SRWO8U22DP 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack
This is the Eaton Tripp Lite Series SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack, model SRWO8U22DP. Designed for secure IT environments with limited floor space, it accommodates UPS systems, battery packs, power cords, network switches, patch panels, and cabling. Compatible with EIA-standard 19-inch rack equipment supporting two-post mounting up to 23.5 inches deep. MPN: SRWO8U22DP; UPC: 037332187420.
Key Features & Applications

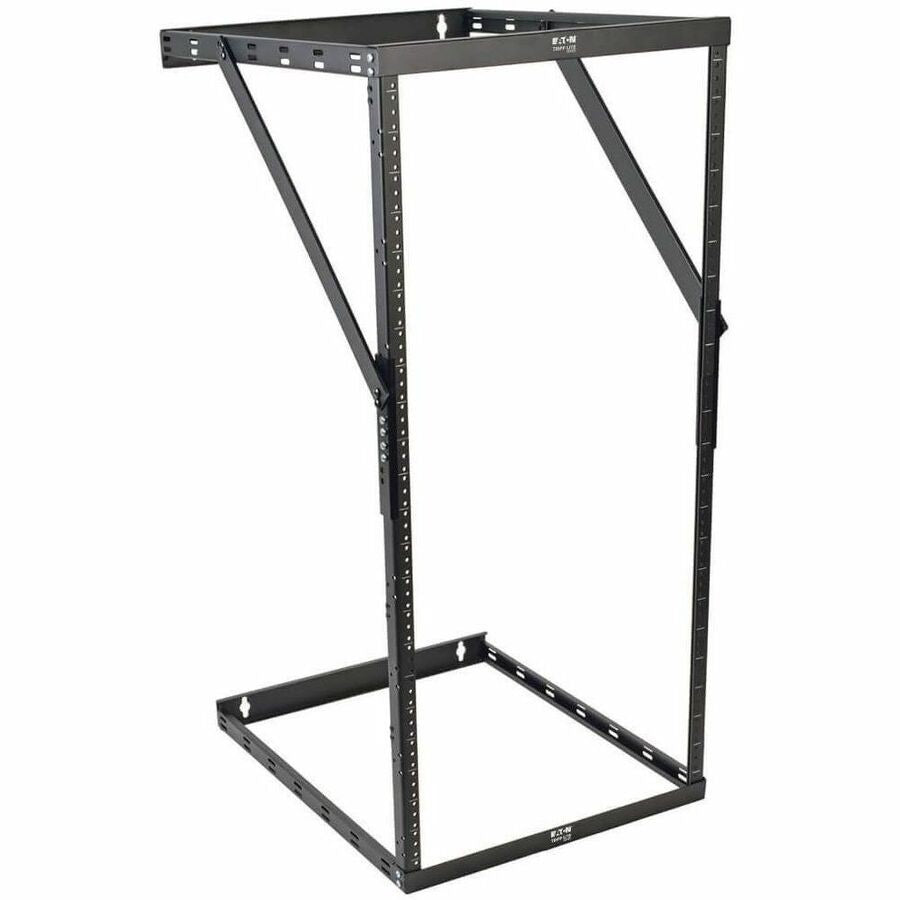

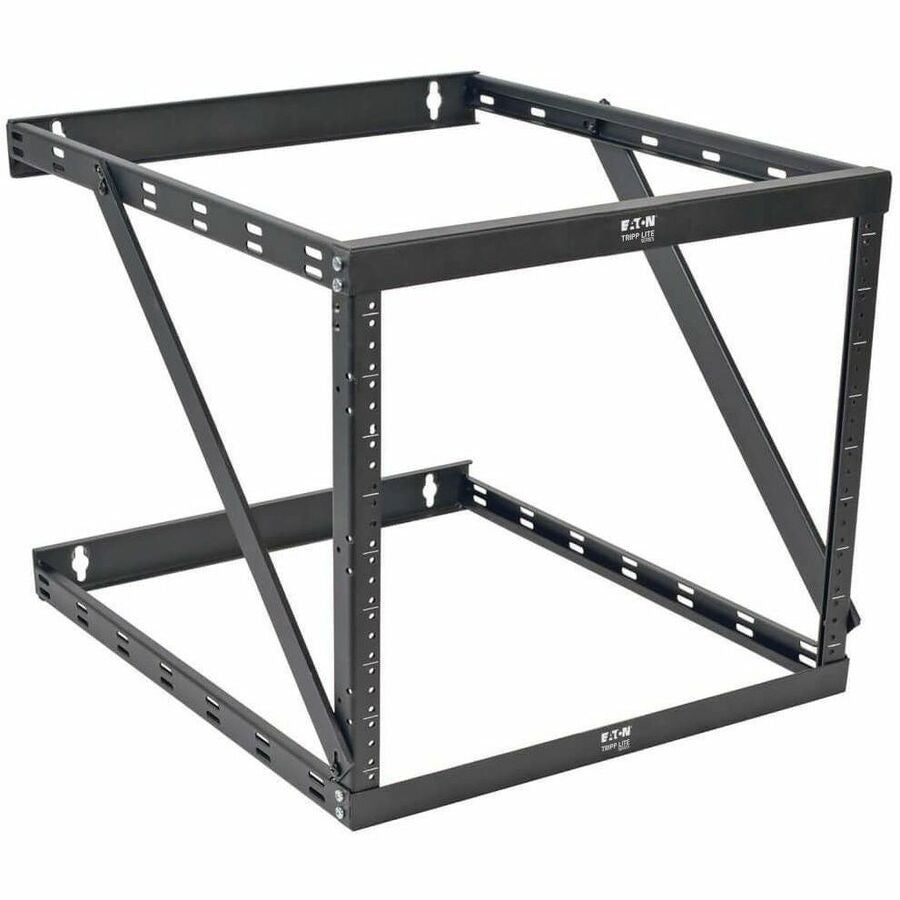

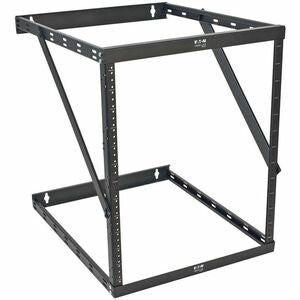

- Expandable Configuration – Assemble in 8U, 12U, or 22U heights to match current needs with room for growth.
- Versatile Mounting – Wall-mountable or floor-standing for flexible installation in tight spaces.
- Heavy-Duty Construction – Steel frame with black powder-coated finish supports up to 150 lb static load.
- Open-Frame Design – Provides fast access to components and cabling for efficient organization, installation, and servicing.
- Standard Compatibility – Fits 19-inch EIA equipment with two-post mounting; vertical rails feature threaded 12-24 holes.
- Ideal for IT Storage – Optimized for UPS systems, LAN switches, patch panels, battery packs, and related cabling.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRWO8U22DP |
| Product Name | SmartRack SRWO8U22DP Rack Frame |
| Product Type | Rack Frame |
| Application/Usage | UPS, Patch Panel, LAN Switch |
| Form Factor | Wall Mountable |
| Product Color | Black Powder Coat |
| Product Material | Steel |
| Maximum Weight Capacity | 150 lb |
| Height | 42.3" |
| Width | 20.1" |
| Depth | 24" |
| Weight (Approximate) | 16.87 lb |
| Rack Height | 22U (Expandable: 8U/12U/22U) |
| Rack Width | 19" |
| Rack Depth | 23.50" |
| MPN | SRWO8U22DP |
| UPC | 037332187420 |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Assembly Required | Yes |
Package Contents
- SmartRack SRWO8U22DP Rack Frame
- 24 x 12-24 equipment mounting screws
- 16 x M5 button-head cap screws
- 8 x M6 x 12 Phillips-head screws
- 2 x Short vertical mounting rails
- 2 x Long vertical mounting rails
- 2 x Mounting rail tie plates
- 2 x Metal support straps
- 2 x Top/bottom panel frames
- 8 x Zip ties
- 3 mm L-shaped hex key
- Owner's manual
Assembly & Installation Guide
Easy assembly using included hardware and tools. Pro tip: Assemble on a flat surface for stability; use the hex key for secure fastening.
- Attach short and long vertical mounting rails using tie plates and screws.
- Secure top/bottom panel frames and support straps to configure 8U, 12U, or 22U height.
- Mount to wall or place on floor per site requirements.
- Install equipment using 12-24 screws on threaded rails.
- Use zip ties for cable management.
Why Choose Eaton Tripp Lite SmartRack SRWO8U22DP
This rack delivers space-efficient storage with expandable capacity, robust steel construction, and straightforward access for IT maintenance in constrained areas.
