Advanced Features and Protection

• Cloud-Connected Remote Monitoring – Powered by Brightlayer; scan QR code for mobile app setup, receive alerts, control load banks remotely via app or web, NFC for instant network config.

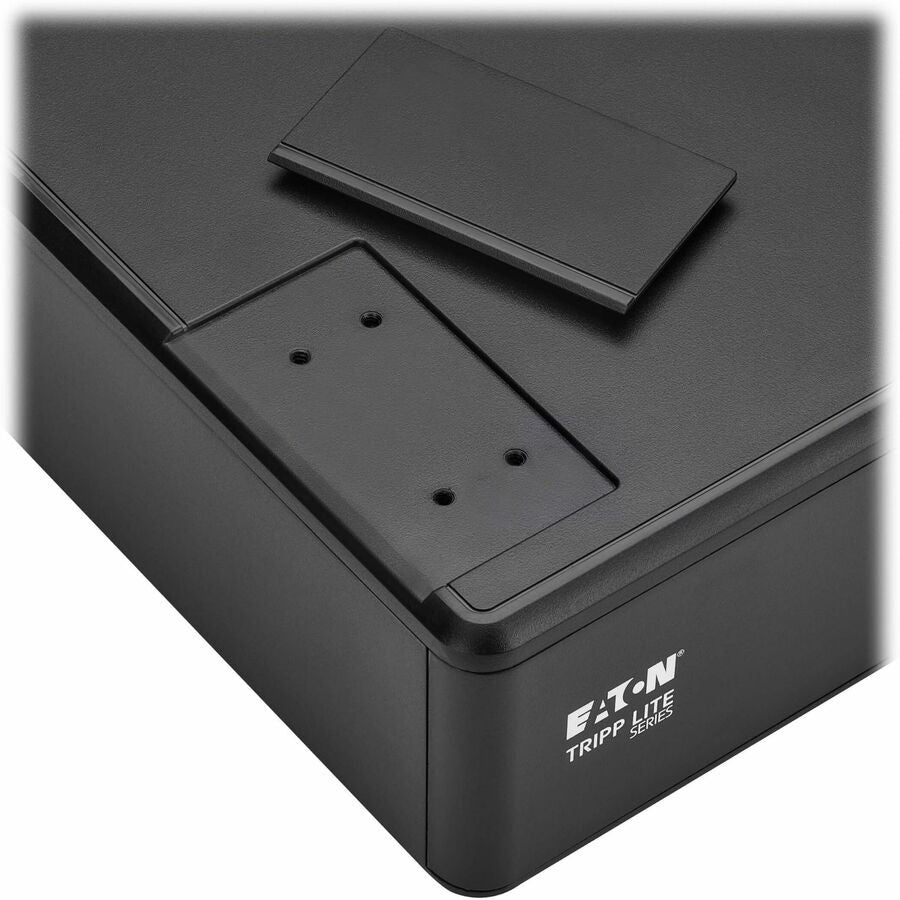

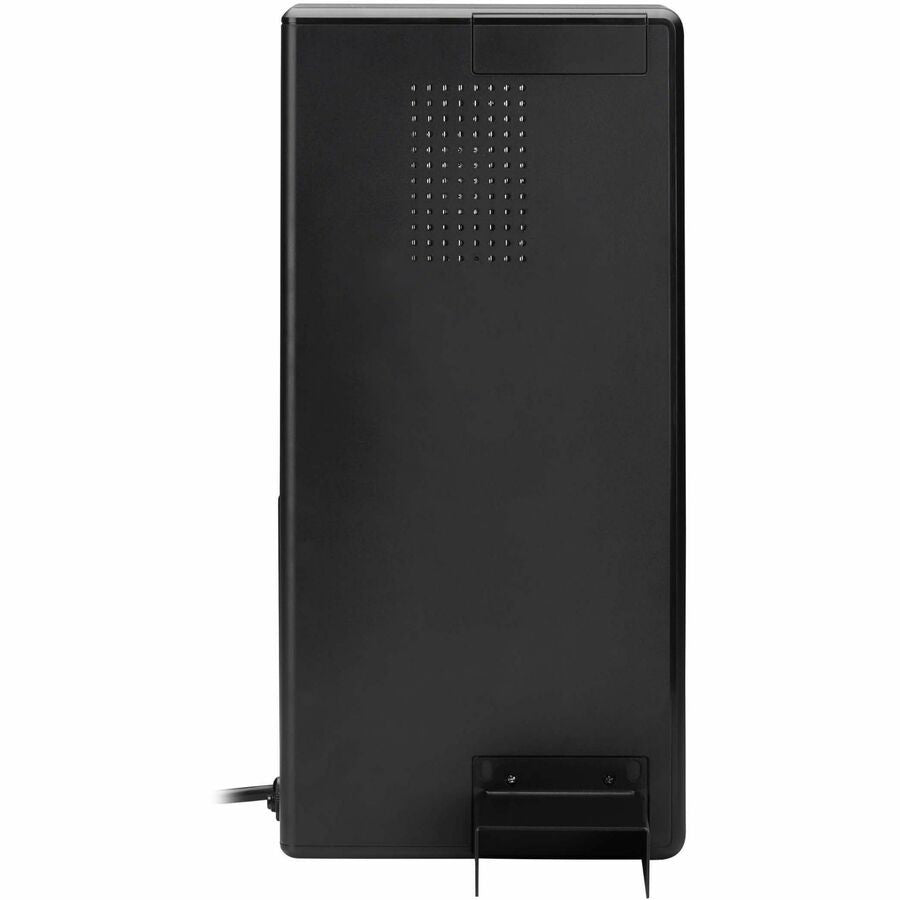

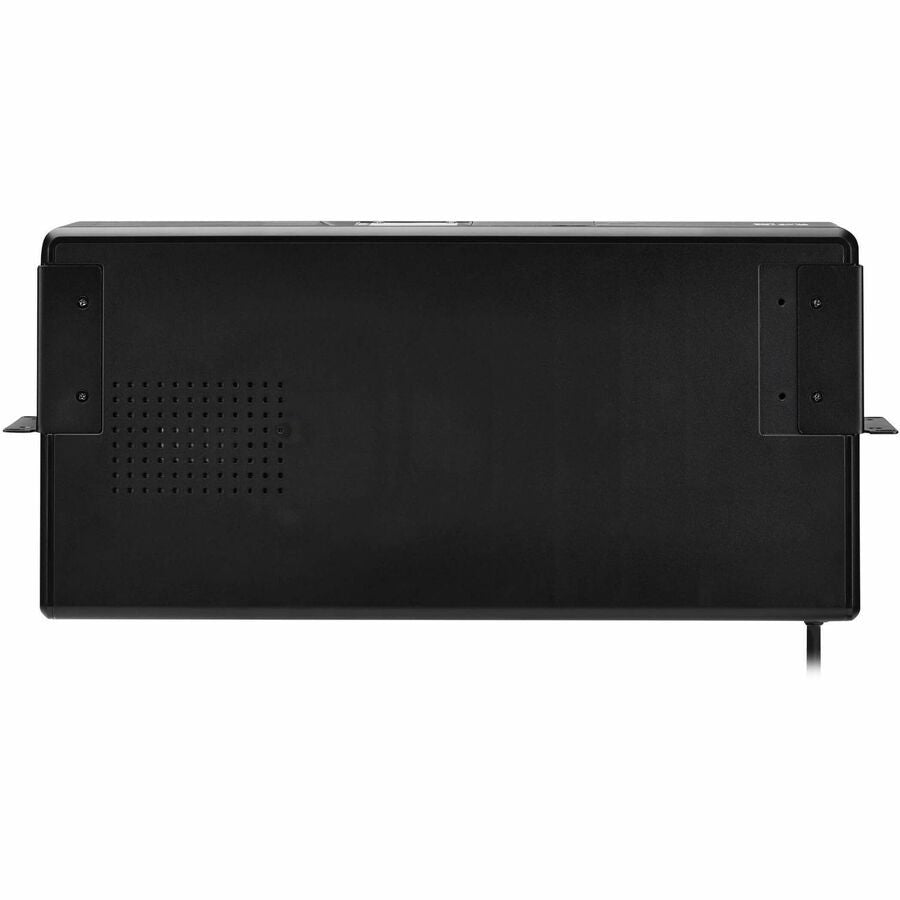

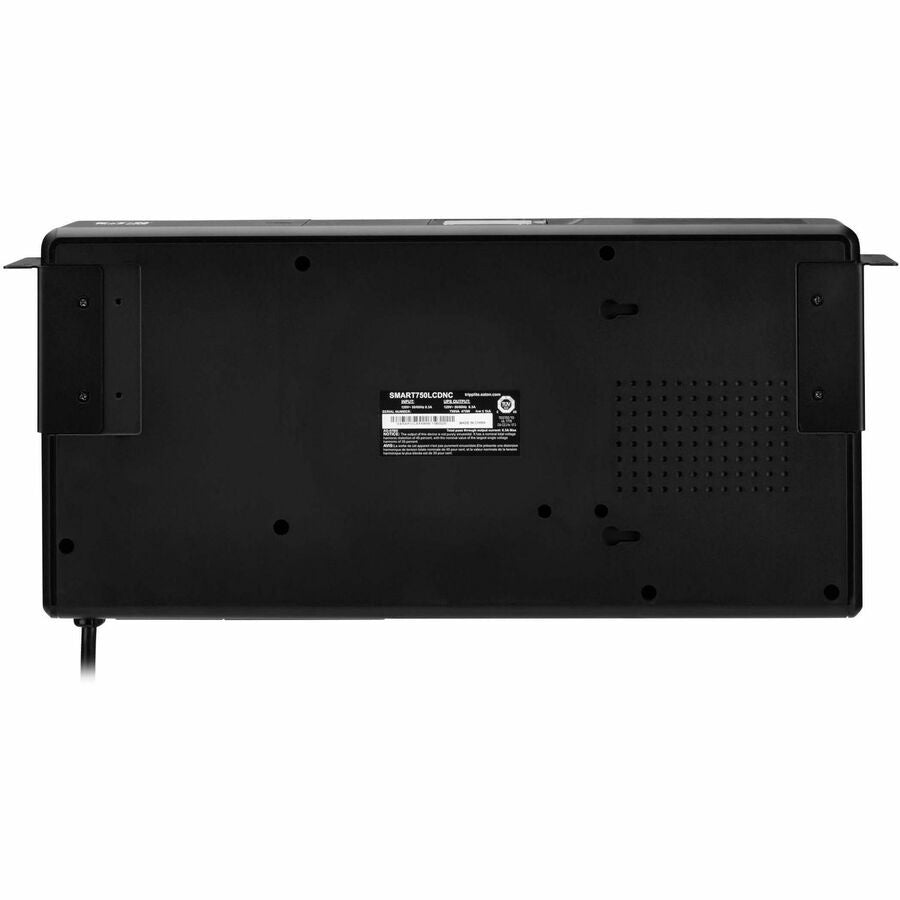

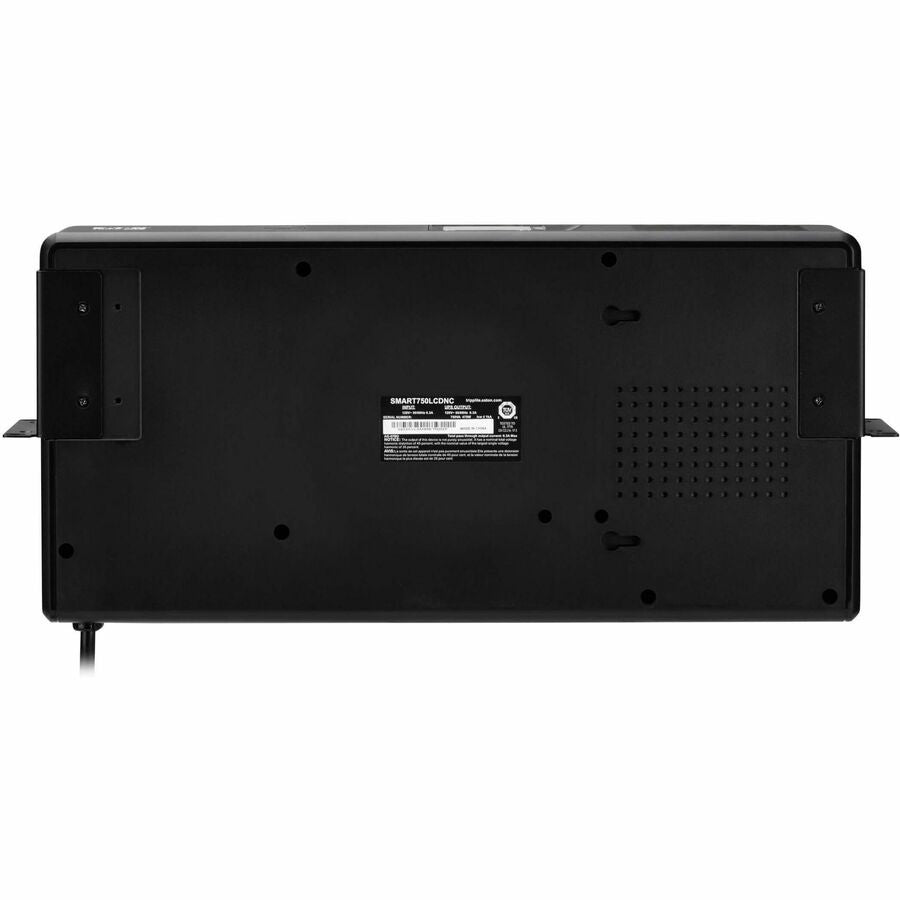

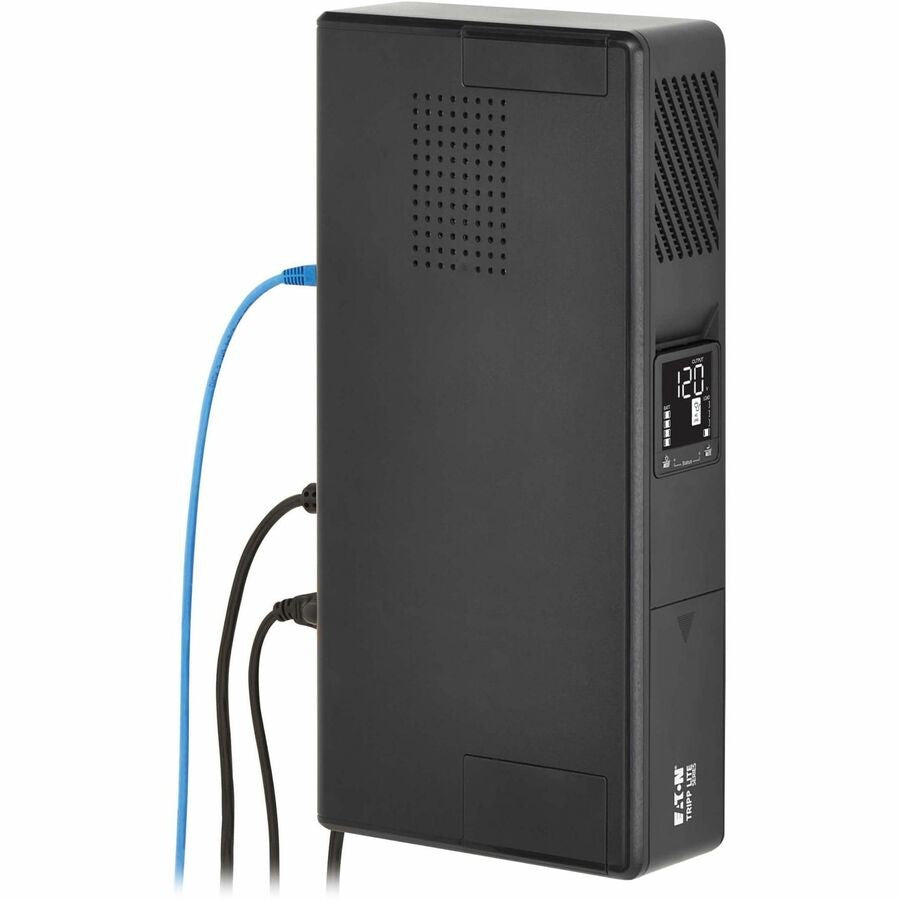

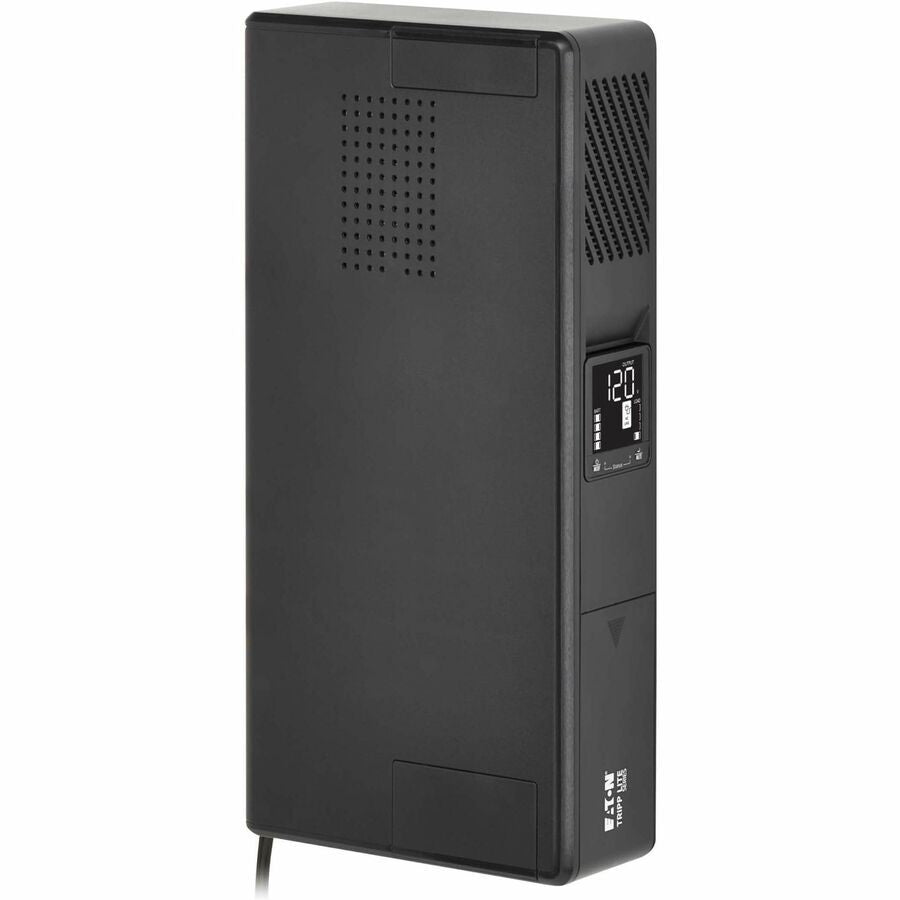

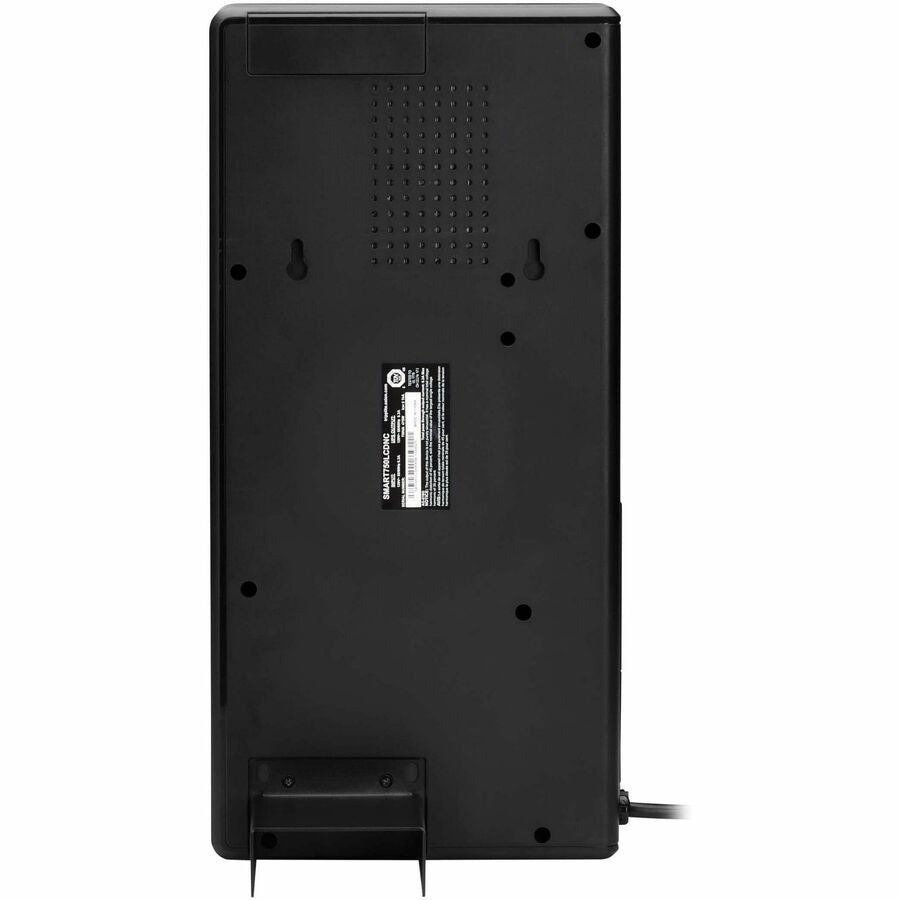

• Flexible Form Factor – Desktop, tower, wall-mount, or 2U rack installation in 2-post/4-post racks; ideal for home, office, retail, network closets.

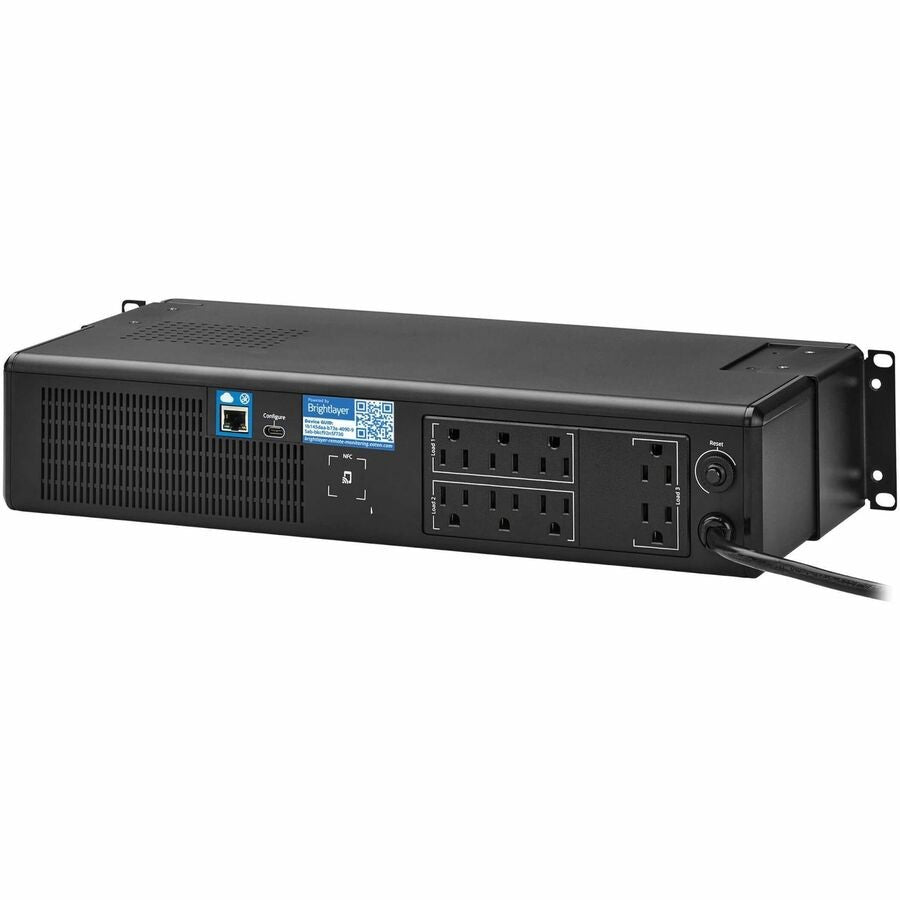

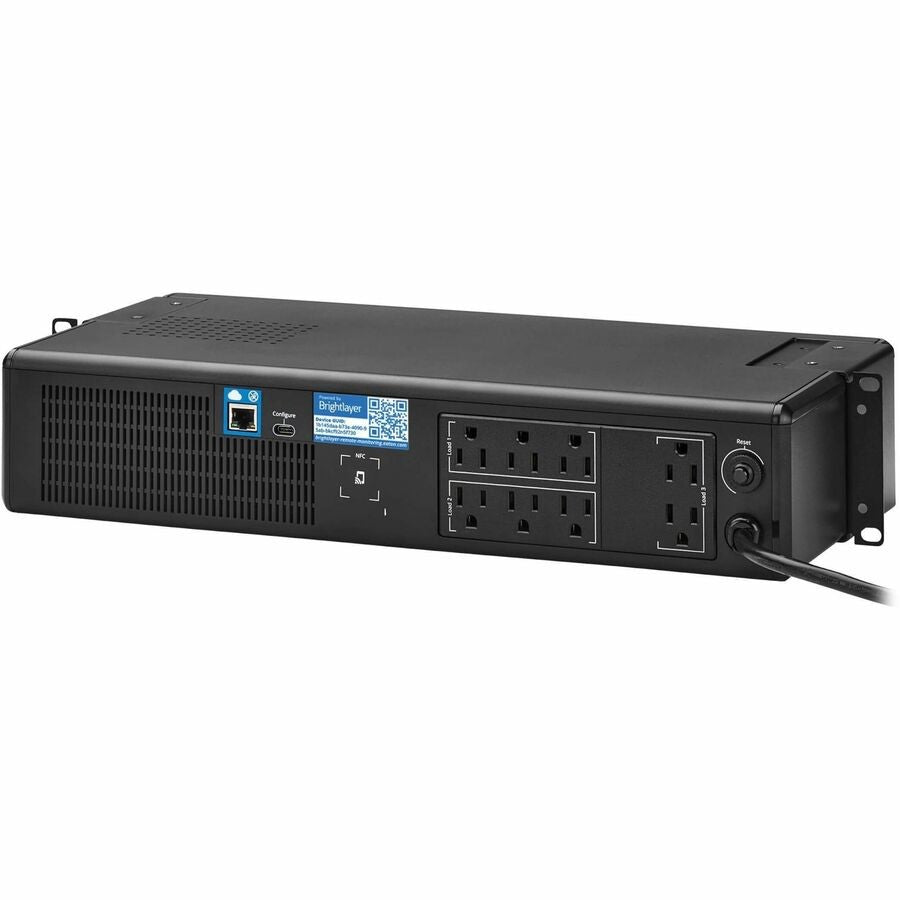

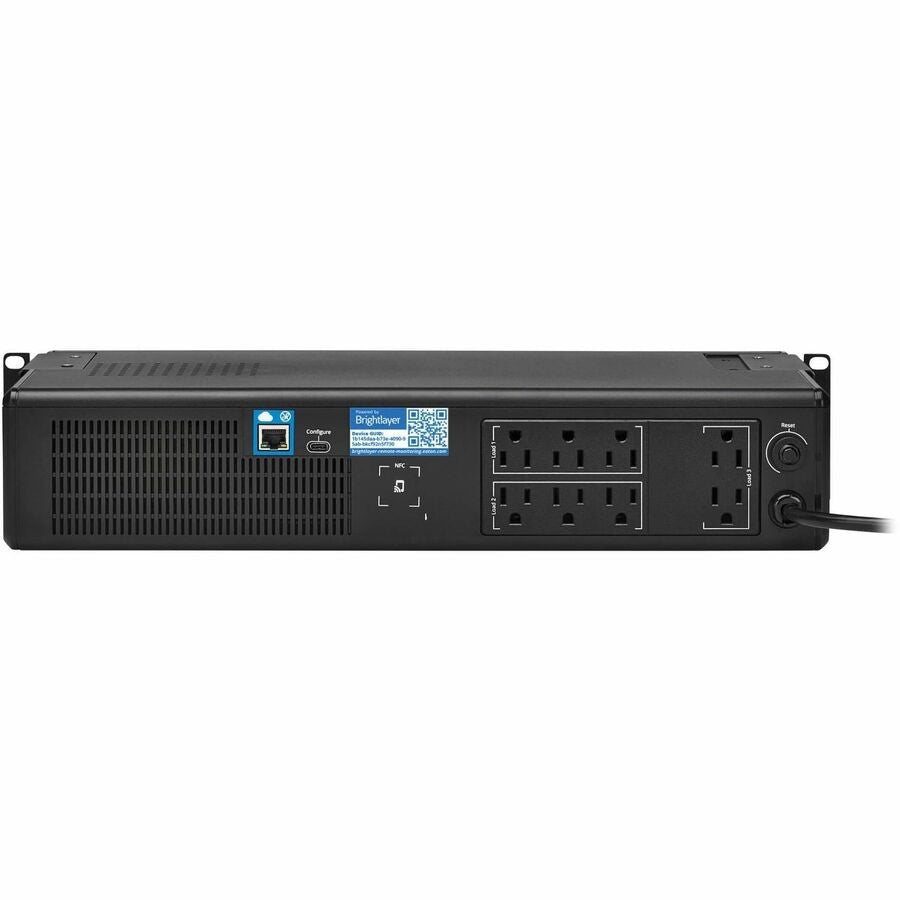

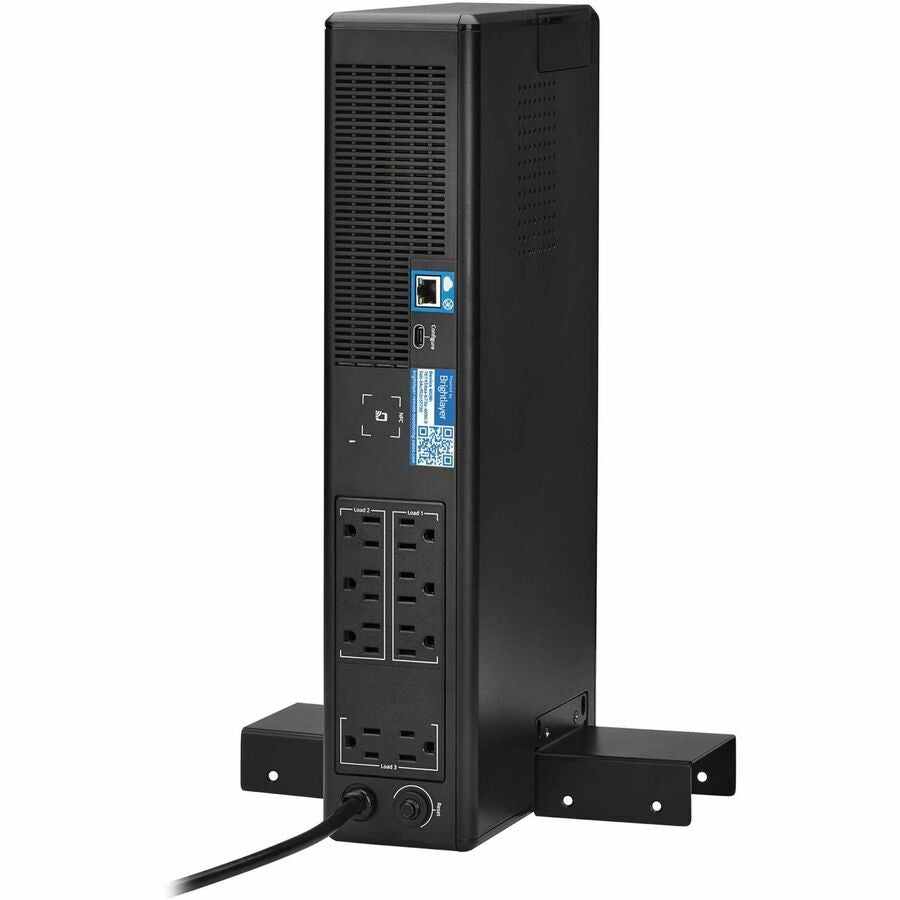

• 8 NEMA 5-15R Outlets – Battery backup and surge protection; three switchable load banks controllable remotely.
• Automatic Voltage Regulation (AVR) – Corrects brownouts to 97V and overvoltages to 145V; Boost +18%/Buck -15% range, keeps battery charged.

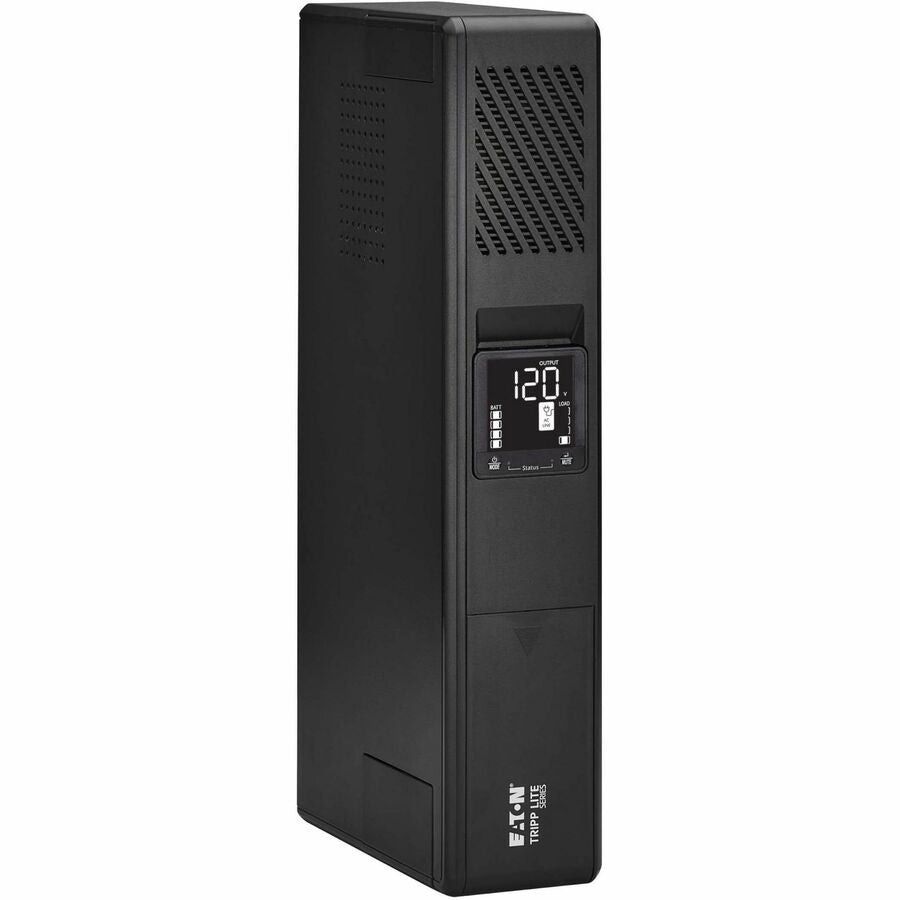

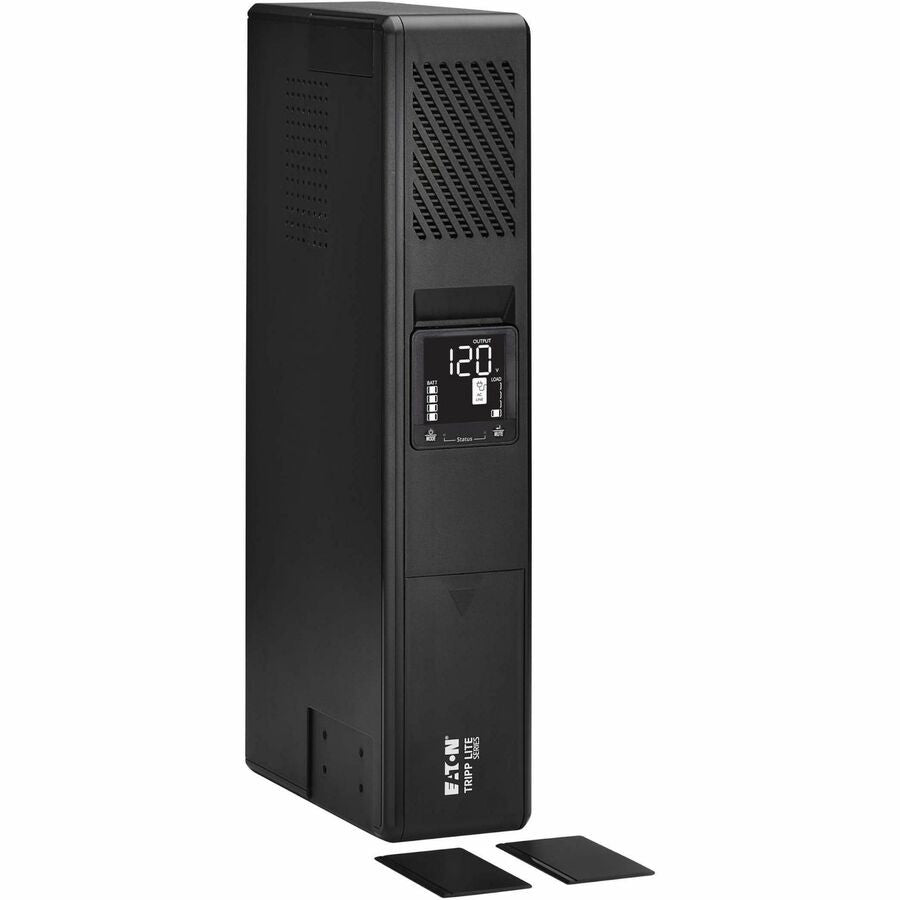

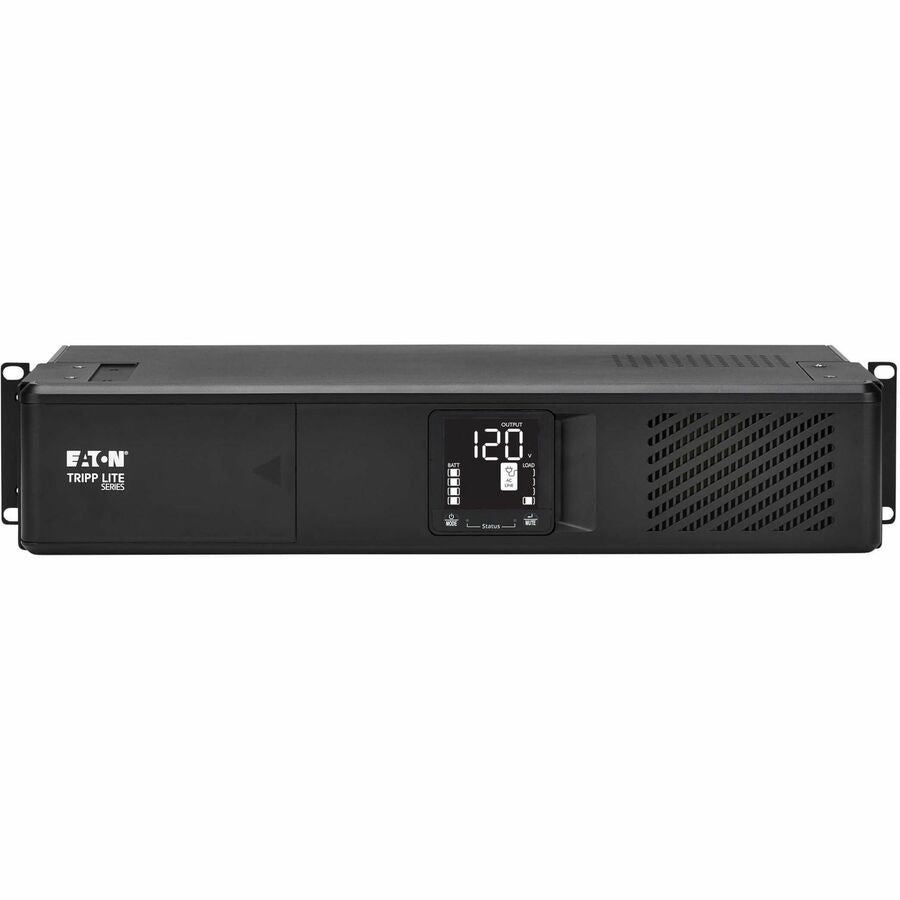

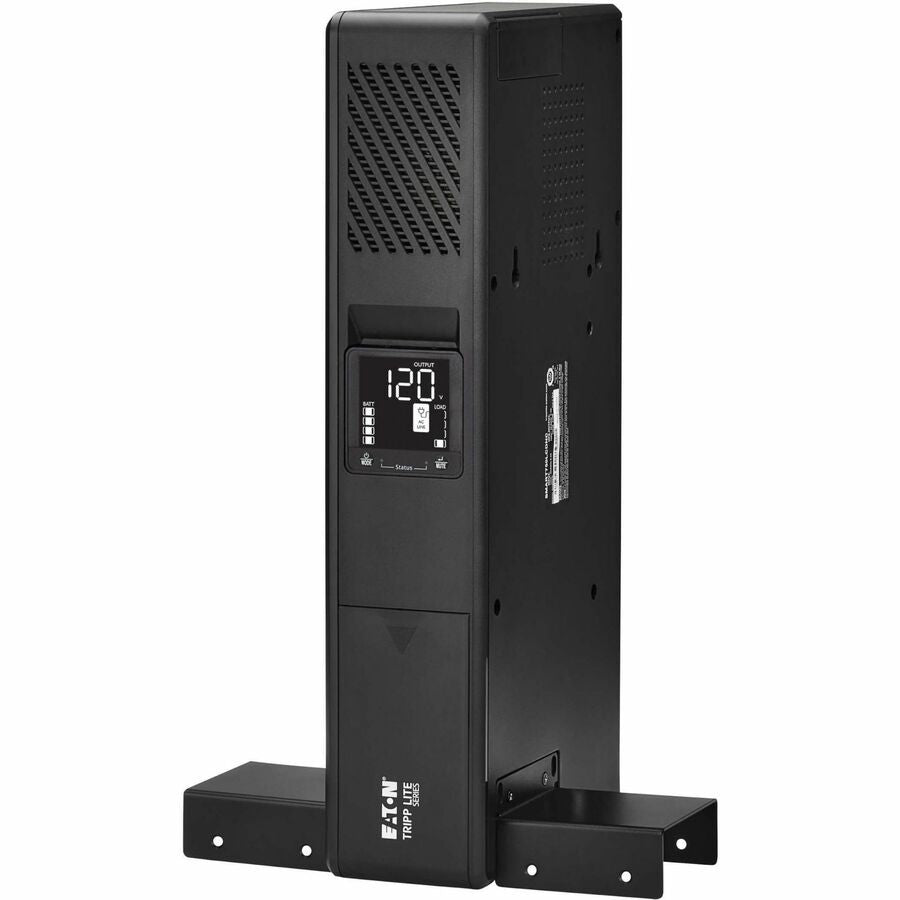

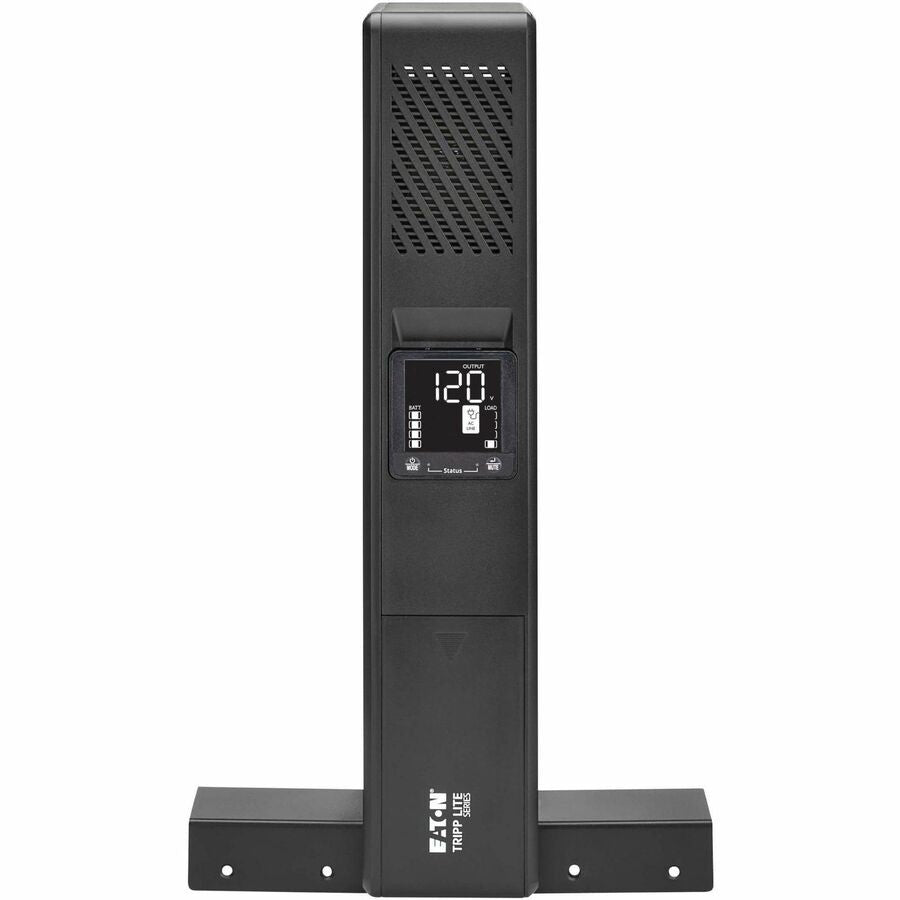

• Intuitive LCD and LEDs – Displays UPS status, voltages, runtime, load, battery level; audible alarm for outages/low battery/faults, silencable.
• User-Replaceable Battery – Self-test capability, resettable circuit breaker; cold start function, EMI/RFI noise filter.
• High Efficiency – Greater than 95% (98% AC mode), GREEN UPS; single phase, 10ms transfer time.

Comprehensive Technical Specifications

Monitoring, Alarms, and Maintenance

• LCD Display Details – UPS status, input/output voltage, estimated runtime, output load percentage/wattage, battery voltage/charge (4-bar graphical), load level (4-bar), AC powered/battery operation, alarm status.
• LED Indicators – AC operation, battery charging, UPS fault.
• Alarms – Power failure, low battery; silencable via LCD/app.
• Network Management – Network card via RJ45; USB-C for CLI config.
• Preventative Maintenance – Self-test, user-replaceable battery, resettable circuit breaker.

Package Contents and Applications

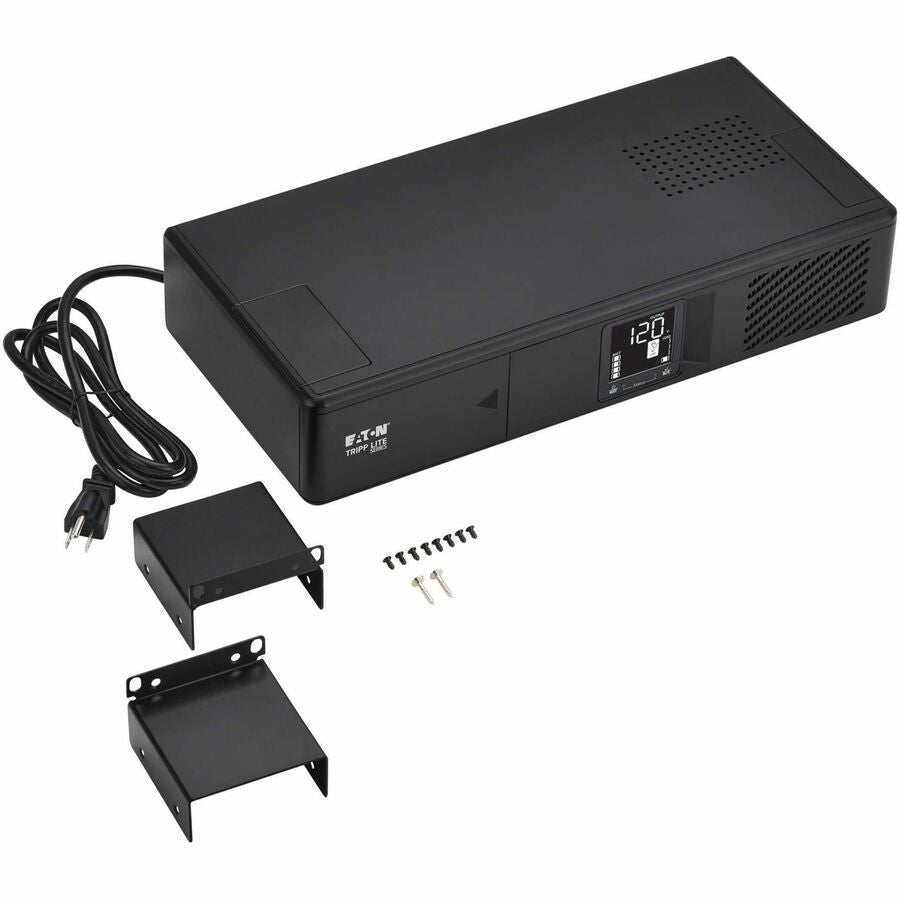

• SMART750LCDNC 750VA Desktop/Tower/Rack UPS
• Mounting Hardware
• Quick Start Guide

Application/Usage: Retail POS, Hospital, Home, Office, Desktop, High-end System, Network, Home Network, Server, Workstation, Computer, Monitor, CCTV Camera, Router, Network Switch, Electronic Device.
