Eaton Tripp Lite SMART500RT1U 500VA 300W UPS 1U Rack/Tower
Eaton Tripp Lite SMART500RT1U 500VA 300W UPS 1U Rack/Tower
Low stock: 5 left
Save 25%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Eaton Tripp Lite SMART500RT1U 500VA 300W UPS 1U Rack/Tower
This is a Eaton Tripp Lite Series 500VA 300W 120V Line-Interactive UPS with 6 NEMA 5-15R outlets, USB and DB9 ports, network card option, and 1U rack/tower form factor. The SmartPro SMART500RT1U provides battery backup, AVR protection against blackouts, brownouts, surges, and line noise for PC networks, security systems, digital signage, point-of-sale, VoIP, and rack-mount equipment. MPN: SMART500RT1U; UPC: 037332119247.
Key Features of Eaton Tripp Lite SMART500RT1U UPS
- Line-Interactive Design with AVR – Maintains 120V output during brownouts to 90V; keeps batteries charged for seamless failover.
- Battery Backup Runtime – Up to 14.60 minutes at half load (150W), 3.20 minutes at full load (300W); field-replaceable, hot-swappable lead acid batteries recharge in 4 hours.

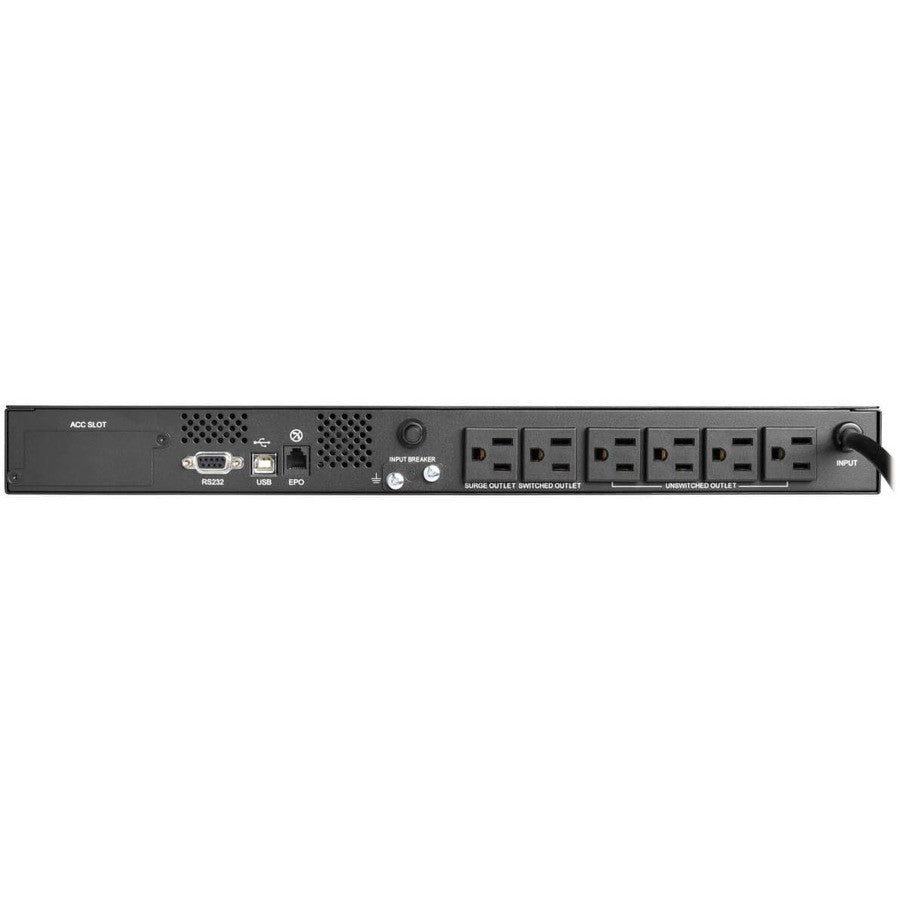

- 6 NEMA 5-15R Outlets – 5 UPS battery-backed with one switchable outlet for remote reboot/load shedding; one surge-only outlet; 480J surge protection.
- Connectivity Options – USB, DB9 serial ports for PowerAlert software monitoring; optional WEBCARDLXE for SNMP, web, email alerts; supports up to 3 devices simultaneously.

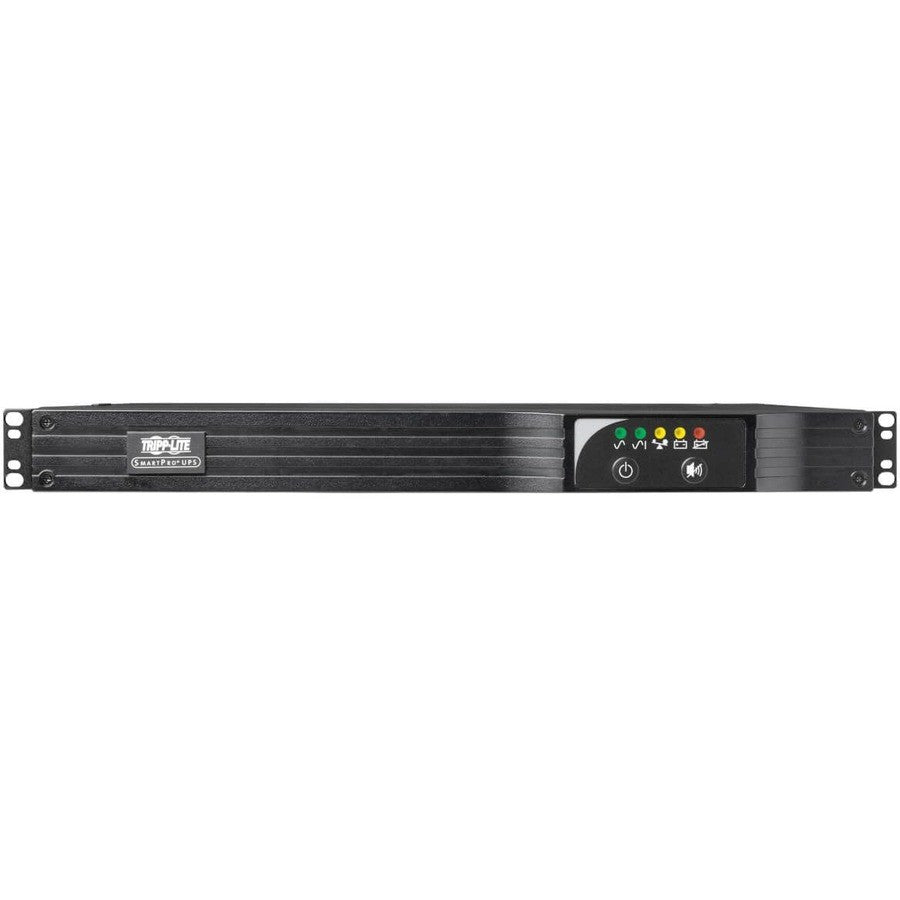

- Monitoring and Alarms – 5 front-panel LEDs for power, battery charge, load level, warnings; multi-function audible alarms for battery, overload, fault.
- High Efficiency – 97% rating reduces energy costs and heat; EMI/RFI filtering improves equipment performance; pulse-width modulated sine wave output.

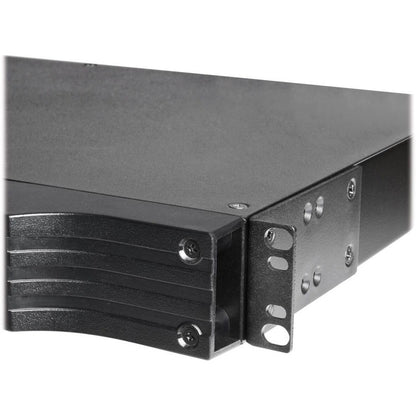

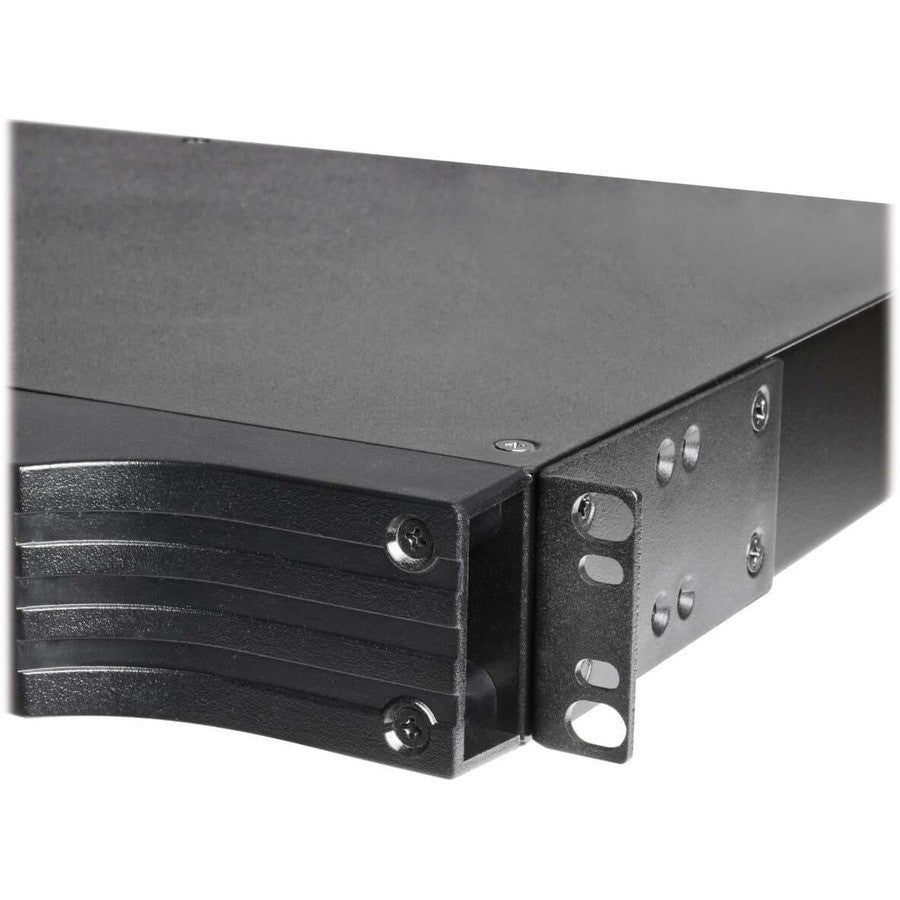

- Rack/Tower Versatility – 1U rackmount with included hardware for 2/4-post racks; tower convertible; Emergency Power Off (EPO) interface.
- Software Support – PowerAlert for shutdown, notifications, event logging, WatchDog reboot; timed self-test and output control.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SMART500RT1U |
| MPN | SMART500RT1U |
| UPC | 037332119247 |
| Product Type | Line-interactive UPS |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |

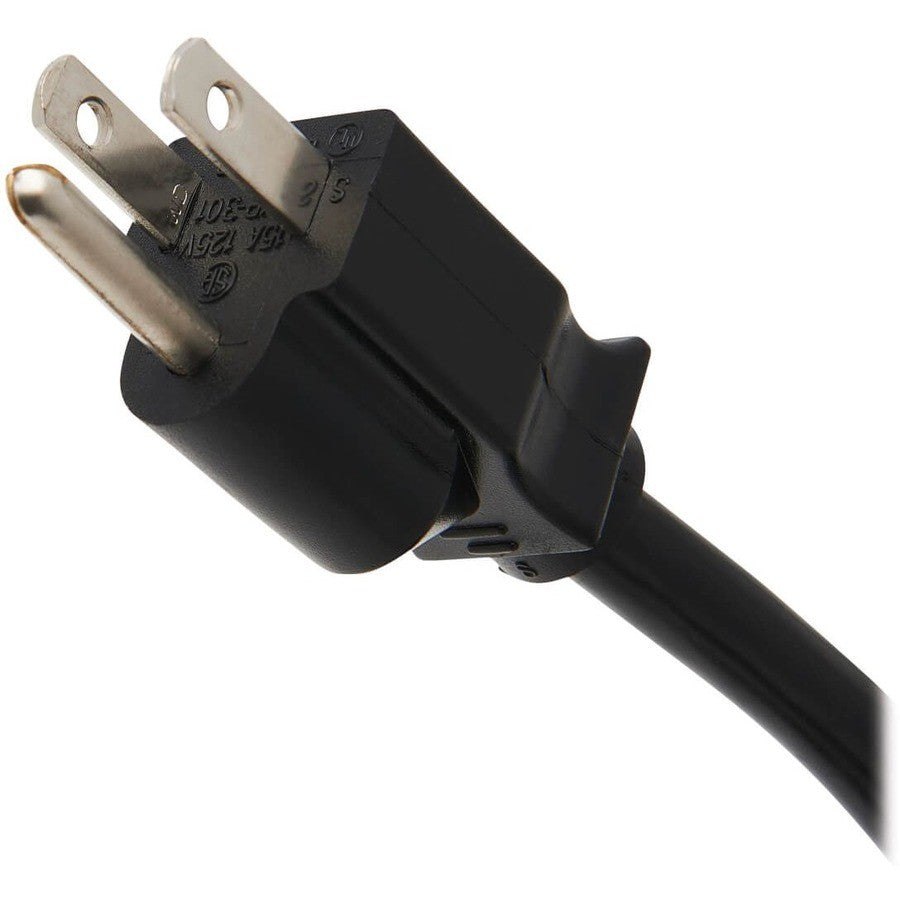

| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Cord Length | 10 ft |
| Transfer Time | 4 ms |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 480 J |
| Network Management | SNMP Manageable |
| Alarms | On Battery, Overload, UPS Fault, Low Battery |
| Status Indicators | 5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED |
| Interfaces/Ports | Serial Port: Yes, USB: Yes |
| Total Number of Expansion Slots | 4 |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3.20 Minute |
| Backup/Run Time (Half Load) | 14.60 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 122°F (50°C) |
| Product Color | Black |
| Width | 17.5" |
| Depth | 11.8" |
| Rack Height | 1U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 18.80 lb |
| Emergency Power OFF | Yes |
| Efficiency Rating | 97% |
| Warranty | Two year with $250,000 connected equipment insurance (USA & Canada only) |
| Country of Origin | China |
Package Contents
- SMART500RT1U UPS System
- Mounting hardware
- Cabling for USB & DB9 monitoring and EPO switching
- PowerAlert unattended shutdown and UPS/Power monitoring software
- Warranty information and instruction manual
Why Choose Eaton Tripp Lite SMART500RT1U
Designed for network closets, server rooms, and small business applications, this UPS offers network-grade surge suppression, remote management capabilities, and versatile installation options with pre-assembled batteries for immediate use.
Secure your critical equipment with Eaton Tripp Lite SMART500RT1U UPS—Order today!
Brand: ITE
Model: SMART500RT1U
Type: Line-interactive UPS
Features: Battery
Compatible Brand: Tripp Lite series
MPN: SMART500RT1U
Color: Black
Country of Origin: China
Power Source: Battery
Power: 1300 W
Voltage: 120 V
Manufacturer Warranty: 2 Years
UPC: 037332119247
