Gaming-Focused Features & Protection

• Pure Sine Wave Output – Supports Active PFC power supplies in high-end gaming systems for reliable operation during outages.
• Expandable Battery Backup – Internal hot-swappable lead acid battery provides 17 minutes runtime at 300W; optional BP24V9T external pack extends to 41 minutes.

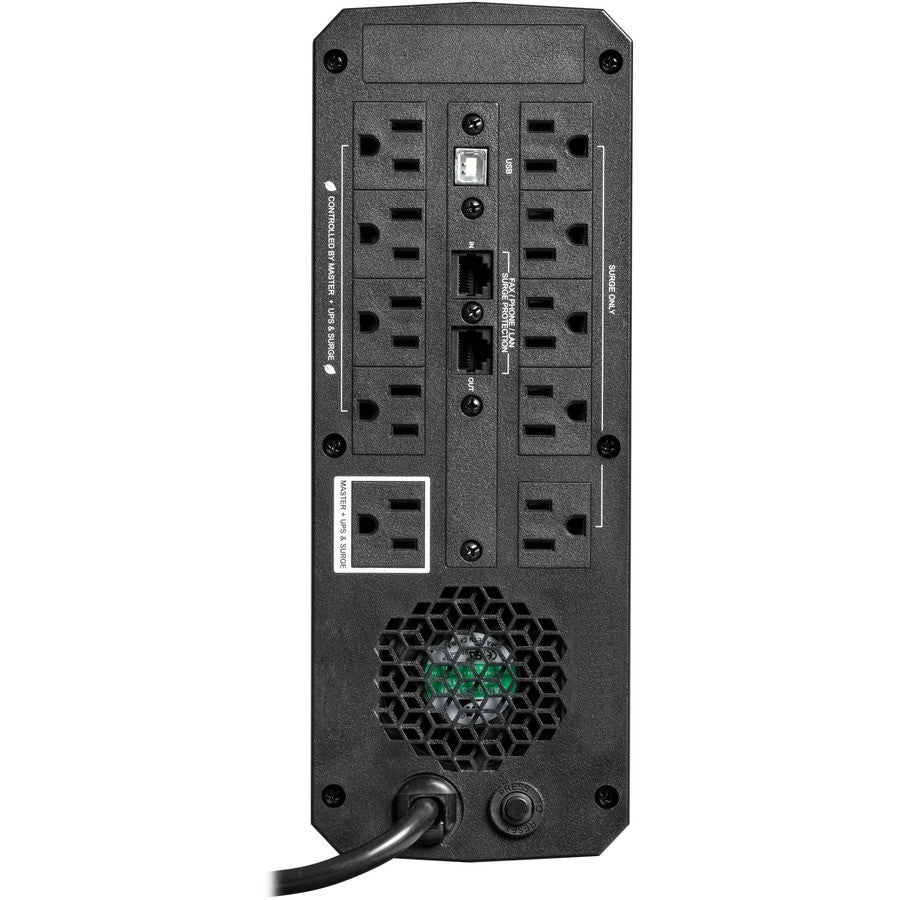

• 10 NEMA 5-15R Outlets – 4 energy-saving with battery backup and surge protection, 5 surge-only, 1 master outlet that controls ECO outlets and monitors wattage.
• Programmable RGB LEDs – Two LED banks with 7 preset modes, 16.7 million colors, controllable via detachable LCD or software; responds to power changes.

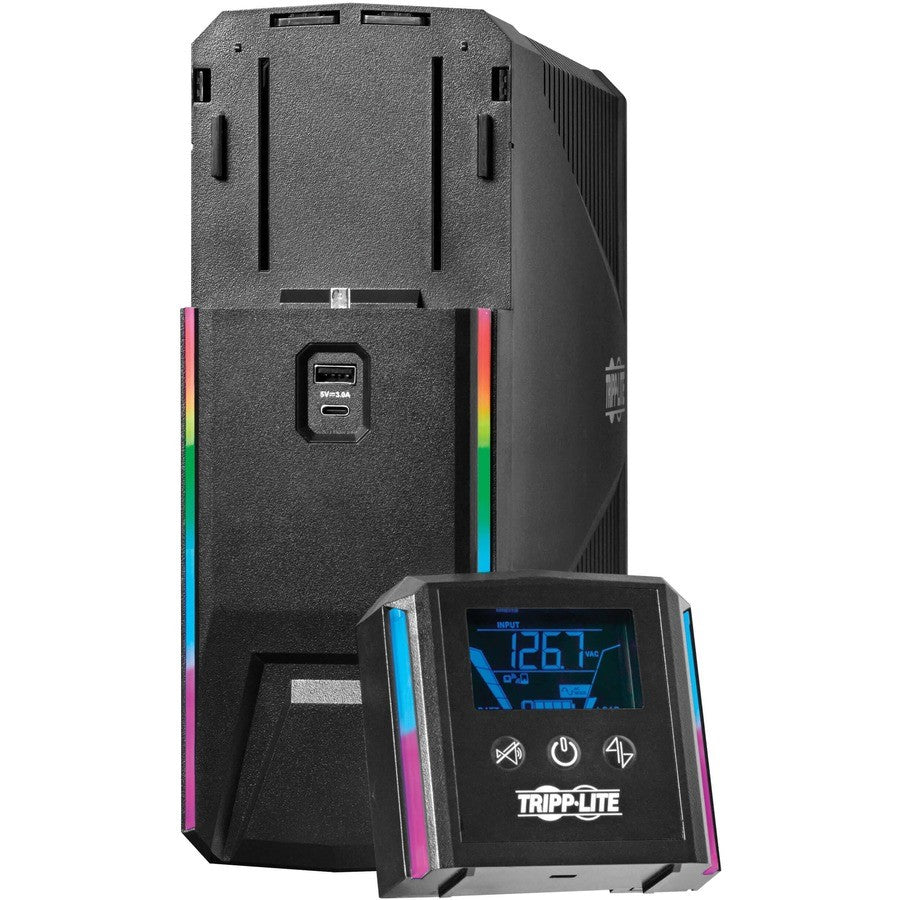

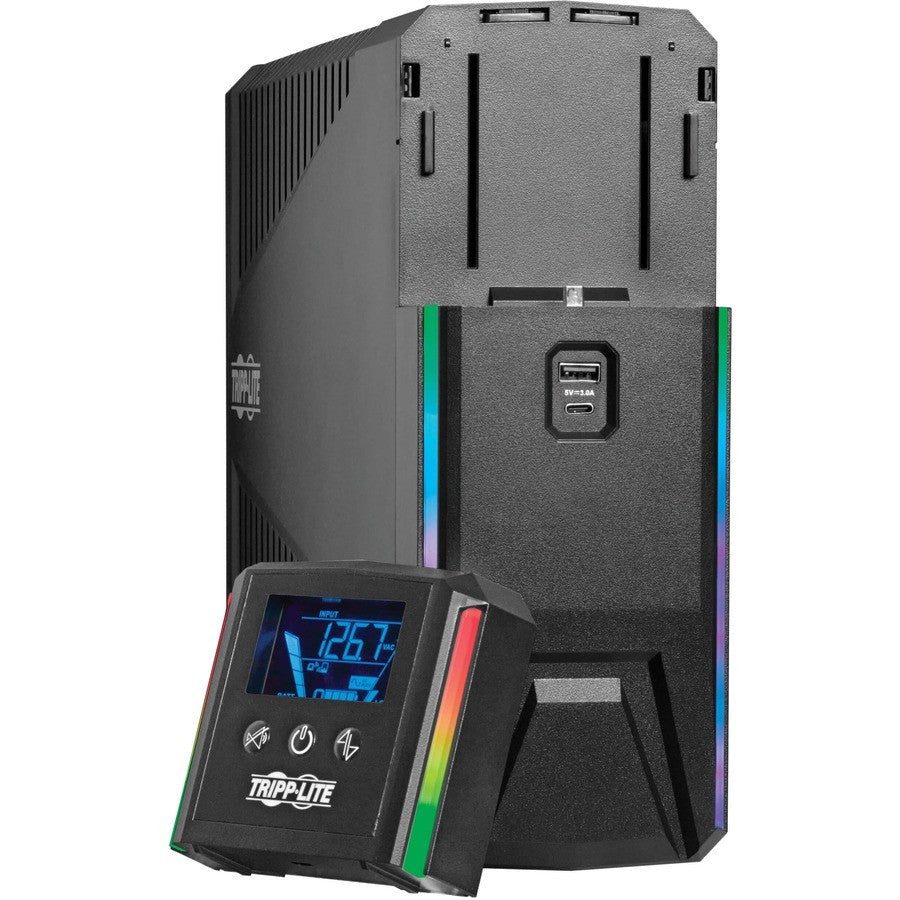

• Detachable Wireless LCD – Displays voltage, frequency, battery level, load; operates up to 20 feet away for 12 hours.
• AVR & EMI/RFI Filtering – Corrects brownouts and filters noise for equipment protection.
• Energy Saving – Greater than 95% efficiency; ECO outlets auto-shutoff when master device is off/standby.
• USB HID Port – Enables safe shutdown and monitoring.

Comprehensive Technical Specifications

Package Contents & Applications

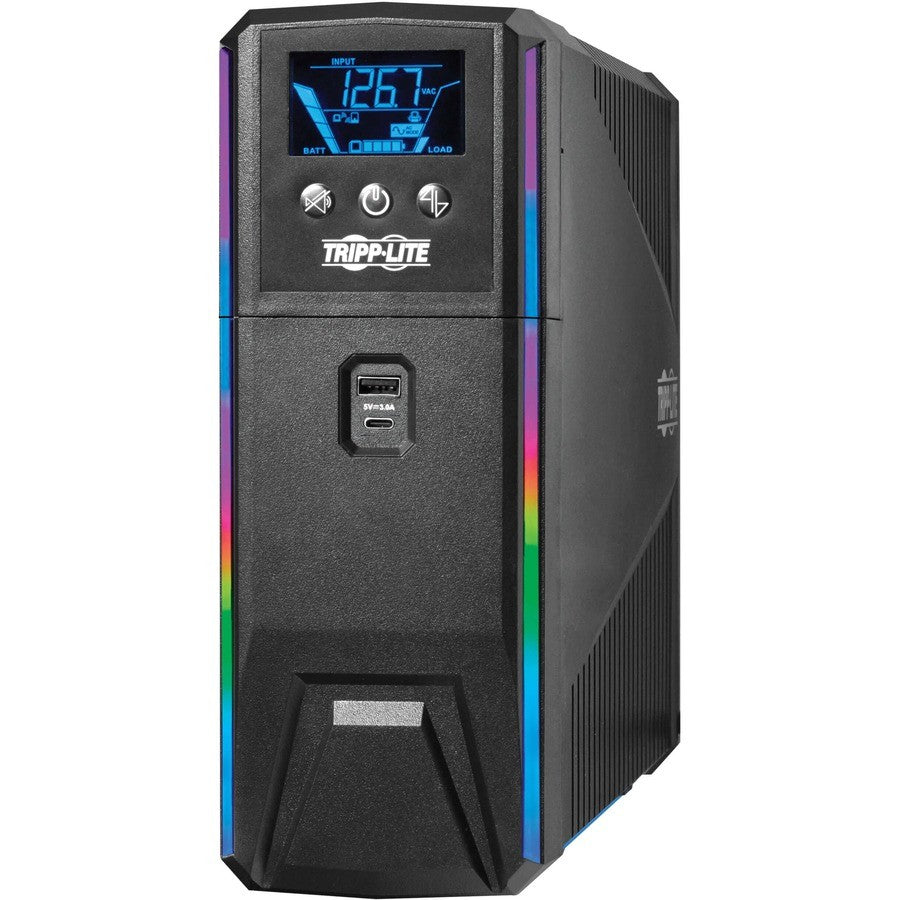

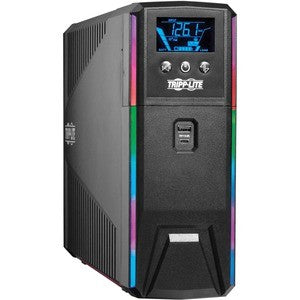

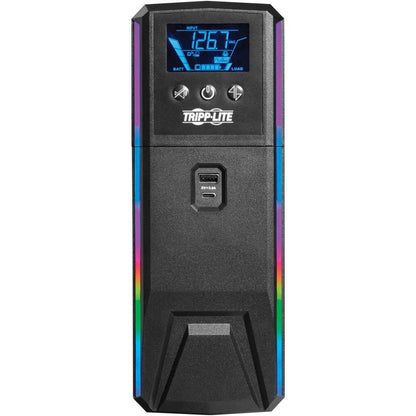

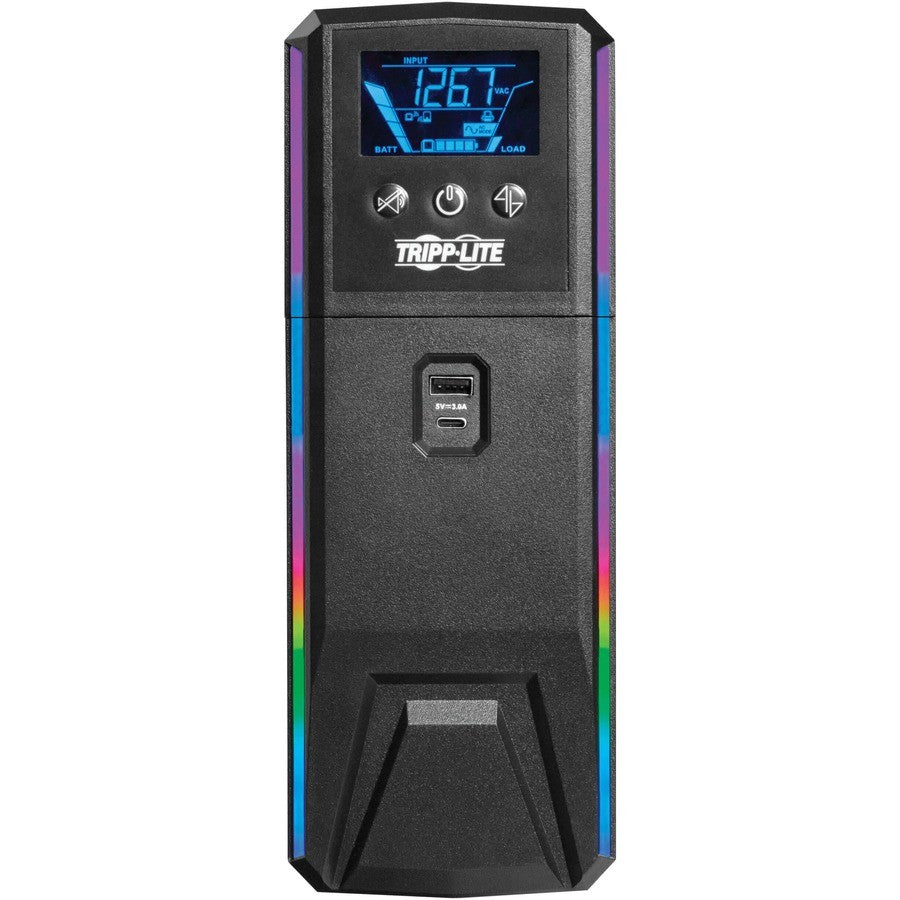

• SMART1500PSGLCD 1500VA Tower UPS
• USB Cable
• Owner's Manual

Application/Usage: Gaming Console, Gaming PC, Router, Modem, Network Equipment, Computer Room, Home Theater, Printer, Desk Lamp.

Battery Management & Alarms

• Alarms: Battery Mode Full Charge, Battery Mode Low Charge, Replace Battery, Fault
• Status Indicators: Input Voltage, Input Frequency, Battery Voltage, Battery Capacity, Estimated Runtime, Output Voltage, Output Frequency, Output Watts, Output Load %, Master Outlet Power Consumption (Watts), Detachable LCD Module Battery Voltage, Firmware Revision
• Configuration Options: Eco-mode Off/On, Alarm Disable, LED Lighting Configurations
• Error Messages: Replace Battery, Overload, Critical Fault
