Description

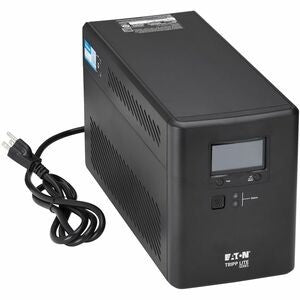

Eaton Tripp Lite SMART1500LCDTXC 1440VA 1000W Tower UPS LCD 10 Outlets
This is a Eaton Tripp Lite Series 1440VA 1000W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (5 Surge + 5 Surge and Battery Backup), Extended Run, LCD, 5-15P Plug, Tower. The SMART1500LCDTXC provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges, and line noise. Manufacturer: Eaton; MPN: SMART1500LCDTXC; UPC: 037332281340. Suitable for home/office, point-of-sale workstations, digital signage, gaming equipment, network, retail POS, computer monitors, security cameras, desk lamps, speakers, desktop audio/video equipment.
Key Features of Eaton Tripp Lite SMART1500LCDTXC UPS

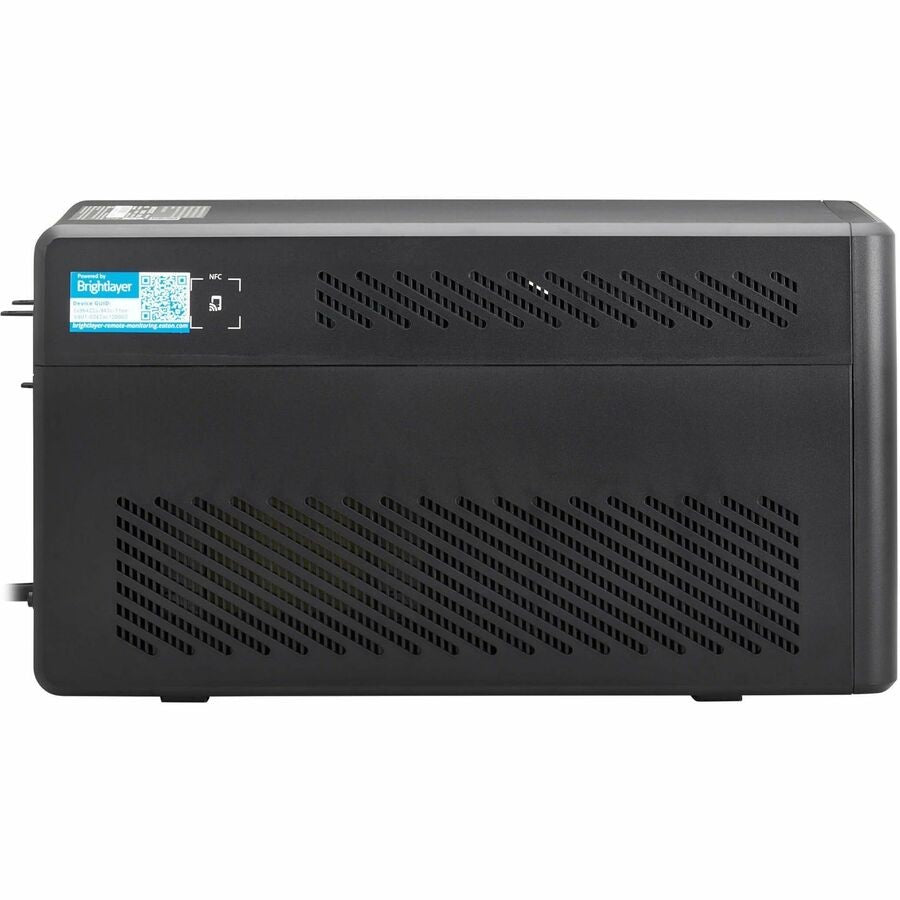

- Cloud-Enabled Remote Monitoring – Powered by Brightlayer; scan QR code for app download; NFC for instant network config; alerts, load bank control via mobile/web.

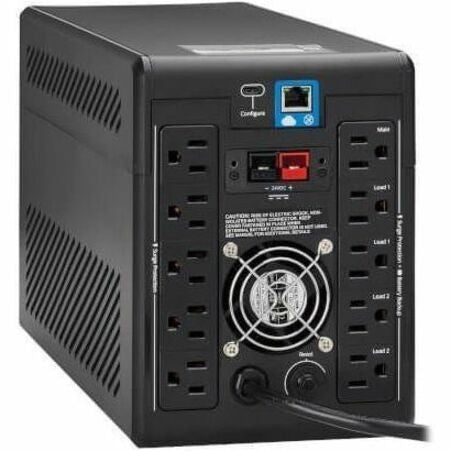

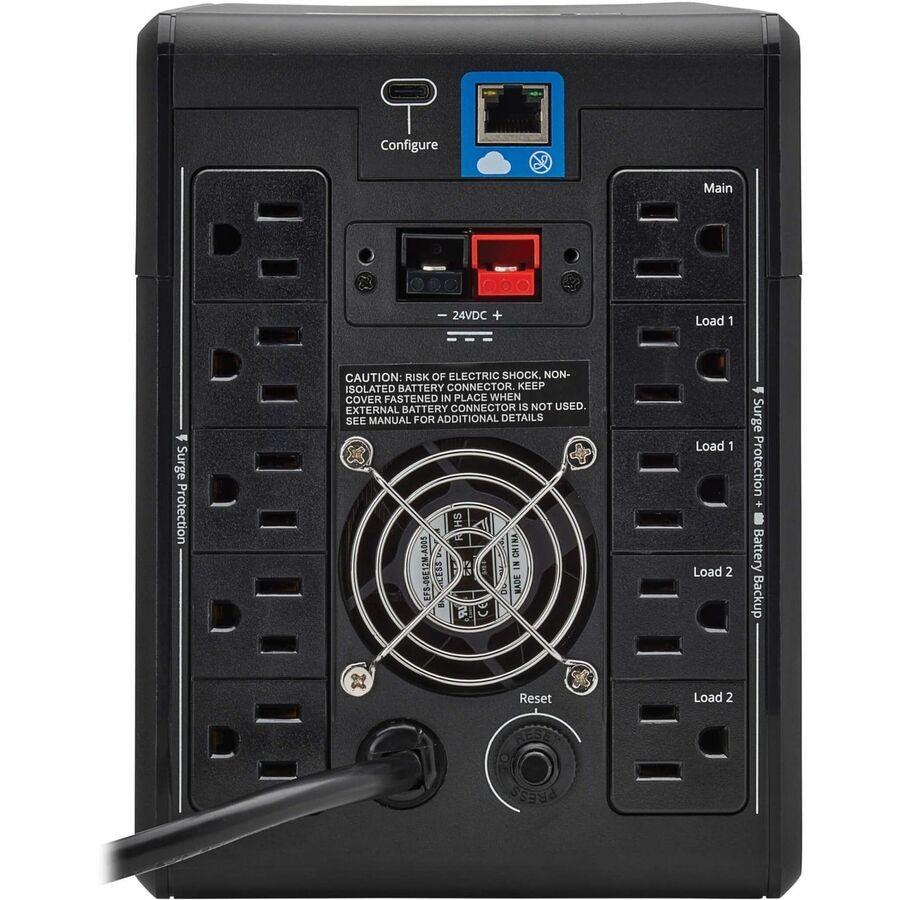

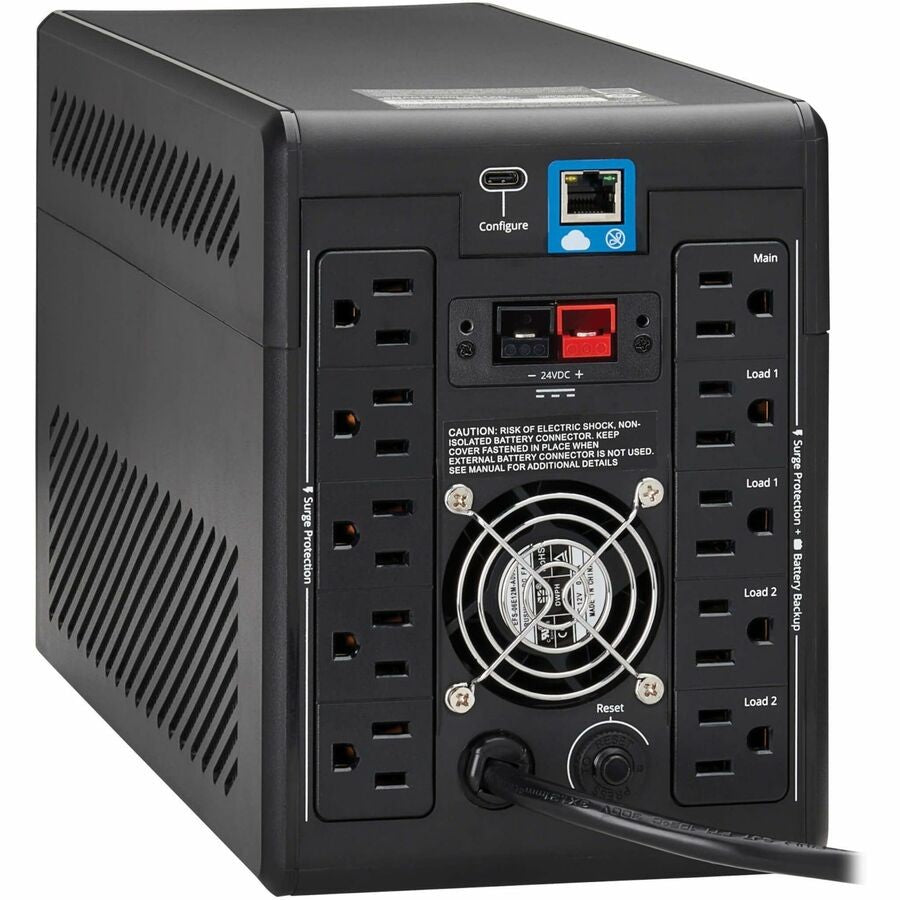

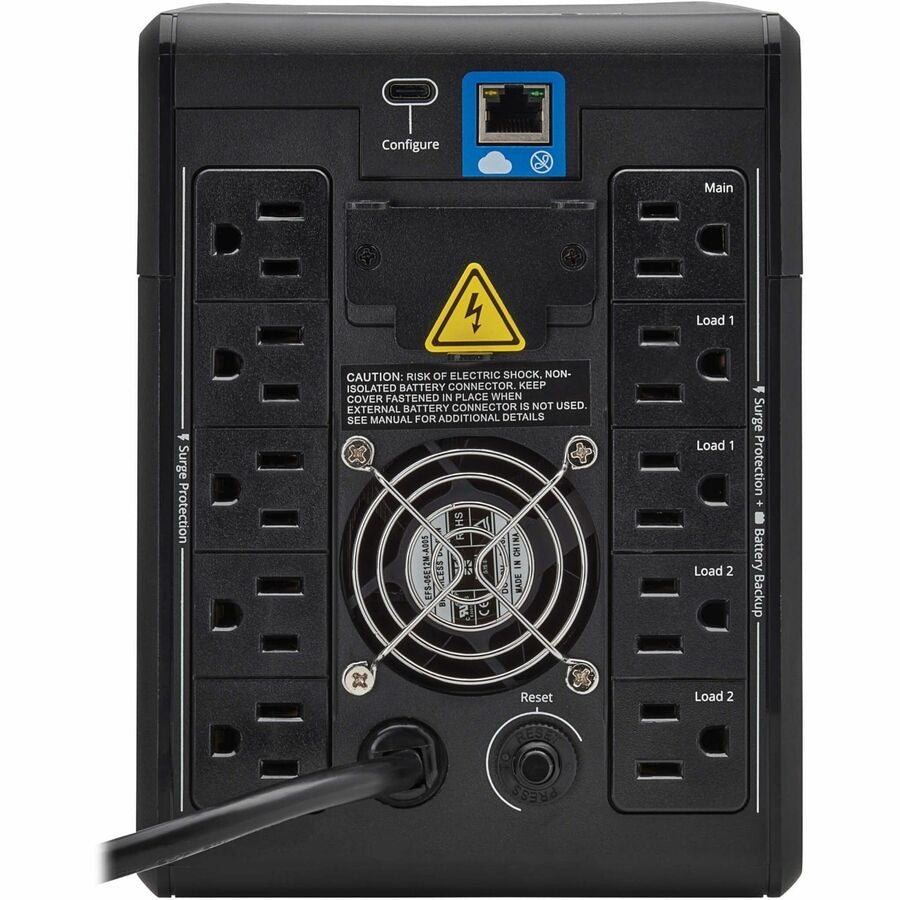

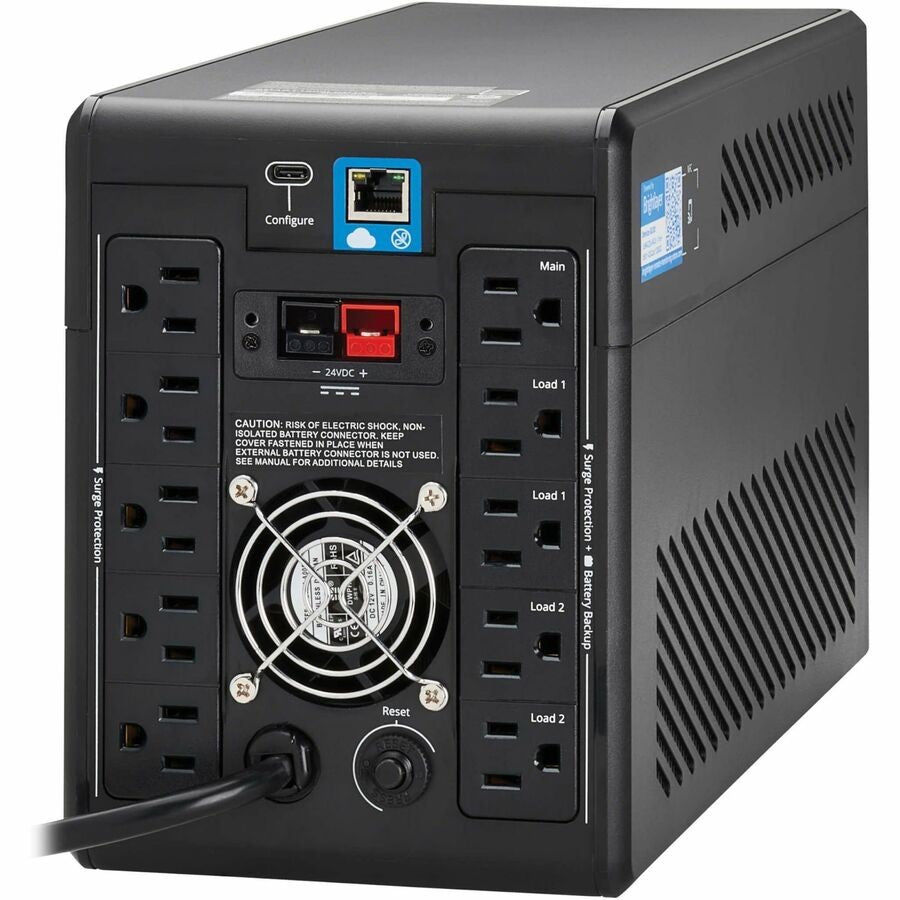

- NEMA 5-15R Outlets – 5 battery backup + surge, 5 surge-only; two controllable load banks for remote power on/off/cycle.
- Automatic Voltage Regulation (AVR) – Corrects brownouts to 92V, overvoltages to 150V; maintains 120V output, keeps battery charged.

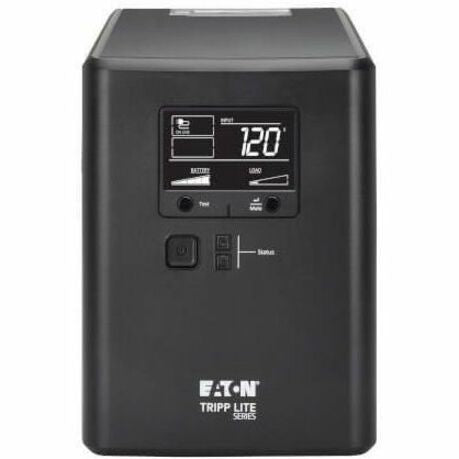

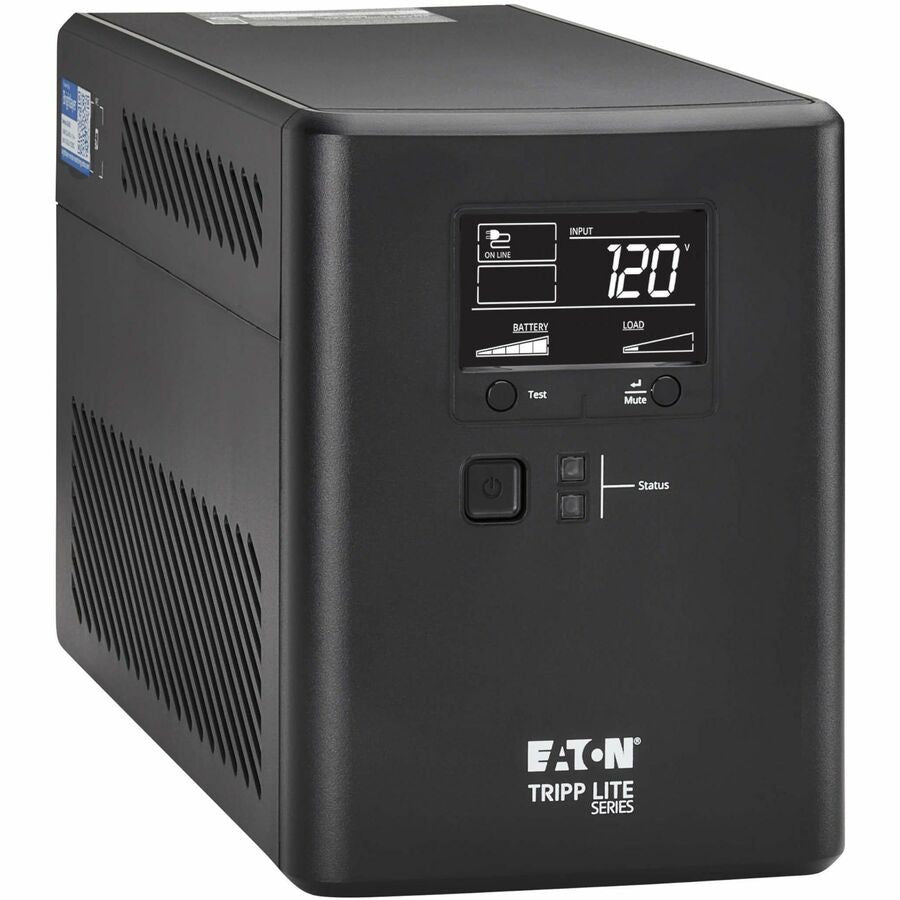

- Intuitive LCD Display – Shows input/output voltage, frequency, AVR status, load watts/%, battery voltage, estimated runtime; diagnostic LEDs for battery/AC/charging/fault.
- User-Replaceable Battery – Self-test capability; resettable circuit breaker; audible alarm (disable via LCD/app).
- Additional Features – Cold start, auto restart, overload protection, EMI/RFI filter, >95% efficiency Green UPS, 4ms transfer time.
- Interfaces – RJ-45 network port, USB port.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Model | SMART1500LCDTXC |
| Product Type | Line-interactive UPS |
| MPN / Manufacturer Part Number | SMART1500LCDTXC |
| UPC | 037332281340 |
| Load Capacity (VA) | 1440 VA |
| Load Capacity (Watt) | 1000 W |
| Output Power Factor | 0.69 |
| Input Voltage | 120 V AC |
| Input Current | 12 A |
| Output Voltage | 120 V AC, 110 V AC, 115 V AC |
| Input Frequency | 50 Hz, 60 Hz |
| Output Frequency | 50 Hz, 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |

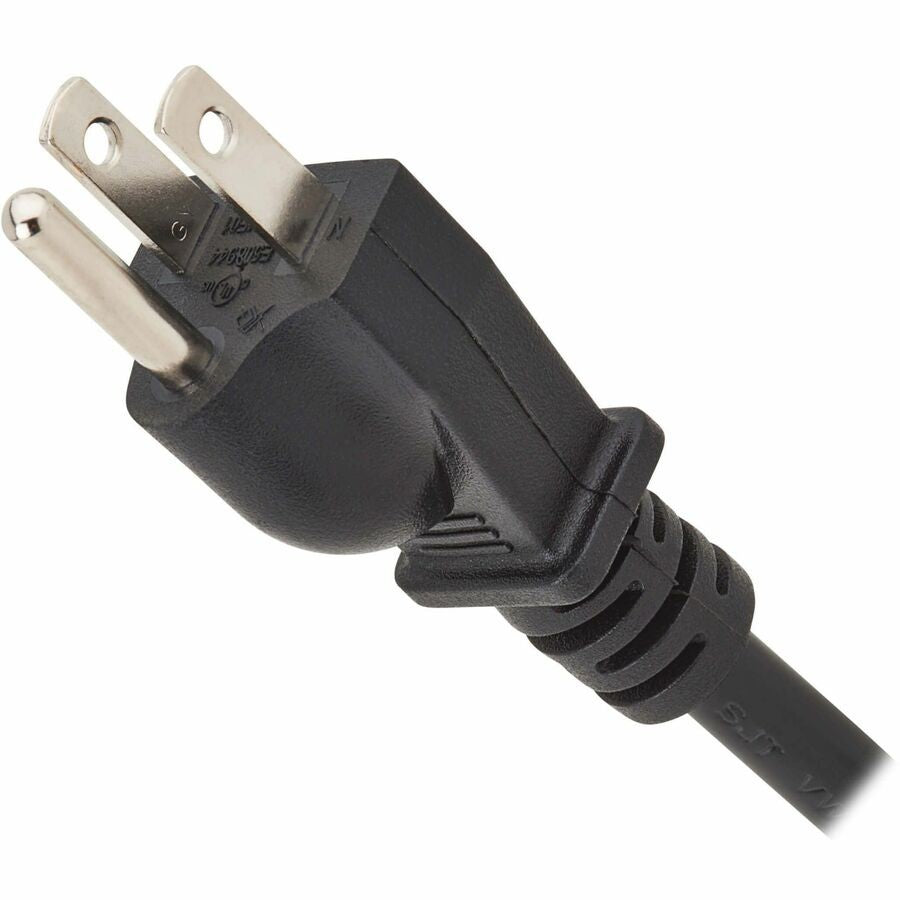

| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 5 ft |
| Receptacle Type | 10 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 5 |
| Number of Surge-only Outlets | 5 |
| Transfer Time | 4 ms |
| AVR | Yes |
| Surge Energy Rating | 380 J |
| Surge Suppression | Yes |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Display | LCD |
| Network (RJ-45) | Yes |
| USB | Yes |
| DC System Voltage | 24 V DC |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Valve-regulated |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Sound Emission | 45 dB |
| Thermal Dissipation | 16.92 W |
| Height | 7.9" |
| Width | 5.9" |
| Depth | 14.6" |
| Weight (Approximate) | 28.60 lb |
| Form Factor | Compact Tower |
| Rack Height | 0U |
| Certifications & Standards | CSA (Canada), ICES (Canada), NOM (Mexico), UL 1778, FCC Part 15 Class A (USA), RETIE (Colombia) |
| Energy Star | Yes |
| Country of Origin | Vietnam |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Directly Connected Equipment Guarantee | $250000 |
Package Contents & Applications
- SMART1500LCDTXC 1440VA Compact tower UPS
- Quick Start Guide
Application/Usage: Network, Retail POS, Home Office Workstation, Digital Signage Equipment, Computer Monitor, Security Camera, Desk Lamp, Speaker, Desktop Audio/Video Equipment, Hospital.
Why Choose Eaton Tripp Lite SMART1500LCDTXC
Compact tower design fits desktops, floors, under workstations; provides extended run capability, remote management to save time and site visits; user-replaceable battery and self-test for easy maintenance.
Secure your power protection with Eaton Tripp Lite SMART1500LCDTXC—Order today!
Model: SMART1500LCDTXC
Type: Line-interactive UPS
Features: Battery
Compatible Brand: Tripp Lite series
MPN: SMART1500LCDTXC
Color: Black
Country of Origin: Vietnam
Brand: Eaton
Power Source: Battery
Connectivity: Wired
Power: 1000 W
Voltage: 120 V
UPC: 037332281340
