Description
Eaton Tripp Lite SMART1000LCDNC 1000VA 750W UPS 2U Rack/Tower
This is a 1000VA/750W 120V line-interactive cloud-connected UPS with remote monitoring, featuring 10 NEMA 5-15R outlets for surge and battery backup, LCD display, NEMA 5-15P plug, and 2U rack/tower form factor. The Eaton Tripp Lite Series SMART1000LCDNC provides advanced protection for small network servers, workstations, computers, monitors, routers, and more in home, office, retail, and network closet environments. MPN: SMART1000LCDNC; UPC: 037332280114.
Key Features of Eaton Tripp Lite SMART1000LCDNC UPS
- Cloud-Enabled Remote Monitoring via Brightlayer app – Scan QR code for mobile setup, receive alerts, control load banks remotely with NFC configuration.

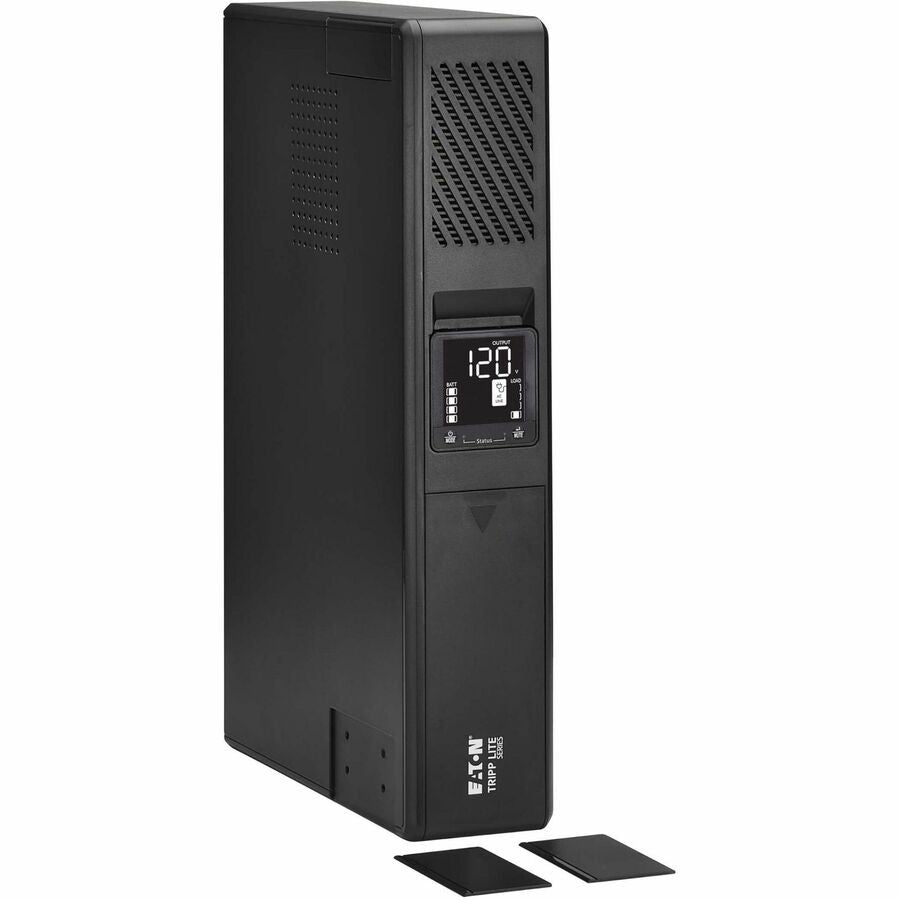

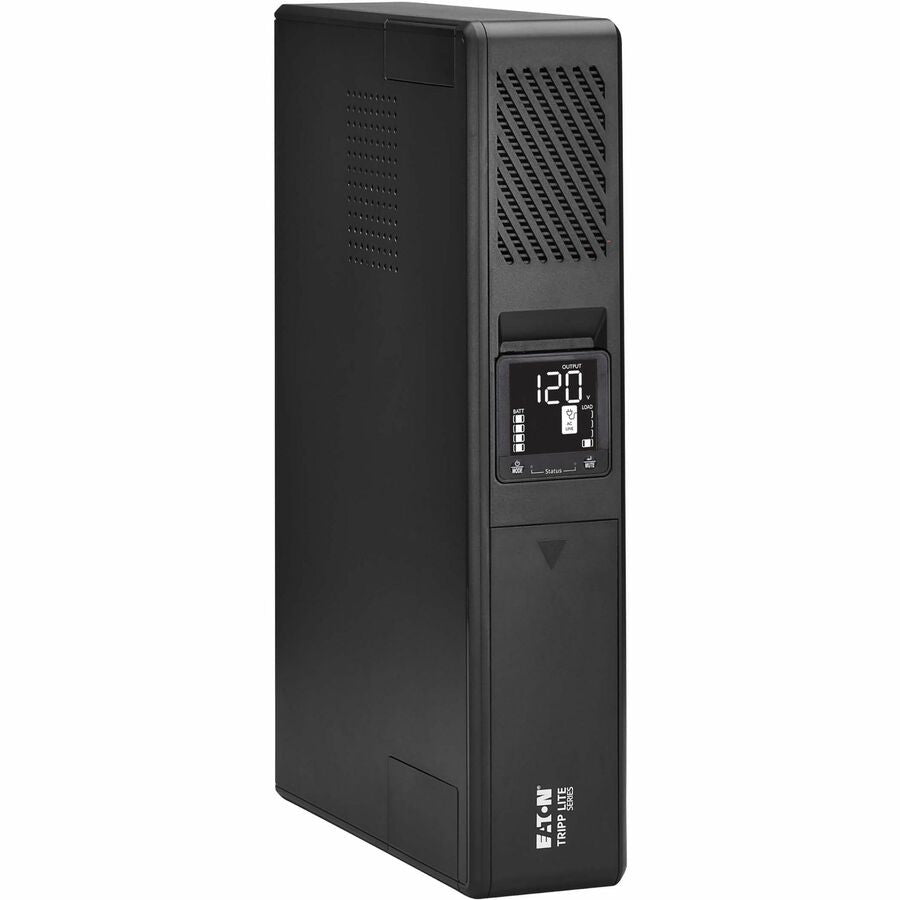

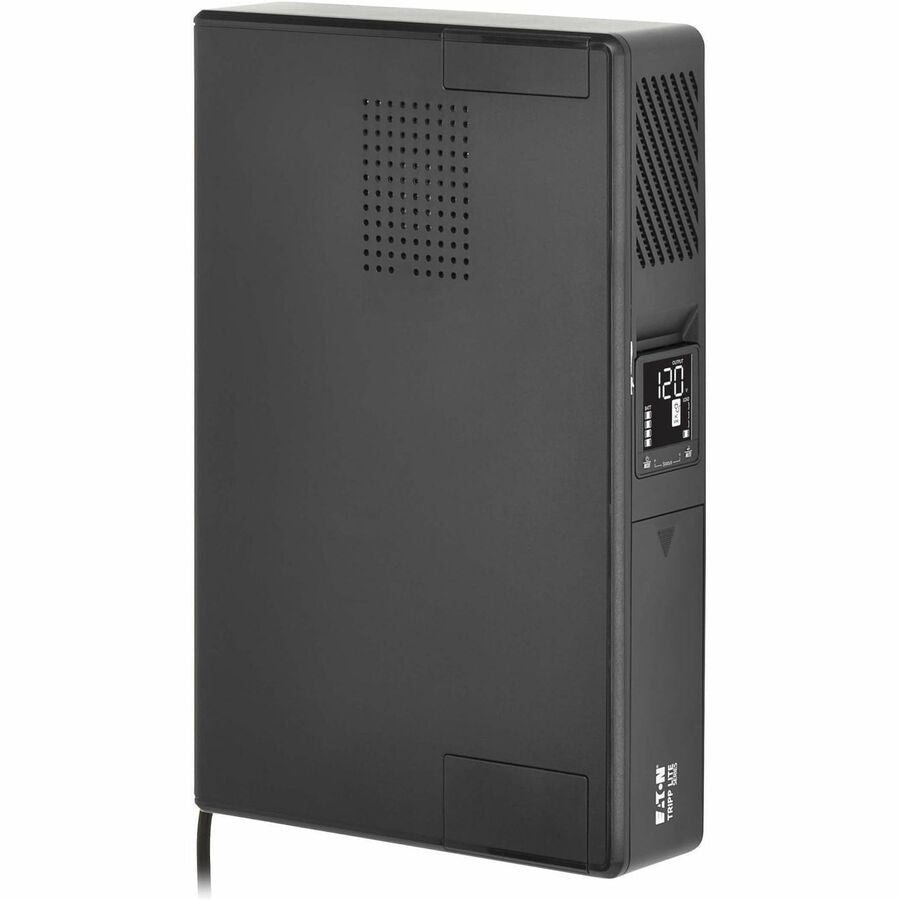

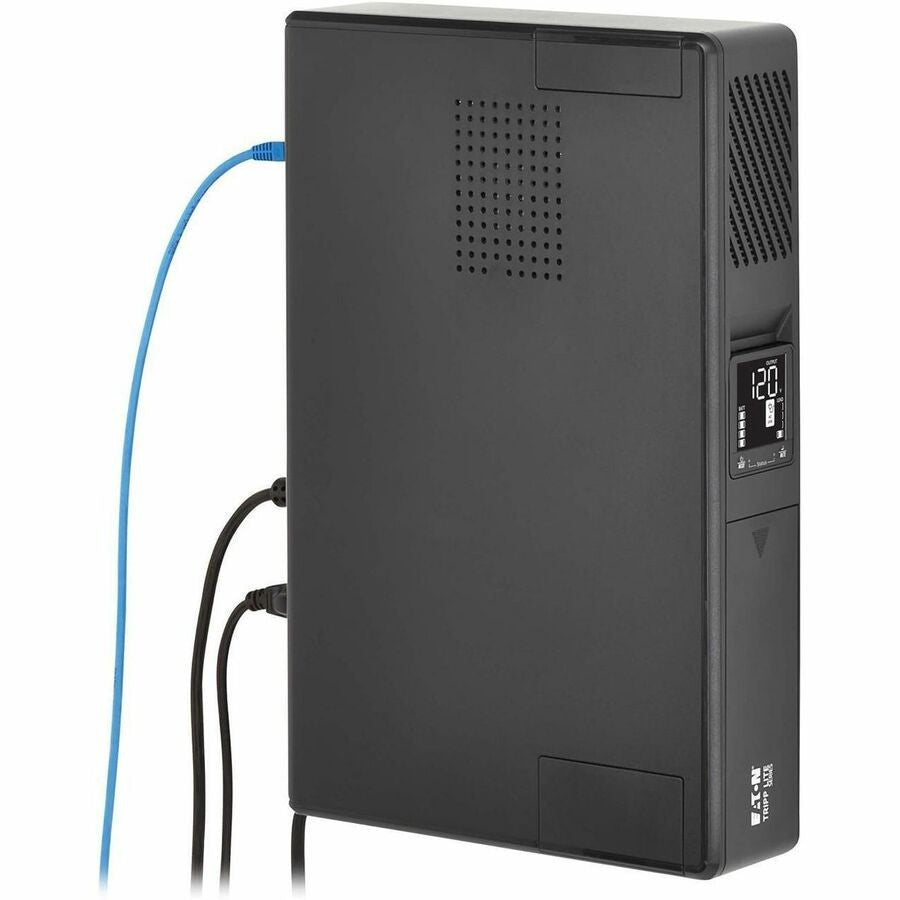

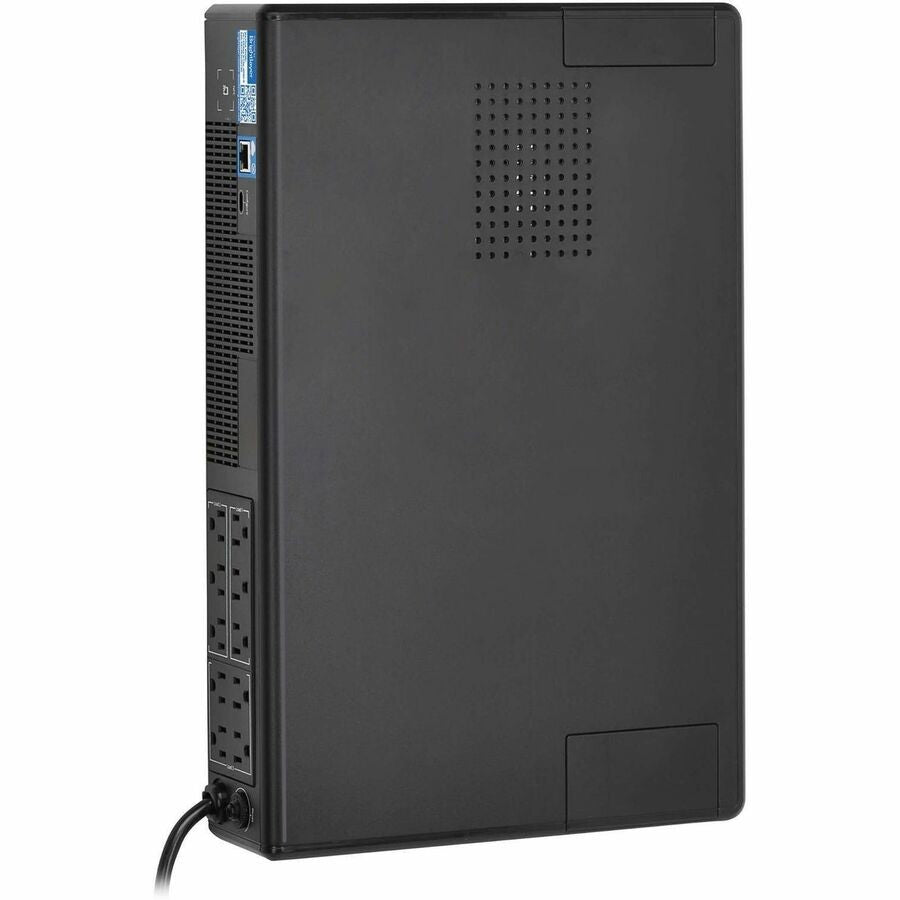

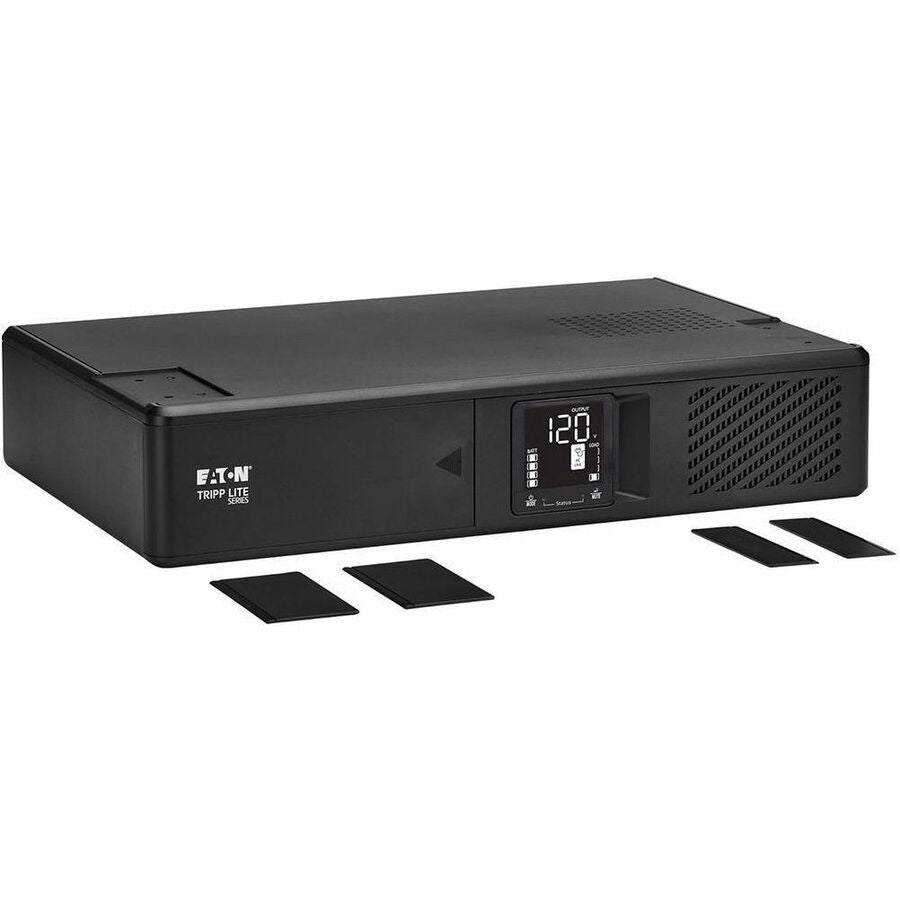

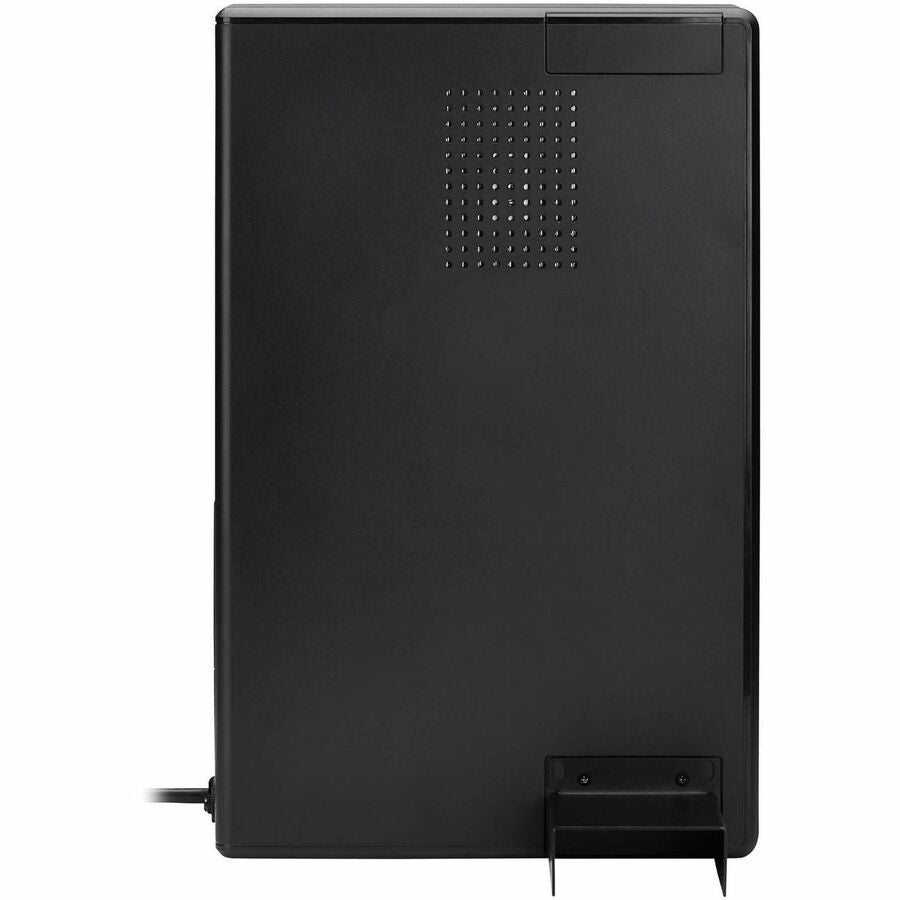

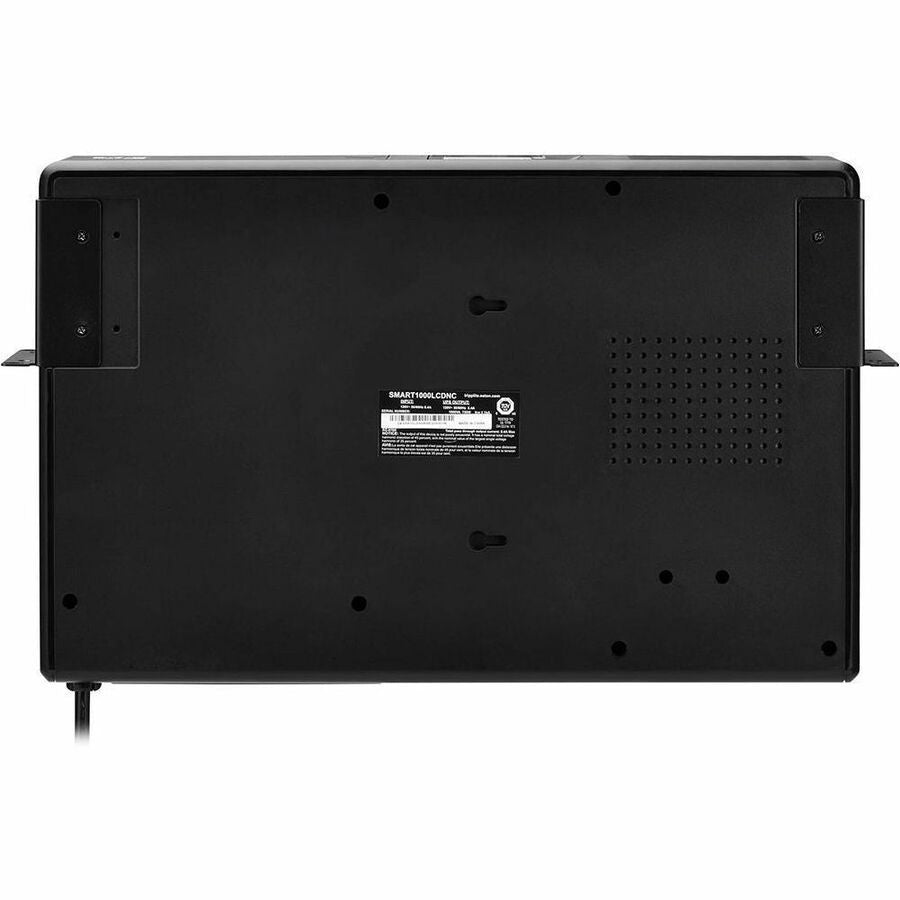

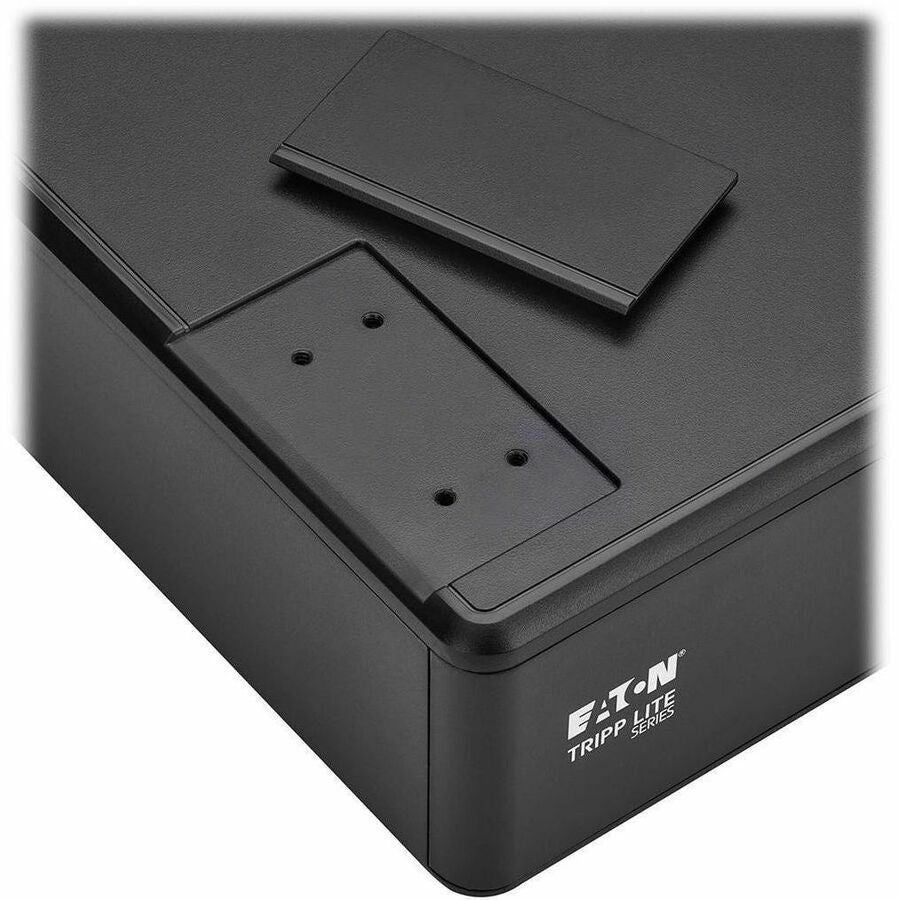

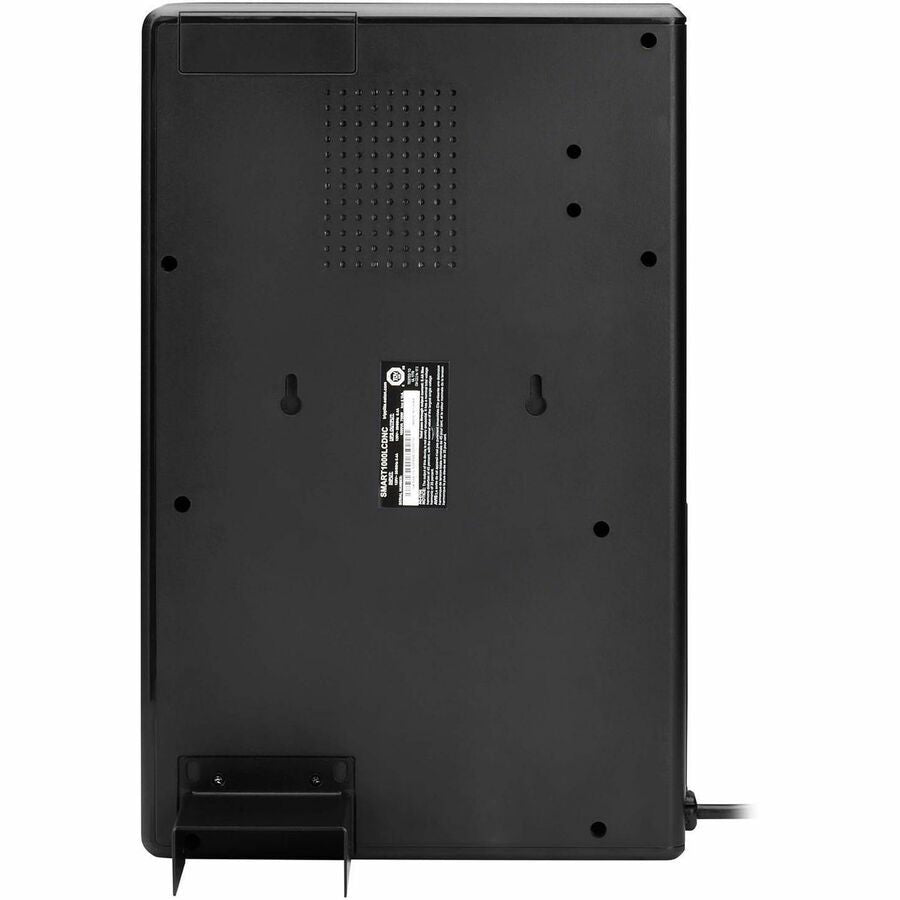

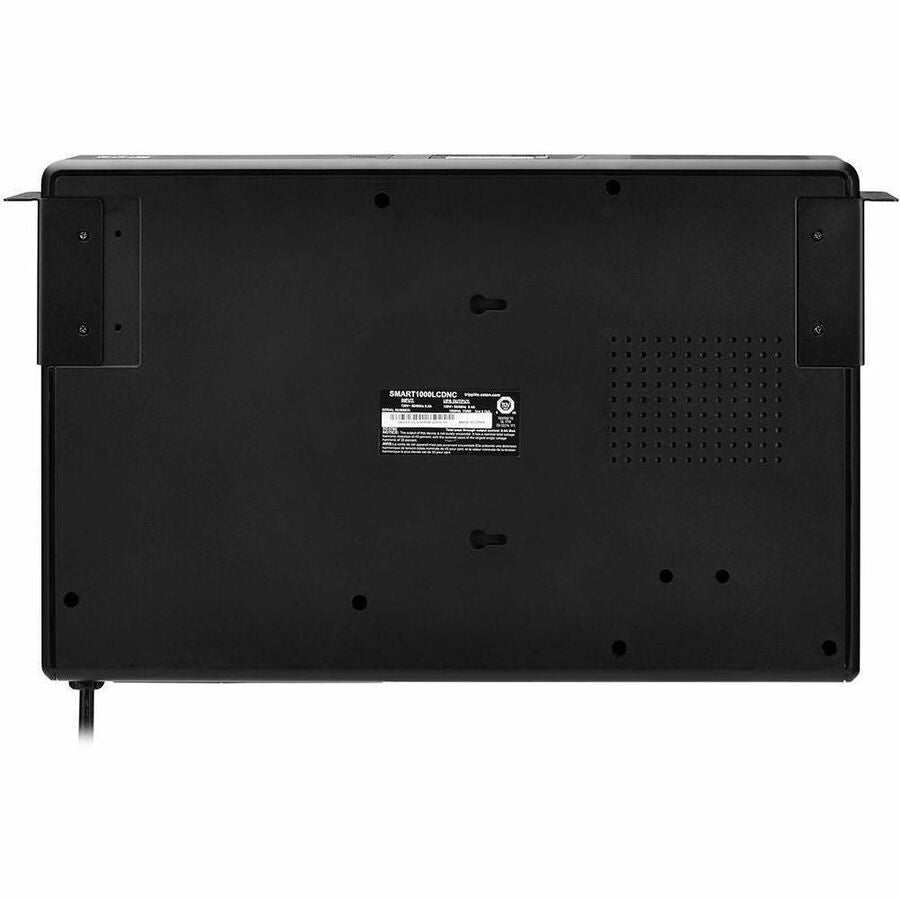

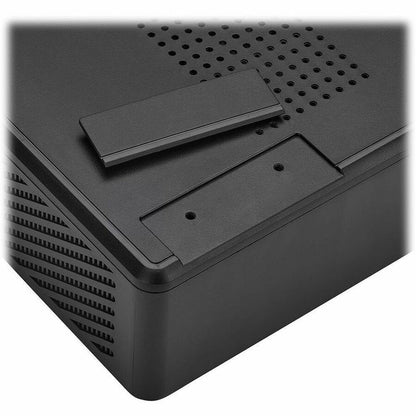

- Flexible 2U Form Factor – Desktop, tower, wall-mount, or rack installation in 2-post/4-post racks.
- Automatic Voltage Regulation (AVR) – Corrects brownouts to 97V and overvoltages to 145V, Boost +18%/Buck -15%.

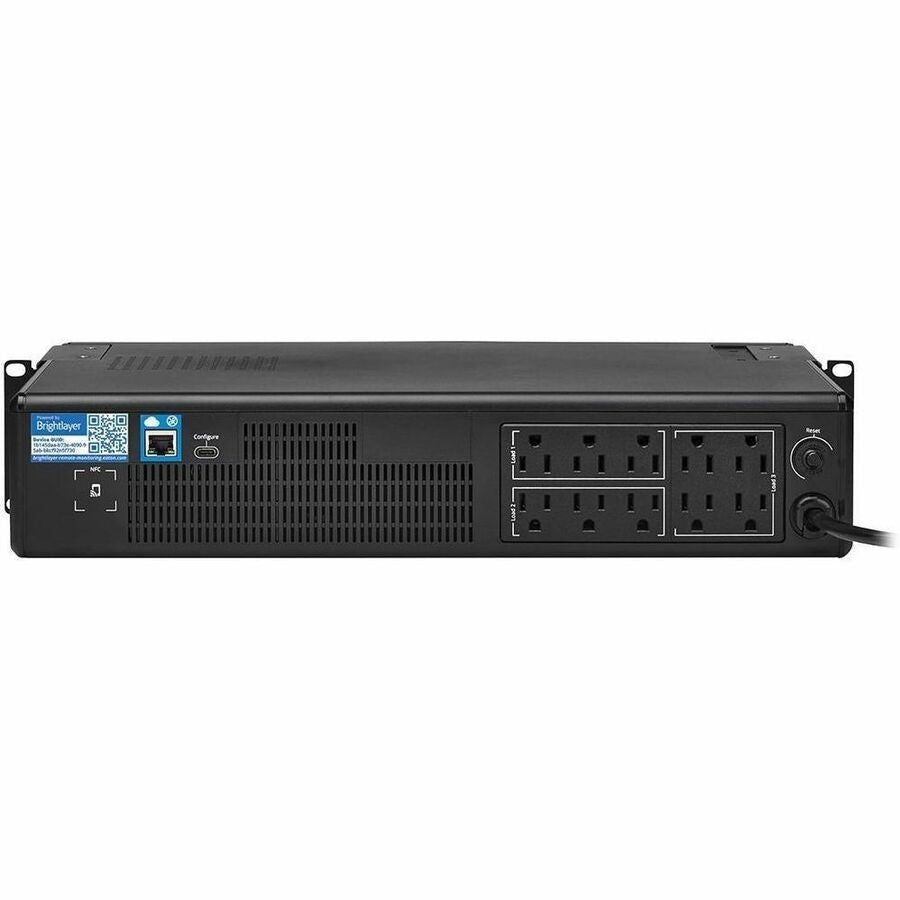

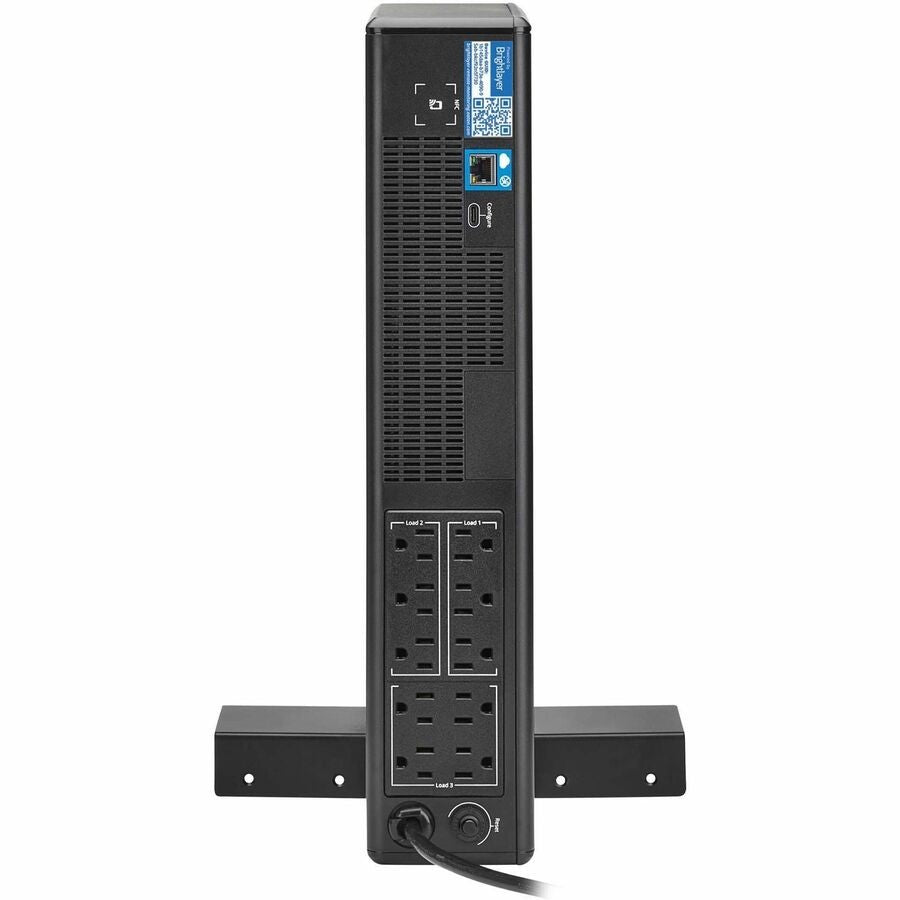

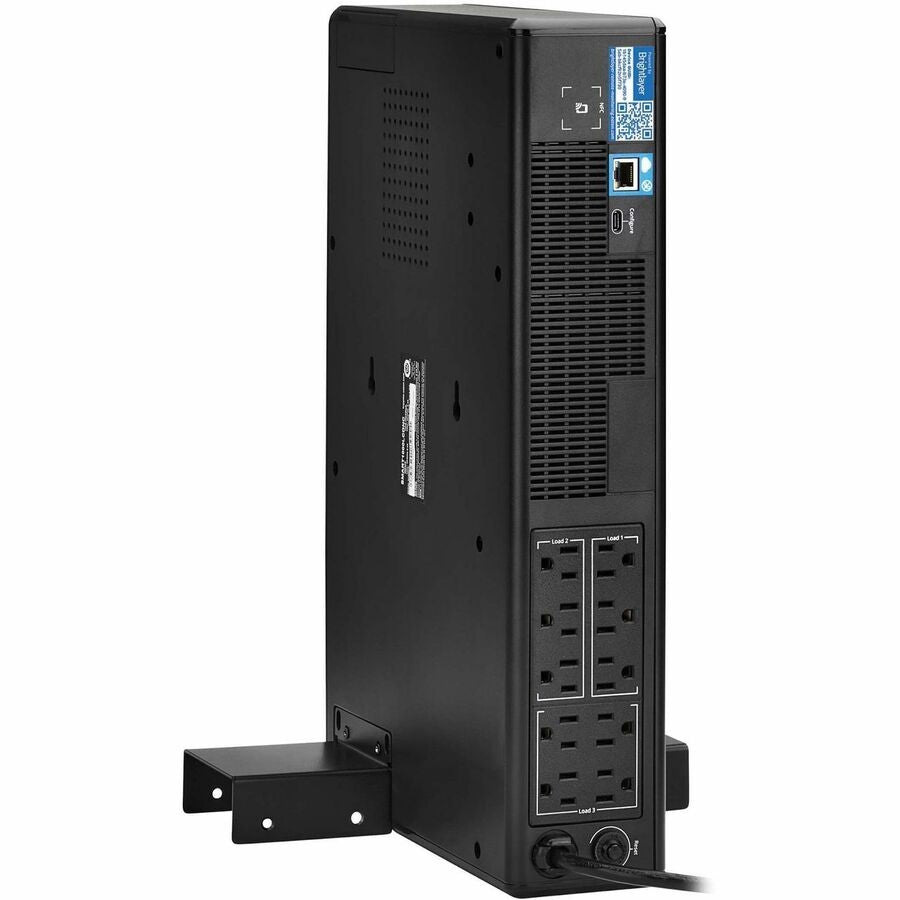

- 10 NEMA 5-15R Outlets with three controllable load banks for remote on/off/cycling.

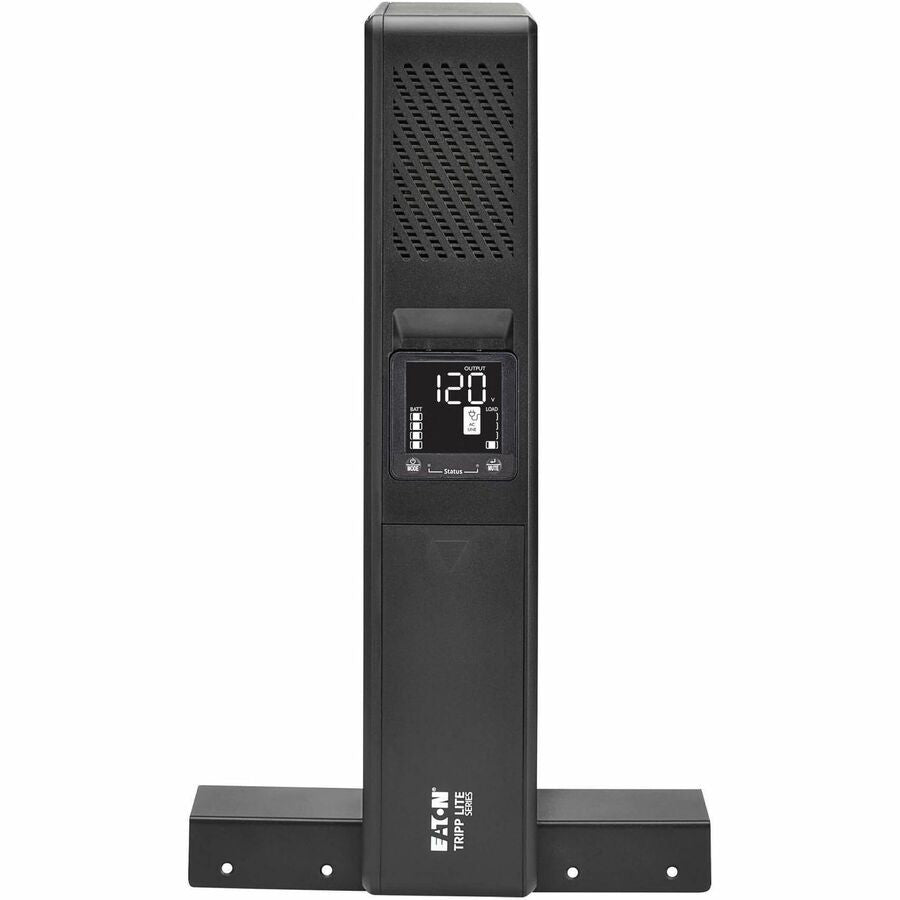

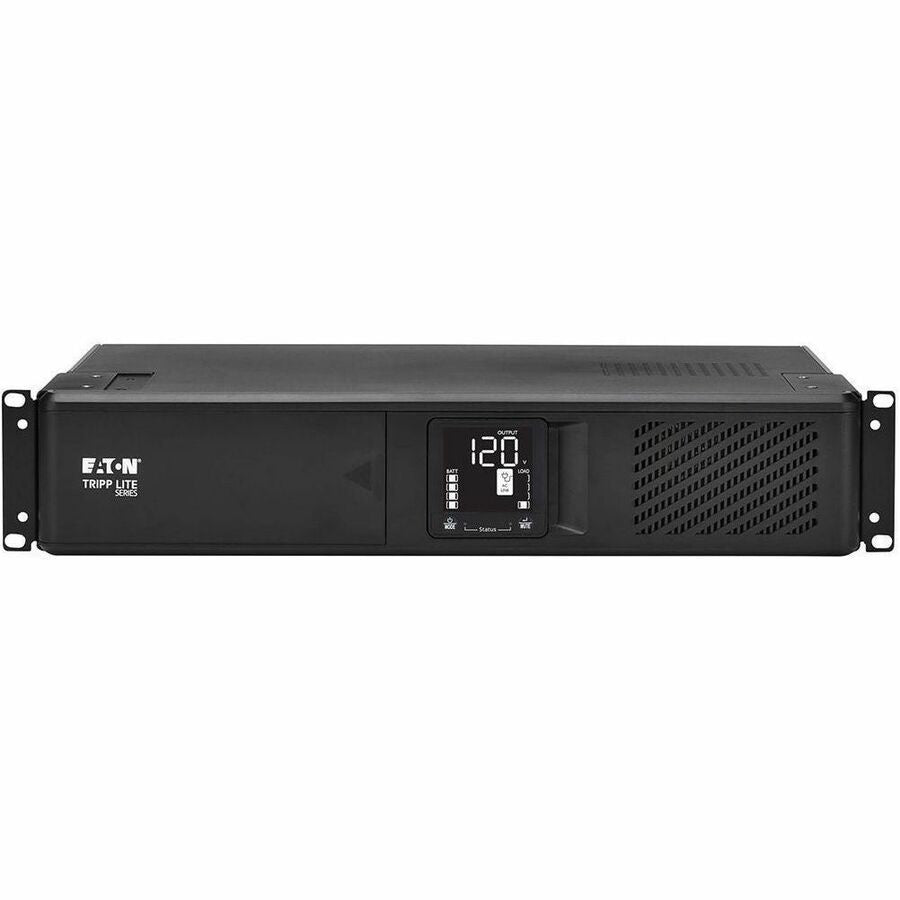

- Intuitive LCD and LEDs – Displays UPS status, voltage, load, battery level; audible alarm for outages/low battery.
- User-Replaceable Battery – Lead acid, 24V DC, hot swappable; self-test capability and resettable circuit breaker.

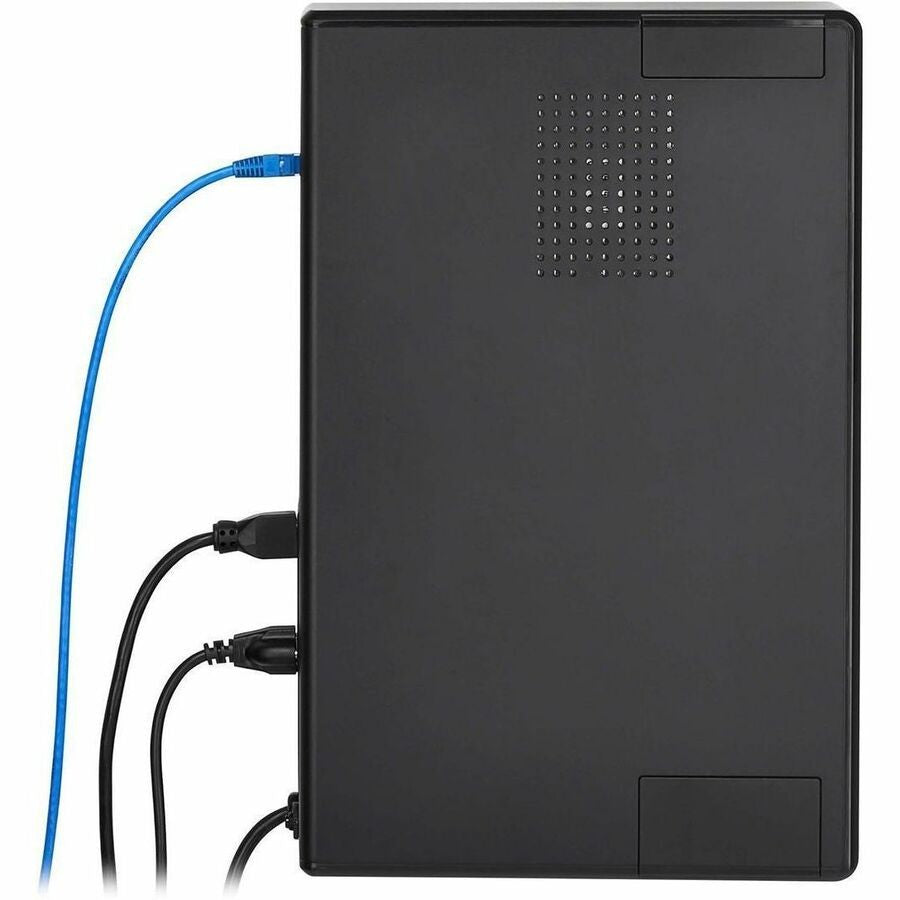

- RJ45 Ethernet and USB-C Ports – For cloud app and CLI configuration.
- High Efficiency – 98.4% in AC mode, >95% Green UPS; 380J surge suppression.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Model | SMART1000LCDNC |
| MPN | SMART1000LCDNC |
| UPC | 037332280114 |
| Product Type | Line-interactive UPS |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 750 W |
| Output Power Factor | 0.75 |
| Input Voltage | 120 V AC |
| Input Voltage Range | 97 V AC - 145 V AC |
| Input Current | 8.40 A |
| Output Voltage | 120 V AC |
| Input/Output Frequency | 50 Hz / 60 Hz |
| Waveform Type | Sine Wave / Pulse-width Modulated Sine Wave |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | 10 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 10 |
| Number of Load Management Outlets | 10 |
| Cord Length | 5 ft |
| Transfer Time | 10 ms |
| AVR | Yes (Boost +18% / Buck -15%) |
| Surge Energy Rating | 380 J |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Efficiency | 98.4% (AC Mode); Greater than 95% - GREEN UPS |
| Display | LCD |
| Network (RJ-45) | Yes |
| USB | Yes (USB-C) |
| DC System Voltage | 24 V DC |
| Battery Chemistry | Lead Acid (Valve-regulated) |
| Backup/Run Time (Full Load) | 2 Minutes |
| Backup/Run Time (Half Load) | 7 Minutes |
| Typical Battery Recharge Time | 8 Hours |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Form Factor | Desktop/Tower/Rack |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 17.2" |
| Depth | 11" |
| Weight (Approximate) | 23.60 lb |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) to 122°F (50°C) |
| Thermal Dissipation | 12 W |
| Certifications & Standards | CAN/CSA C22.2, NOM (Mexico), UL 1778, FCC Part 15 Class B (USA) |
| Country of Origin | Vietnam |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | $250,000 Lifetime Directly Connected Equipment Guarantee |

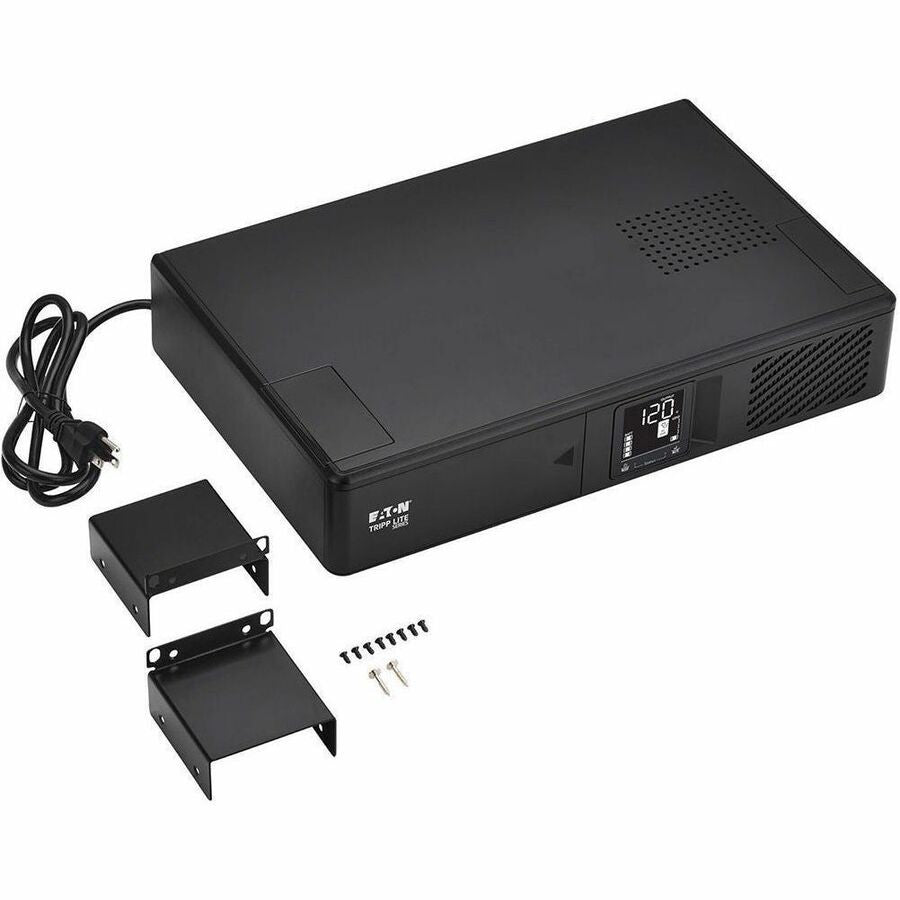

Package Contents & Applications
- SMART1000LCDNC 1000VA Desktop/Tower/Rack UPS
- Mounting Hardware
- Quick Start Guide
Application/Usage: Retail POS, Hospital, Home, Office, Desktop, High-end System, Network, Home Network, Server, Workstation, Computer, Monitor, CCTV Camera, Router, Network Switch, Electronic Device. Features: Audible Alarm, Cold Start Function, Overload Protection, Circuit Breaker.
Maintenance & Operation Notes
- Perform self-test via LCD for preventative maintenance.
- Replace internal battery as needed; user-replaceable design minimizes downtime.
- Silence alarms via LCD or app; monitor via cloud for remote management.
- Use resettable circuit breaker to prevent overloads.
Secure your equipment with Eaton Tripp Lite SMART1000LCDNC UPS—Order now!
Brand: Tripp Lite
Type: Line-interactive UPS
Color: Black
MPN: SMART1000LCDNC
Compatible Model: SMART1000LCDNC
Features: Audible Alarm
Model: SMART1000LCDNC
Country of Origin: Vietnam
Voltage Compatibility: 1000 VA
Maximum Power: 750 W
Number of Outlets: 10
UPC: 037332280114
