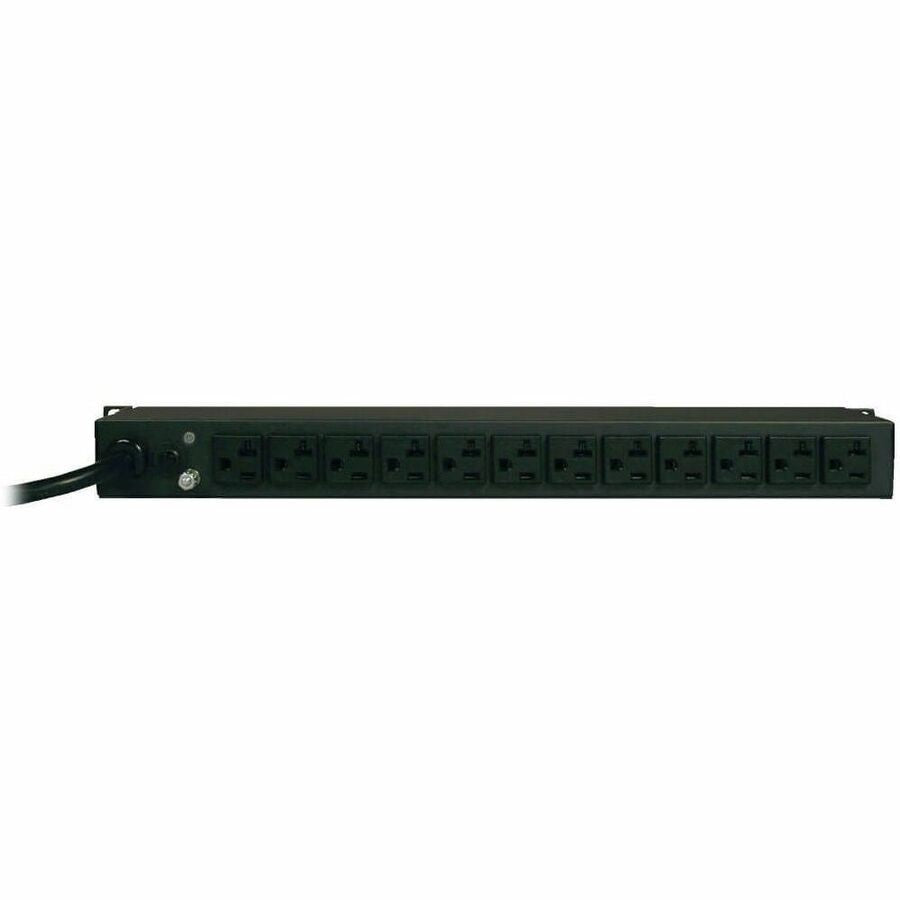

Eaton Tripp Lite PDUMH20 2.4kW Metered PDU 120V 12 Outlet 1U Rack
Eaton Tripp Lite PDUMH20 2.4kW Metered PDU 120V 12 Outlet 1U Rack
Low stock: 5 left
Save 26%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Eaton Tripp Lite PDUMH20 2.4kW Metered PDU 120V 12 Outlet 1U Rack
This is a Eaton Tripp Lite Series 2.4kW Single-Phase Local Metered PDU, model PDUMH20, providing 20A 120V capacity with a built-in digital current monitor in a compact 1U rack-mount design. It features 12 rear-facing NEMA 5-15/20R outlets, NEMA L5-20P input plug on a 15 ft. (4.57 m) cord, and versatile mounting options including rack, wall, or under-counter. UPC: 037332142504. Ideal for rack enclosures, network closets, and distributing UPS or generator power.
Key Features of Eaton Tripp Lite PDUMH20 Metered PDU
- Digital Ammeter Display – Provides continuous real-time visual monitoring of total PDU power consumption.
- Versatile Multi-Mount Design – Detachable flanges allow 1U/0U rackmount, wallmount, or under-counter installation in 19-inch racks or cable management areas.
- Compact Depth – Only 4.5 inches deep with 12 rear-facing outlets for space-efficient setups.
- Unfiltered Pass-Through – No power switch enables safe distribution of alternate waveform UPS or generator power.
- Built-in Protections – 20A circuit breaker for overload protection and TVSS grounding lug.
- Included Accessories – 6-inch L5-20P-to-5-20P adapter cord for flexible input connections.
- Rugged Construction – All-metal rackmount housing ensures durability.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Model | PDUMH20 |
| Product Name | PDUMH20 PDU Metered 120V 20A 12 Outlet |
| Product Type | PDU |
| Power Capacity | 2.4kW, 20A, 120V |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Plug/Connector Type | NEMA L5-20P |
| Cord Length | 15 ft. (4.57 m) |
| Adapter Included | 6-inch L5-20P-to-5-20P |
| Receptacle Type | 12 x NEMA 5-15/20R (rear-facing) |
| Protection Type | Overload Protection (20A breaker), TVSS grounding lug |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U (0U capable) |
| Height | 1.8" |
| Width | 17.5" |
| Depth | 4.5" |
| Weight (Approximate) | 3 lb |
| Shipping Weight | 6.80 lb |
| Shipping Height | 2.30" |
| Shipping Width | 9.50" |
| Shipping Depth | 20.30" |
| Country of Origin | Vietnam |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| MPN | PDUMH20 |
| UPC | 037332142504 |
Package Contents
- PDUMH20 PDU Metered 120V 20A 12 Outlet
- PDUMH20 Metered rackmount PDU
- Owner's manual with warranty information
- 6-inch L5-20P-to-5-20P adapter
Installation & Maintenance
Pro tip: Secure mounting flanges firmly in rack ears or wall brackets for stability under load.
- Configure flanges for desired mount (rack/wall/under-counter).
- Connect L5-20P cord to power source; use adapter if 5-20R outlet available.
- Plug devices into 12 outlets; monitor ammeter for load.
- Maintenance: Periodically check breaker and grounding lug; clean housing as needed.
Why Choose Eaton Tripp Lite PDUMH20?
Delivers reliable metered power distribution in a low-profile, multi-mount form factor suitable for data centers, server rooms, and AV setups.
Power your rack efficiently—Order the Eaton Tripp Lite PDUMH20 today!
Brand: Tripp Lite
Type: PDU
Features: Rack Mountable
Color: Black
Model: PDUMH20
MPN: PDUMH20
Compatible Model: PDUMH20
Country of Origin: Vietnam
Voltage Compatibility: 120 V
Number of Outlets: 12
Maximum Input Current: 20 A
Maximum Wattage: 2400 W
Item Height: 1.8"
Item Width: 17.5"
Item Length: 4.5"
UPC: 037332142504
