Eaton Tripp Lite PDUH30HV19 5.8kW 1U Basic PDU 4xC19 NEMA L6-30P
Eaton Tripp Lite PDUH30HV19 5.8kW 1U Basic PDU 4xC19 NEMA L6-30P
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

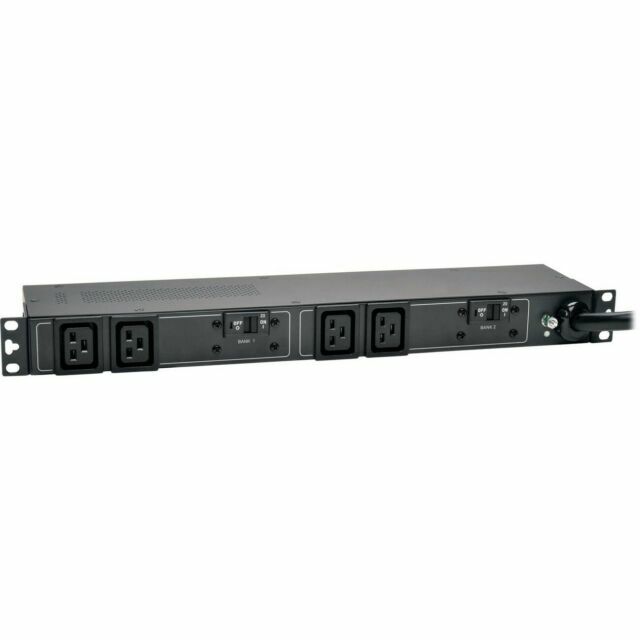

Eaton Tripp Lite Series 5.8kW Single-Phase 200-240V Basic PDU, 4 C19 Outlets, NEMA L6-30P Input, 12 ft. (3.66 m) Cord, 1U Rack-Mount
This is a Eaton Tripp Lite Series 5.8kW Single-Phase 200-240V Basic PDU with model PDUH30HV19. It provides reliable rackmount power distribution for servers and networking equipment, supplying continuous power from UPS, generator, or mains sources. Featuring a rugged all-metal housing and 4x IEC 60320 C19 outlets via NEMA L6-30P input. MPN: PDUH30HV19; UPC: 037332183194.
Key Features of Eaton Tripp Lite PDUH30HV19 Basic PDU
- Basic PDU Design – Delivers dependable power distribution in 1U horizontal rackmount form factor.

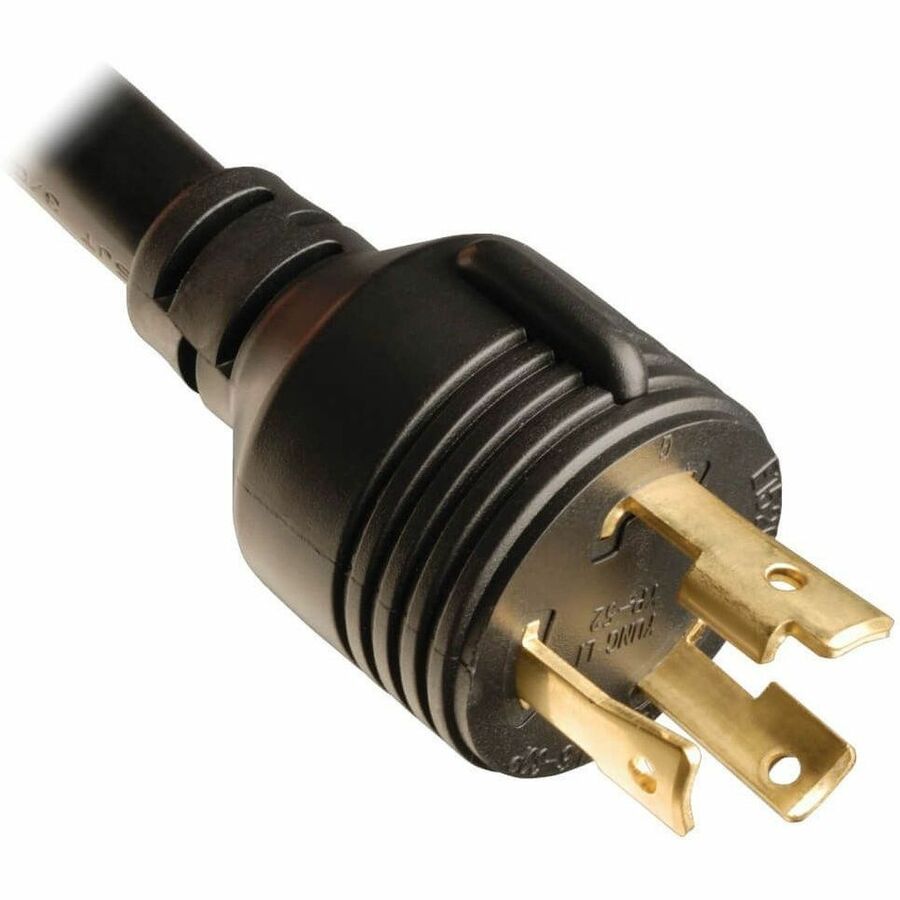

- NEMA L6-30P Plug – 30A input connection for 200-240V single-phase systems.

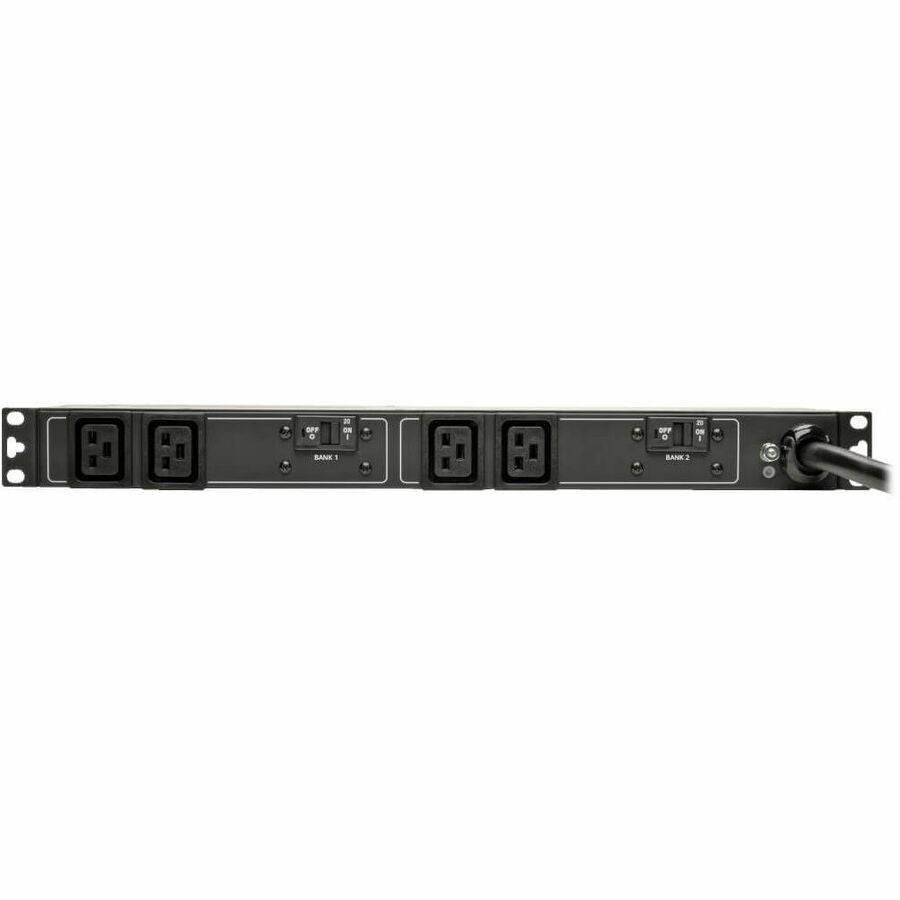

- 4x C19 Outlets – IEC 60320 C19 receptacles support high-power devices.
- Overload Protection – Built-in safeguards for connected equipment.
- 12 ft. Cord – 3.66m length offers flexible placement in racks or enclosures.
- Rugged All-Metal Housing – Ensures durability and secure installation.
- Multi-Mount Options – Rack-mountable, wall-mountable, under-counter, horizontal orientation.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Line | Basic |
| Product Model | PDUH30HV19 |
| MPN | PDUH30HV19 |
| UPC | 037332183194 |
| Product Type | PDU |
| PDU Type | Basic |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Protection Type | Overload Protection |
| Input Voltage | 230 V AC (200-240V Single-Phase) |
| Output Voltage | 230 V AC |
| Power Rating | 5800 W (5.8kW) |
| Input Current | 30 A |
| Mounting Orientation | Horizontal |
| Mount Type | Wall-mountable, Rack-mountable |
| Placement | Under-counter |
| Rack Height | 1U |
| Cord Length | 12 ft (3.66 m) |
| Height | 1.8" |
| Width | 17.5" |
| Depth | 5.2" |
| Weight | 8.10 lbs |
| Package Height | 3.10" |
| Package Width | 11.20" |
| Package Depth | 20.50" |
| Certifications & Standards | Tested to UL60950-1 (USA), CSA-C22.2 (Canada) |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Package Contents & Installation Overview
- Basic PDUH30HV19 4-Outlets PDU
- Mounting Accessories
- Instruction Manual
Pro tip: Secure to rack ears using included hardware for stable 1U installation; ensure input circuit matches 30A rating.
Why Choose Eaton Tripp Lite Basic PDU
Offers high-quality rackmount power distribution with rugged construction for data centers, server rooms, and AV setups.
Power your rack equipment reliably—Order the Eaton Tripp Lite PDUH30HV19 today!
Compatible Model: PDUH30HV19
Country of Origin: China
UPC: 037332183194
MPN: PDUH30HV19
Maximum Power: 5800 W
Item Height: 1.8"
Number of Outlets: 4
Compatible Brand: Universal
Voltage Compatibility: 208 V
Color: Black
Brand: Tripp Lite
Maximum Input Current: 30 A
Form Factor: Wall Mountable
Features: Fused
Connectors: 4 C19 Outlets, NEMA L6-30P Input
Type: Power Distribution Panel
Model: Tripp Lite PDUH30HV19
