Description

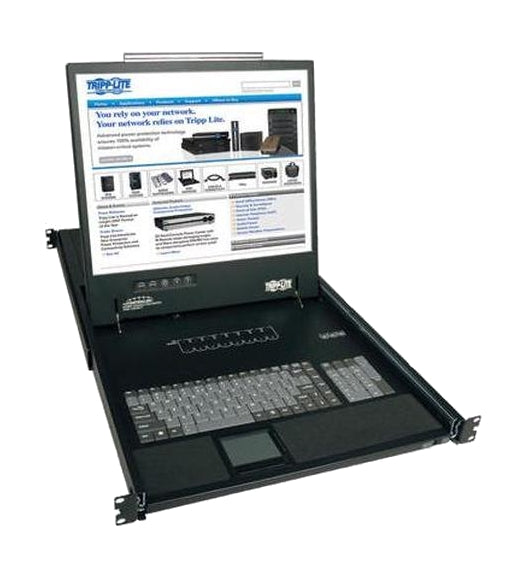

Eaton Tripp Lite NetController B040-008-19 8-Port 1U Rack-Mount Console KVM Switch with 19" LCD, TAA
This is an Eaton Tripp Lite Series NetController 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD, TAA compliant, providing a rack-mountable keyboard, LCD, and touchpad in a single 1U console for controlling up to 8 directly connected computers or servers. Model B040-008-19 features a built-in 19" LCD screen supporting resolutions up to 1366 x 768, with easy switching via on-console push buttons, OSD, or hotkeys. UPC: 037332140296. Expandable to 248 computers via daisy-chaining, compatible with all major operating systems, and built with rugged steel housing.
Key Features of Eaton Tripp Lite NetController B040-008-19 KVM Console
- 1U Rack-Mount Design – Occupies minimal rack space with integrated keyboard, 19" LCD, and touchpad for efficient server management.
- 8-Port Control – Directly supports 8 VGA computers/servers; daisy-chain up to 15 B042-Series switches for 248 total connections.
- Switching Options – Use on-console buttons, OSD menu, or keyboard hotkeys; includes password protection for secure access.

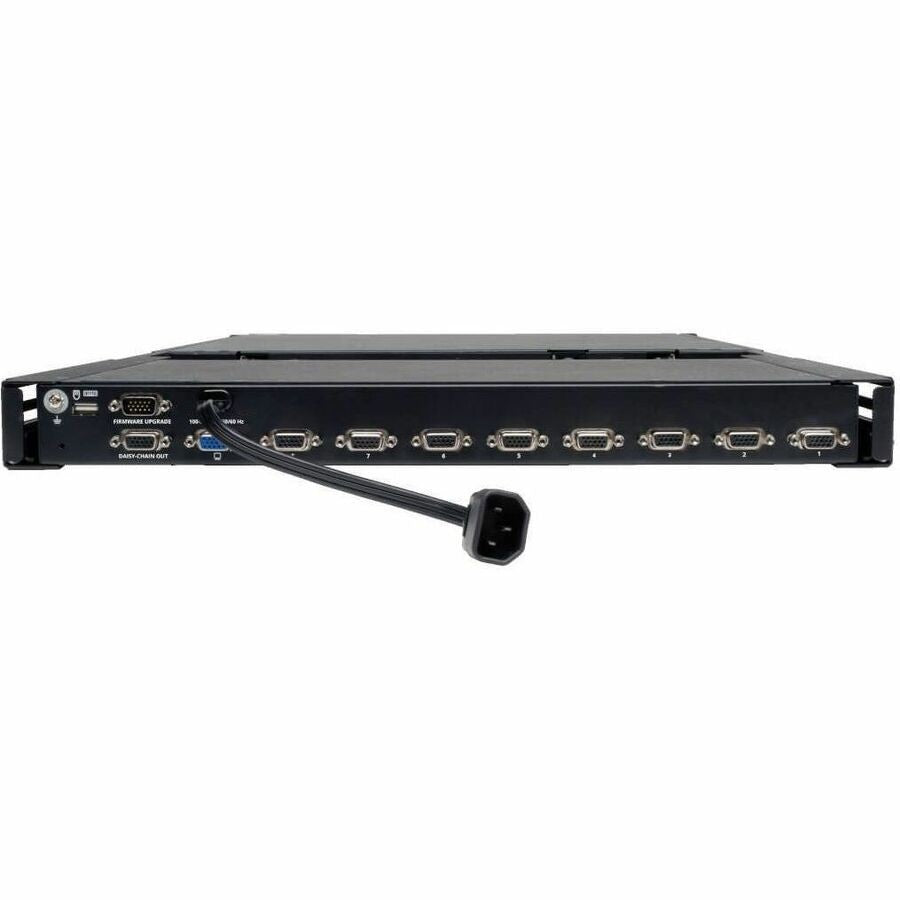

- Versatile Connectivity – Compatible with Tripp Lite P780-series combo cables for PS/2 and USB; extra HD15 port for additional VGA monitor or external console.
- Remote Access Ready – Add Tripp Lite B051-000 IP Remote Access Unit for worldwide connectivity.
- Retractable Storage – Stores neatly in rack drawer when not in use; rugged steel construction for frequent handling.
- Broad Compatibility – Works with all major operating systems; TAA compliant for GSA purchases.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Model | B040-008-19 |
| Manufacturer Part Number | B04000819 |
| Product Name | NetController 19" 8-Port VGA Console KVM Switch |
| Product Type | LCD Rack Console |
| Device Type | LCD Rack Console |
| KVM Switch | Yes |
| Number of Computers Supported | 8 (expandable to 248 via daisy-chain) |
| Daisy Chain | Yes (up to 15 B042-Series switches) |
| Screen Size | 19" |
| Display Screen Type | LCD |
| Screen Mode | WXGA |
| Screen Resolution | 1366 x 768 |
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
| USB | Yes |
| Number of USB Ports | 1 |
| Input Voltage | 120 V AC / 230 V AC |
| Product Color | Black |
| Height | 1.7" |
| Width | 17.7" |
| Depth | 28.4" |
| Weight (Approximate) | 31.70 lb |
| Shipping Weight | 40.10 lb |
| Shipping Height | 6.00" |
| Shipping Width | 23.50" |
| Shipping Depth | 32.80" |
| UPC | 037332140296 |
| D&H Item Number | B04000819 |
| Certifications & Standards | UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1 |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |

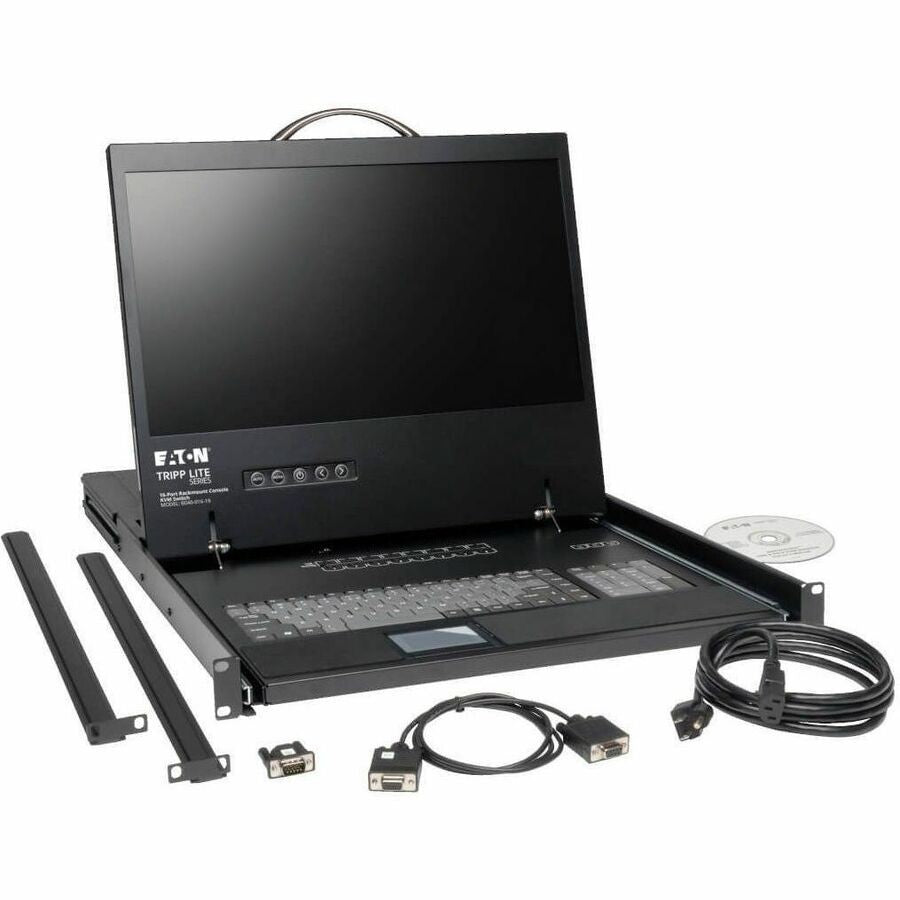

Package Contents
- NetController 19" 8-Port VGA Console KVM Switch (B040-008-19)
- 4ft Firmware Upgrade Cable (HD15F-DB9F)
- AC Power Cord
- Owner's Manual CD
- Quick Start Guide
Why Choose Eaton Tripp Lite NetController KVM Switch
Designed for data centers and server rooms, this TAA-compliant 1U KVM console offers cost-effective multi-server control with expandable capacity, secure access, and durable construction for reliable performance in demanding environments.
Streamline your server management—Order the Eaton Tripp Lite B040-008-19 NetController today!
Type: LCD Rack Console
Features: Retractable
Color: Black
Compatible Brand: Tripp Lite series
Country of Origin: Taiwan
Compatible Model: B040-008-19
Manufacturer Warranty: 1 Year
Connection Split/Duplication: 1:8
Item Height: 1.7 in
Item Width: 17.7 in
Item Length: 28.4 in
UPC: 037332140296
MPN: B040-008-19
Display Type: LCD
Brand: Tripp Lite
Refresh Rate: 60 Hz
Contrast Ratio: 800:1
Screen Size: 19 in
Aspect Ratio: 5:4
