Eaton Tripp Lite NetCommander 16-Port Cat5 KVM over IP Switch 19" LCD 1U TAA
Eaton Tripp Lite NetCommander 16-Port Cat5 KVM over IP Switch 19" LCD 1U TAA
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Eaton Tripp Lite Series NetCommander 16-Port Cat5 KVM over IP Switch - 19 in. LCD, 1 Remote + 1 Local User, 1U Rack-Mount, TAA
This is a rack-mountable LCD rack console KVM switch from the Eaton Tripp Lite NetCommander series, model B070-016-19-IP, designed for controlling up to 16 computers or servers. It features a built-in 19-inch LCD, full keyboard, and touchpad in a 1U space, supporting local and remote access over Cat5e/6/6a cabling up to 100 feet via IP. UPC: 037332140326. Ideal for data centers, server rooms, and remote management on LAN, WAN, or Internet with dual LAN ports for redundancy, OSD switching, multi-level password security, and simultaneous 1 local + 1 remote user access.
Key Features of Eaton Tripp Lite NetCommander B070-016-19-IP KVM Switch

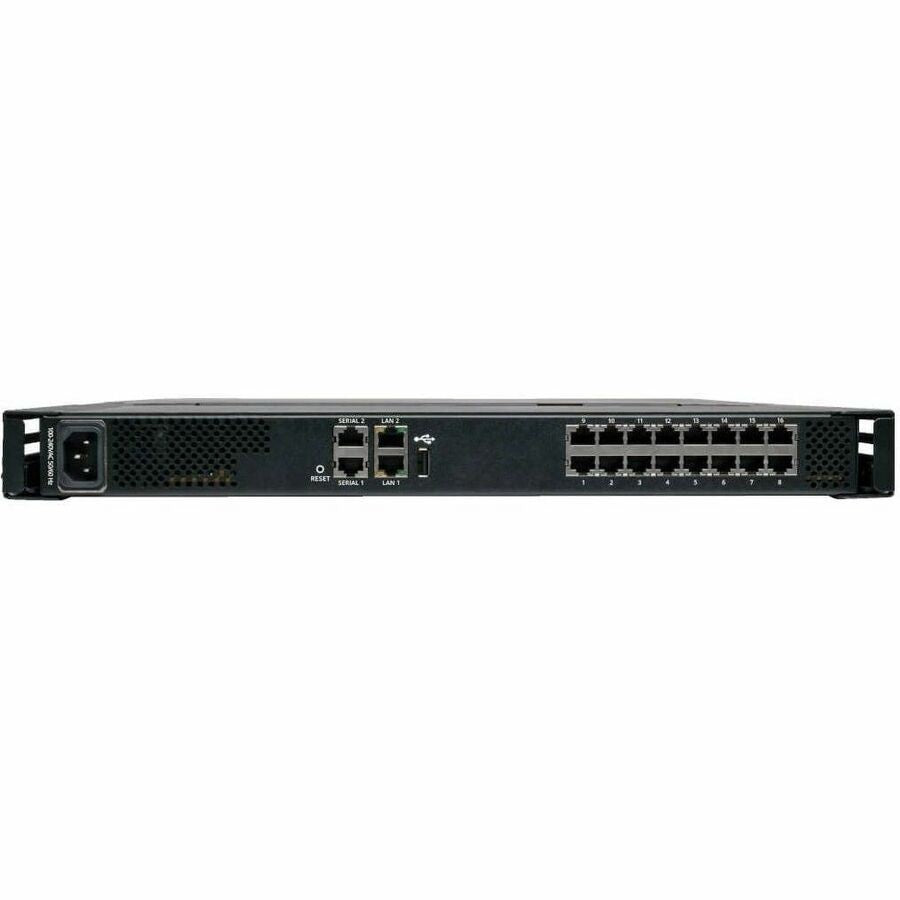

- 16-Port Cat5 IP KVM Console – Controls servers up to 100 ft away using user-supplied Cat5e/6/6a cables and Server Interface Units; supports daisy chaining for expanded access.
- Dual 10/100 Mbps LAN Ports – Failover redundancy ensures uninterrupted remote access if one port fails.

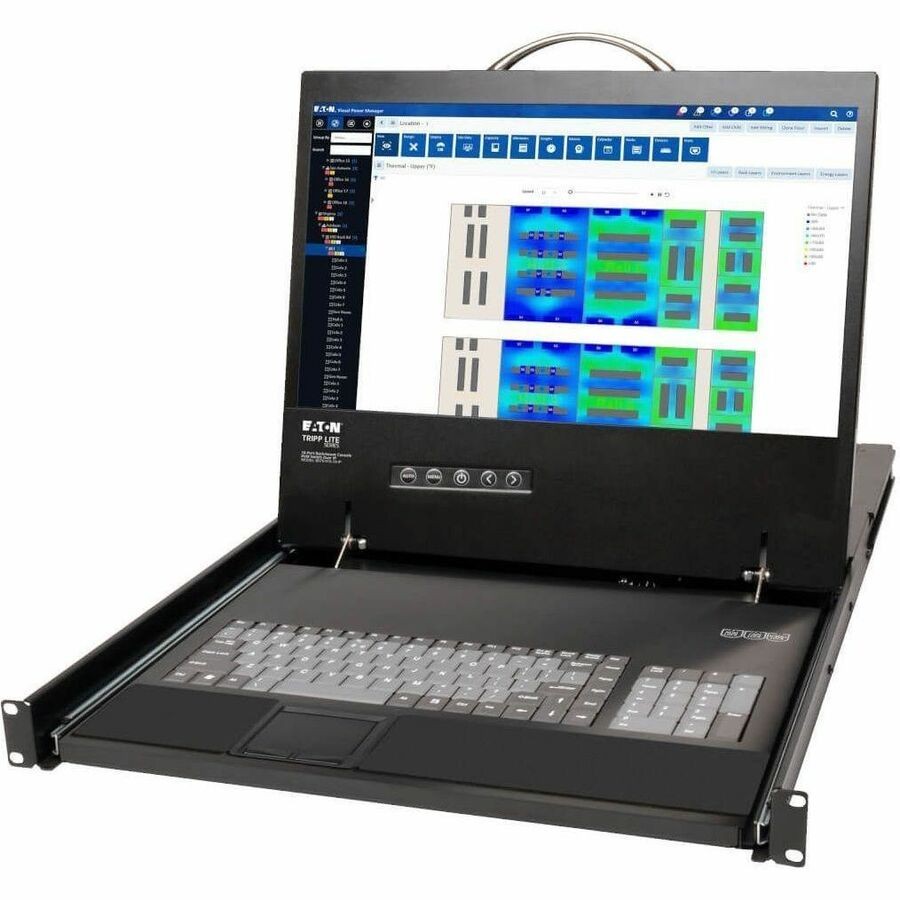

- 19" WXGA LCD Display – Built-in 1366 x 768 resolution screen with keyboard and touchpad in a slide-out 1U rack drawer.
- Simultaneous Dual-User Access – 1 local user and 1 remote user logged in at the same time with multi-level password protection via OSD.
- Serial Port Integration – Two serial ports for managing IP PDUs, firewalls, routers; assign ports to power cycle connected servers.
- Digital KVM Technology – Compatible with Windows and Linux; remote access via Windows computer; free NetCommander-AXS software for multi-switch management.
- Heavy-Duty Steel Construction – Black finish, TAA compliant for GSA purchases, made in Taiwan.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Line | NetCommander |
| Product Model | B070-016-19-IP |
| Manufacturer Part Number | B070-016-19-IP |
| UPC | 037332140326 |
| Product Type | LCD Rack Console |
| KVM Switch | Yes |
| KVM Technology | Digital |
| Number of Computers Supported | 16 |
| Daisy Chain | Yes |
| Device Type | LCD Rack Console |
| Screen Size | 19" |
| Screen Mode | WXGA |
| Screen Resolution | 1366 x 768 |
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 (Dual 10/100 Mbps LAN with failover) |
| PS/2 Port | Yes |
| Number of PS/2 Ports | 2 |
| Input Voltage | 240 V AC |
| Product Color | Black |
| Product Material | Steel |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 19" |
| Depth | 26.8" |
| Weight (Approximate) | 37.50 lb |
| Shipping Weight | 42.10 lb |
| Shipping Height | 6.20" |
| Shipping Width | 24.50" |
| Shipping Depth | 33.00" |
| Certifications & Standards | UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1 |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
Package Contents & Additional Details
- NetCommander B070-016-19-IP 19" Rackmount LCD with KVM Switch

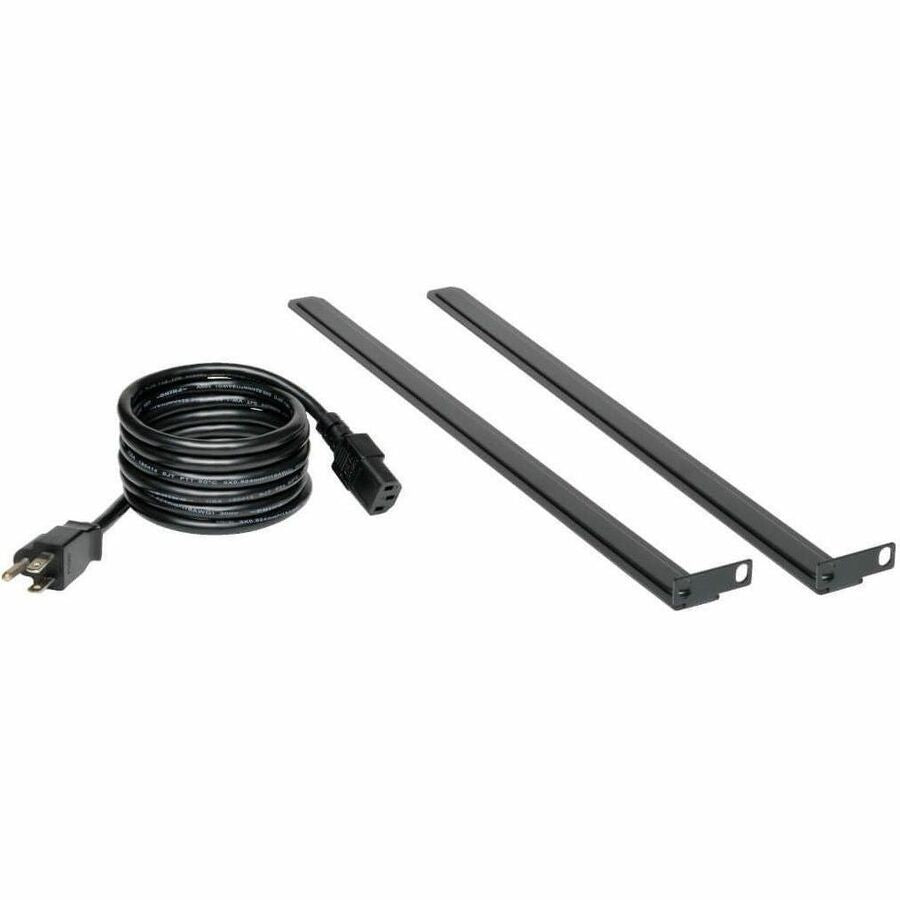

- Power Cord
- Serial Firmware Upgrade Cable
- KVM/Console Jumper Cable
- CD (Includes: Owner's Manual)
Environmentally friendly design. Supports remote management software downloadable from manufacturer site. Ship via UPS; handling optimized for rack equipment.
Why Choose Eaton Tripp Lite NetCommander KVM over IP Switch
Provides reliable, secure server control in 1U rack space with IP remote access, redundancy, and serial integration for IT professionals managing multiple systems locally or globally. TAA compliance suits government and enterprise deployments; steel build ensures durability in demanding environments.
Secure your server management—Order the Eaton Tripp Lite NetCommander B070-016-19-IP today!
Type: LCD Rack Console
Color: Black
Compatible Brand: Tripp Lite series
Country of Origin: Taiwan
Compatible Model: B070-016-19-IP
Manufacturer Warranty: 1 Year
Connection Split/Duplication: 1:16
Item Height: 1.7 in
Item Width: 19 in
Item Length: 26.8 in
UPC: 037332140326
MPN: B070-016-19-IP
Display Type: LCD
Brand: Tripp Lite
Screen Size: 19 in
Aspect Ratio: 4:3
