Eaton Tripp Lite DWMSC3780MUL Full-Motion Security TV Wall Mount 37"-80" UL
Eaton Tripp Lite DWMSC3780MUL Full-Motion Security TV Wall Mount 37"-80" UL
Low stock: 4 left
Save 22%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Eaton Tripp Lite Series Heavy-Duty Full-Motion Security TV Wall Mount for 37" to 80", Flat or Curved, UL
This is a heavy-duty full-motion security TV wall mount from the Eaton Tripp Lite series, designed for flat-panel or curved-screen televisions and monitors from 37 to 80 inches. Model DWMSC3780MUL supports up to 88 lb loads with VESA mounting patterns including 300 x 300, 400 x 200, 400 x 400, 600 x 400, and 800 x 400. UPC 037332225061. It features tilt from -10° to +5°, 90° swivel, a built-in bubble level, and a security combination lock for public installations like classrooms or lobbies.
Key Security and Full-Motion Features
- Heavy-Duty Steel Construction – Powder-coated black finish resists scratches; function- and weight-tested to 200 lb per UL Standard 2442.

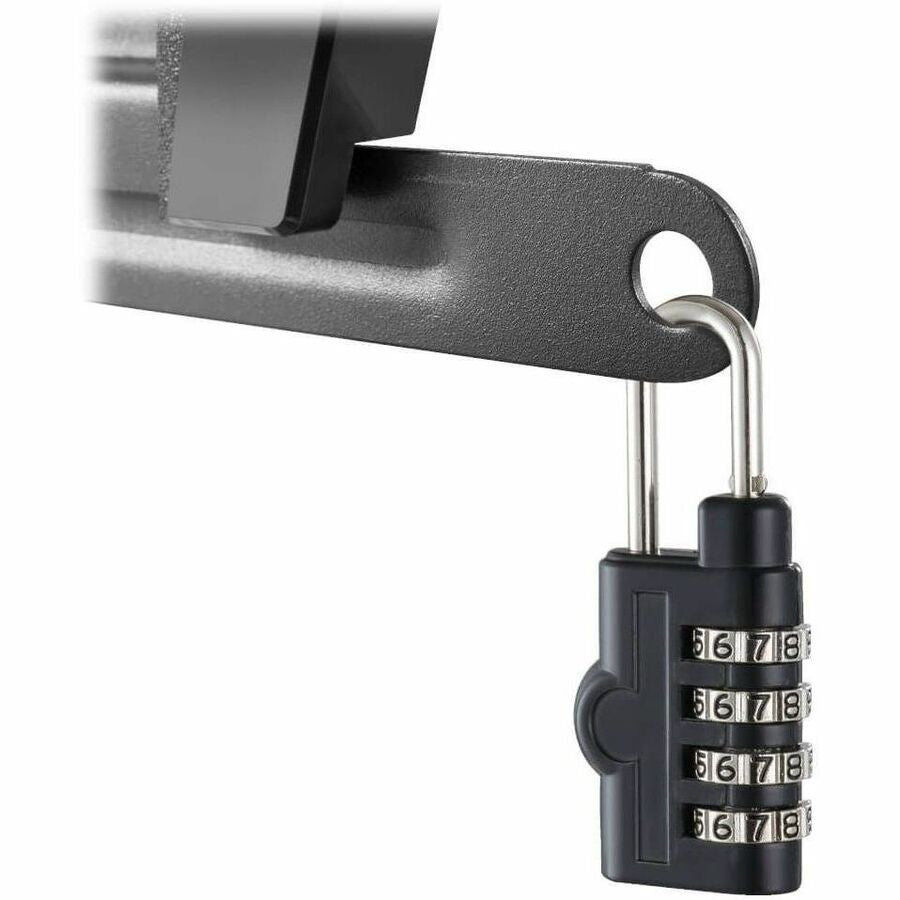

- Security Bar and Lock – Solid steel bar with four-position combination lock secures brackets; ideal for high-traffic areas like hotels, bars, or libraries.

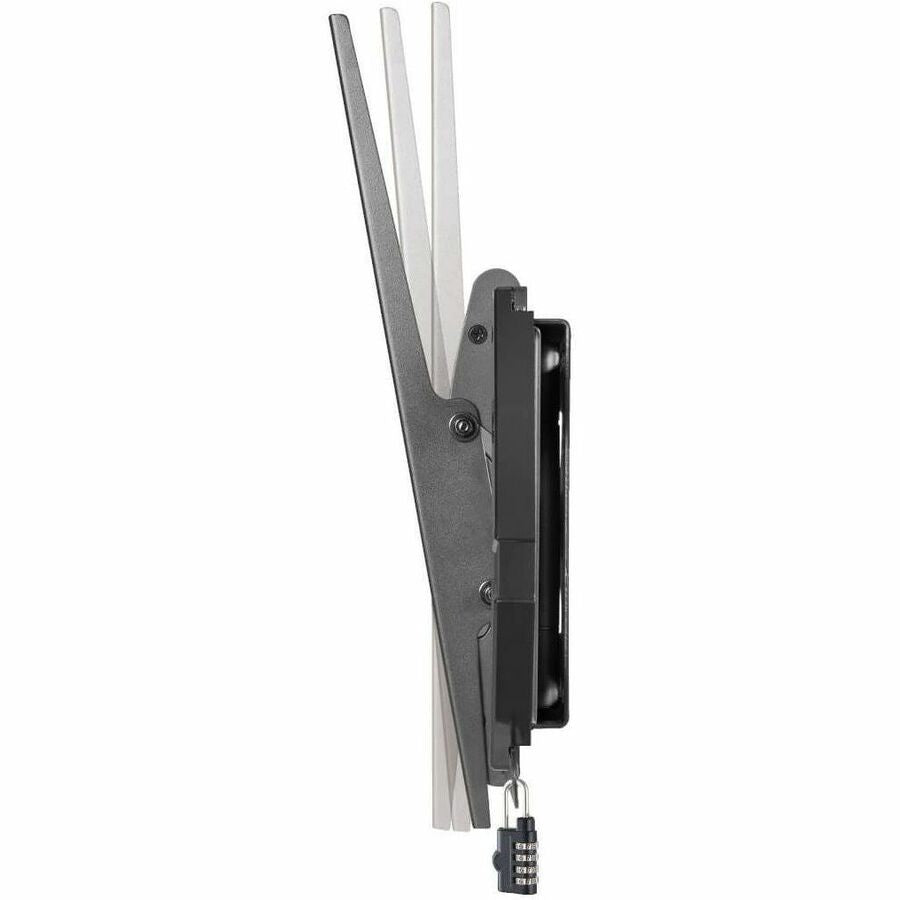

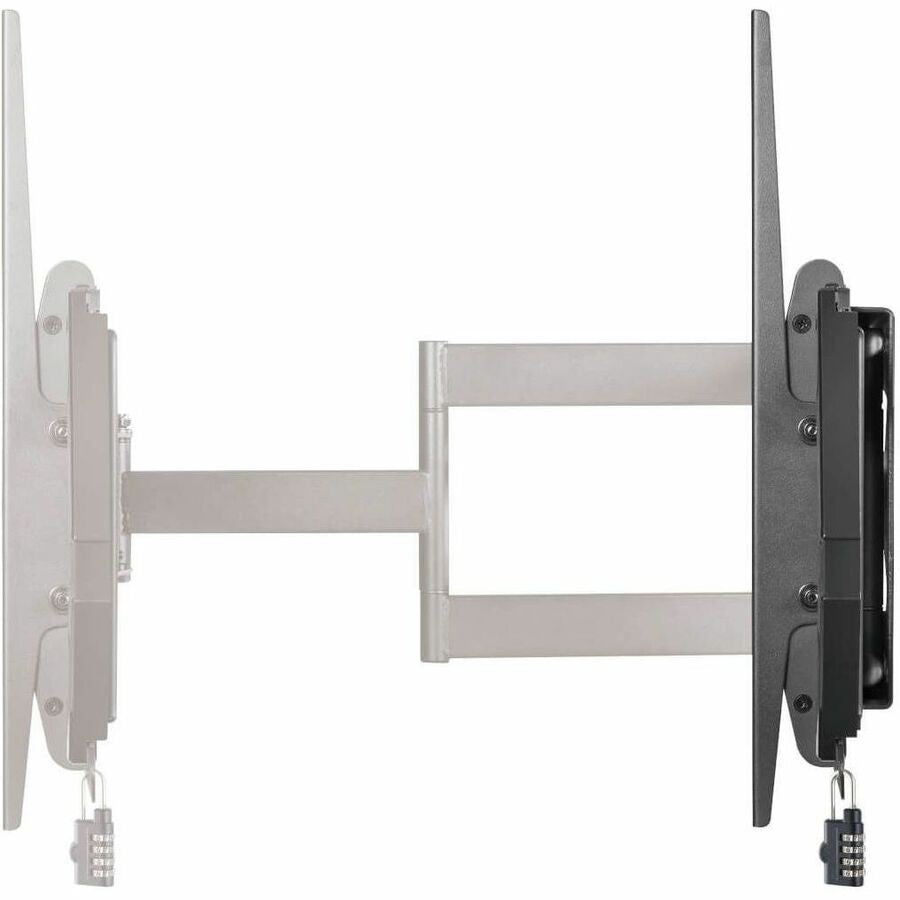

- Full-Motion Adjustability – Tilt -10° to +5° horizontal, 90° left/right swivel to reduce glare and optimize viewing.
- Cable Management – Rear openings with smooth edges for easy access; hidden behind display for professional look.
- Built-In Bubble Level – Ensures even mounting; suitable for home theaters, conference rooms, restaurants.
- Universal VESA Support – Compatible with multiple patterns for broad display fit.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Manufacturer Part Number | DWMSC3780MUL |
| Product Type | Wall Mount |
| Device Supported | Flat Panel Display, Curved Screen Display, Monitor |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 88 lb |
| Maximum Screen Size Supported | 37" to 80" |
| Mounting Pattern | 300 x 300, 400 x 200, 400 x 400, 600 x 400, 800 x 400 |
| Tilt Range | -10° to +5° |
| Swivel Range | 90° left to right |
| Color | Black |
| Material | Heavy-Duty Steel |
| Product Height | 21.60" |
| Product Width | 38.80" |
| Product Depth | 17.30" |
| Product Weight (Approximate) | 22 lb |
| UPC | 037332225061 |
| Country of Origin | China |
| UL Certification | UL Standard 2442 (tested to 200 lb) |
Complete Package Contents
- Wall Plate
- 2 x Adapter Brackets
- Security Bar
- Wall Plate Level
- 2 x End Caps
- 4 x End Cap Screws
- 2 x Anti-skid Blocks
- 4 x M5 x 14 Screws
- 4 x M6 x 14 Screws
- 4 x M6 x 30 Screws
- 4 x M8 x 20 Screws
- 4 x M8 x 30 Screws
- 4 x Washers
- 8 x Small Spacers
- 4 x Large Spacers
- 5 x Anchor Bolts
- 5 x Concrete Anchors
- 5 x 20 mm Washers
- Combination Lock
- Owner's Manual
Installation and Maintenance Notes
Pro tip: Use the built-in bubble level for level mounting; anchor into studs or concrete for safety.
- Locate studs or use concrete anchors.
- Attach wall plate and level it.
- Secure adapter brackets to display per VESA pattern.
- Hang display, adjust tilt/swivel, route cables.
- Install security bar and set combination lock.
- Clean with mild detergent; check fasteners periodically.
Secure your TV with Eaton Tripp Lite DWMSC3780MUL—Order now!
Brand: Tripp Lite
Type: Wall Mount
MPN: DWMSC3780MUL
Color: Black
Country of Origin: China
Maximum Screen Size Fitment: 80 in
VESA Hole Pattern: 300 x 300 mm
Features: Heavy-Duty Steel Construction
Maximum Weight Fitment: 88 lb
UPC: 037332225061
