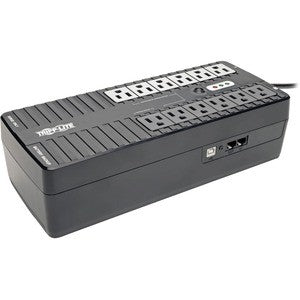

Key Features of Eaton Tripp Lite ECO750UPS Standby UPS

• Energy-Saving ECO Design – Greater than 95% efficiency in line mode; 99% line-mode efficiency reduces operating costs; four ECO outlets auto-power off when computer is in standby or shutdown.

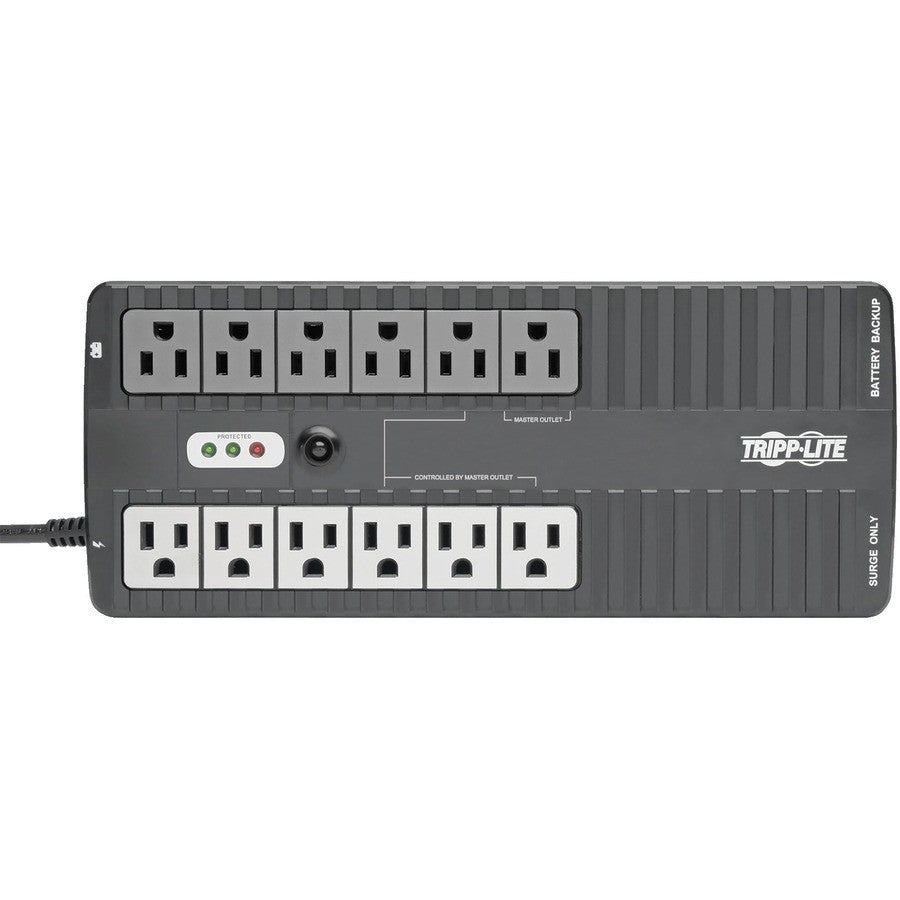

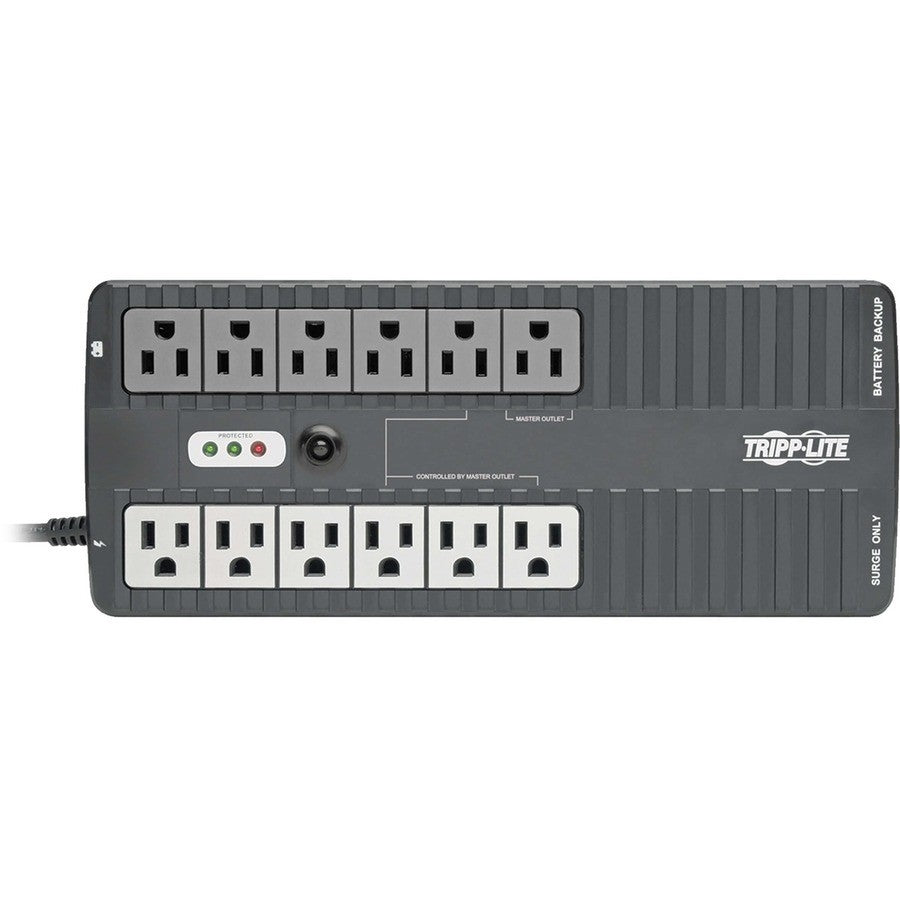

• 12 NEMA 5-15R Outlets – 6 battery & surge protected for critical devices like computer and monitor; 6 surge-only for peripherals.

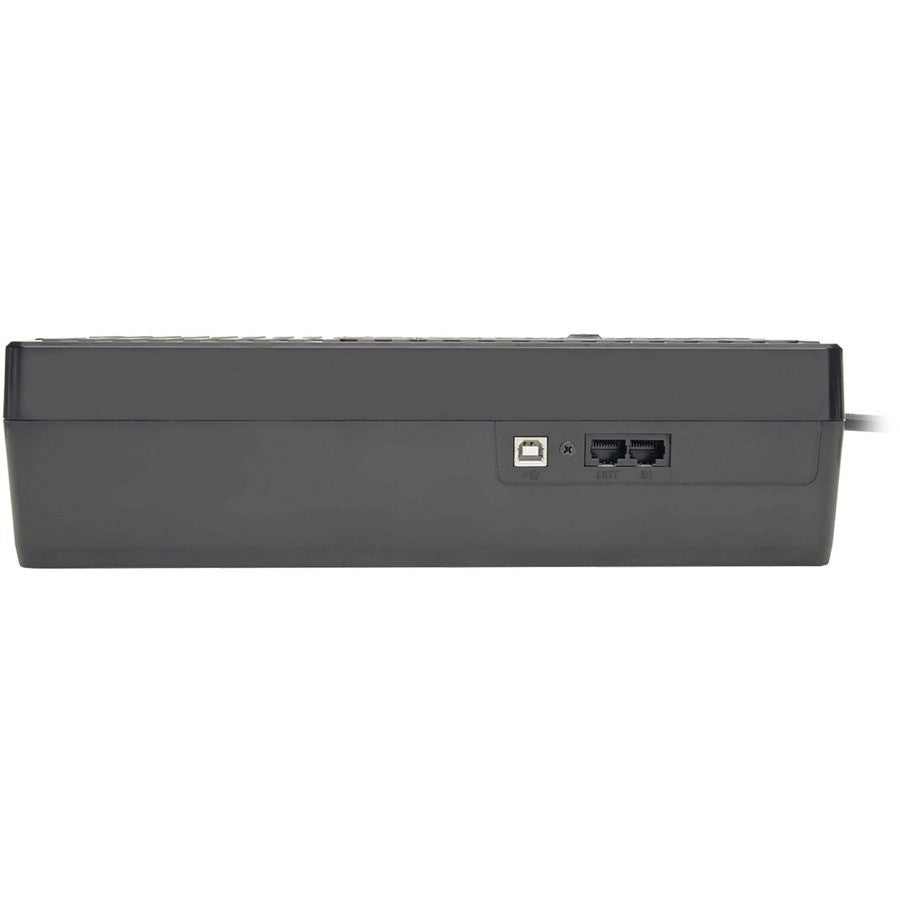

• USB Port for Management – HID compliant USB enables configuration and safe unattended shutdown during outages.
• Built-in Surge Protection – 316 Joules surge energy rating; single-line RJ-11/RJ-45 dataline protection for phone/DSL; EMI/RFI noise filter.
• Battery Backup Performance – 12V DC system; 2 minutes at full load, 8.6 minutes at half load; supports up to 45 minutes for entry-level PCs; replaceable battery; 6.5-hour recharge.

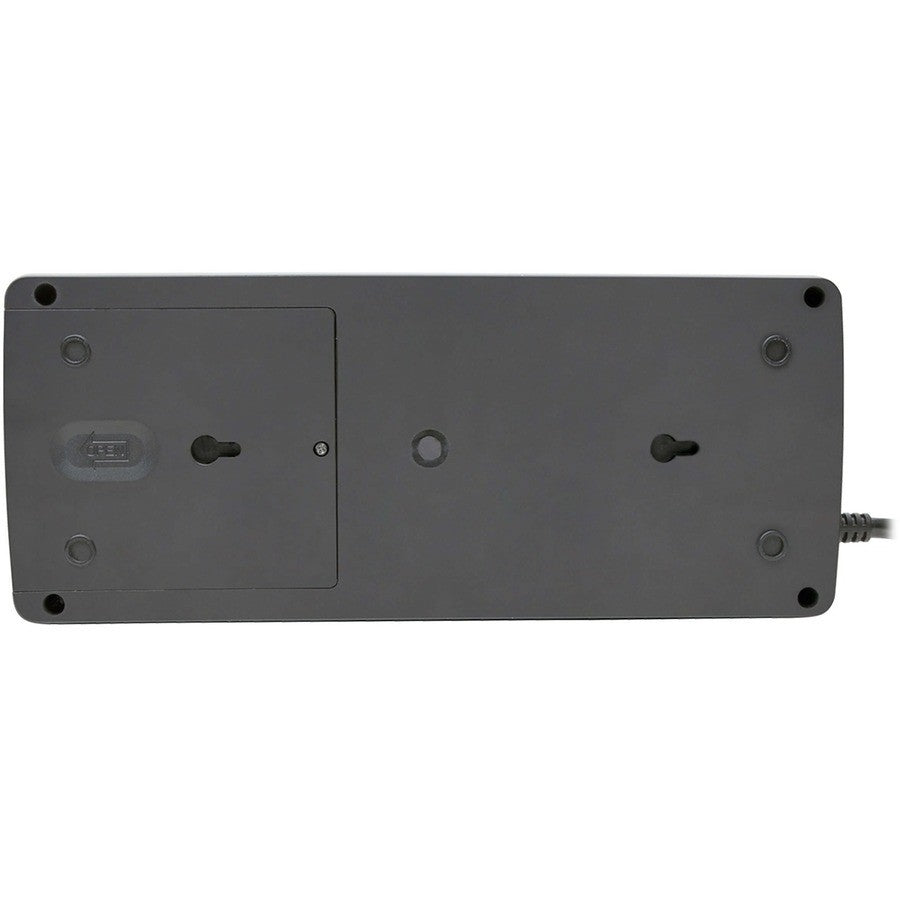

• Versatile Form Factor – Ultra-compact for desktop, tower, or wall mount; 6 ft (1.8m) input cord.
• Status Monitoring – 3 LEDs for ECO mode, line/battery operation, low battery, overload, replace battery, and fault s; audible alarms for low battery, fault, overload, replace battery.
• Certifications – ENERGY STAR qualified; UL Listed; RoHS compliant.

Comprehensive Technical Specifications

Setup and Maintenance for Eaton Tripp Lite 750VA UPS

Simple plug-and-play setup; connect to wall outlet and devices for immediate protection.

1. Plug the NEMA 5-15P cord into a grounded 120V outlet.

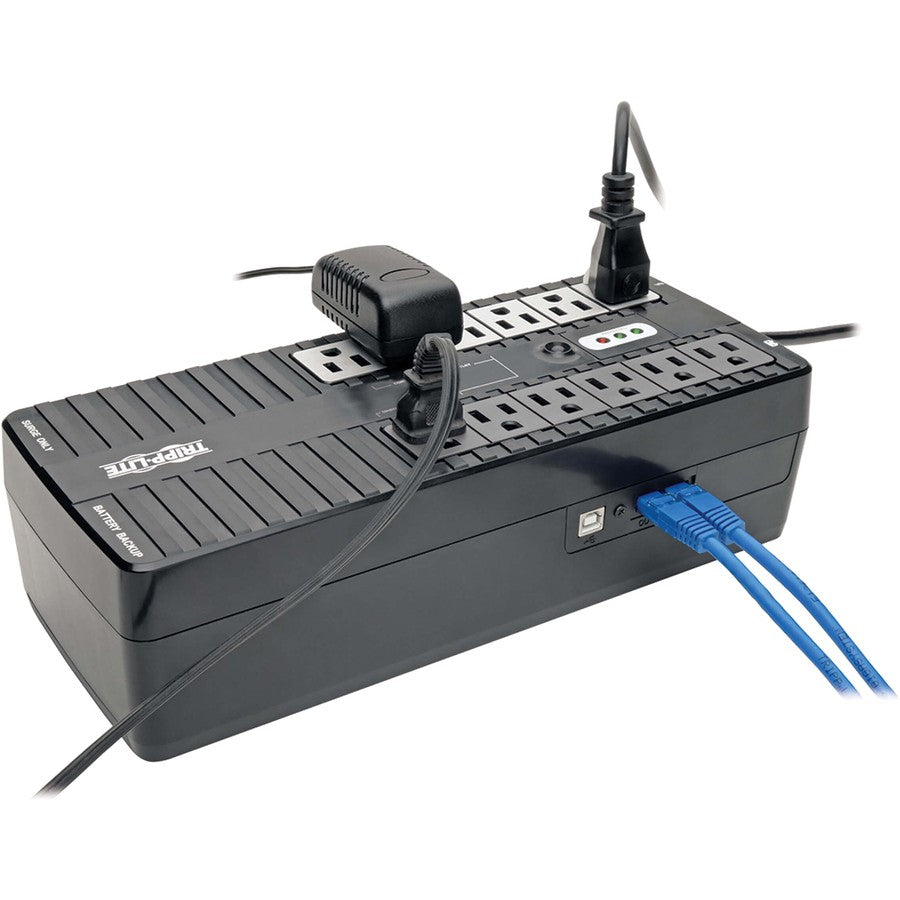

2. Connect critical devices to battery/surge outlets and peripherals to surge-only/ECO outlets.
3. Install USB cable to computer for PowerAlert software to enable auto-shutdown.
4. Pro tip: Test battery monthly by simulating outage; allow full recharge after tests.
5. Maintenance: Replace battery every 2-3 years or on indicator; clean vents for airflow; store in cool, dry place.

Why Choose Eaton Tripp Lite ECO750UPS?

Provides reliable standby power protection with energy-efficient features, RoHS compliance, and versatile mounting for desktops, walls, or towers in home, office, or small business environments.
