Eaton Tripp Lite BP72RT 72V Extended Battery Module 2U Rack/Tower
Eaton Tripp Lite BP72RT 72V Extended Battery Module 2U Rack/Tower
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Eaton Tripp Lite Series 72V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower
This is an External Battery Pack manufactured by Eaton Corporation under the Tripp Lite series. The product model BP72RT provides extended runtime for compatible UPS systems when used in conjunction with SU2200RTXLCD2U, SU2200RTXLCDN, SU3000RTXLCD2U, SU3000RTXLCD2UN, SUINT2200LCD2U and SUINT3000LCD2U SmartOnline UPS systems. It supports daisy-chaining up to a maximum of four matching battery packs and includes heavy-gauge cabling with high-current DC connectors.
The BP72RT is a valve-regulated lead-acid unit that mounts in 2U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or adapts for tower installation using UPS system support stands. It operates between 32°F and 104°F and carries environmental compliance with REACH and RoHS standards.
Key Features
- Valve-regulated lead-acid (VRLA) battery chemistry with hot-swappable and user-replaceable design
- 72 V DC output voltage for extended runtime on listed SmartOnline UPS models
- Daisy-chain capability for up to four matching battery packs
- Heavy-gauge cabling with high-current DC connectors included
- 2U rack-mount installation with included 4-post rail kit; optional 2-post rail kit RK2PC supported
- Tower installation adaptation using UPS system support stands
- Country of origin Philippines
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Model | BP72RT |
| Manufacturer Part Number | BP72RT |
| UPC | 037332279729 |
| Product Type | External Battery Pack |
| Battery Characteristics | Valve-regulated, Hot-swappable, User Replaceable |
| Battery Chemistry | Lead Acid |
| Output Voltage | 72 V DC |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Height | 3.4" |
| Physical Width | 17.3" |
| Physical Depth | 23.8" |
| Weight Approximate | 86.40 lb |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
| Compatibility | SU2200RTXLCD2U, SU2200RTXLCDN, SU3000RTXLCD2U, SU3000RTXLCD2UN, SUINT2200LCD2U, SUINT3000LCD2U |

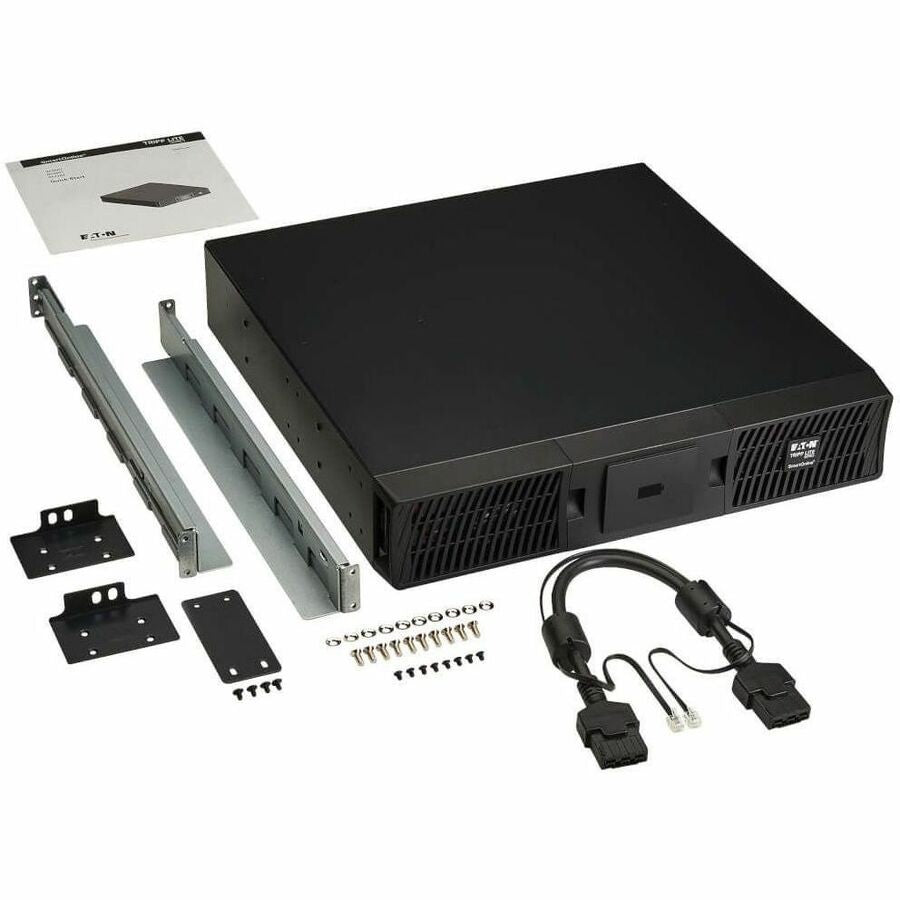

Package Contents
- 72V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower
- External Battery Cable
- Rack-mounting Hardware
- Quick Start Guide
Brand: Tripp Lite
Type: Battery
MPN: BP72RT
Compatible Model: BP72RT
Model: BP72RT
UPC: 037332279729
