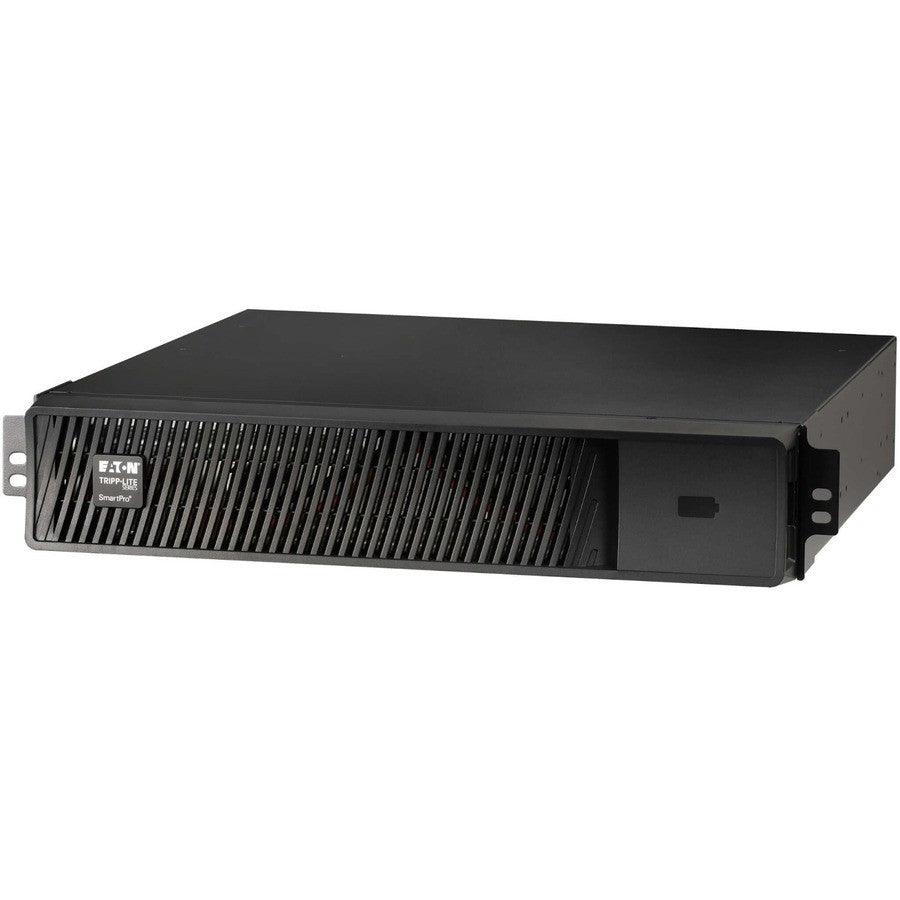

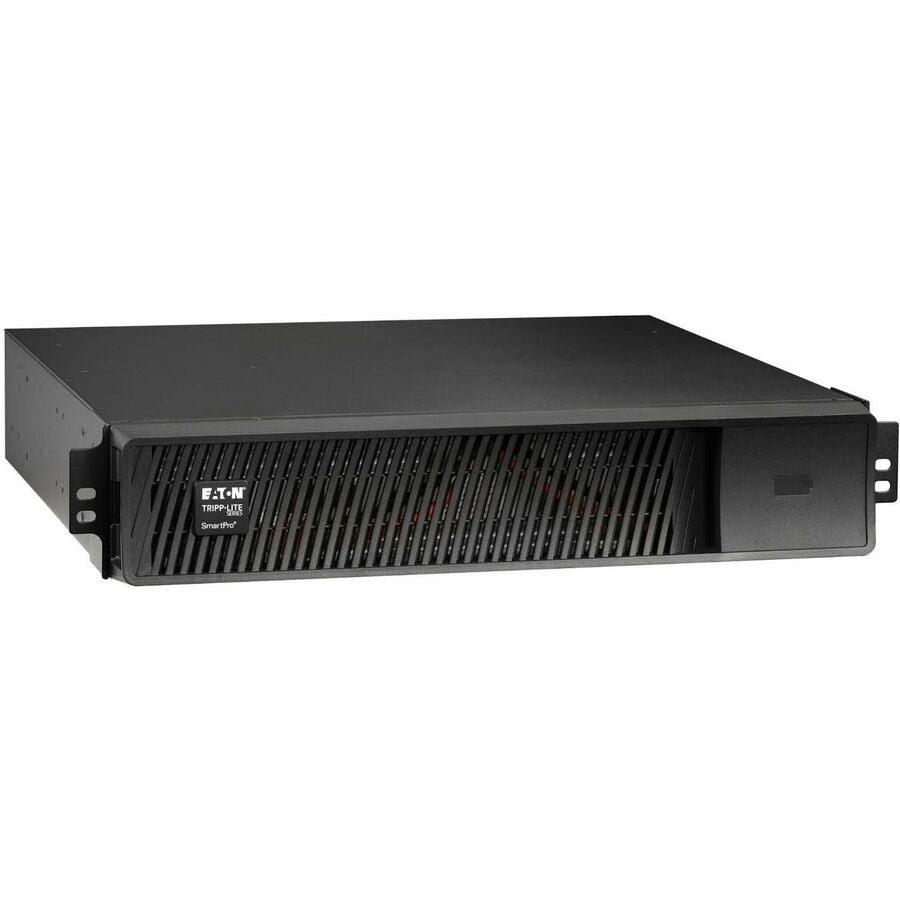

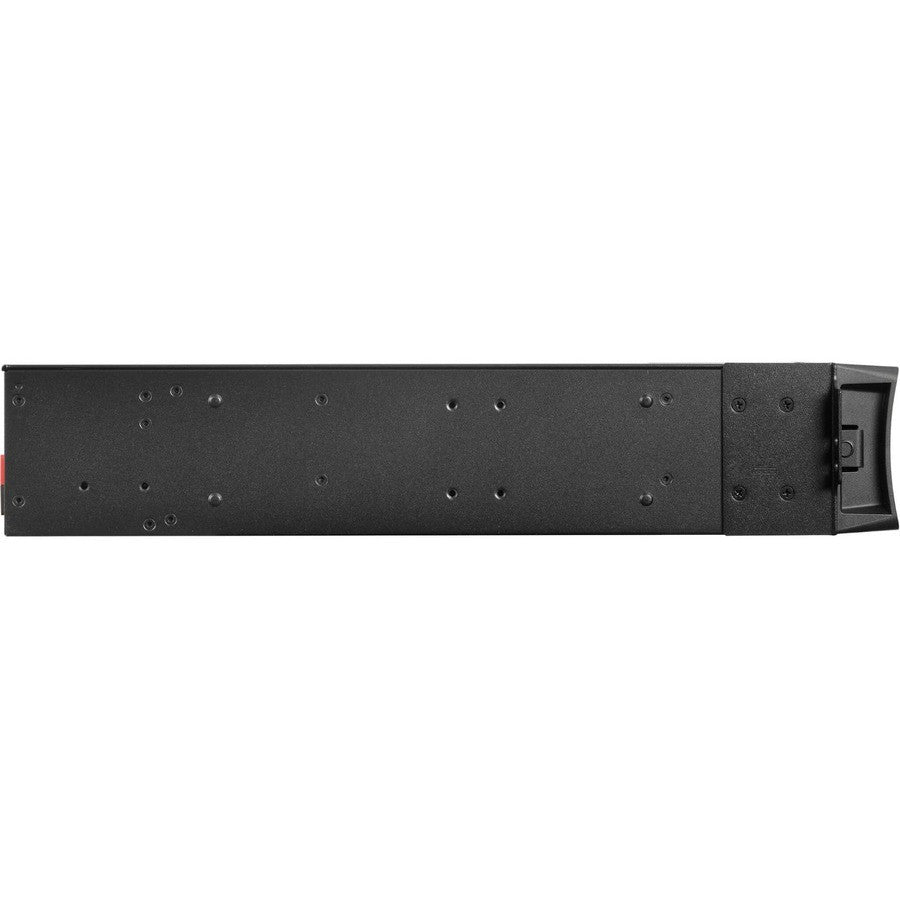

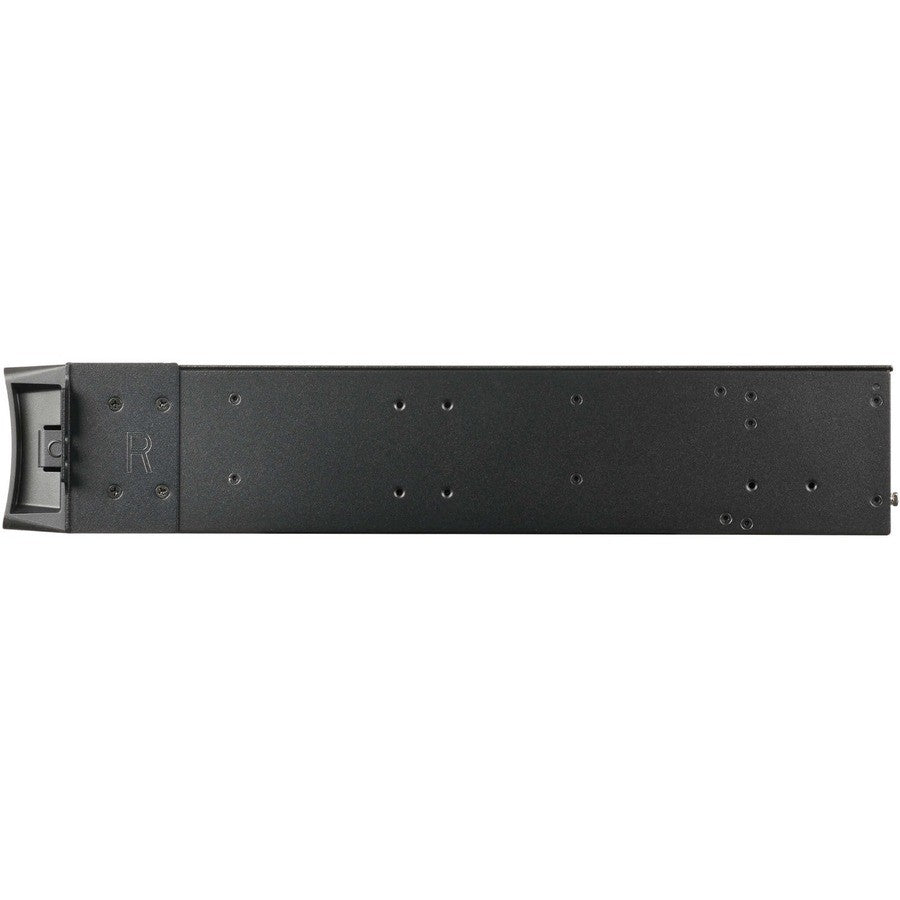

Eaton Tripp Lite BP48VRM2U 48V UPS Battery Pack 2U Rack/Tower
Eaton Tripp Lite BP48VRM2U 48V UPS Battery Pack 2U Rack/Tower
Low stock: 2 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Eaton Tripp Lite BP48VRM2U 48V UPS Battery Pack 2U Rack/Tower
This is a UPS Battery Pack from the Eaton Tripp Lite Series Extended Battery Modules. The BP48VRM2U provides extended battery runtime when used with Eaton Tripp Lite series 750VA, 1000VA and 1500VA SmartPro UPS systems. It supports daisy-chaining up to four matching battery packs and includes heavy-gauge cabling with high-current DC connectors.
Key Features
- Backup Battery Module extends runtime for compatible Eaton Tripp Lite series 750VA, 1000VA and 1500VA SmartPro UPS systems
- Daisy-chain support for a maximum of four matching battery packs

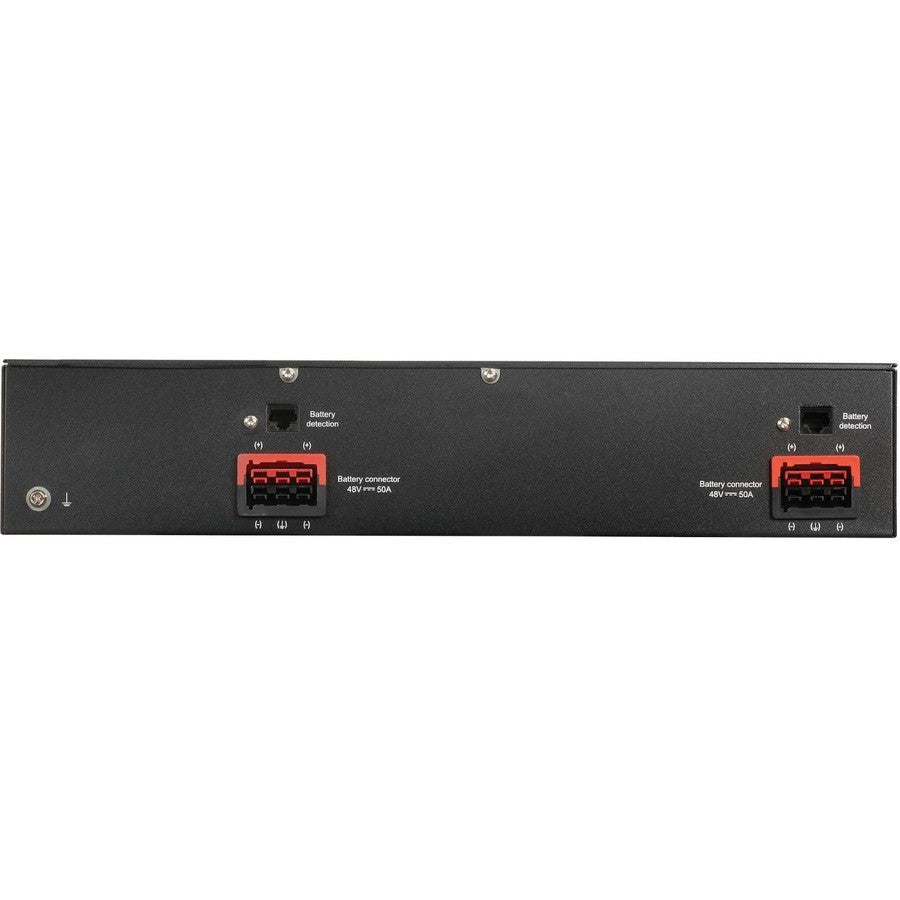

- Heavy-gauge cabling with high-current DC connectors included
- Multi-use form factor supports 2U rack or tower installation
- Includes 4-post rail kit, mounting brackets and tower stands
- Valve-regulated lead acid battery, user replaceable and hot swappable
- 48 V DC output voltage
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Eaton |
| Manufacturer | Eaton Corporation |
| Product Series | Extended Battery Modules |
| Product Model | BP48VRM2U |
| MPN | BP48VRM2U |
| UPC | 037332279095 |
| Product Type | UPS Battery Pack |
| Battery Characteristics | Valve-regulated/User Replaceable |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Output Voltage | 48 V DC |
| Physical Height | 3.4" |
| Physical Width | 17.2" |
| Physical Depth | 17.6" |
| Shipping Weight | 72.40 |
| Shipping Height | 9.40 |
| Shipping Width | 19.50 |
| Shipping Depth | 23.10 |
| Country of Origin | Philippines |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Compatibility | SMART750RMXL2U, SMART750RMXL2UN, SMART1000RMXL2U, SMART1000RMX2UN, SMART1500RMXL2U, SMART1500RMXLN, SMX1500XLRT2U, SMX1500XLRT2UN |

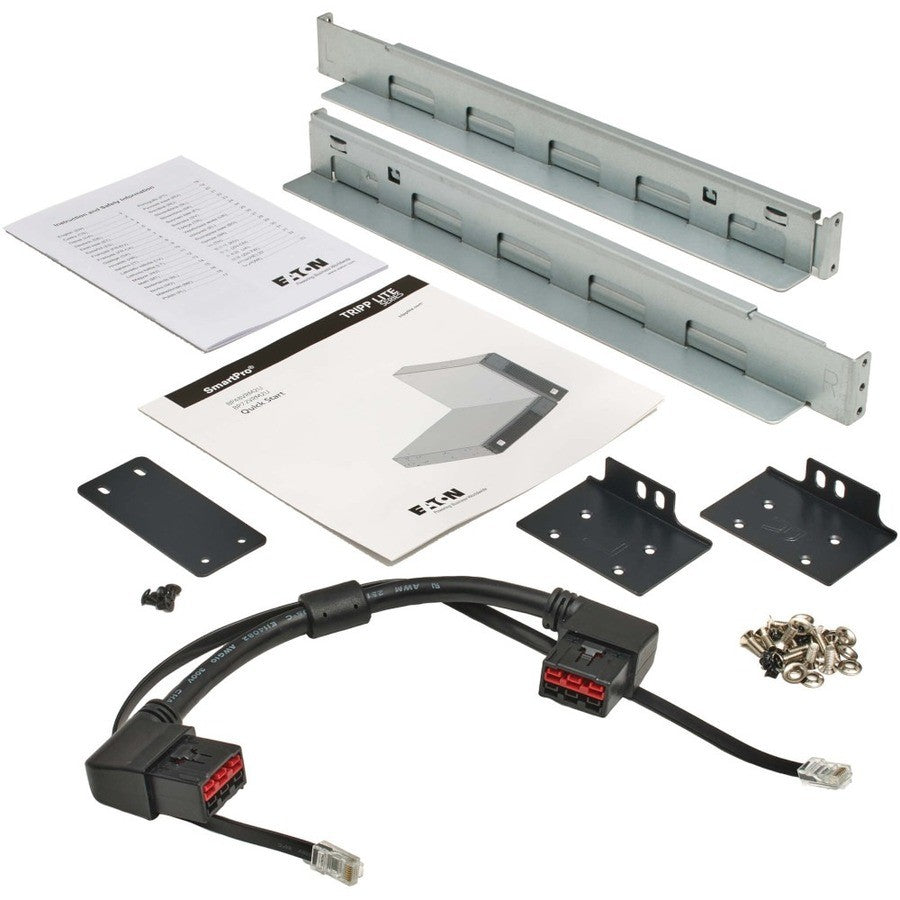

| Package Contents | Extended Battery Modules BP48VRM2U UPS Battery Pack, External Battery Cable, Rack-Mounting Hardware, Tower Support Stands, Quick Start Guide |
Installation Notes
Supports mounting in 2U of space in EIA-standard 19-inch open frame racks or enclosures. Tower stands included for optional upright configuration. Heavy-gauge cabling with high-current DC connectors enables safe, simple installation.
Brand: Eaton
Type: UPS Battery Pack
MPN: BP48VRM2U
Nominal Voltage Rating (DC): 48 V
Mounting Style: Rack Mount
Color: Black
Features: Hot Swappable
Country of Origin: Philippines
Nominal Current Rating: 50 A
Output Voltage Rating (DC): 48 V
UPC: 037332279095
