Eaton Tripp Lite BC600RNC 600VA 300W 120V Cloud-Connected Standby UPS Desktop
Eaton Tripp Lite BC600RNC 600VA 300W 120V Cloud-Connected Standby UPS Desktop
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Eaton Tripp Lite BC600RNC 600VA 300W 120V Cloud-Connected Standby UPS Desktop
This is a Eaton Tripp Lite Series 600VA 300W 120V Standby Cloud-Connected UPS with Remote Monitoring - 4 NEMA 5-15R Outlets (Surge + Battery Backup), 5-15P Plug, Desktop. The BC600RNC provides reliable battery backup and surge protection for PCs, networking, and point-of-sale equipment. Manufacturer: Eaton; MPN: BC600RNC; UPC: 037332283504. Features cloud-based monitoring via Brightlayer app, NFC configuration, and versatile mounting options.
Key Features and Capabilities
- Cloud-Connected Remote Monitoring – Powered by Brightlayer; scan QR code for app setup, receive alerts, configure via mobile/web, NFC for instant network settings.
- Battery Backup and Automatic Restart – Switches to battery during blackouts/brownouts; auto-restarts post-power restoration regardless of battery level.
- Surge and Noise Protection – 190 joules surge suppression, EMI/RFI filtering across 4 NEMA 5-15R outlets.
- User-Replaceable Battery and Self-Test – Extend UPS life with easy maintenance; resettable circuit breaker prevents overloads.
- Audible Alarms and LEDs – Alerts for low battery/fault; disable alarm via app; green LED for power/line-battery mode.
- Versatile Form Factor – Desktop/surface/wall mountable; VESA 100x100mm pattern, attachment points for shelves/beams; hardened housing for 32°F to 122°F operation.

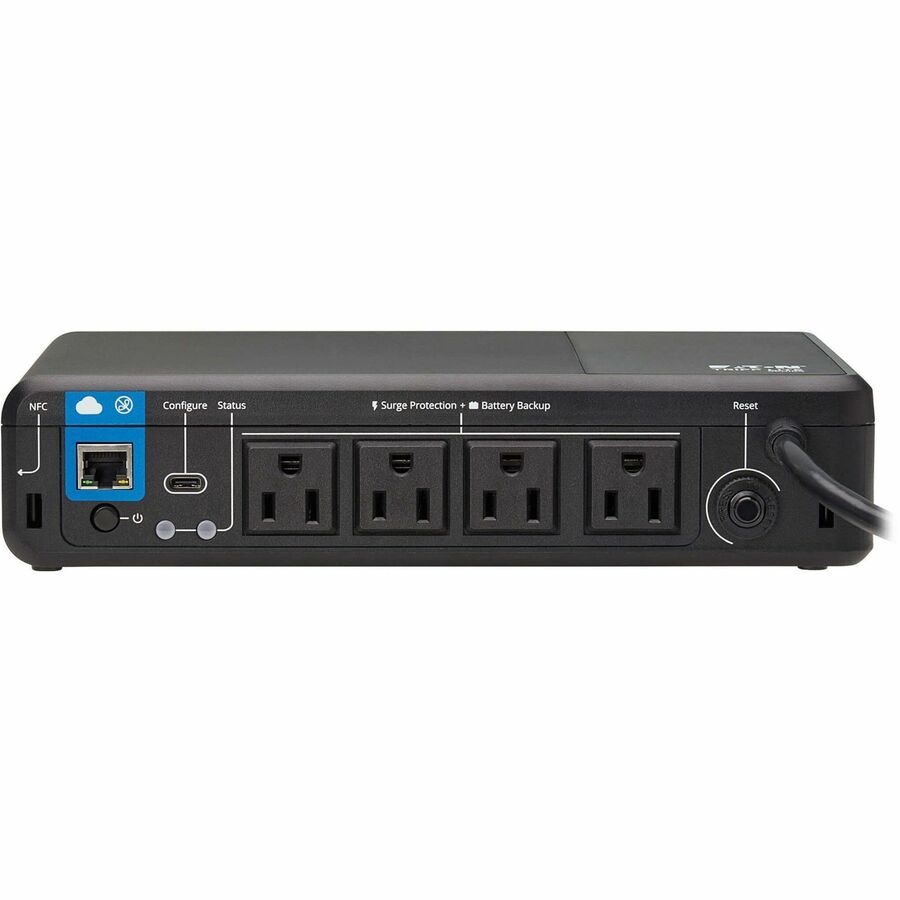

- Interfaces – RJ-45 Ethernet, USB; cold start function, green energy saving.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Model | BC600RNC |
| MPN | BC600RNC |
| UPC | 037332283504 |
| Product Type | Standby UPS |
| Load Capacity (VA) | 600 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 120 V AC |
| Input Current | 5 A |
| Output Voltage | 120 V AC |
| Input Frequency | 50 Hz / 60 Hz |
| Output Frequency | 50 Hz / 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Output Power Factor | 0.5 |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 5 ft |
| Receptacle Type | 4 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Surge Energy Rating | 190 J |
| Transfer Time | 6 ms |
| Phase | Single Phase |
| Efficiency | 97% (AC Mode) |
| DC System Voltage | 12 V DC |
| Battery Chemistry | Lead Acid, Valve-regulated |
| Backup/Run Time (Full Load) | 1.20 Minute |
| Backup/Run Time (Half Load) | 5 Minute |
| Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Height | 2.3" |
| Width | 10" |
| Depth | 7.1" |
| Weight (Approximate) | 4.41 lb |
| Form Factor | Desktop/Surface/Wall Mountable |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Storage Temperature | 23°F (-5°C) - 122°F (50°C) |
| Maximum Operating Elevation | 6562 ft |
| Sound Emission (A-Weighted) | 40 dB(A) |
| Interfaces/Ports | Network (RJ-45): Yes; USB: Yes |
| Certifications & Standards | CAN/CSA-C22.2 No. 107.3 (Canada); CSA (Canada); ICES (Canada); NOM (Mexico); UL 1778; FCC Part 15 Class B (USA); Energy Star: Yes; RoHS |
| Country of Origin | Vietnam |
Package Contents and Deployment Options
- BC600RNC 600VA Desktop/Surface/Wall Mountable UPS
- 4 x M4 x 12 mm Screws
- 4 x M4 x 20 mm Screws
- Quick Start Guide

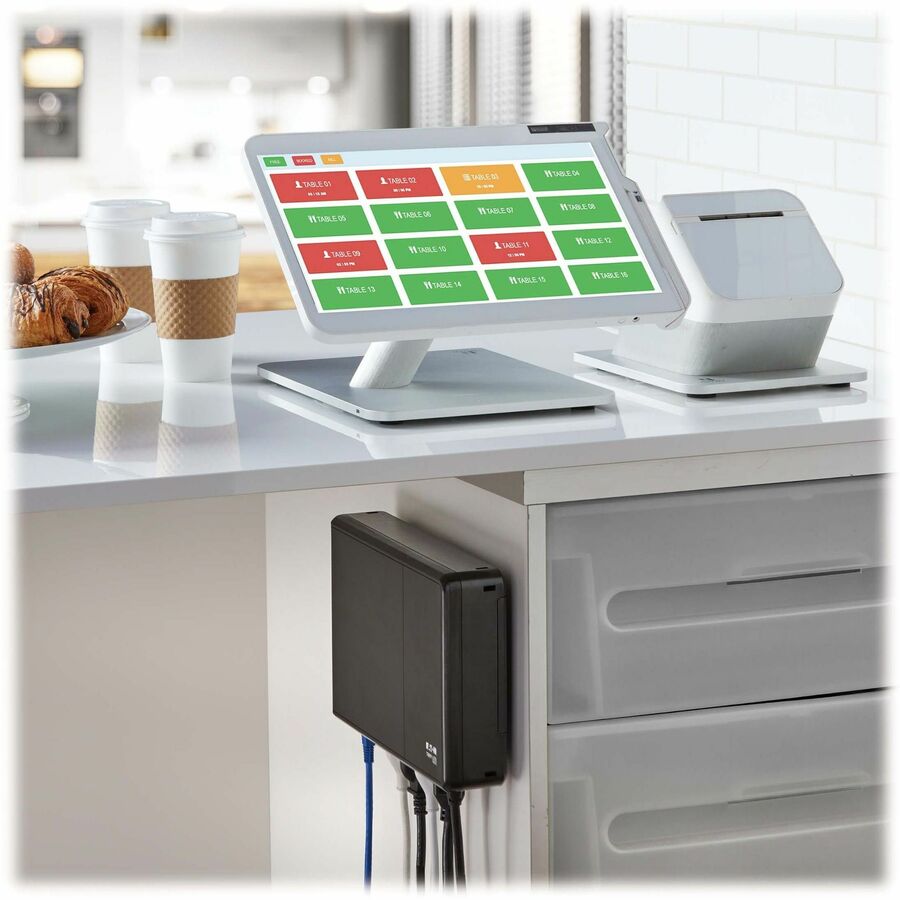

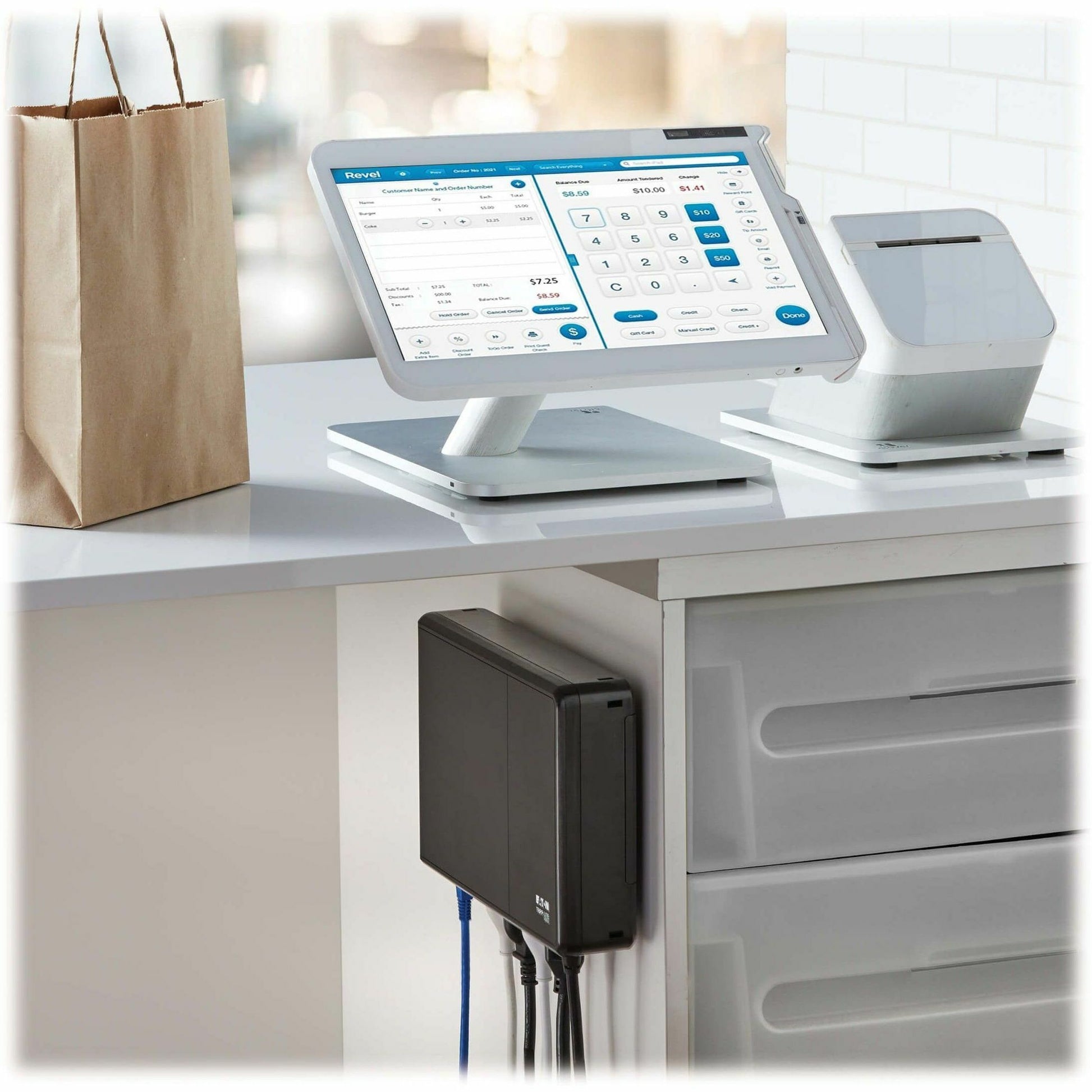

Supports desktop, floor, horizontal/vertical mounting with VESA 100 x 100 mm pattern; attachment points for cable ties on shelves/beams. Pro tip: Position for easy access to all ports and outlets on one side; perform self-test periodically for optimal performance.
Application and Protection Overview
Designed for home/office computing, networking, POS in retail/kiosks/food service/light industrial; protects against blackouts, brownouts, overvoltages, surges, line noise. Overload protection, EMI/RFI filter included.
