Eaton Tripp Lite AVR900U 900VA 480W Line-Interactive UPS 12 Outlets AVR
Eaton Tripp Lite AVR900U 900VA 480W Line-Interactive UPS 12 Outlets AVR
Low stock: 5 left
Save 33%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Eaton Tripp Lite AVR900U 900VA 480W Line-Interactive UPS - 12 NEMA 5-15R Outlets, AVR, 120V, 50/60 Hz, USB, Desktop/Wall Mount
This is a Eaton Tripp Lite Series AVR900U 900VA 480W Line-Interactive UPS offering ultra-compact protection for PCs and workstations. It features 12 NEMA 5-15R outlets with Automatic Voltage Regulation (AVR), USB connectivity for shutdown software, and versatile desktop or wall-mount design. Manufacturer Part Number: AVR900U; UPC: 037332211491. The system maintains 120V output over a wide input range with surge suppression and battery backup.
Key Features of Eaton Tripp Lite AVR900U UPS
- Line-Interactive Topology with AVR – Boost +18% / Buck -15%; regulates output voltage from 83-147V input for stable power.

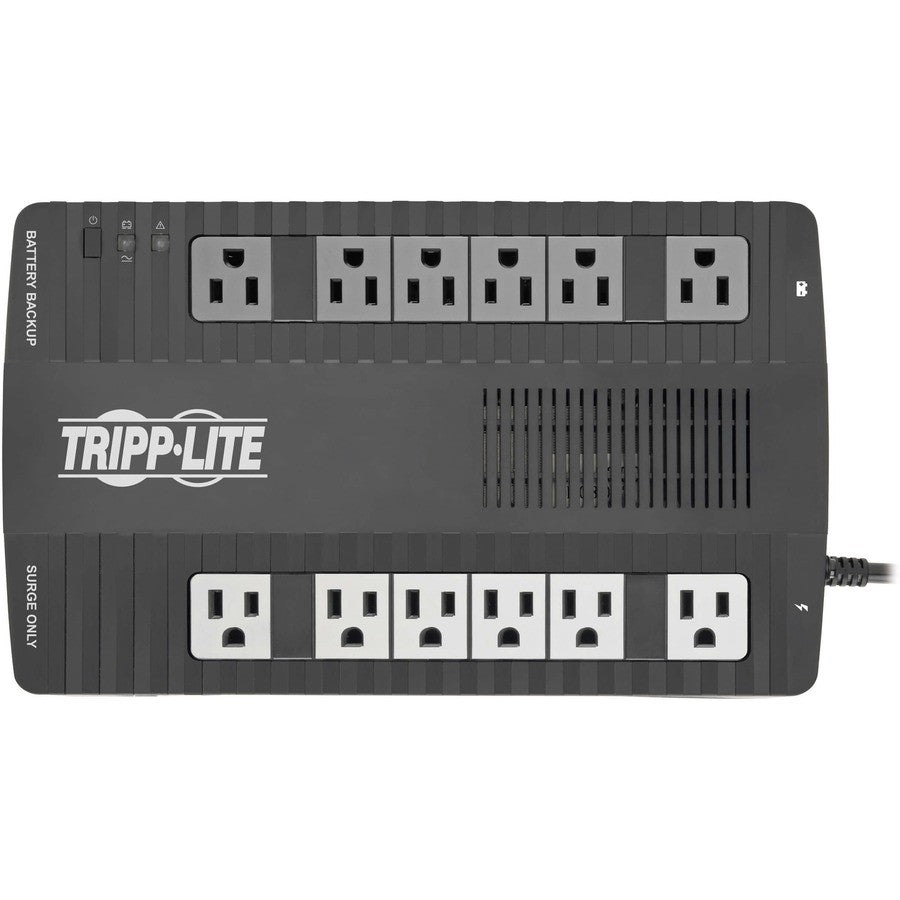

- 12 NEMA 5-15R Outlets – 6 battery-backed and surge-protected, 6 surge-only; supports multiple devices.
- USB HID-Compliant Port – Enables PowerAlert software for automatic shutdown; includes cable.
- Single-Line Tel/DSL Protection – Safeguards communication lines from surges.
- Right-Angle NEMA 5-15P Plug – Space-saving design for tight setups.
- 316 Joules Surge Energy Rating – Protects against power spikes; EMI/RFI noise filtering included.
- Ultra-Compact All-Black Housing – Desktop, tower, or wall-mountable form factor.
- Audible Alarms and LED Indicators – Alerts for low battery, overload, fault, and replace battery s.
- Replaceable Lead Acid Battery – 12V DC system; 2.7 min full load, 10 min half load runtime.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Series | AVR |
| Product Name | AVR 900VA Desktop UPS |
| Manufacturer Part Number | AVR900U |
| UPC | 037332211491 |
| Product Type | Line-interactive UPS |
| AVR | Yes; Boost +18% / Buck -15% |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Load Capacity (VA) | 900 VA |
| Load Capacity (Watt) | 480 W |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC / 115 V AC / 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
| Alarms | Battery Backup / Low Battery / Fault / Overload / Replace Battery |
| Status Indicators | 2 Status LEDs (GREEN: power status/operating mode; RED: battery-low/overload/replace-battery/fault) |
| USB Port | Yes (HID Compliant) |
| DC System Voltage | 12 V DC |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2.70 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Height | 4.1" |
| Width | 7.5" |
| Depth | 12" |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 16.50 lb |
| Appearance | All black ultra-compact housing |
| Output Voltage Regulation | Sine wave 120V +14% / -12% (line mode); PWM sine wave 115V +/-5% (battery mode) |
| Output Frequency Regulation | Line Mode: Passes line frequency of 60Hz +/-10%; Battery Mode: Inverter output regulated to 60Hz +/-0.5Hz |
| Certifications & Standards | UL Listed Certification |
| Software Included | PowerAlert Software |
| Country of Origin | Vietnam |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | 2 year warranty; $100,000 Connected equipment guarantee |
Package Contents and Additional Information
- AVR 900VA Desktop UPS
- Owner's manual
- USB communication cable
- PowerAlert unattended shutdown software
Why Choose Eaton Tripp Lite AVR900U UPS
Provides reliable line-interactive power protection with AVR for voltage fluctuations, battery backup for outages, and comprehensive surge suppression in an ultra-compact, mountable design suitable for workstations and PCs.
Secure your equipment with Eaton Tripp Lite AVR900U 900VA UPS—Order today!
Brand: ITE
Type: Line-interactive UPS
MPN: AVR900U
Color: Black
Country of Origin: Vietnam
Number of Batteries: 1
Nominal Voltage Rating (DC): 12 V
Maximum Operating Temperature: 40 °C (104 °F)
Installation Area: Indoor
Mounting Style: Wall Mount
Nominal Voltage Rating (AC): 120 V
Plug Type: Type B
Item Depth: 12 in
Nominal Power Rating: 480 W
Series: AVR
Protection Properties: Surge Protection
UPC: 037332211491
