Eaton Tripp Lite AVR750UNC 750VA 450W Line-Interactive UPS 12 Outlets Desktop
This is a Eaton Tripp Lite Series 750VA 450W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring, 12 NEMA 5-15R Outlets (6 Surge + 6 Surge and Battery Backup), 5-15P Plug, Desktop. The AVR750UNC provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges, and line noise for computers, routers, gaming systems, ATMs, security systems, digital signage, and home/office networking equipment. MPN: AVR750UNC; UPC: 037332281135. It features cloud-based remote monitoring powered by Brightlayer, NFC configuration, automatic voltage regulation (AVR), and user-replaceable battery for versatile deployment on desktop, floor, tower, or wall mount.
Advanced Power Protection and Monitoring Features

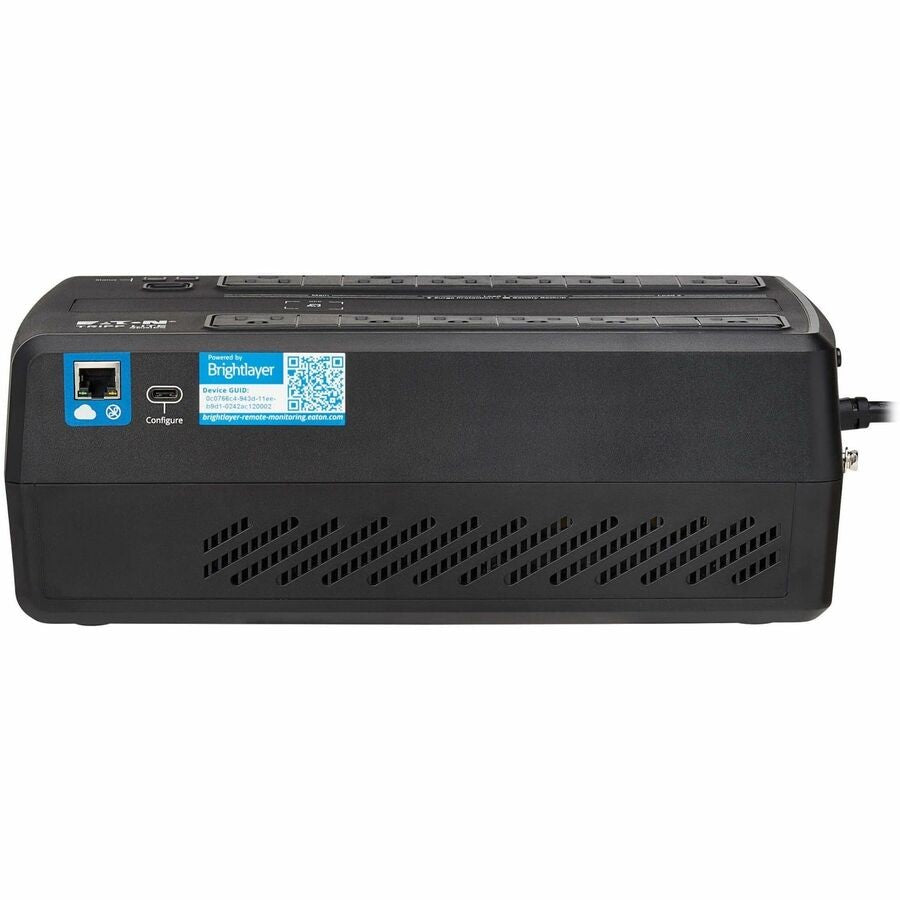

- Cloud-Enabled Remote Monitoring – Powered by Brightlayer; scan QR code for mobile app setup, receive alerts, configure outlets, silence alarms via app or web browser; NFC for instant network setup from mobile device.
- Automatic Voltage Regulation (AVR) – Corrects brownouts as low as 89V and overvoltages up to 145V to nominal 120V continuously, protecting equipment while keeping battery charged.

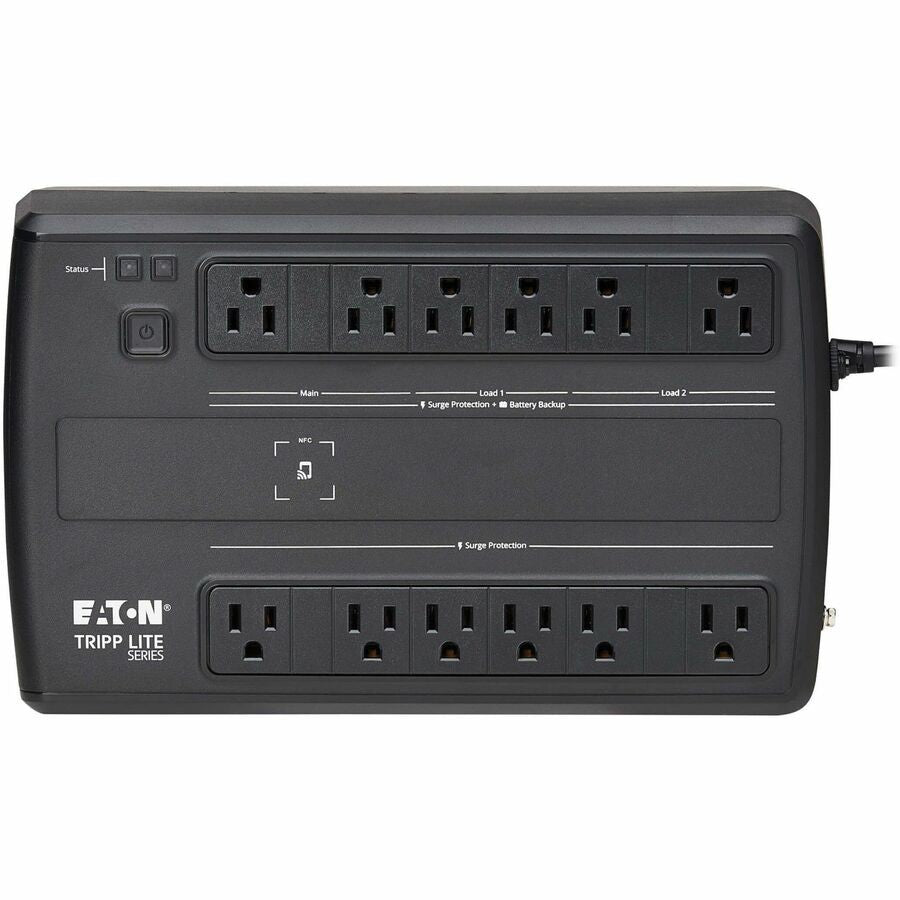

- Battery Backup and Surge Protection – 6 battery/surge outlets, 6 surge-only; 316 joules surge suppression; filters EMI/RFI noise; 4 spaced outlets for bulky transformers.
- Reliable Runtime – 3 minutes at full load (450W), 11 minutes at half load; auto-restart after power restoration regardless of battery level.

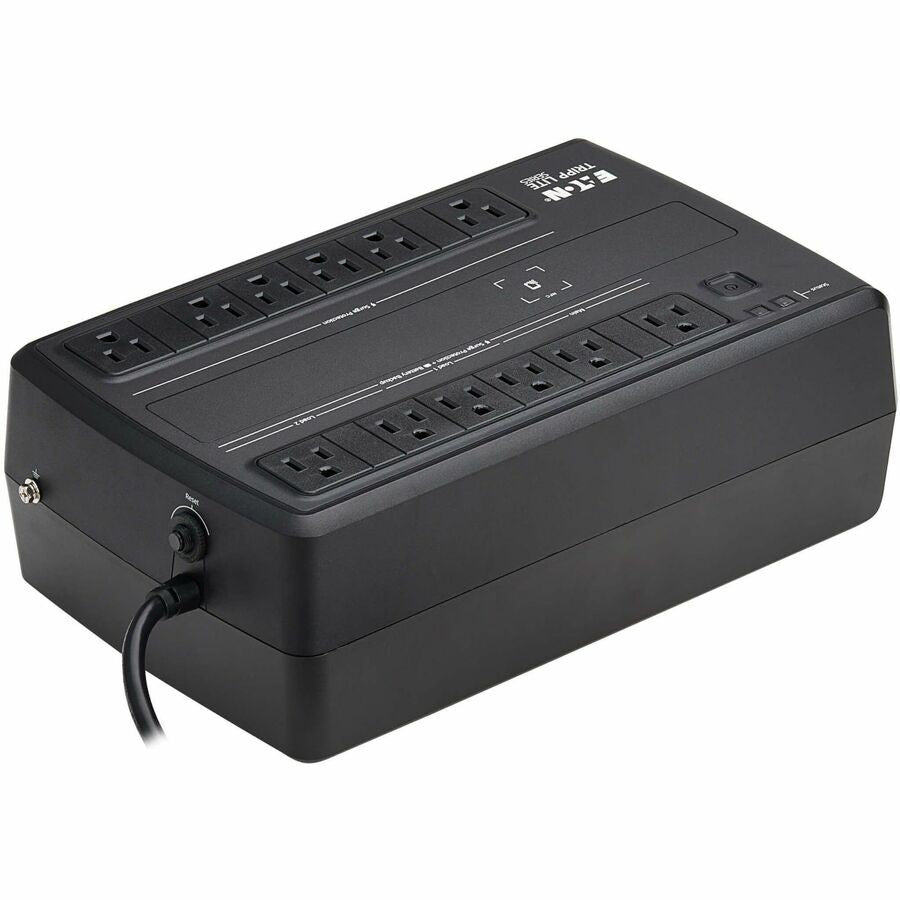

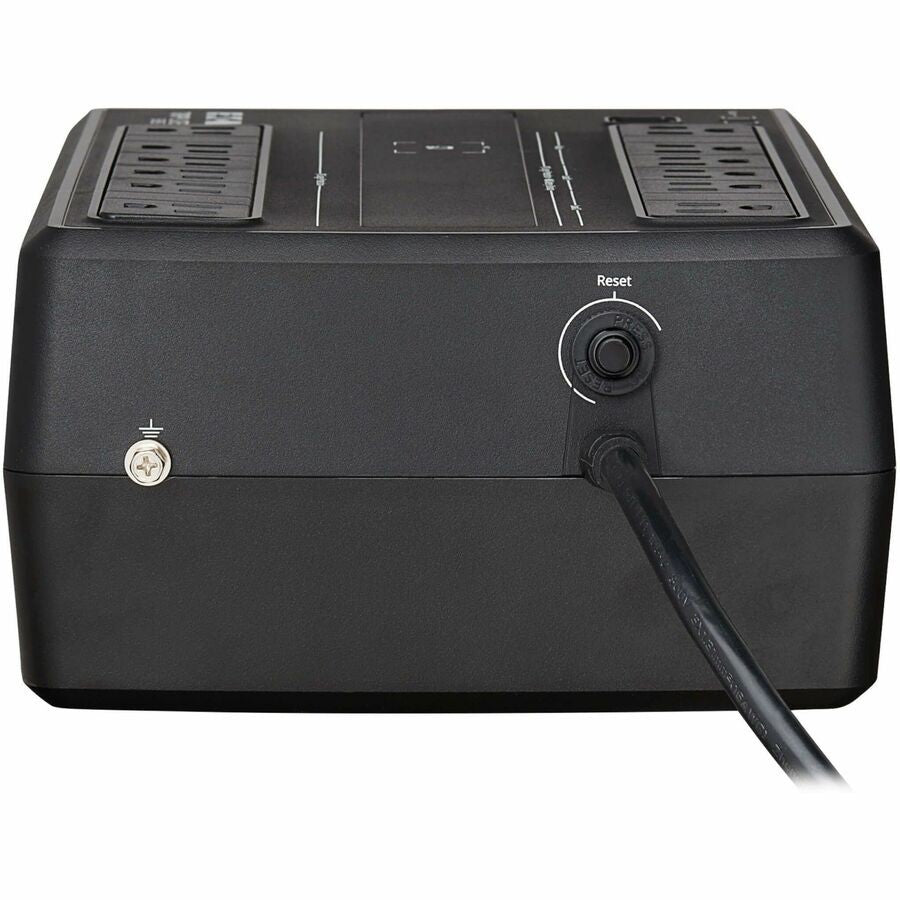

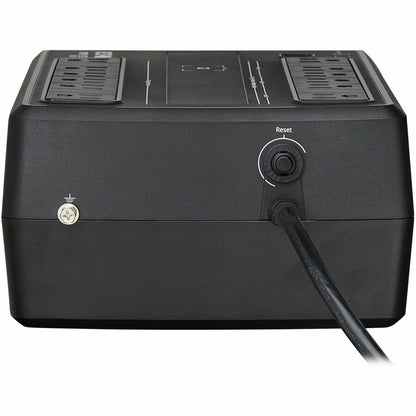

- User-Friendly Diagnostics – LED indicators for power/line/battery mode, low battery, fault; audible alarm (disable via app); self-test capability; resettable circuit breaker.

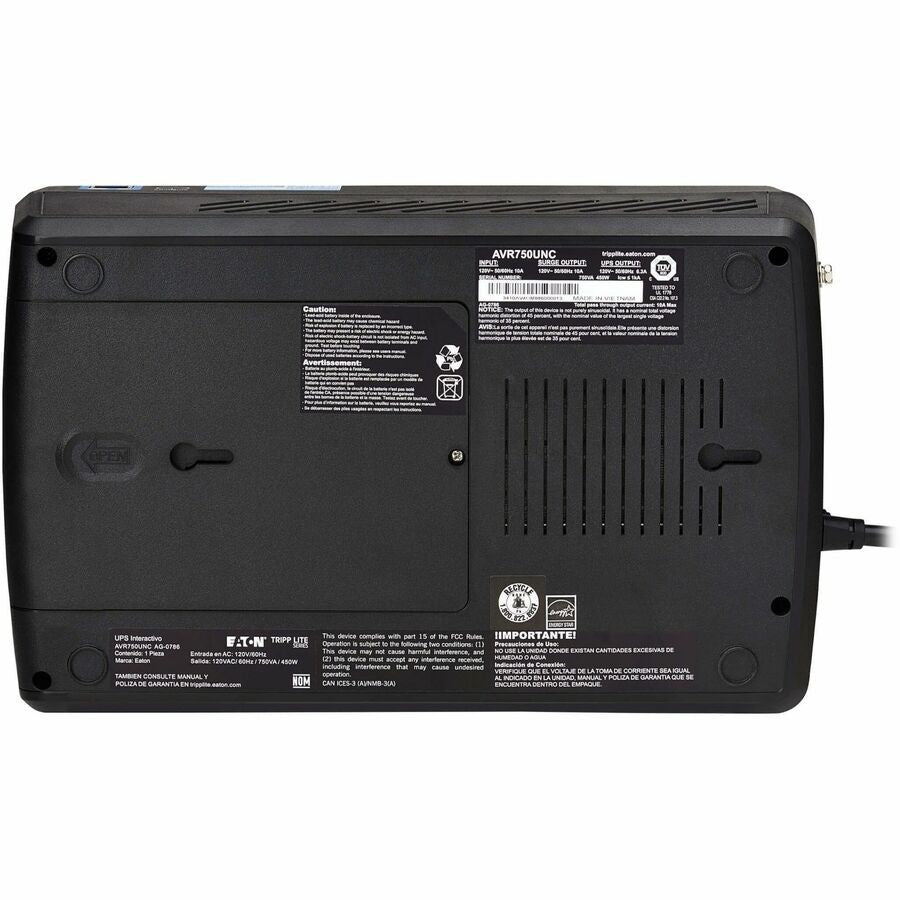

- Versatile Form Factor – Surface/desktop/tower/wall mountable with keyhole slots; hardened flatpack housing for 32°F to 104°F operation; 5 ft NEMA 5-15P cord.

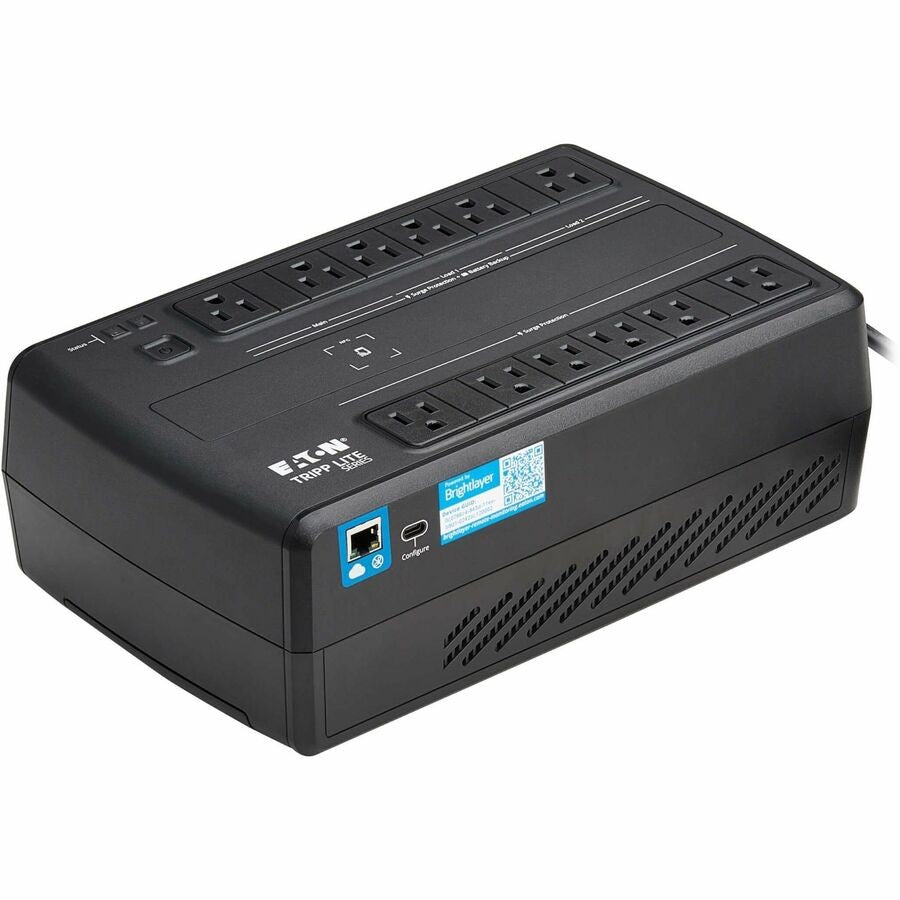

- Connectivity – USB port, RJ-45 network card for management; cold start function; overload protection.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton |
| Brand Name | Tripp Lite series |
| Product Model | AVR750UNC |
| MPN | AVR750UNC |
| UPC | 037332281135 |
| Product Type | Line-interactive UPS |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 450 W |
| Output Power Factor | 0.63 |
| Input Voltage | 120 V AC |
| Input Voltage Range | 89 V AC - 145 V AC |
| Input Current | 20 A |
| Output Voltage | 120 V AC |
| Input Frequency | 50 Hz / 60 Hz |
| Output Frequency | 50 Hz / 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 5 ft |
| Receptacle Type | 12 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Surge Energy Rating | 316 J |
| Transfer Time | 6 ms |
| AVR | Yes |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Display | LED |
| Interfaces/Ports | USB; Network (RJ-45) |
| DC System Voltage | 12 V DC |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Valve-regulated |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Form Factor | Surface/Desktop/Tower/Wall Mountable |
| Height | 4.1" |
| Width | 7.5" |
| Depth | 12" |
| Weight (Approximate) | 15.84 lb |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
| Thermal Dissipation | 12.02 W |
| Certifications & Standards | CAN/CSA-C22.2 No. 107.3 (Canada); ICES (Canada); NOM (Mexico); RETIE (Colombia); UL 1778; FCC Part 15 Class A (USA); FCC Part 68 |
| Energy Star | Yes |
| Country of Origin | Vietnam |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS); Waste Electrical and Electronic Equipment Directive (WEEE) |
| Manufacturer Warranty | 3 Year Limited |
Setup, Maintenance, and Deployment
Plug the NEMA 5-15P cord into a compatible AC outlet and connect equipment to the 12 NEMA 5-15R outlets. Use QR code or NFC for Brightlayer app setup. Run self-test via front panel. For maintenance, replace user-replaceable battery after 3-5 years; reset circuit breaker if tripped. Pro tip: Position in well-ventilated area within operating temperature range; monthly self-tests recommended for critical setups.
Why Choose Eaton Tripp Lite AVR750UNC

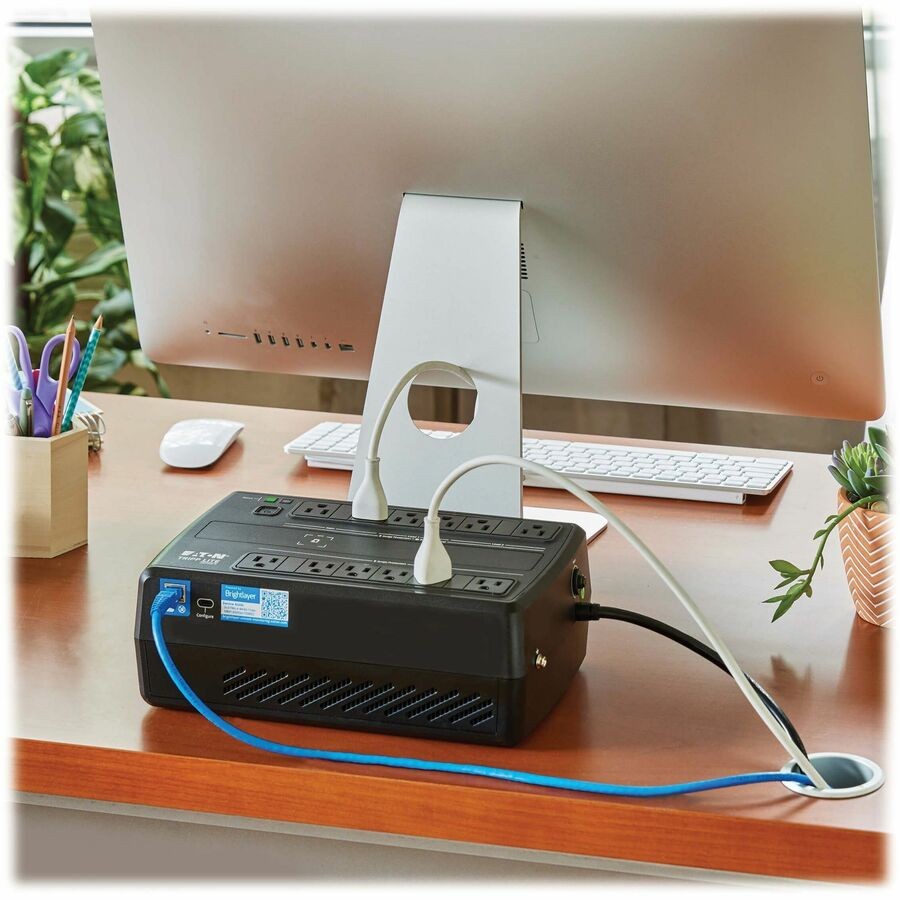

Designed for digital signage, home/office networks, and sensitive electronics, this UPS offers cloud connectivity for remote management of single or multiple units, reducing site visits. AVR extends battery life during fluctuations, while comprehensive surge/noise protection and auto-restart ensure uptime. Versatile mounting and Energy Star efficiency make it ideal for desktops, towers, or walls.
Power up reliably with Eaton Tripp Lite AVR750UNC—Order now!
Brand: Tripp Lite
Type: Line-interactive UPS
Color: Black
MPN: AVR750UNC
Compatible Model: AVR750UNC
Features: Audible Alarm
Model: AVR750UNC
Country of Origin: Vietnam
Manufacturer Warranty: 3 Years
Voltage Compatibility: 750 VA
Maximum Power: 450 W
Number of Outlets: 12
Maximum Input Current: 20 A
Item Height: 4.1"
Item Width: 7.5"
Item Length: 12"
Maximum Wattage: 450 W
UPC: 037332281135
