Eaton Tripp Lite AVR750U 750VA 450W Line-Interactive UPS Desktop 12 Outlets
Eaton Tripp Lite AVR750U 750VA 450W Line-Interactive UPS Desktop 12 Outlets
Low stock: 5 left
Save 27%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Eaton Tripp Lite AVR750U 750VA 450W Line-Interactive UPS Desktop 12 Outlets
This is a Eaton Tripp Lite Series 750VA 450W Line-Interactive UPS providing ultra-compact protection for PCs, workstations, routers, printers, and more with 12 NEMA 5-15R outlets, Automatic Voltage Regulation (AVR), 120V support at 50/60 Hz, USB interface, and versatile desktop or wall-mount design. Manufacturer Part Number: AVR750U; UPC: 037332211484. It delivers reliable battery backup, surge protection, and energy-efficient operation in a black ultra-compact form factor.
Key Features of Eaton Tripp Lite AVR750U UPS
- Line-Interactive Topology with AVR – Maintains 120V output over 83-147V input range; Boost +18% / Buck -15% correction for stable power.

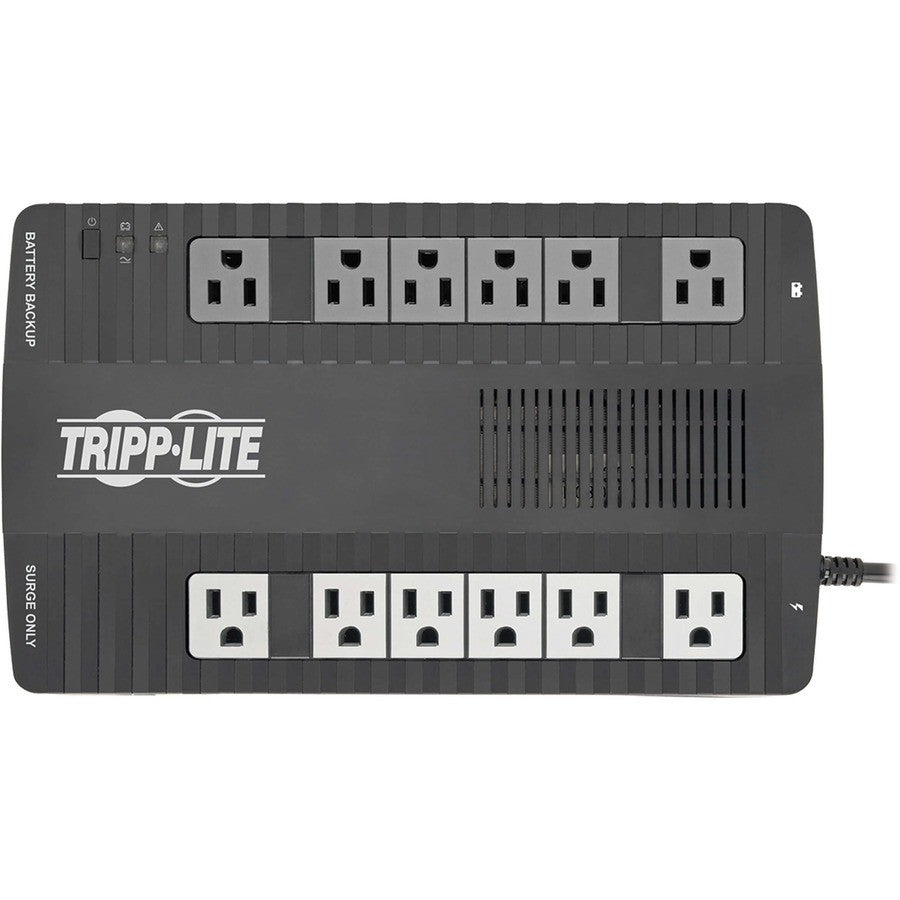

- 12 NEMA 5-15R Outlets – 6 battery-backed and surge-protected; 6 surge-only for expanded device support.
- USB HID-Compliant Port – Enables free unattended shutdown software with included cable for safe PC power management.

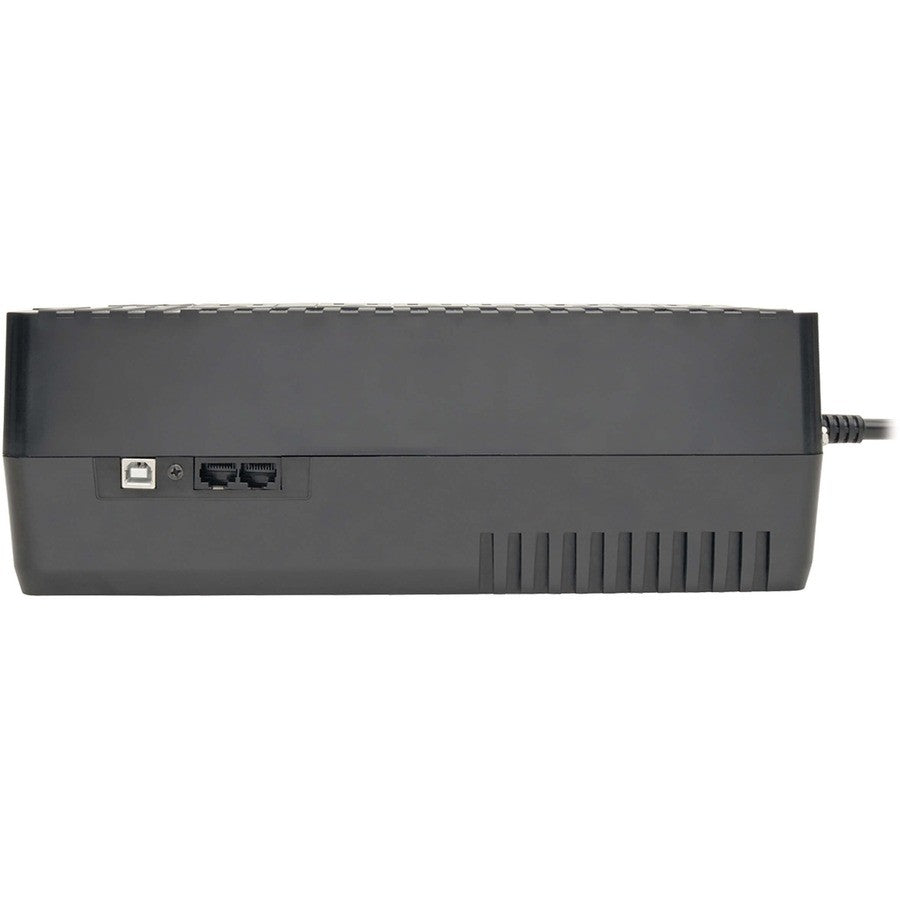

- RJ-11 Dataline Protection – Safeguards single-line telephone/DSL connections; plus EMI/RFI noise filtering.
- 316 Joules Surge Energy Rating – Protects against power spikes; 6ms transfer time to battery.
- Green UPS Efficiency – Greater than 95% efficiency; single-phase design for home/office, media centers, and more.

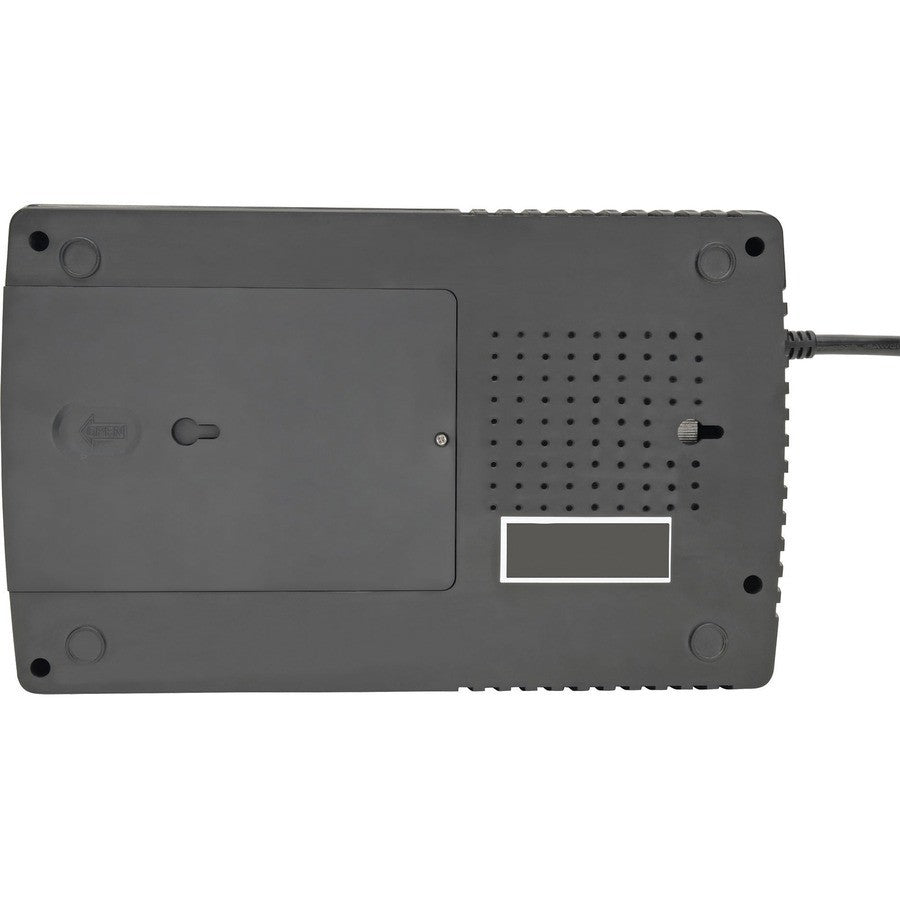

- Mountable Housing – Ultra-compact desktop/tower/wall mount; right-angle NEMA 5-15P plug saves space.
- User-Friendly Indicators & Alarms – 2 LEDs (green for power/mode, red for issues); audible alarms for battery low, overload, etc.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Series | AVR |
| Product Name | AVR 750VA Desktop UPS |
| Manufacturer Part Number | AVR750U |
| UPC | 037332211484 |
| Product Type | Line-interactive UPS |
| AVR | Yes |
| AVR Range | Boost +18% / Buck -15% |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Dataline Protection | RJ-11 |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Application/Usage | Computer, Router, Printer, TV, Blu-ray Player, Gaming Console, ATM, Security System, Digital Signage, Home/Office, Media Center, Home Theater |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 450 W |
| Input Voltage | 120 V AC |
| Input Current | 12 A |
| Output Voltage | 110 V AC, 115 V AC, 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
| Alarms | Battery Backup, Low Battery, Overload, Replace Battery, Fault |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Typical Battery Recharge Time | 9 Hour |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
| Color Family | Black |
| Product Color | Black |
| Height | 4.1" |
| Width | 7.5" |
| Depth | 12" |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 15.84 lb |
| Package Contents | AVR 750VA Desktop UPS, USB cable, Instruction manual |
| Certifications & Standards | Energy Star |
| Country of Origin | Vietnam |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | 2-year warranty. $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only) |
Power Management and Battery Details
- Supports wide applications including computers, routers, printers, TVs, Blu-ray players, gaming consoles, ATMs, security systems, digital signage, home/office setups, media centers, and home theaters.
- Alarms for battery backup, low battery, overload, replace battery, and fault s ensure proactive monitoring.
- Replaceable battery with 9-hour recharge time; provides 3 minutes at full 450W load or 11 minutes at half load.
- Pulse-width modulated sine wave output at 110/115/120V AC and 60Hz for compatibility with sensitive electronics.
Secure your electronics with the Eaton Tripp Lite AVR750U UPS—Order today!
Brand: ITE
Type: Line-interactive UPS
MPN: AVR750U
Mounting Style: Desktop
Color: Black
Country of Origin: Vietnam
Backup Time: 11 min
Installation Area: Indoor
Nominal Current Rating: 12 A
Nominal Voltage Rating (DC): 12 V
Maximum Operating Temperature: 40 °C (104 °F)
Nominal Power Rating: 450 W
Item Depth: 12 in
Series: AVR
Protection Properties: Surge Protection
UPC: 037332211484
