Eaton Tripp Lite SmartRack SRW6U 6U Wall-Mount Rack Enclosure – 19", Locking, 200 lb Capacity
Eaton Tripp Lite SmartRack SRW6U 6U Wall-Mount Rack Enclosure – 19", Locking, 200 lb Capacity
Low stock: 5 left
Save 22%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

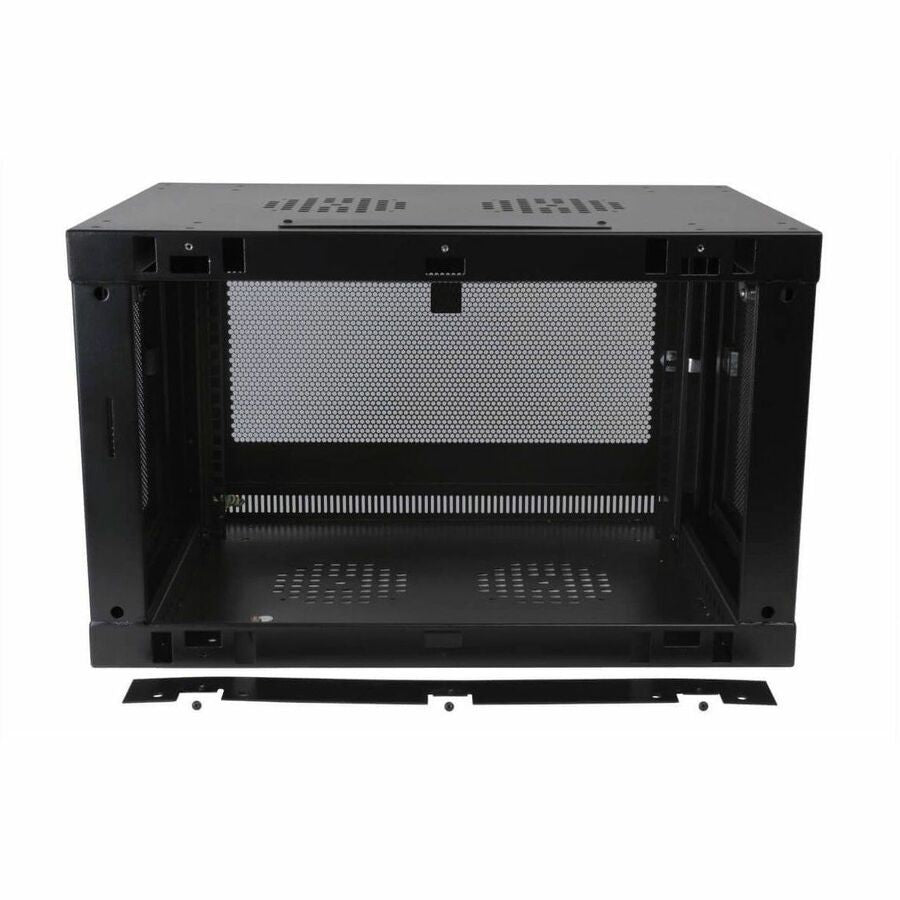

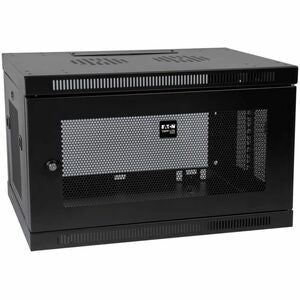

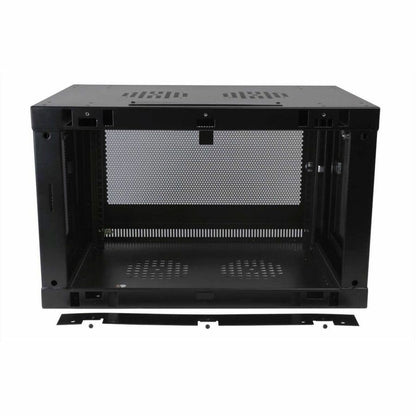

Eaton SmartRack SRW6U 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure
This is the Eaton Tripp Lite Series SmartRack SRW6U 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure, a heavy-duty steel rack cabinet designed to securely house EIA-standard 19-inch rack equipment such as network switches and patch panels. MPN: SRW6U; UPC: 037332154651. Ideal for network wiring closets, retail locations, classrooms, and back offices with limited floor space, it provides organized, tamper-resistant storage with excellent airflow.
Key Features of Eaton Tripp Lite SmartRack SRW6U Wall-Mount Rack
- Heavy-Duty Steel Construction with durable black powder-coated finish for long-lasting protection against wear.
- Secure Locking – Front door and side panels lock to prevent damage, tampering, or theft.

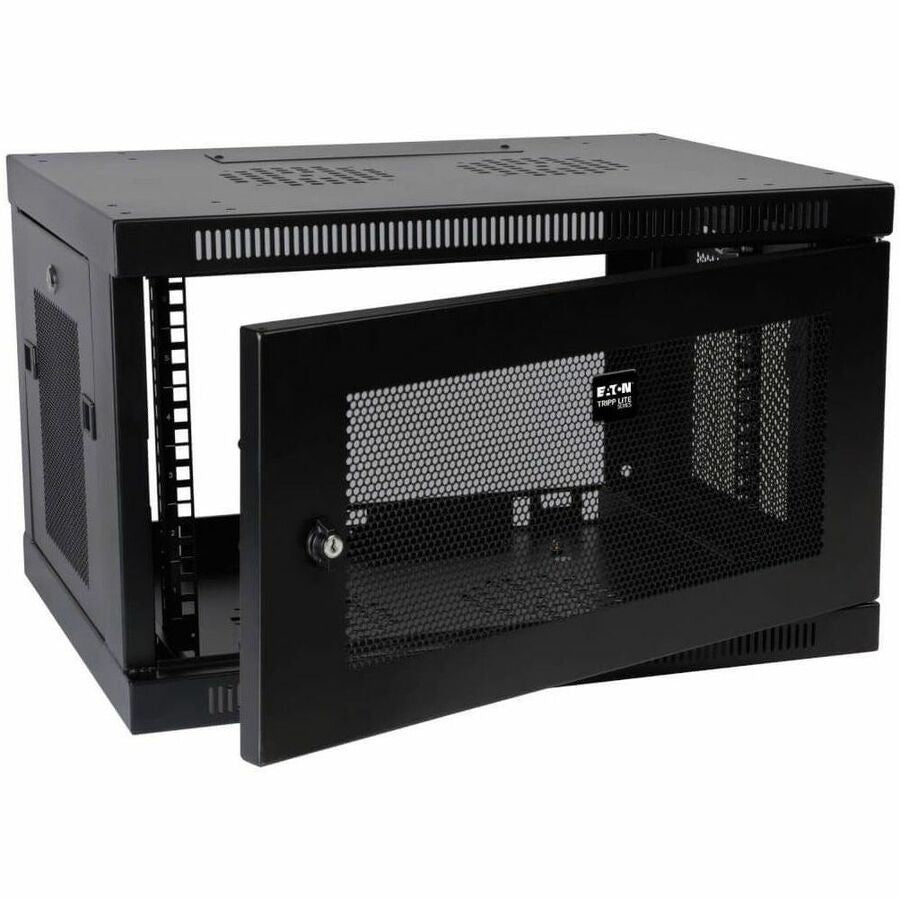

- Reversible Front Door opens left or right by rotating the cabinet 180° before mounting for flexible installation.
- Vented Design – Front, top, bottom, and removable side panels promote airflow to keep equipment cool.
- Convenient Cable Management with top and bottom ports for easy routing.
- Fully Assembled and ready for wall mounting; compatible with optional Tripp Lite SRCASTER rolling caster kit for mobility.

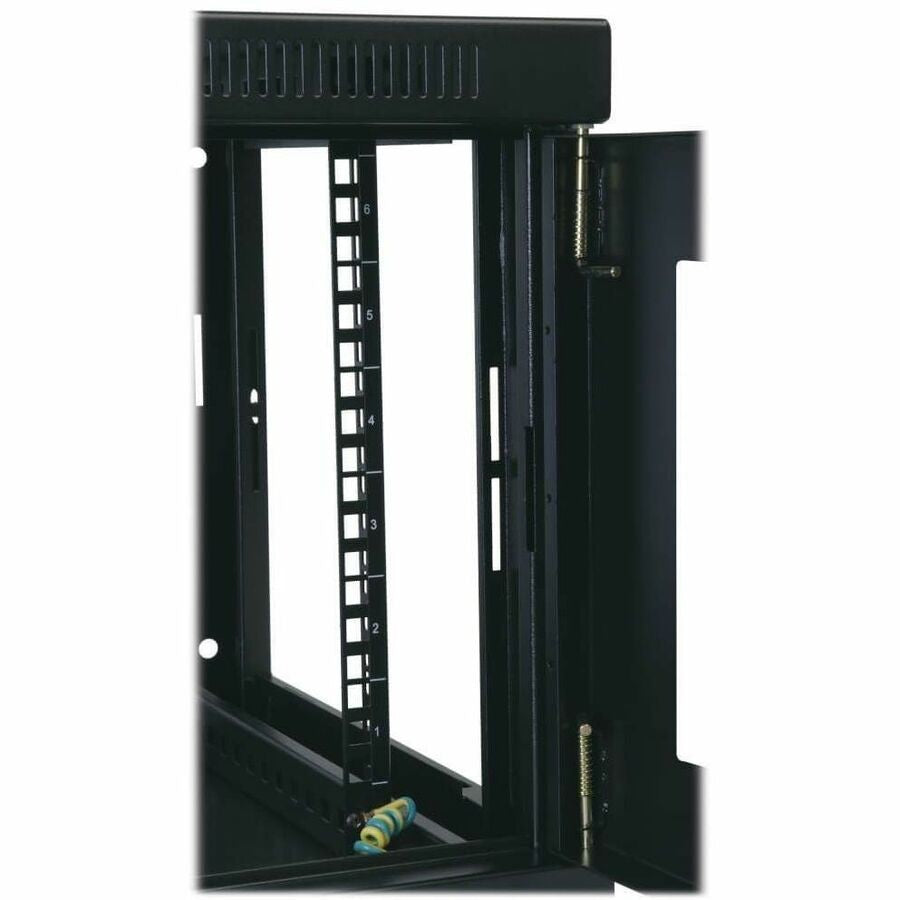

- Adjustable Vertical Rails in 7/8-inch increments, supporting equipment up to 16.5 inches deep.
- Easy Installation with square and threaded mounting holes, numbered rack spaces.
- RoHS Compliant and environmentally friendly.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRW6U |
| MPN | SRW6U |
| UPC | 037332154651 |
| Product Type | Rack Cabinet |
| Form Factor | Wall Mountable |
| Rack Height | 6U |
| Rack Width | 19" |
| Height | 14.5" |
| Width | 23.5" |
| Depth | 17.5" |
| Weight (Approximate) | 29 lb |
| Maximum Weight Capacity | 200 lb |
| Material | Heavy-Duty Steel |
| Finish | Black Powder-Coated |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
Installation & Maintenance for SRW6U SmartRack Enclosure
Fully assembled unit installs quickly on any wall; pro tip: Use appropriate wall anchors rated for the loaded weight exceeding 200 lb.
- Rotate cabinet if needed for door swing direction.
- Mount to wall using pre-drilled holes.
- Adjust vertical rails to equipment depth (up to 16.5 inches).
- Install gear using square or threaded holes.
- Route cables through top/bottom ports.
- For mobility, attach optional SRCASTER kit.
- Maintenance: Wipe exterior; ensure vents clear for airflow.
Why Choose Eaton SmartRack SRW6U?
The SRW6U delivers secure, ventilated storage for 19-inch rack gear in space-constrained environments, with adjustable rails and locking security for reliable organization.
Secure your network equipment with Eaton Tripp Lite SmartRack SRW6U—Order now!
Brand: Tripp Lite
Type: Rack Cabinet
MPN: SRW6U
Country of Origin: China
Rack Unit Height: 6 U
Number of Side Panels: 2
Mount Type: Wall-Mounted
Rack Unit Width: 19 in
UPC: 037332154651
