Eaton SmartRack 12U Heavy-Duty Switch-Depth Wall-Mount Open Frame Rack SRWO12UHD

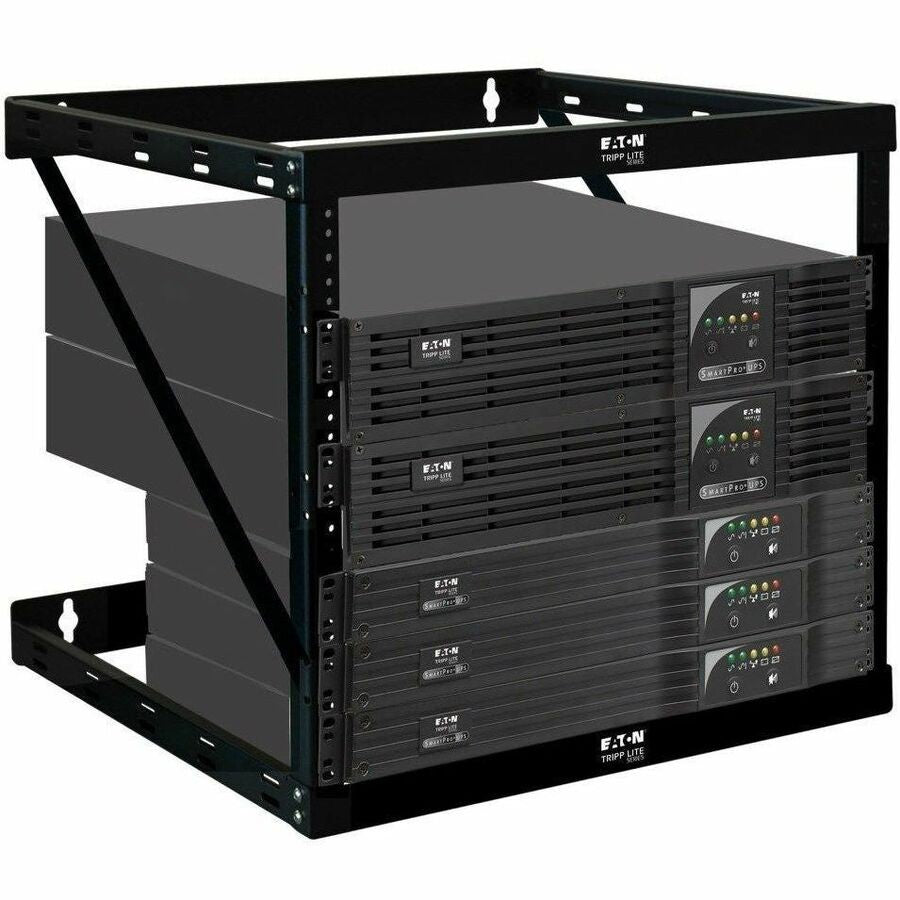

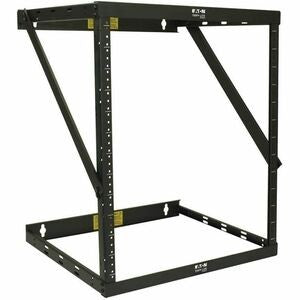

This is a Eaton Tripp Lite Series SmartRack 12U Heavy-Duty Flat-Pack Low-Profile Switch-Depth Wall-Mount 2-Post Open Frame Rack designed to store and organize EIA-standard 19-inch rack equipment compatible with 2-post mounting. Constructed from heavy-duty steel with a durable black powder-coated finish, the SRWO12UHD model features threaded 12-24 mounting holes, numbered rack spaces, and vertical mounting rails that accommodate equipment up to 18 inches deep, such as network switches and patch panels. MPN: SRWO12UHD; UPC: 037332182654. Ideal for network wiring closets, back offices, and secure areas with limited floor space where a locked enclosure is not required.
Key Features of Eaton Tripp Lite SmartRack 12U Wall-Mount Rack
- Open Frame Design – Provides unrestricted access for installing, configuring, and servicing equipment and cabling.
- Heavy-Duty Steel Construction – Ensures durability with black powder-coated finish for long-term use.
- Threaded 12-24 Mounting Holes – Facilitates easy equipment installation with numbered rack spaces for precise placement.
- Switch-Depth Compatibility – Vertical rails support gear up to 18 inches deep, perfect for switches and patch panels.
- Flat-Pack Shipping – Simple assembly and wall mounting with included hardware.
- Standards Compliance – Meets EIA-310-D, IEC 60297-3-100, and DIN 41494 for reliable rack performance.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Line | SmartRack |
| Product Model | SRWO12UHD |
| Manufacturer Part Number | SRWO12UHD |
| Product Type | Rack Frame |
| Form Factor | Wall Mountable |
| Product Material | Steel |
| Product Color | Black Powder Coat |
| Color Family | Black |
| Rack Height | 12U |
| Rack Width | 19" |
| Rack Depth | 18" |
| Height | 24.8" |
| Width | 20.1" |
| Depth | 18.2" |
| Weight (Approximate) | 14.30 lb |
| Static/Stationary Weight Capacity | 550 lb |
| Maximum Load Capacity | 200 lb |
| UPC | 037332182654 |
| Certifications & Standards | EIA-310-D, IEC 60297-3-100, DIN 41494 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Assembly Required | Yes |
Package Contents & Assembly Overview
- 12U Wall-Mount Open Frame Rack
- 1 x 3mm L-Shaped Hex Key
- 2 x Top/Bottom Panel Frames
- 2 x Vertical Mounting Rails
- 8 x M5 Button Head Cap Screws
- 24 x #12-24 Equipment Mounting Screws
Assembly required; rack ships flat-packed for easy handling and mounts directly to the wall. Pro tip: Use a level for secure wall installation and ensure adequate wall anchoring for load capacity.
Why Choose Eaton SmartRack SRWO12UHD?
The Eaton Tripp Lite SmartRack 12U Heavy-Duty Flat-Pack Low-Profile Switch-Depth Wall-Mount 2-Post Open Frame Rack offers robust organization for 19-inch EIA-standard equipment in space-constrained environments, combining heavy-duty construction, easy assembly, and compliance with industry standards for reliable performance.
Organize your network gear with the Eaton SmartRack SRWO12UHD—Order today!
Brand: Tripp Lite
Type: Rack Frame
MPN: SRWO12UHD
Country of Origin: China
Rack Unit Height: 12 U
Number of Side Panels: 0
Mount Type: Wall-Mounted
Rack Unit Width: 19 in
UPC: 037332182654
