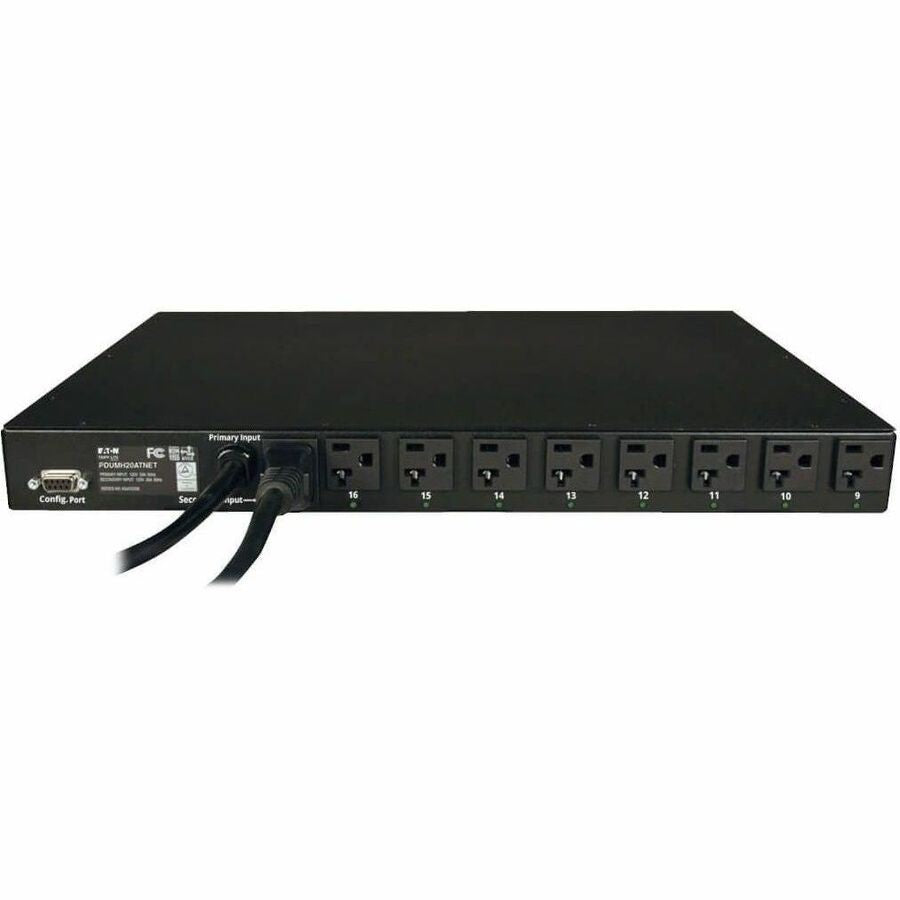

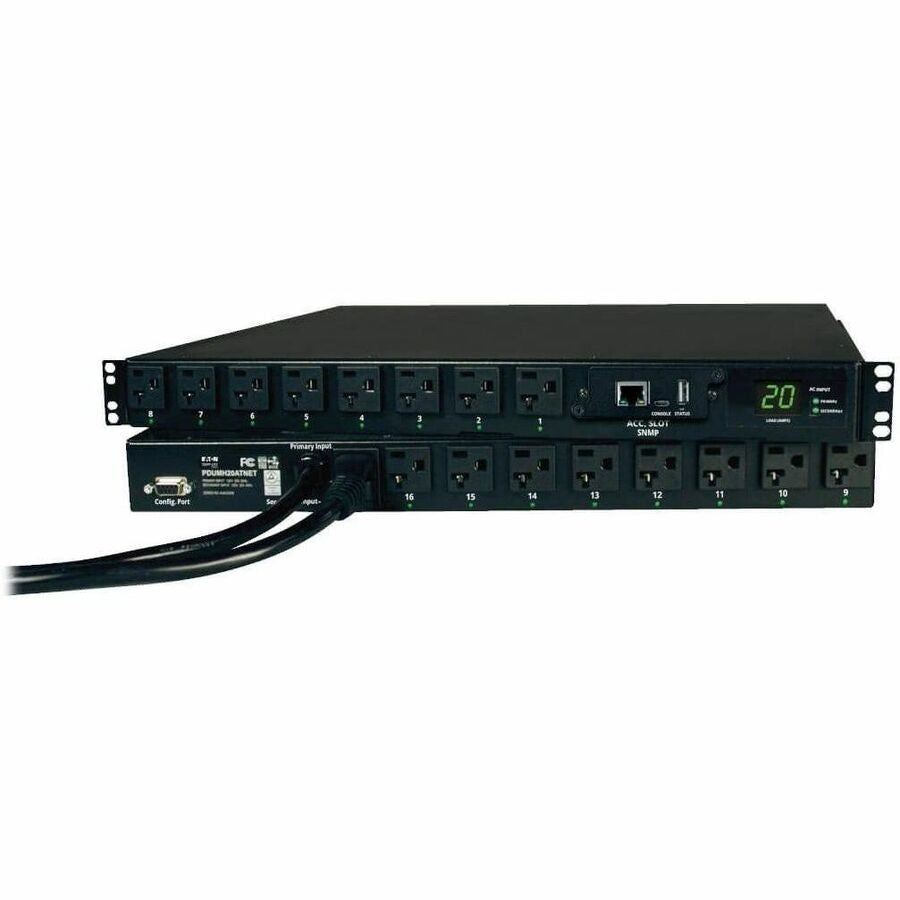

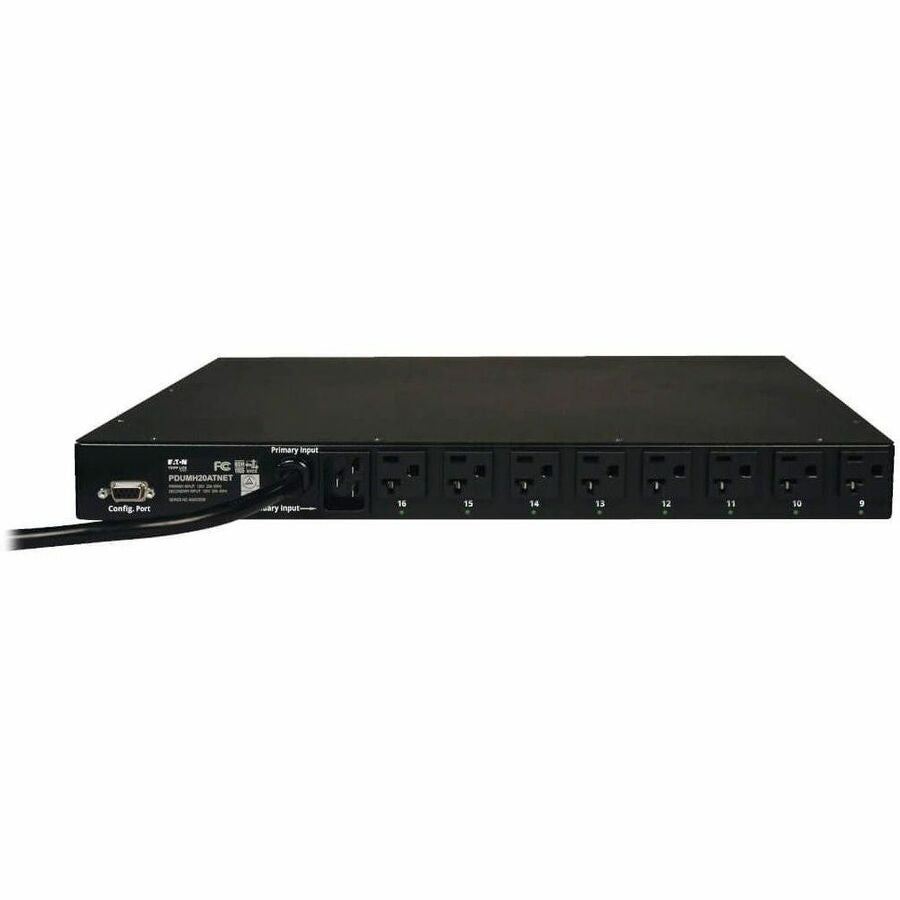

Eaton Tripp Lite PDUMH20ATNET 1.9kW Switched ATS PDU 1U

This is a Switched Automatic Transfer Switch PDU from Eaton Tripp Lite Series. It provides redundant power for single-corded network devices with dual 120V L5-20P inputs and 16 NEMA 5-15/20R outputs in a 1U rack-mountable form factor. The unit supports automatic transfer between primary and secondary power sources with millisecond switchover times and includes a Java-free HTML5-based LX Platform network interface for remote monitoring via web browser, SNMP, telnet, or SSH.

Key capabilities include individually controllable outlets, sequential power-on sequencing, support for IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1/v2/v3, telnet, SSH, FTP, DHCP, BOOTP, and NTP protocols, plus compatibility with optional EnviroSense2 modules for environmental monitoring. The PDU operates at 120V AC input and output with a 2400 VA power rating and is TAA compliant with country of origin Taiwan.

Key Features

• Switched ATS functionality maintains continuous output from primary input and transfers to secondary source on primary failure or instability
• Built-in LX Platform network interface enables full remote access, status monitoring, and email notifications
• Individually controllable output receptacles with programmable or real-time outlet power control
• Super-fast switchover occurs within milliseconds between any two compatible AC power sources
• Supports fault tolerant hot-swappable UPS protection with single UPS or fully redundant protection with separate UPS systems
• Front input LEDs display primary or secondary power availability
• On-board ATS processor evaluates power quality to avoid transfer to lower-quality secondary source
• Sequential outlet power-on prevents inrush-related equipment interaction

Comprehensive Technical Specifications

Package Contents

• PDUMH20ATNET PDU Switched ATS 120V 20A 16 Outlet
• PDU with attached L5-20P input power cord

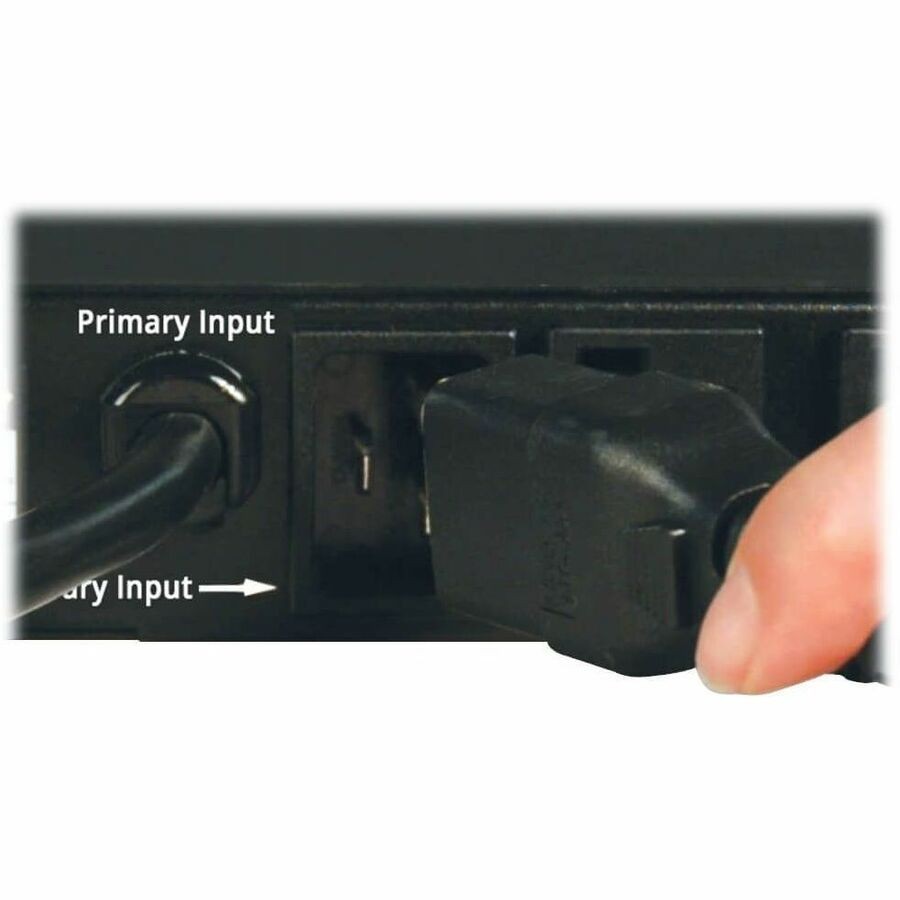

• Detachable C19 to NEMA L5-20P 12 ft/3.6m power cord for optional secondary input
• Two NEMA L5-20R to NEMA 5-20P plug adapters
• User manual with warranty information
