Eaton PDUMV20NETLX 1.9kW Switched PDU 24 5-15/20R 0U LX TAA

Eaton PDUMV20NETLX 1.9kW Switched PDU 24 5-15/20R 0U LX TAA

Low stock: 4 left

$930.65
$930.65
Sale Sold out
Shipping calculated at checkout.

Free shipping across the continental US & free returns

Free Shipping
Free Returns
Secure Checkout
View full details
Total Sale Limited time offer

Description

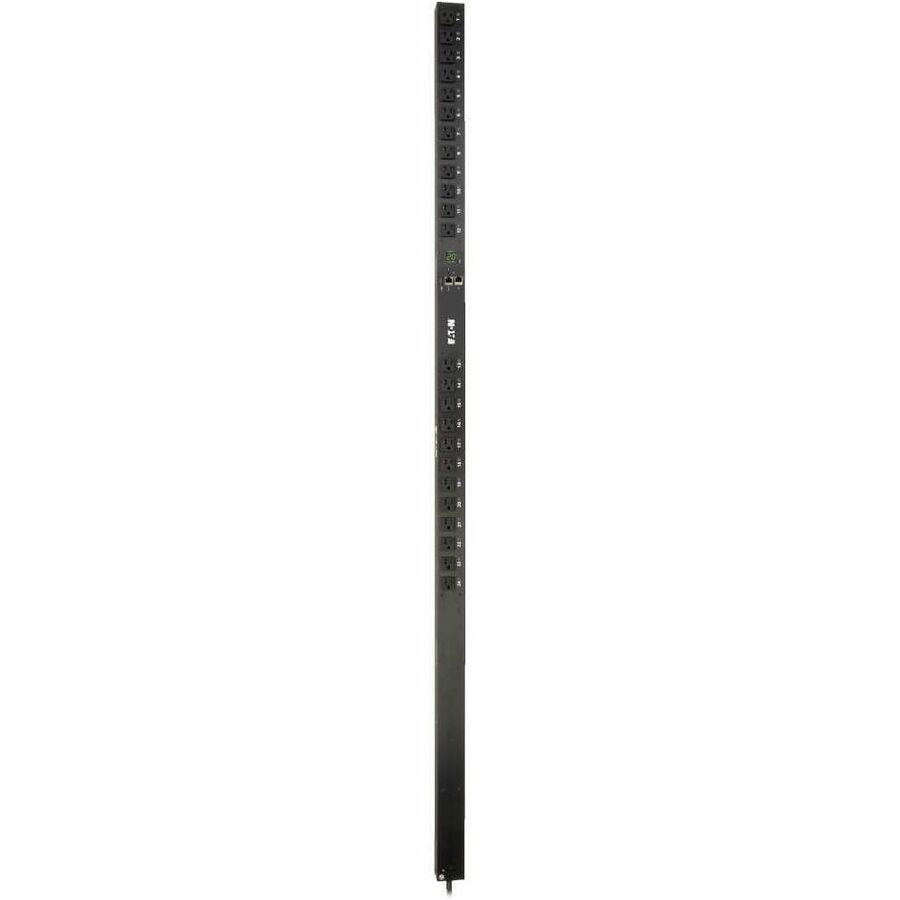

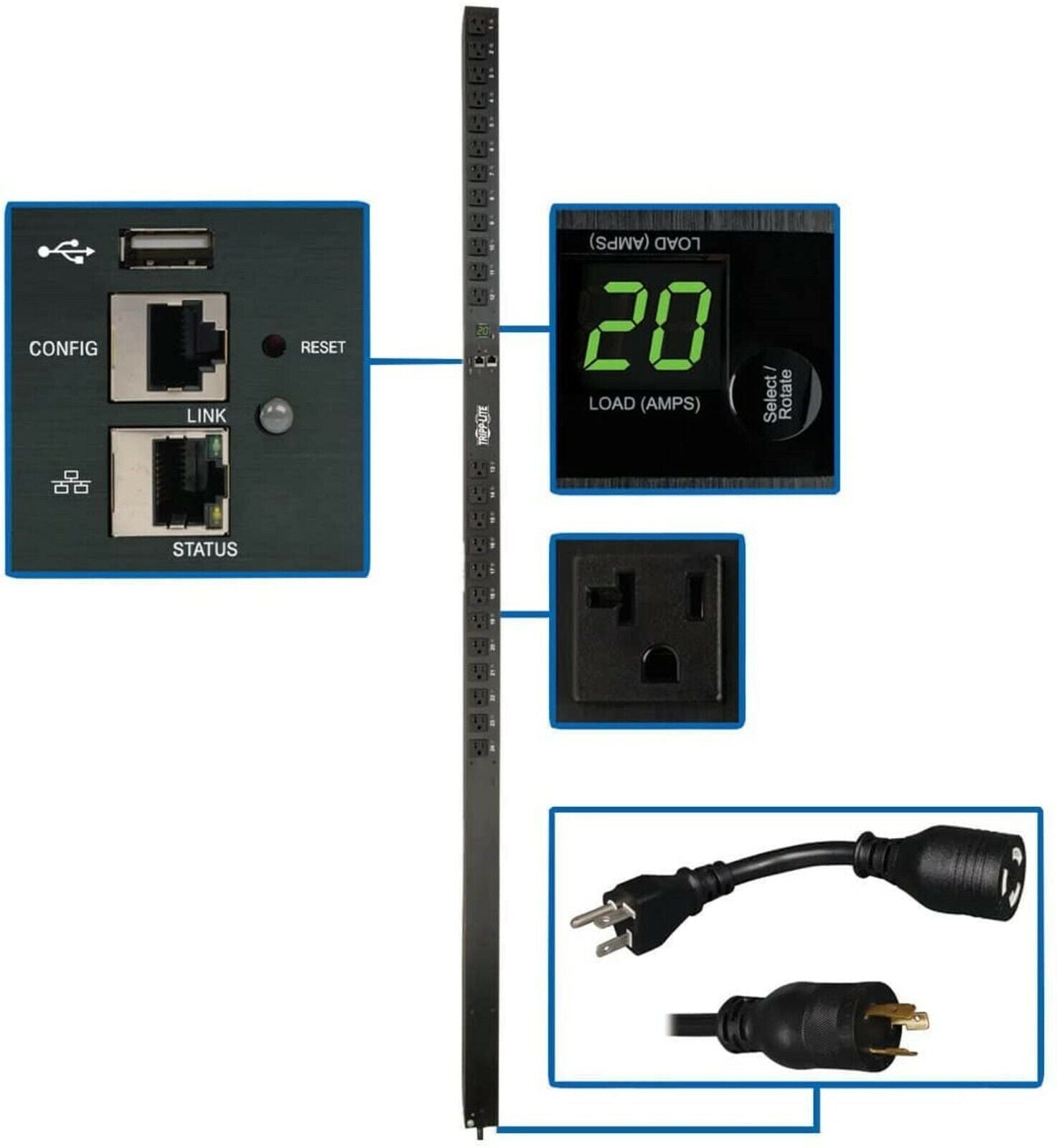

Eaton PDUMV20NETLX 1.9kW Single-Phase Switched PDU - LX Interface, 120V Outlets (24 5-15/20R), 10 ft. (3.05 m) Cord with L5-20P, 0U, TAA

This is a switched power distribution unit (PDU) manufactured by Eaton. The PDUMV20NETLX model delivers 1.9kW of single-phase 120V AC power through 24 switched NEMA 5-15/20R outlets and includes a 10-foot cord terminated with a NEMA L5-20P plug. It supports remote outlet control, load monitoring, and network management via the built-in LX Platform interface.

Key Features of Eaton PDUMV20NETLX Switched PDU

  • 24 Switched NEMA 5-15/20R Outlets – Individual remote on/off, reboot, and lockout control for each outlet with cord retention brackets to secure connections.
  • LX Platform Network Interface – Java-free HTML5-based remote access via web browser, SNMP, telnet, or SSH with support for IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1/v2/v3, FTP, DHCP, and NTP.

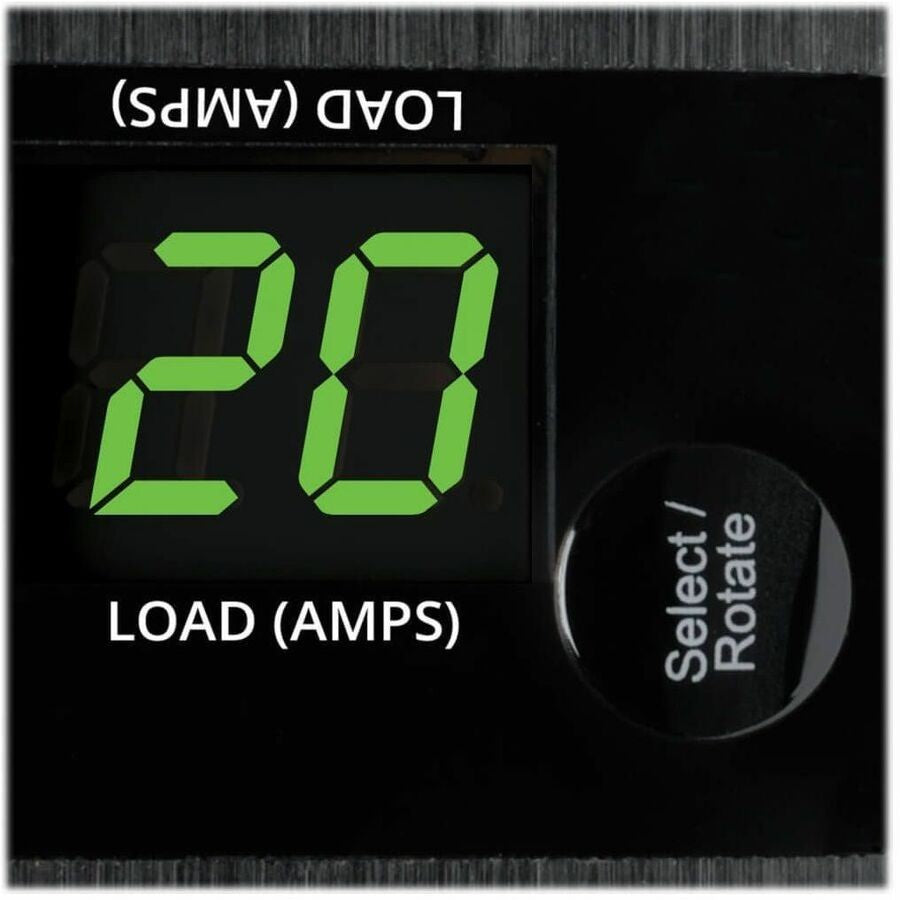

  • Digital Ammeter – Real-time total load display with 180-degree rotation for viewing at either mounting angle and IP-address self-identification.

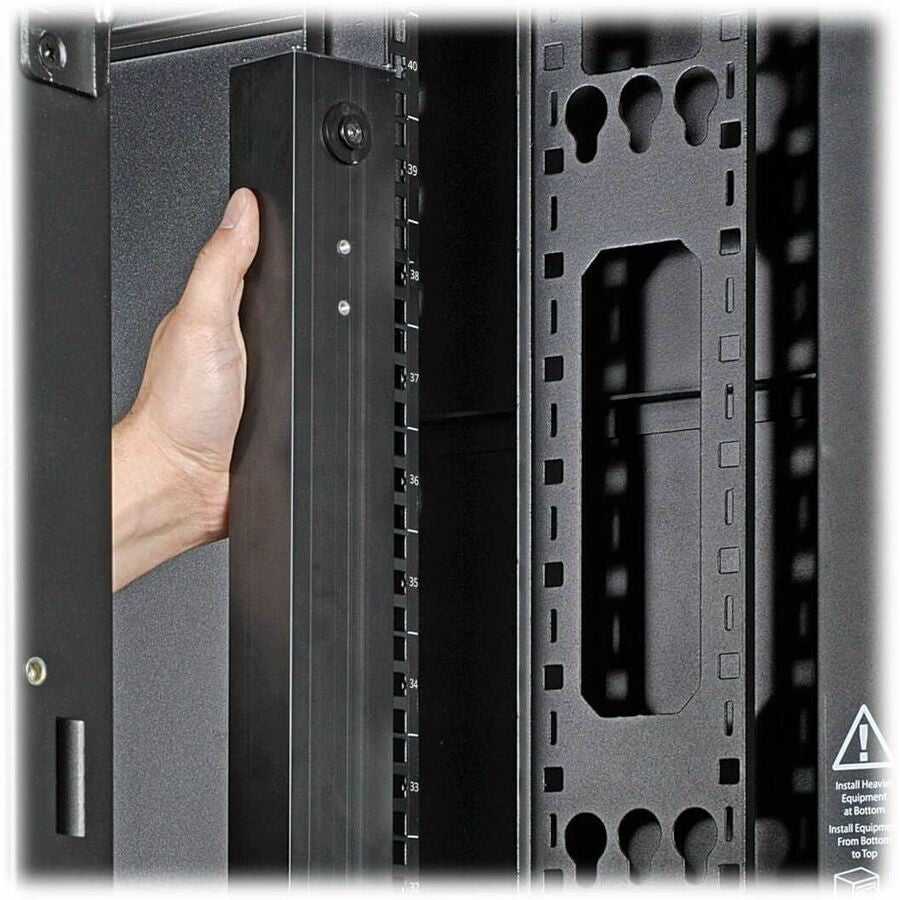

  • 0U Vertical Rack Mounting – Toolless button or bracket installation in EIA-standard 19-inch racks; PDUMVROTATEBRKT accessory enables rear-facing outlet orientation.
  • TAA Compliance – Meets Federal Trade Agreements Act requirements for GSA Schedule purchases; manufactured in Taiwan with RoHS environmental compliance.
  • Optional Environmental Monitoring – Compatible with separately sold EnviroSense2 modules for expanded sensor capabilities.

Comprehensive Technical Specifications

Specification Details
Brand Eaton
Manufacturer Part Number PDUMV20NETLX
UPC 037332205315
PDU Type Switched
Design Modular
Phase Single Phase
Input Voltage 120 V AC
Output Voltage 120 V AC
Power Rating 1920 W
Input Current 20 A
Plug/Connector Type NEMA L5-20P

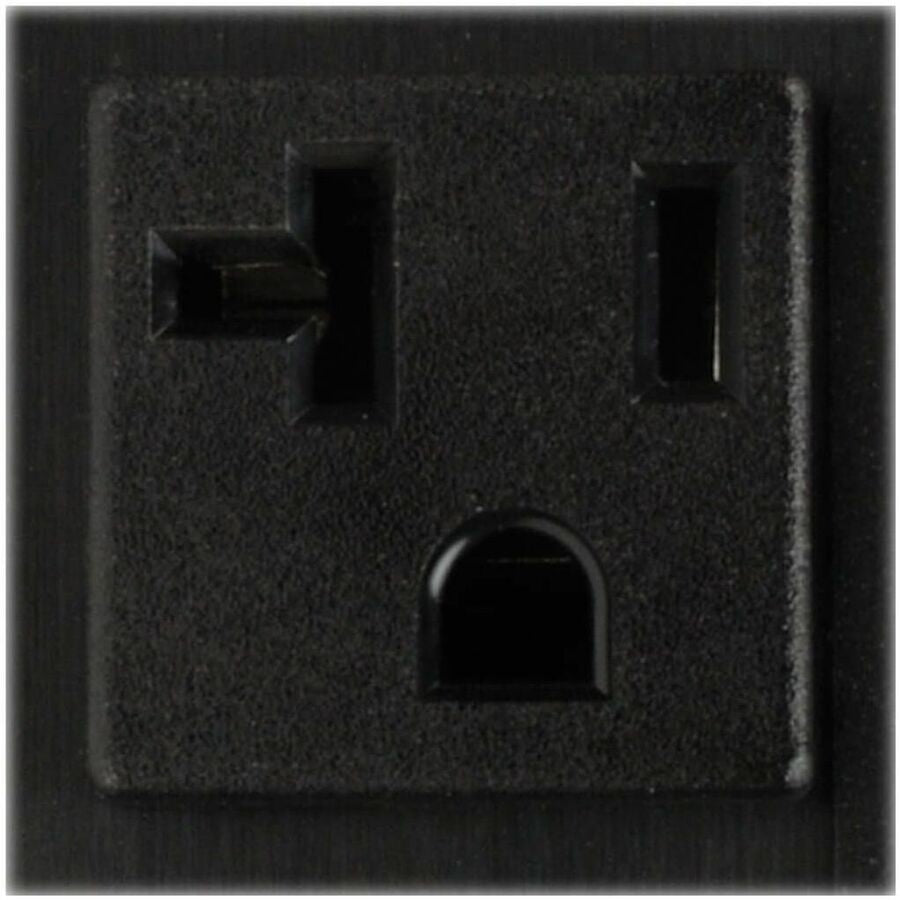

Receptacle Type NEMA 5-15/20R
Receptacle Detail 24 x NEMA 5-15/20R
Cord Length 10 ft (3.05 m)
Mounting Orientation Vertical
Mount Type Rack-mountable
Rack Height 0U
Height 70 in
Width 2.2 in
Depth 2.7 in
Weight 8.50 lb
Remote Outlet Switching Yes

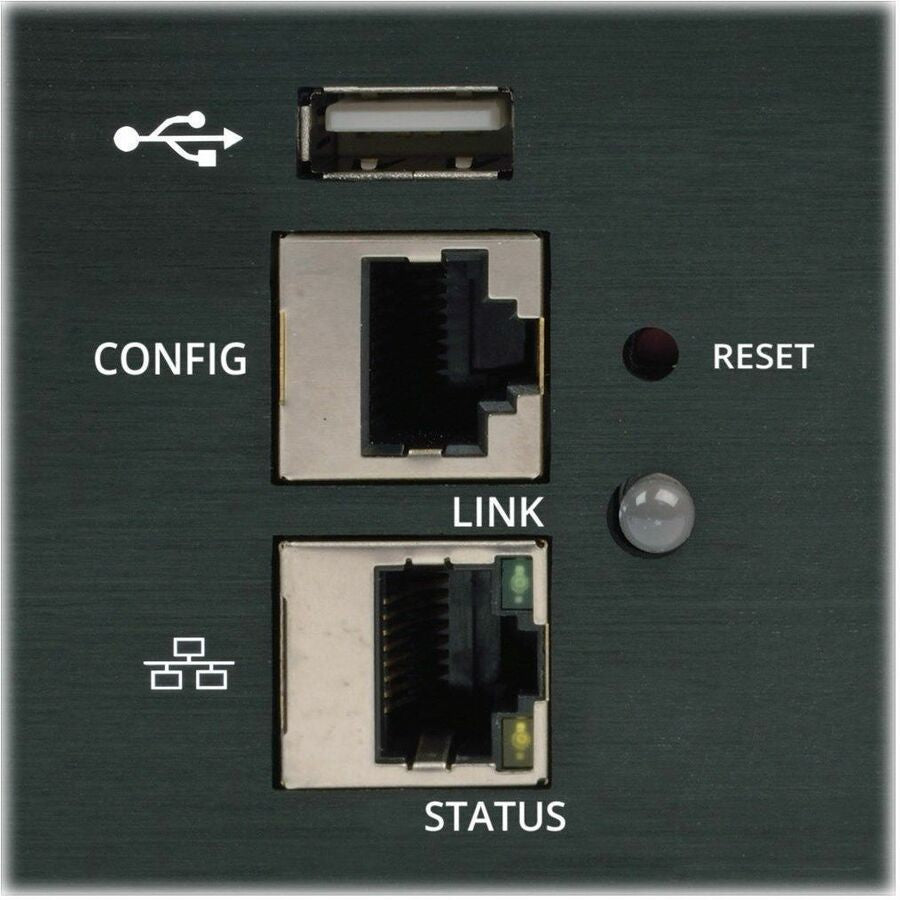

Network Interface RJ-45
Supported Protocols IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, NTP
Country of Origin Taiwan
TAA Compliant Yes
Environmental Compliance RoHS

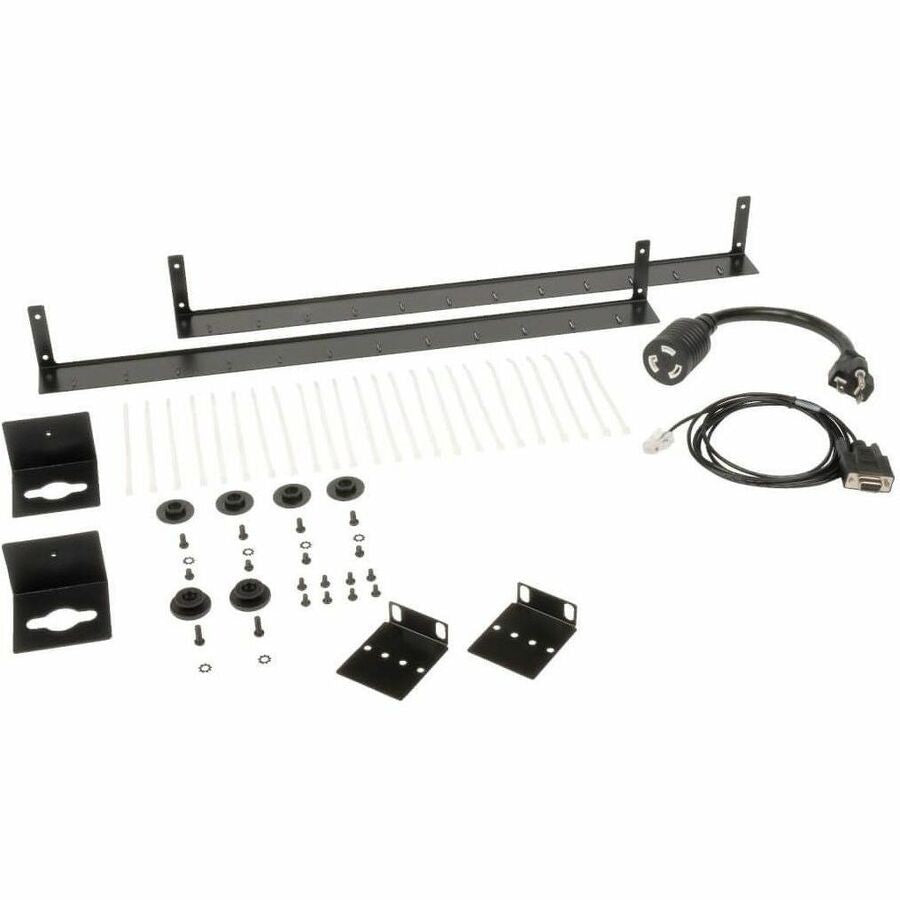

Package Contents

  • PDUMV20NETLX 1.9kW Single-Phase Switched PDU
  • Built-in LX Platform Interface

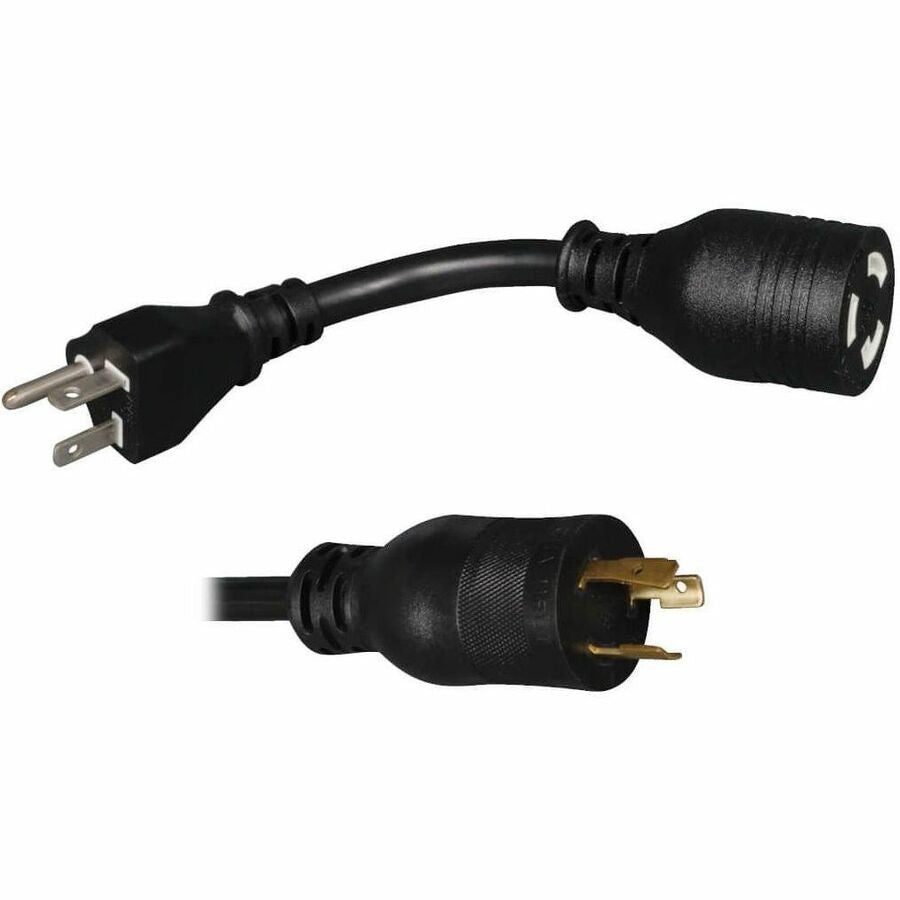

  • NEMA L5-20R to 5-15/20P Plug Adapter
  • Configuration Cable
  • 24 x Cable Ties
  • 2 x Cord Retention Brackets
  • Rack-mounting Hardware
  • PDUMVROTATEBRKT Mounting Bracket Accessory
  • Owner's Manual

Order the Eaton PDUMV20NETLX today for reliable switched power distribution and remote management.

Country of Origin: Taiwan

UPC: 037332205315

MPN: PDUMV20NETLX

Maximum Power: More than 1500 W

Number of Outlets: 24

Compatible Brand: For Tripp Lite

Voltage Compatibility: 120 V

Color: Black

Brand: Tripp Lite

Maximum Input Current: 20 A

Maximum Wattage: 1920 W

Features: Rack Mountable

Connectors: NEMA 5–15R

Type: Power Distribution Panel

Model: Tripp Lite PDUMV20NETLX
