Eaton PDUMV20 Tripp Lite 1.9kW Metered PDU 120V 28 Outlet 0U Vertical
Eaton PDUMV20 Tripp Lite 1.9kW Metered PDU 120V 28 Outlet 0U Vertical
Low stock: 5 left
Save 28%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Eaton Tripp Lite Series 1.9kW Single-Phase Local Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15 ft. (4.57 m) Cord, 0U Vertical
This is a Eaton Tripp Lite Series 1.9kW single-phase local metered Power Distribution Unit (PDU) designed for reliable rackmount power distribution. Model PDUMV20 features a built-in digital display for real-time local reporting of load levels in amps, 28 NEMA 5-15/20R outlets, NEMA L5-20P input plug with 15 ft. cord, and an included L5-20P to 5-20P adapter. Manufacturer: Eaton; MPN: PDUMV20; UPC: 037332132543. It supports vertical 0U rackmount installation with rugged all-metal housing.
Key Features of Eaton PDUMV20 Tripp Lite Metered PDU

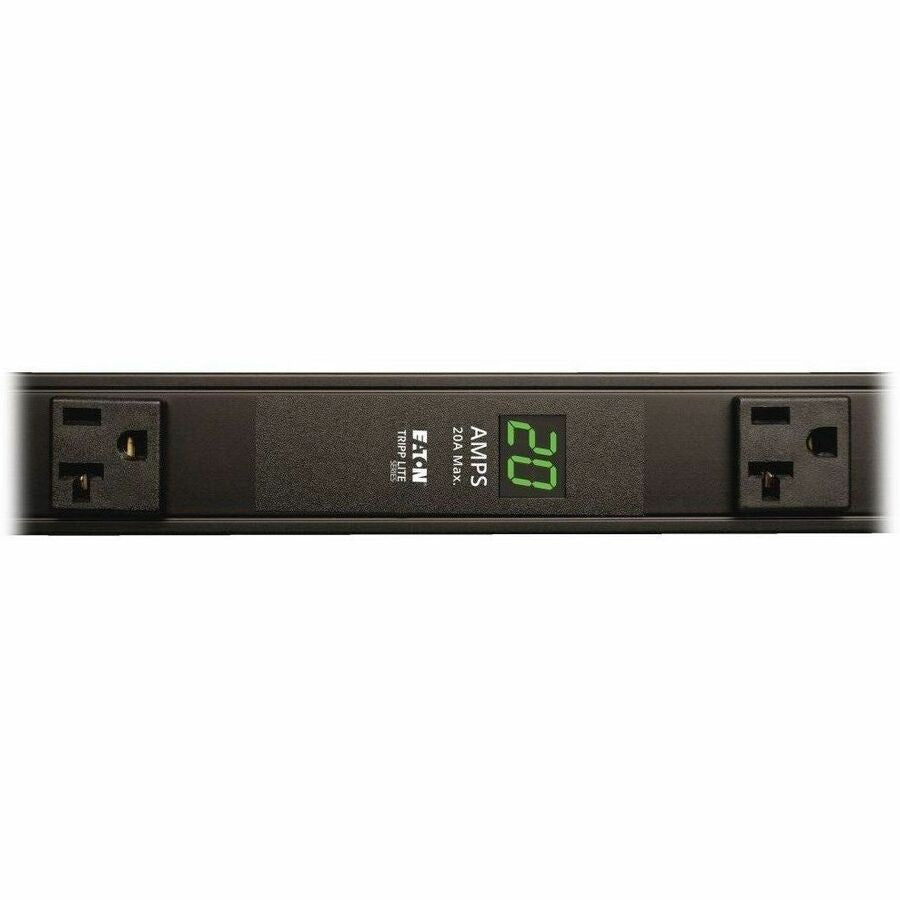

- Local Metered Monitoring – Built-in digital display shows real-time load level in amps to prevent overloads during equipment additions.
- 28 NEMA 5-15/20R Outlets – Provides multi-outlet power distribution from UPS, generator, or mains input sources.

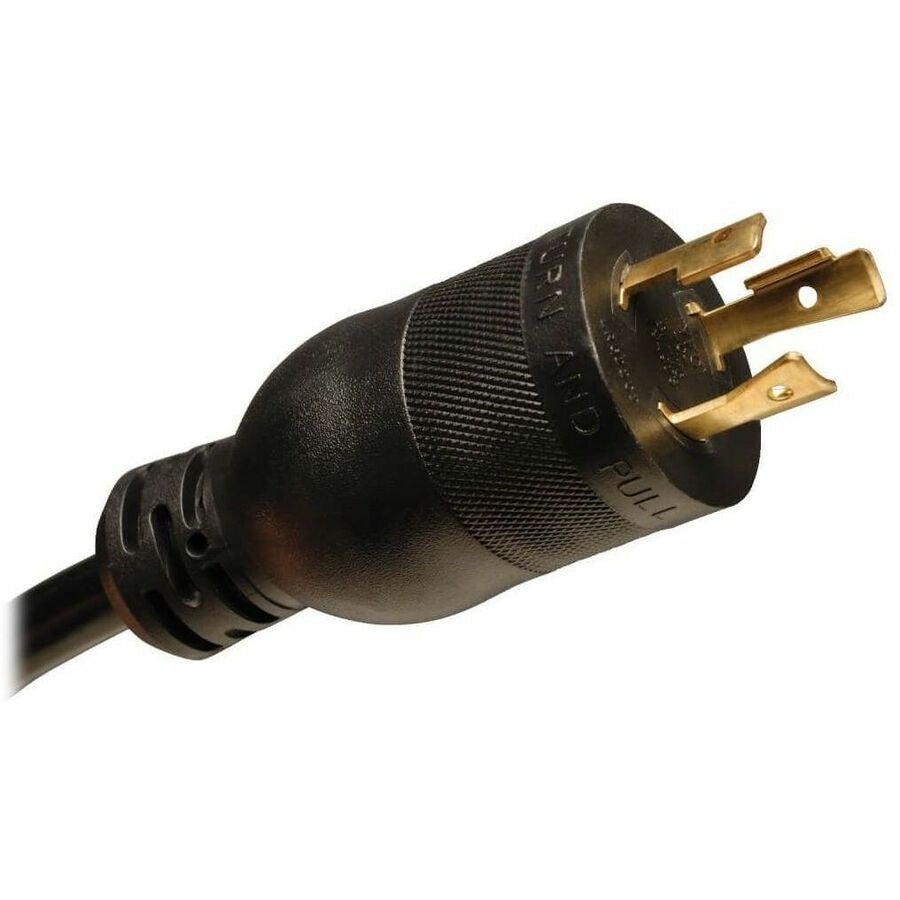

- NEMA L5-20P Input – 120V 20A single-phase with 15 ft. (4.57 m) cord and included 5-20P adapter for flexible connectivity.
- Overload Protection – Integrated circuit breaker safeguards connected equipment.
- Vertical 0U Rackmount – Space-saving design with secure mounting hardware and rugged all-metal construction.
- Accessory Kit – Includes six protective outlet covers for unused ports.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Model | PDUMV20 |
| Product Name | PDUMV20 PDU Metered 120V 20A 28 Outlet |
| Product Type | PDU |
| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 28 x NEMA 5-15/20R |
| Protection Type | Overload Protection |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating | 2400 W (1.9kW) |
| Circuit Breaker | Yes |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable (0U) |
| Height | 3" |
| Width | 60" |
| Depth | 1.5" |
| Weight (Approximate) | 5.20 lb |
| Cord Length | 15 ft. (4.57 m) |
| MPN | PDUMV20 |
| UPC | 037332132543 |
| Certifications & Standards | UL60950-1, CAN/CSA C22.2 No. 60950-1-03, RoHS Compliant |
| Country of Origin | China |

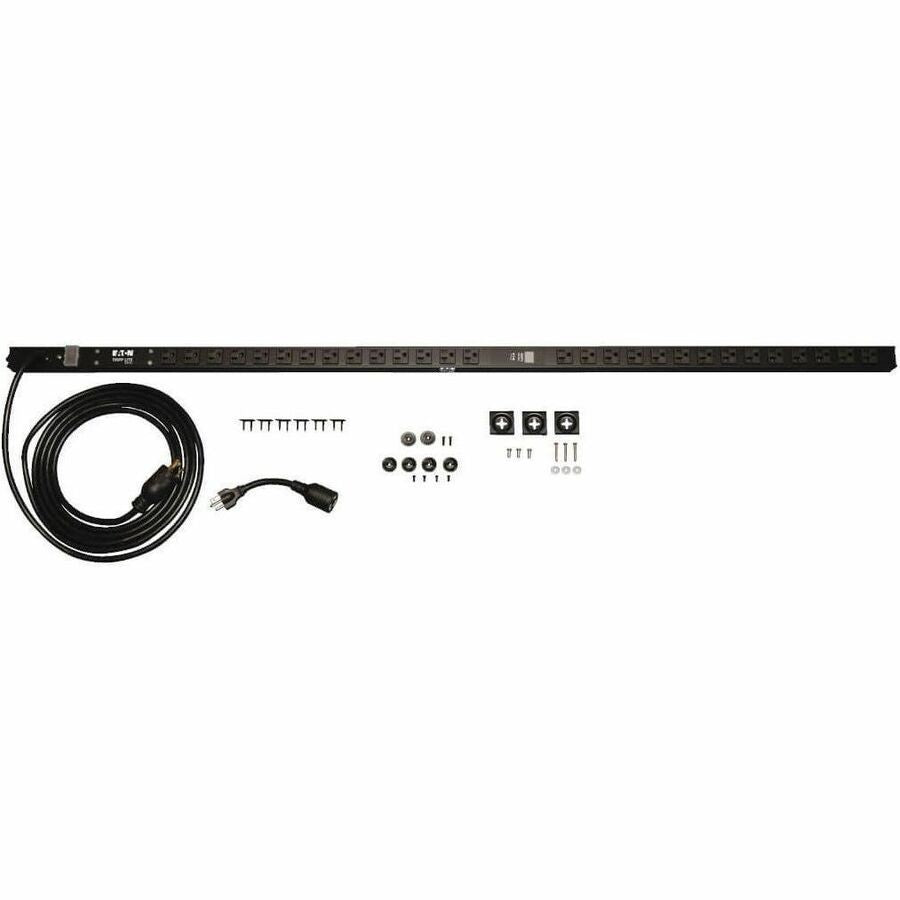

Package Contents & Rackmount Installation
- PDUMV20 PDU Metered 120V 20A 28 Outlet
- (1) L5-20P to 5-20P plug adapter
- Mounting hardware
- Six protective outlet covers
- Instruction manual with warranty information
Rackmount in vertical orientation using included accessories. Pro tip: Verify rack depth compatibility and secure with provided hardware for stability.
Why Choose Eaton Tripp Lite PDUMV20 PDU
Offers high-quality design for visual load monitoring and reliable power distribution in rack environments, with RoHS compliance and robust construction.
Enhance your rack power management—Order the Eaton PDUMV20 today!
Brand: Tripp Lite
Type: PDU
Features: Rack Mountable
Color: Black
Model: PDUMV20
MPN: PDUMV20
Compatible Model: PDUMV20
Country of Origin: China
Voltage Compatibility: 120 V
Number of Outlets: 28
Maximum Input Current: 20 A
Maximum Wattage: 2400 W
UPC: 037332132543
