Eaton Tripp Lite Series NetCommander 16-Port Cat5 KVM over IP Switch - 2 Remote + 1 Local User, 1U Rack-Mount, TAA

This is a KVM Switchbox manufactured by Eaton under the Tripp Lite series NetCommander product line. The B072-016-IP2 model supports digital KVM technology for controlling up to 16 computers or servers with 1 local user and 2 remote users simultaneously over IP connections.

The switch uses Cat5e/6/6a cabling with separate Server Interface Units and supports remote access via Java-based web browser or non-browser client. It includes dual Ethernet ports, dual power supplies, on-screen display, hotkey commands, remote toolbar, multi-level password protection, RADIUS and LDAP/S authentication, SNMP messaging, event logging, and Virtual Media support up to 12 Mbps with compatible interface units. It is compatible with Windows and Linux operating systems and delivers VGA resolutions up to 1920 x 1080 at 60 Hz.

Key Features

• Controls 16 computers/servers locally or remotely via network or Internet
• 1 local user and 2 remote users can access different ports at the same time
• Dual Ethernet ports and dual power supplies for redundancy
• Maximum operating distance of 100 ft with user-supplied Cat5e/6/6a cabling
• Two serial ports for control of IP PDUs, firewalls, and routers
• Virtual Media support for mounting.iso files
• Free NetCommander-AXS Management Software for multi-switch control
• Heavy-duty steel housing in black, rack-mountable in 1U form factor

Comprehensive Technical Specifications

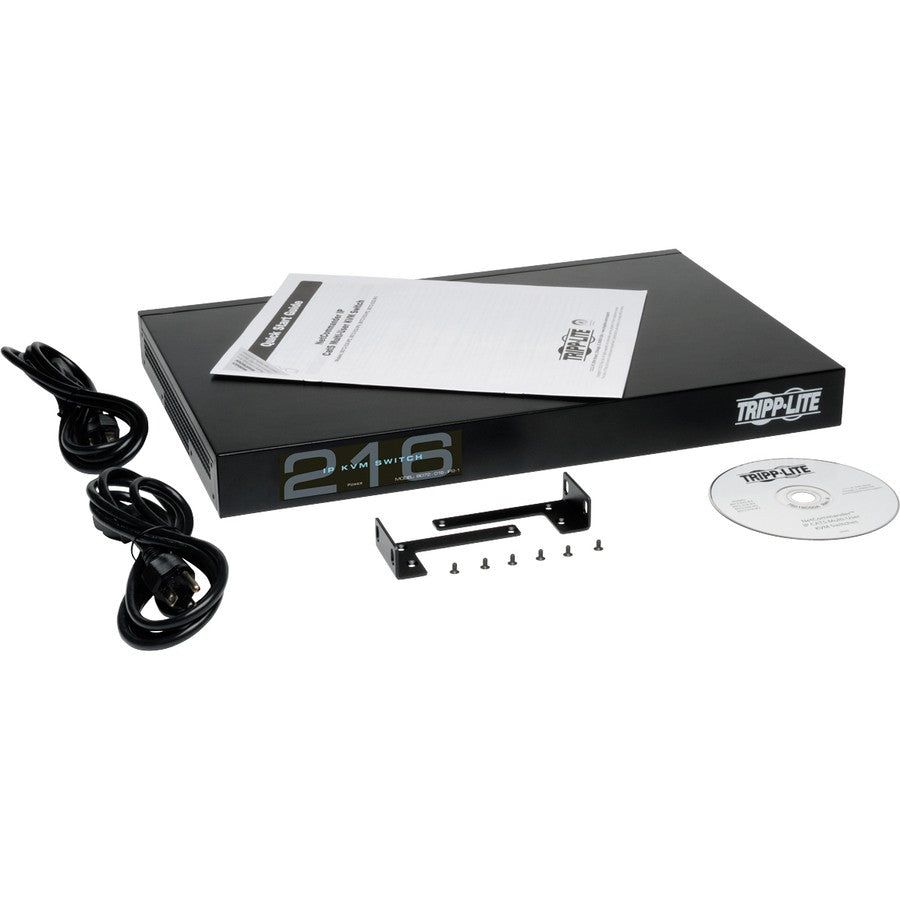

Package Contents

• 16-Port, 2+1 User NetCommander Cat5 IP KVM Switch
• Rackmount Hardware
• 2 x Power Cords
