Eaton 9PX G2 Maintenance Bypass for Select 8kVA to 11kVA 9PX UPS Systems, Hardwired Input/Output, 4 L6-30R Outlets, 0U Rack/Tower/Wall

This is a bypass switch for use with select Eaton 9PX G2 UPS systems. The MBP11K208G2 enables service or replacement of the UPS without powering down connected equipment by routing power directly from the source when in bypass mode.

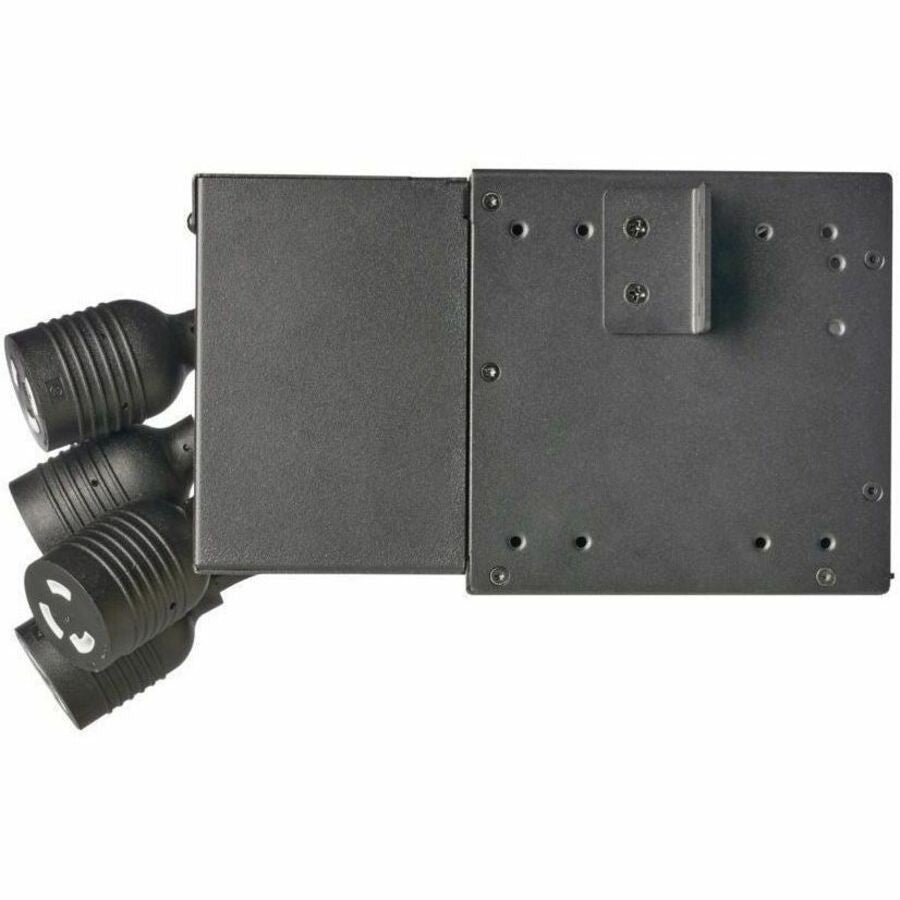

The unit supports hardwired input and output connections along with four NEMA L6-30R receptacles. It mounts to the rear of the UPS or extended battery module without consuming additional rack space and can also be installed on the side or top of the rack, on a wall, or in tower configuration.

Key Features

• Compatible with Eaton 9PX8KG2, 9PX8KTF5G2, 9PX11KG2, 9PX11KTF11G2, and 9PX11KTF5G2 UPS systems
• Hardwired input and output connections

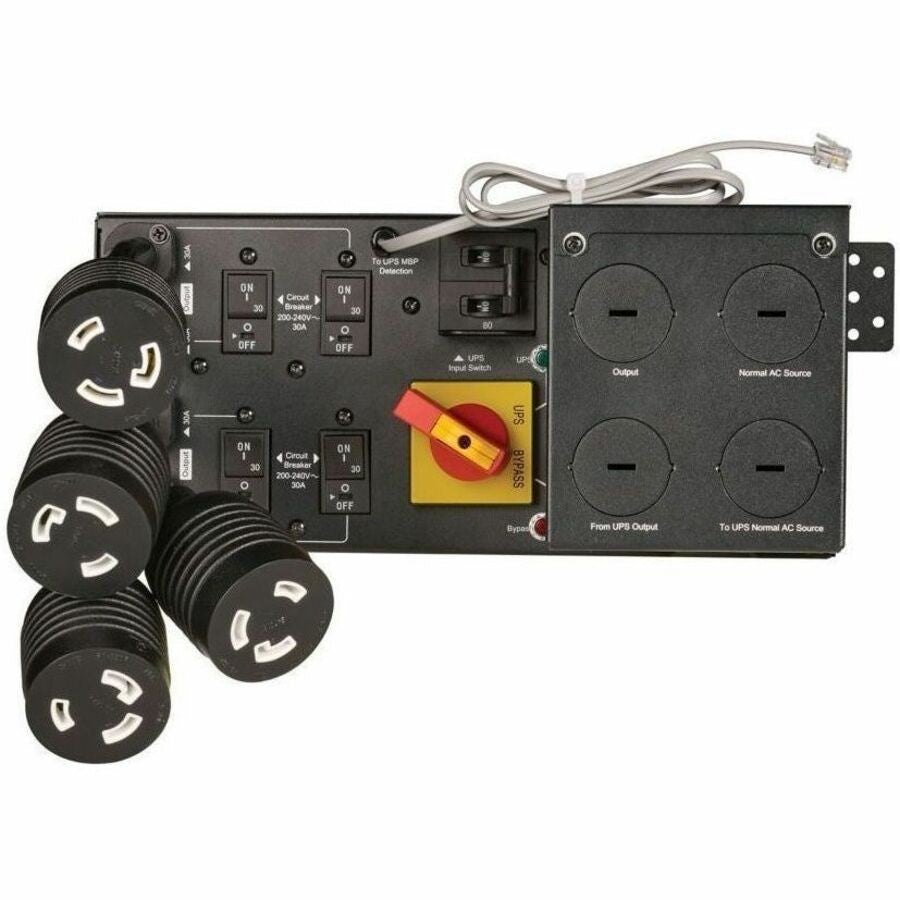

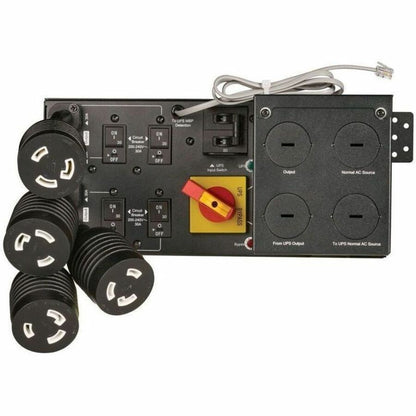

• Four NEMA L6-30R outlets
• 11 kW load capacity at 208/220/230/240 V AC output
• 0U rack height form factor supporting rackmount, tower, and wall-mount installation
• Power passes directly from source to equipment in bypass mode

Comprehensive Technical Specifications

Package Contents

• MBP11K208G2 Bypass Switch
• 2 x Input/output Covers
• Input/output Cover Fixation Kit
• 2 x Conduits for UPS Input/output Connection
• 4 x Conduit Fittings
• Mounting Hardware
