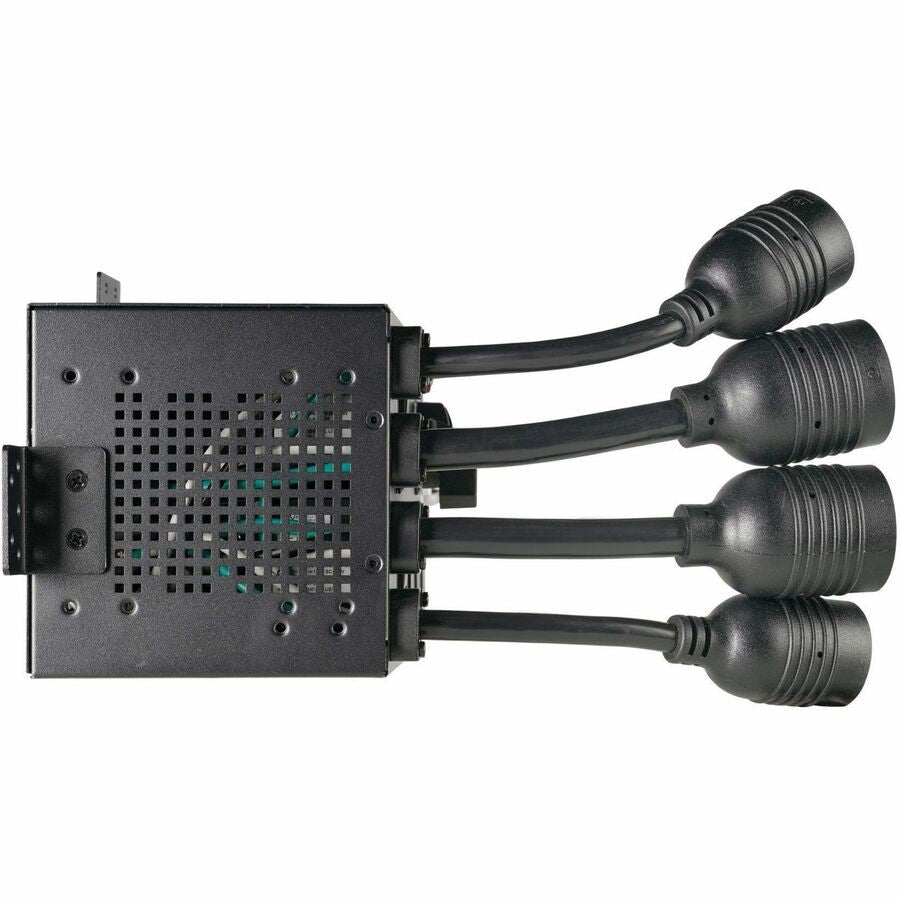

Eaton 9PX G2 Maintenance Bypass for Select 3kVA to 6kVA UPS Systems, Hardwired Input/Output, 2 L6-20R and 2 L6-30R Outlets, 0U Rack/Tower/Wall

This is a bypass switch designed for use with select Eaton 9PX G2 UPS systems. The MBP6K208G2 model provides hardwired input and output connections along with two NEMA L6-20R and two NEMA L6-30R outlets. It supports a load capacity of 6000 W and allows service or replacement of the UPS without powering down connected equipment.

The unit operates at output voltages of 208 V AC, 220 V AC, 230 V AC, and 240 V AC. It mounts in 0U rack space directly to the rear of compatible UPS or extended battery modules, or installs on the side or top of a rack, on a wall, or in tower configuration using included hardware.

Key Features

• Hardwired input with NEMA L6-30P connector support

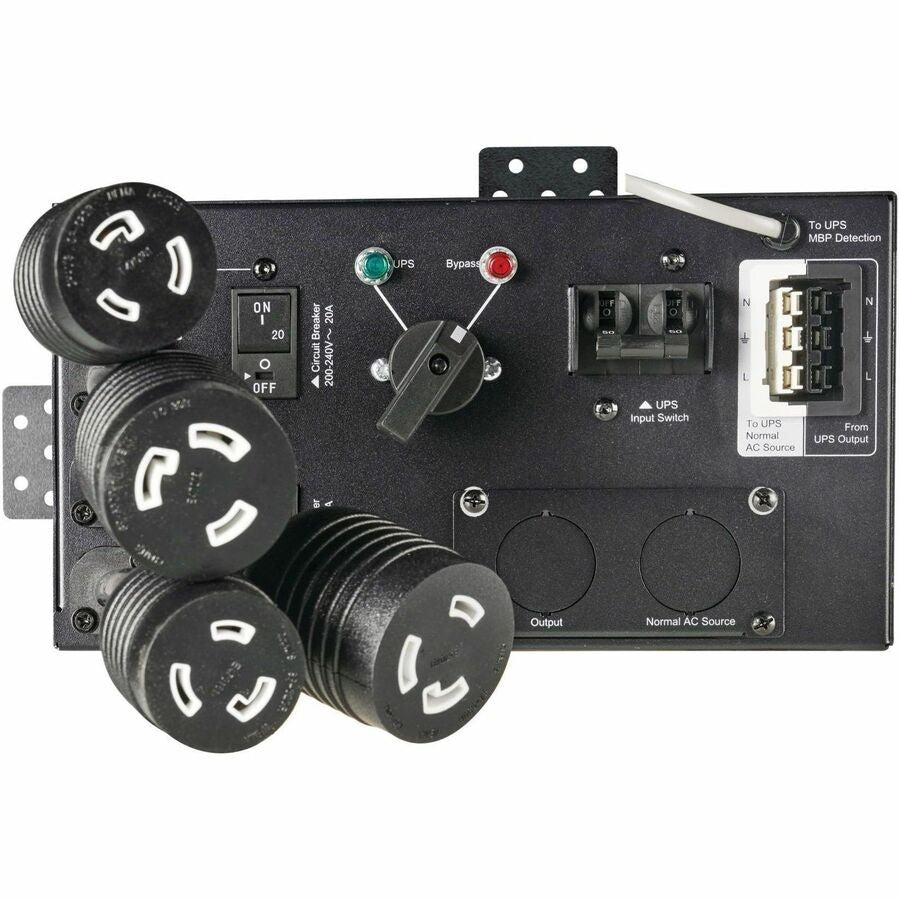

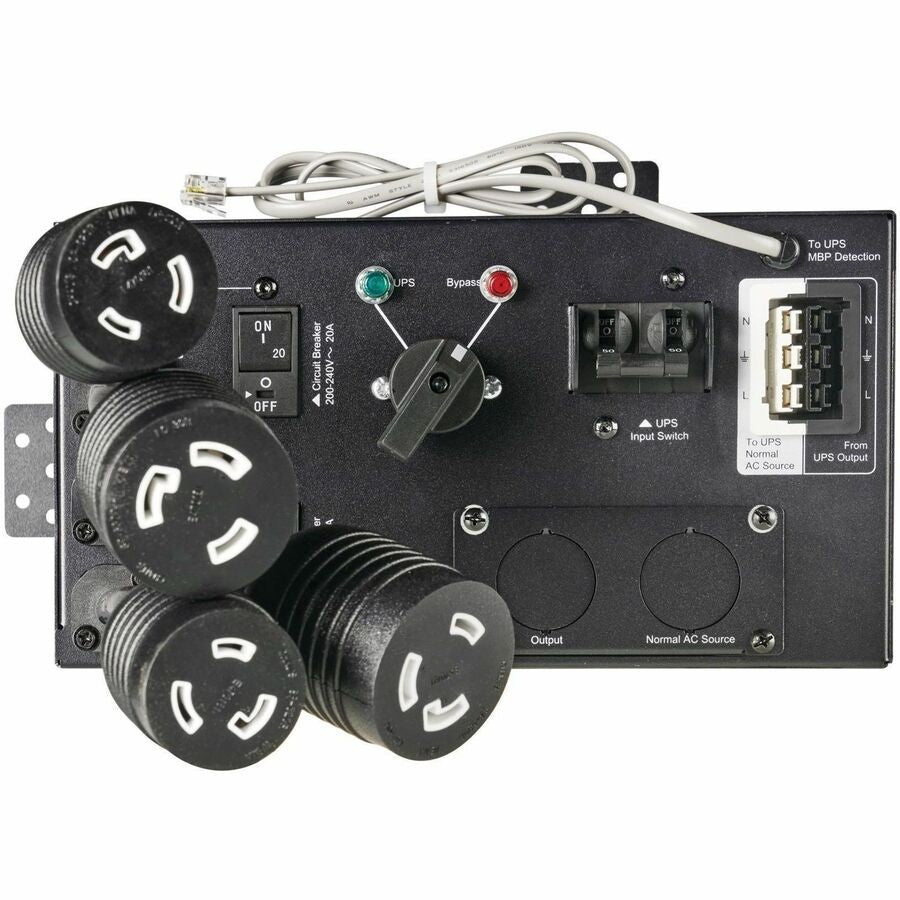

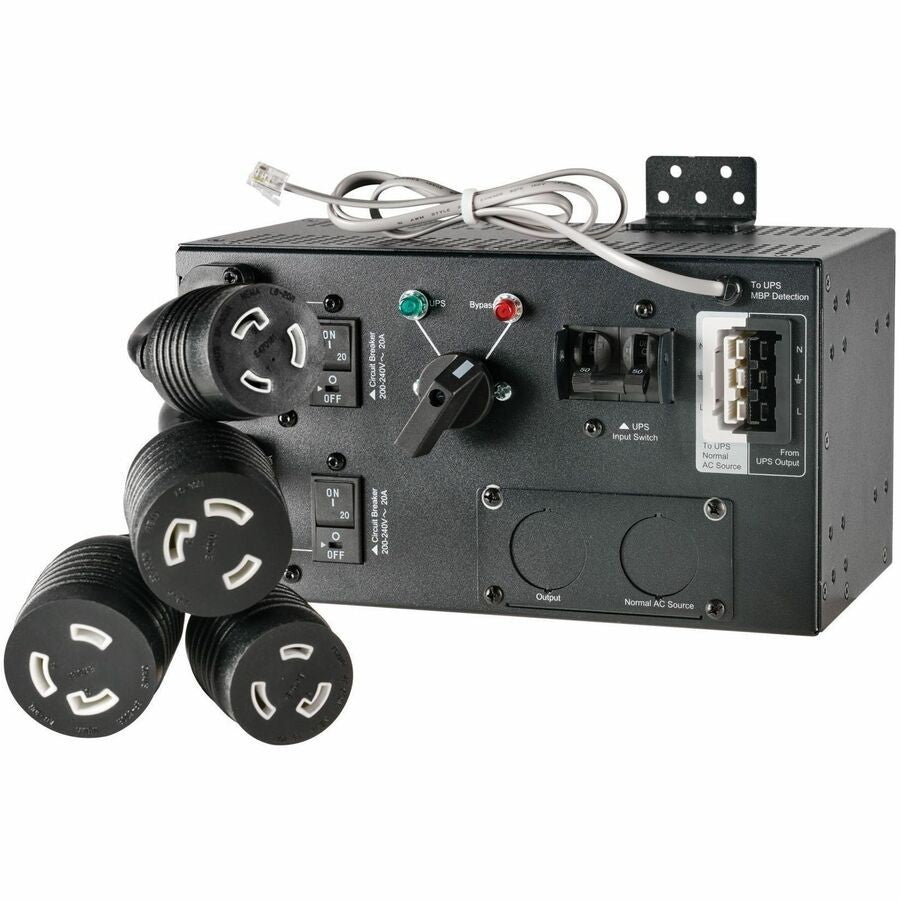

• Receptacles: 1 x Hardwired, 2 x NEMA L6-20R, 2 x NEMA L6-30R
• 6000 W load capacity at 6000 VA
• Compatible with Eaton 9PX5KG2, 9PX6KG2, 9PX6K-L, 9PX3K3UG2, 9PX3K3UNTF5G2, 9PX5KTF5G2, and 9PX6KTF5G2 UPS systems

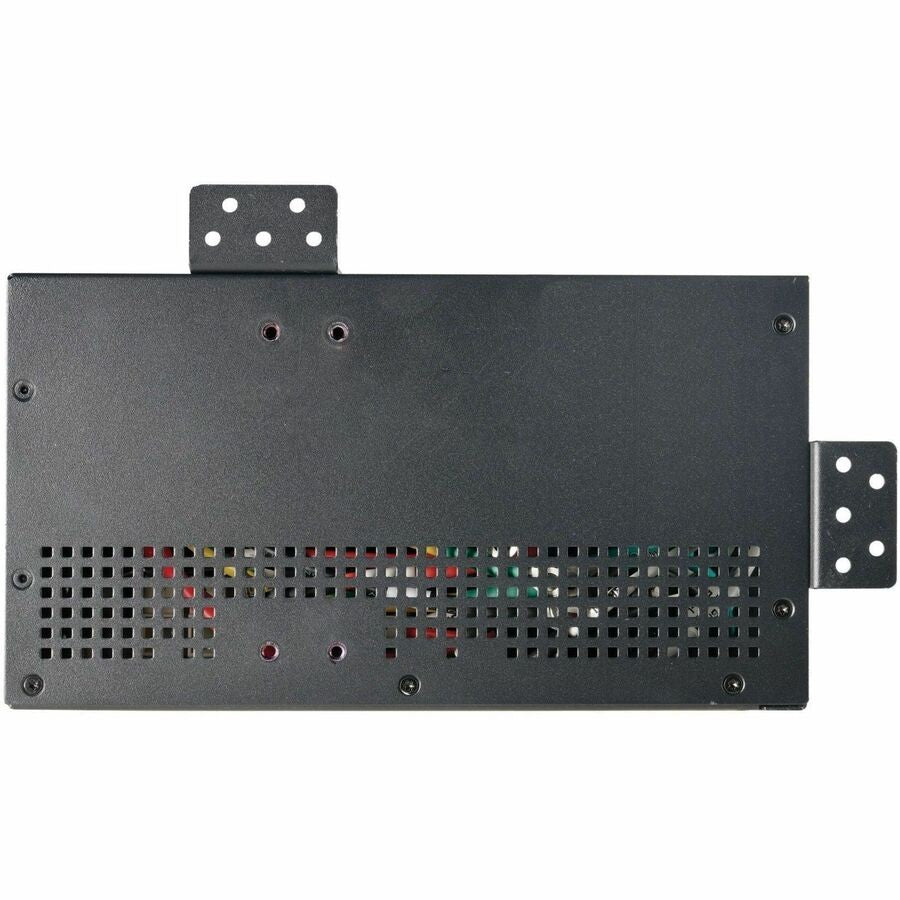

• 0U rackmount, tower, or wall-mountable form factor
• Power passes directly from source to equipment in bypass mode

Comprehensive Technical Specifications

Package Contents

• MBP6K208G2 Bypass Switch
• Input/output UPS Cable Set
• 2 x Cable Glands
• Mounting Hardware
