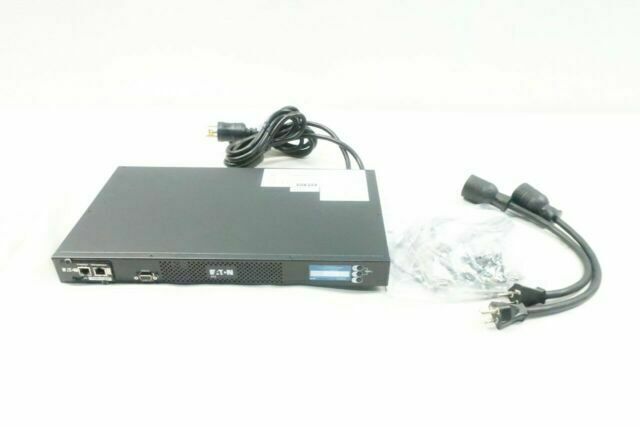

Eaton EATS120 ATS Rack PDU 1U 120V 1920W 10x 5-20R
Eaton EATS120 ATS Rack PDU 1U 120V 1920W 10x 5-20R
Low stock: 2 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Eaton ATS Rack PDU 1U 120V 1.92 kW 2 5-20P Input and 10 5-20R Single-Phase
This is an Eaton eATS automatic transfer switch PDU designed for switching between non-phase-synchronized AC power sources. The unit monitors both inputs and provides fast transfer from primary to secondary source to maintain power to critical equipment without interruption. It delivers redundancy for mission-critical applications in a 1U rack-mountable form factor.
Key Features of Eaton eATS Rack PDU
- Dual NEMA 5-20P Inputs – Two 5-20P plugs allow connection to separate power sources for automatic failover.
- Ten NEMA 5-20R Outlets – Provides ten 5-20R receptacles to power multiple devices from a single 1U unit.
- Network Monitoring – Includes RJ-45 port for remote management and status monitoring over the network.
- Automatic Transfer Switching – Intelligent circuitry detects power loss and switches sources rapidly to prevent downtime.
- Horizontal 1U Mounting – Fits standard 19-inch racks with horizontal orientation for efficient space use.
- 1920 W Power Capacity – Supports up to 1920 watts at 120 V AC with 16 A input current rating.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Eaton |
| Manufacturer Part Number | EATS120 |
| UPC | 743172079336 |
| Product Line | eATS |
| Product Type | PDU |
| Plug/Connector Type | NEMA 5-20P |
| Plug/Connector Detail | 2 x NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 10 x NEMA 5-20R |
| Input Voltage | 120 V AC |
| Power Rating | 1920 W |
| Input Current | 16 A |
| Network Port | RJ-45 |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 9.8" |
| Weight | 9.17 lb |
| Country of Origin | China |
Product Overview
Eaton eATS ePDUs are engineered for switching non-phase-synchronized AC power sources. The automatic transfer switch circuitry continuously monitors both inputs and executes a fast switch transfer from the primary to the secondary source, ensuring uninterrupted power to critical equipment. This design provides the highest level of redundancy for mission-critical applications.
Features: Rack Mountable
Country of Origin: China
UPC: 743172079336
MPN: EATS120
Item Length: 9.84 in
Maximum Power: 1920 W
Item Height: 1.7 in
Number of Outlets: 10
Item Width: 17.25 in
Voltage Compatibility: 120 V
Color: Black
Brand: Eaton
Maximum Input Current: 16 A
Maximum Wattage: 1920 W
Connectors: 5-20 P
Type: Enterprise/Data Center UPS
Model: EATS120
