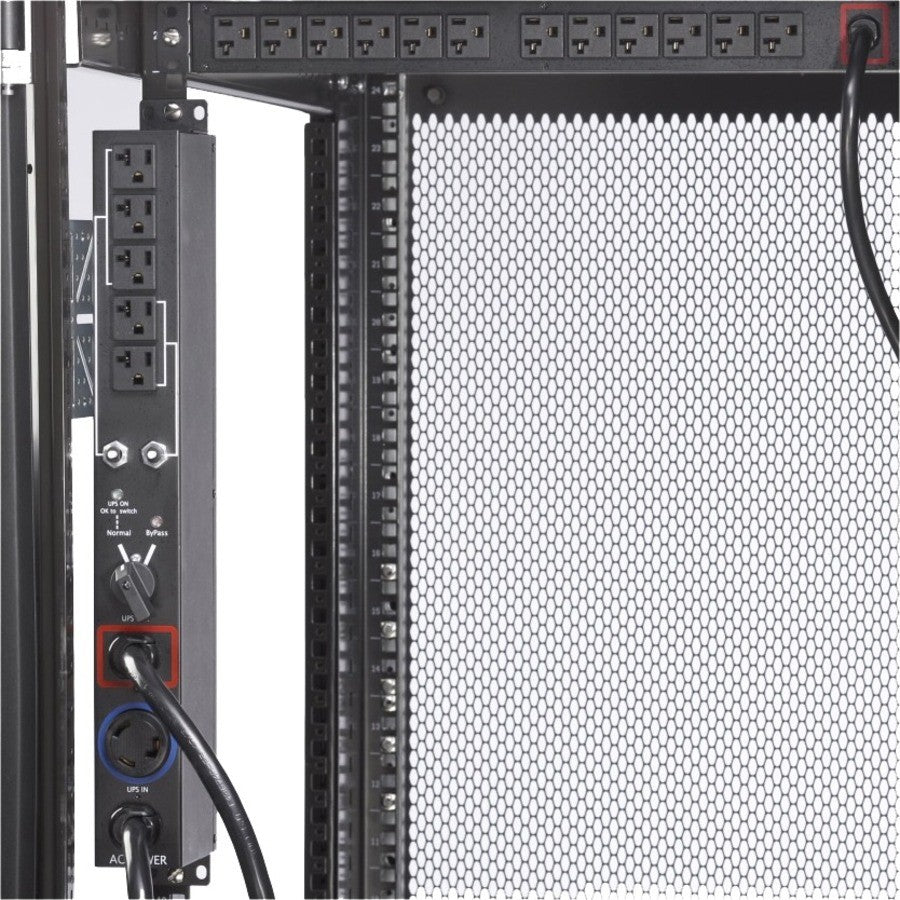

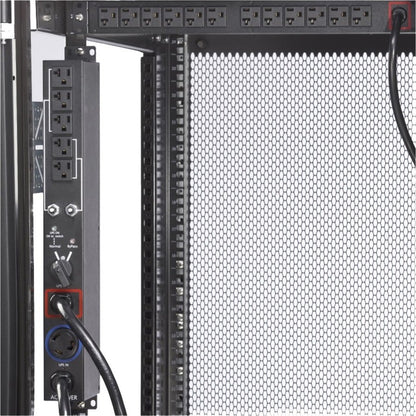

Key Features of Eaton HotSwap MBP Basic Rack PDU

• HotSwap Maintenance Bypass – Enables easy UPS replacement or servicing without load interruption, perfect for data center operations.
• Basic PDU Design – Provides straightforward power distribution with 2880W capacity at 120V, supporting demanding rack setups.
• 5 x NEMA 5-20R Outlets – Offers flexible receptacle options for various equipment connections.
• Circuit Breaker Protection – Ensures safe operation with built-in overcurrent safeguards.
• 2U Rack-Mountable – Horizontal mounting in standard racks, with hot-swappable form factor for quick deployment.
• Single-Phase Operation – Input range 110-125V AC, 24A max, NEMA L5-30P plug for compatibility with common UPS accessories.
• Black Horizontal Design – Compact footprint fits space-constrained environments, with versatile top and side mounting options.

Comprehensive Technical Specifications

Installation & Maintenance for Eaton HotSwap MBP PDU

Designed for straightforward rack integration and hot-swap functionality in data centers.

1. Rack Mounting: Secure horizontally in 2U space using standard rack ears; ensure proper ventilation.
2. Power Connection: Attach NEMA L5-30P plug to UPS or power source within 110-125V range.
3. Load Distribution: Connect equipment to 5 x NEMA 5-20R outlets; monitor circuit breaker.
4. Maintenance: Utilize hot-swap bypass for UPS service without powering down loads. Pro tip: Regularly inspect connections for secure fit.
5. Cleaning: Wipe exterior with dry cloth; avoid liquids near outlets.

Why Choose Eaton Basic Rack PDU HotSwap MBP

Eaton's HotSwap MBP series delivers reliable power distribution tailored for UPS maintenance bypass needs, offering flexibility and zero-downtime servicing in demanding data center architectures.
