Eaton 9SX 700VA 630W 120V Online Double-Conversion UPS - 6 NEMA 5-15R Outlets, Cybersecure Network Card Option, Extended Run, Tower

This is a Double Conversion Online UPS manufactured by Eaton. The Eaton 9SX700 model delivers 700 VA / 630 W capacity with true on-line double-conversion topology that converts AC input to DC then back to fully regulated sine wave AC output, providing zero transfer time between on-line and battery modes along with surge suppression for medical, light industrial, automation and mission-critical IT applications.

The unit features a NEMA 5-15P plug, six NEMA 5-15R receptacles with outlet-level power monitoring, two load banks for non-critical load shedding, field-replaceable hot-swappable internal batteries, ABM technology for extended battery life, and support for optional NETWORK-M2 network card and EMPDT1H1C2 environmental probe.

Key Features

• Double-conversion on-line operation maintains perfect output voltage with pure sine wave waveform and zero transfer time
• Surge suppression and line noise filtering protect connected equipment

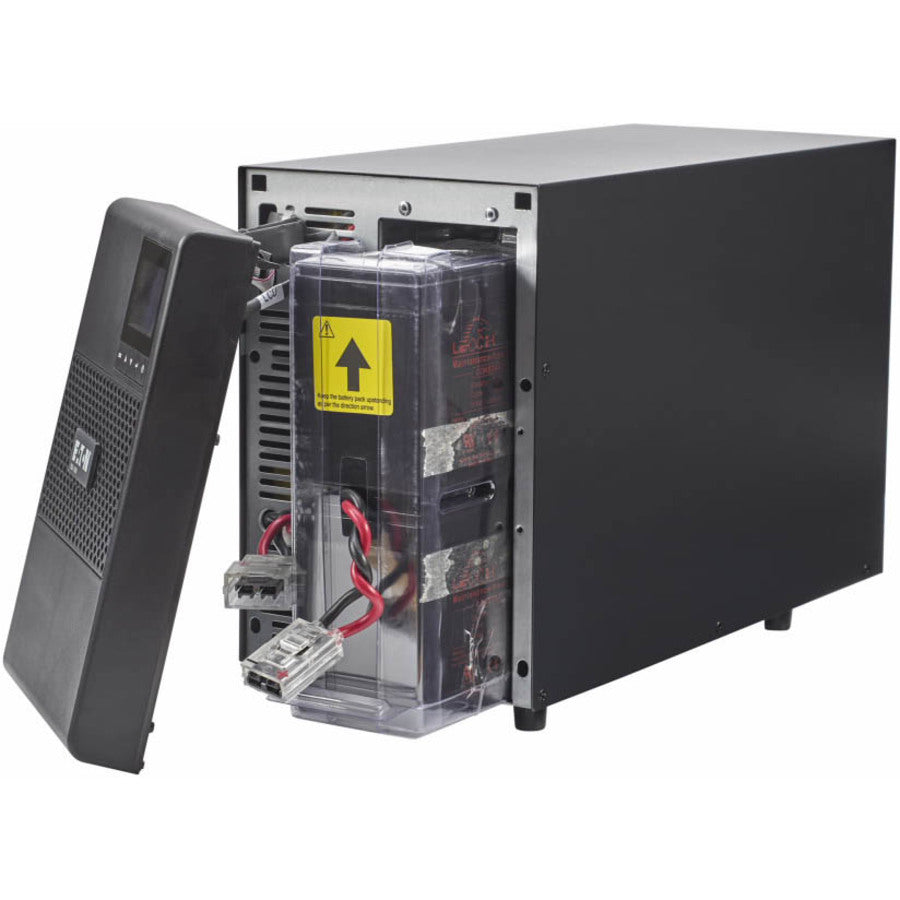

• Field-replaceable hot-swappable internal battery modules with 5.80 minutes runtime at full load
• ABM technology increases battery life by 50 percent and provides advanced battery health monitoring
• Six NEMA 5-15R outlets allow monitoring down to the outlet group level with four outlets grouped into two load banks
• Optional NETWORK-M2 card enables remote configuration, load shedding, reboots, safe shutdowns and remote firmware flashing
• Supports optional Environmental Monitoring Probe Gen 2 for temperature and humidity data
• Tower form factor suitable for space-limited installations

Comprehensive Technical Specifications

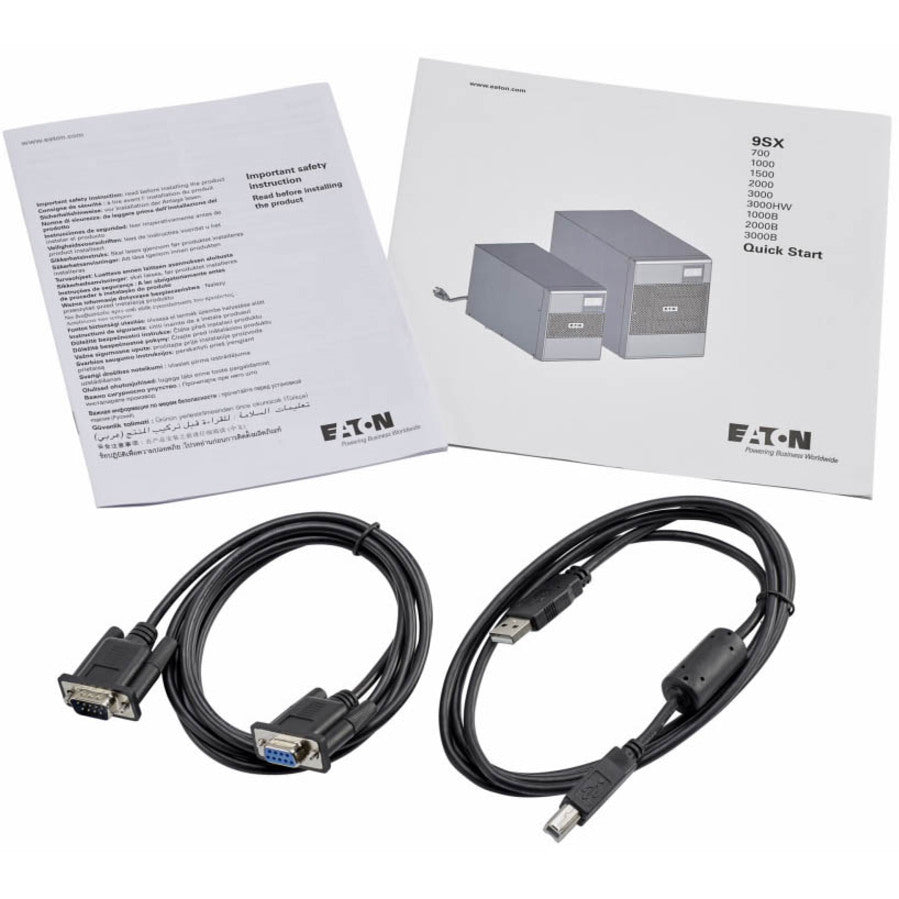

Package Contents

• 700VA Tower UPS
• Quick Start Guide
• Safety Guide
• Serial And USB Cables
