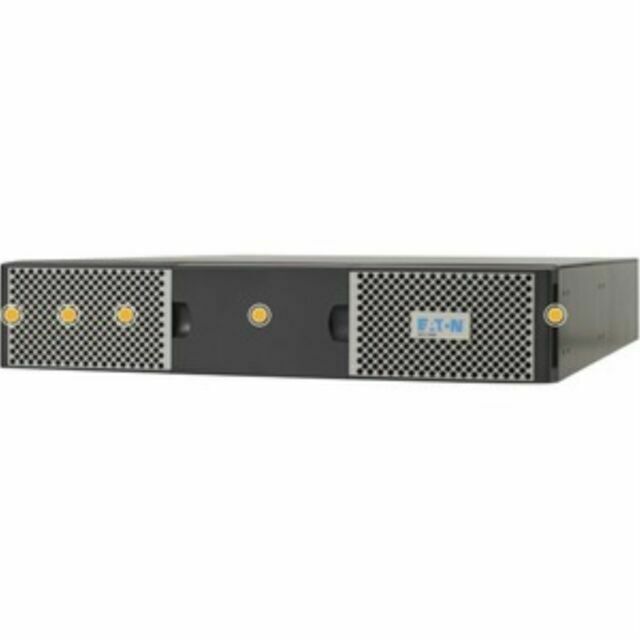

Eaton 9PXEBM72RT 72V Extended Battery Module 2U Rack/Tower
Eaton 9PXEBM72RT 72V Extended Battery Module 2U Rack/Tower
Low stock: 3 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Eaton 9PX 72V Extended Battery Module (EBM) for Select 2kVA to 3kVA 9PX UPS Systems, 2U Rack/Tower
This is an External Battery Pack manufactured by Eaton Corporation under part number 9PXEBM72RT. The valve regulated lead acid unit extends runtime for compatible Eaton 9PX UPS systems and supports daisy-chaining of up to four matching battery packs for longer extended-run operation.
Heavy-gauge cabling with high-current DC connectors is included for installation. The module mounts in 2U of space in an EIA-standard 19-inch rack using the supplied 4-post rail kit or adapts to tower configuration with the included support stands. An optional 2-post rail kit (RK2PC) is compatible but sold separately.
Key Features
- Valve regulated lead acid battery chemistry for extended runtime with listed 9PX UPS models
- Daisy-chain capability for a maximum of four matching battery packs
- Heavy-gauge cabling with high-current DC connectors included
- 2U rack-mount design with included 4-post rail kit
- Tower installation supported by included support stands
- Compatible with Eaton 9PX2000RT, 9PX2000RTN, 9PX2200GRT, 9PX3000RT, 9PX3000RTN, 9PX3000GRT and 9PX3000GLRT UPS systems
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Eaton |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PXEBM72RT |
| Product Name | External Battery Pack |
| Product Type | External Battery Pack |
| Battery Chemistry | Lead Acid (Valve Regulated) |
| Packaged Quantity | 1 |
| Compatibility | Eaton 9PX2000RT, 9PX2000RTN, 9PX2200GRT, 9PX3000RT, 9PX3000RTN, 9PX3000GRT, 9PX3000GLRT |
| Maximum Daisy-Chain Quantity | 4 matching battery packs |
| Rack Height | 2U |
| Rack Compatibility | EIA-standard 19-inch rack |
| Included Rail Kit | 4-post rail kit |
| Optional Rail Kit | 2-post rail kit (RK2PC, sold separately) |
| Tower Installation | Included support stands |
| Cabling Included | Heavy-gauge cabling with high-current DC connectors |
| Physical Height | 3.4 inches |
| Physical Width | 17.3 inches |
| Physical Depth | 23.8 inches |
| Weight (Approximate) | 190.48 lb |
| Country of Origin | Philippines |
| UPC | 743172081339 |
Package Contents
One External Battery Pack, heavy-gauge cabling with high-current DC connectors, 4-post rail kit, support stands.
Mounting Style: Rack Mount
Country of Origin: Philippines
Item Depth: 23 in
UPC: 743172081339
MPN: 9PXEBM72RT
Item Height: 3.4"
Features: Rack Mountable
Voltage Compatibility: 72 V
Compatible Brand: For Eaton
Color: Black
Brand: Eaton
Type: Battery
