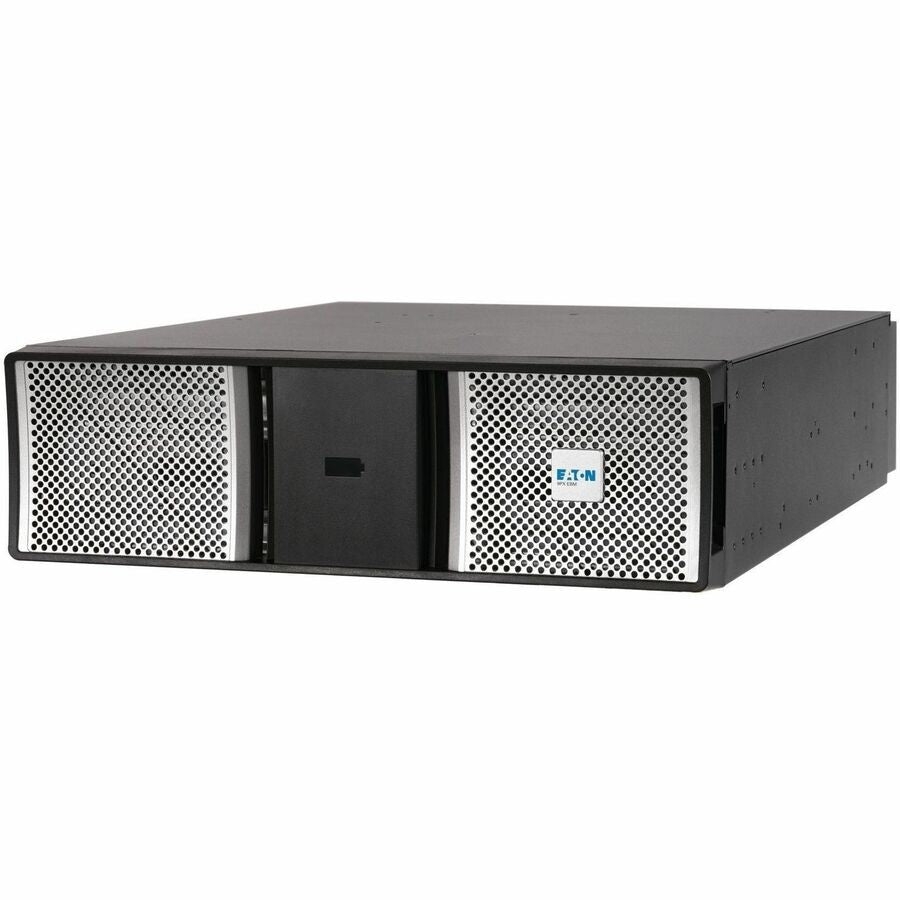

Eaton 9PXEBM180RTG2 180V Extended Battery Module 3U Rack/Tower
This is an Eaton 180V Extended Battery Module (EBM) designed for select Eaton 9PX G2 UPS Systems. The 9PXEBM180RTG2 delivers extended runtime through 180 V DC lead-acid valve-regulated battery technology that is user-replaceable and hot-swappable. It supports daisy-chaining of up to 12 auto-detected units and includes heavy-gauge cabling with high-current DC connectors.

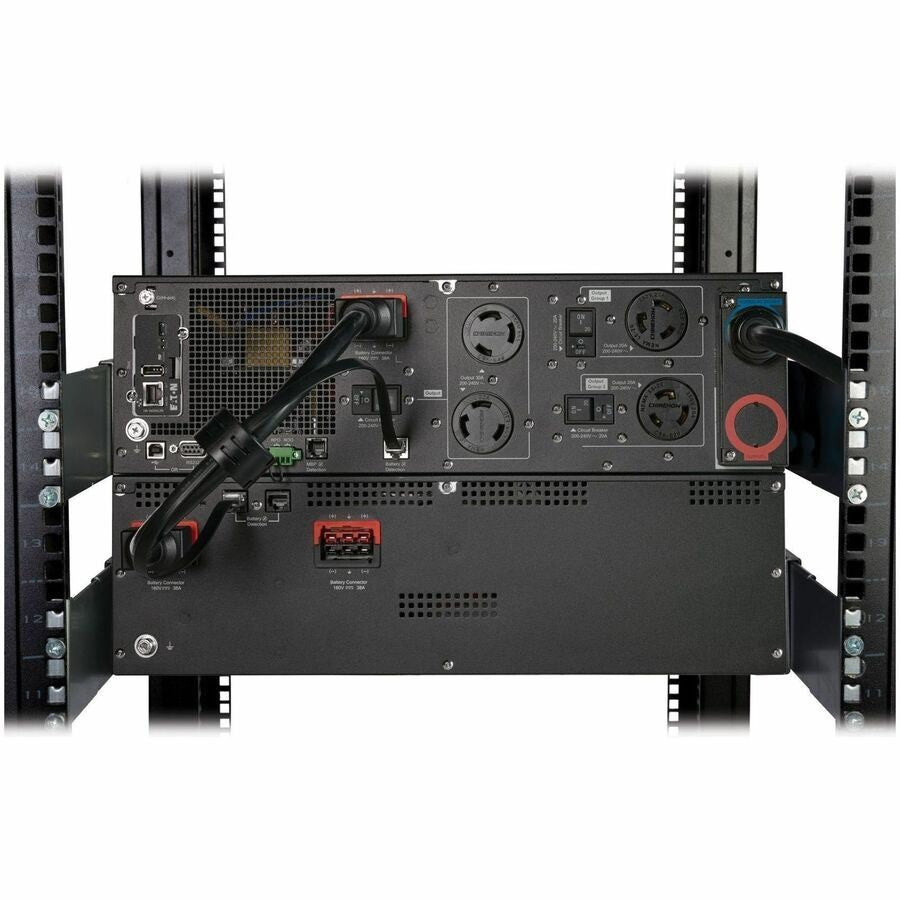

COMPATIBILITY: Works with Eaton 9PX3K3UG2, 9PX3K3UNP1G2, 9PX3K3UNP2G2, 9PX3K3UNTF5G2, 9PX5KG2, 9PX5KP1G2, 9PX5KP2G2, 9PX5KTF5G2, 9PX6KG2, 9PX6KIECG2, 9PX6KP1G2, 9PX6KP2G2, and 9PX6KTF5G2 UPS systems. Supports 3U rack installation with included 4-post rail kit or tower installation with included support stands. RK2PC kit required separately for 2-post racks.
Key Features of Eaton 9PXEBM180RTG2 Battery Module
- Extended Runtime – Connects to listed 9PX G2 UPS models and supports daisy-chaining up to 12 units for longer backup operation.
- Hot-Swappable Design – Valve-regulated lead-acid batteries allow replacement without powering down the UPS.

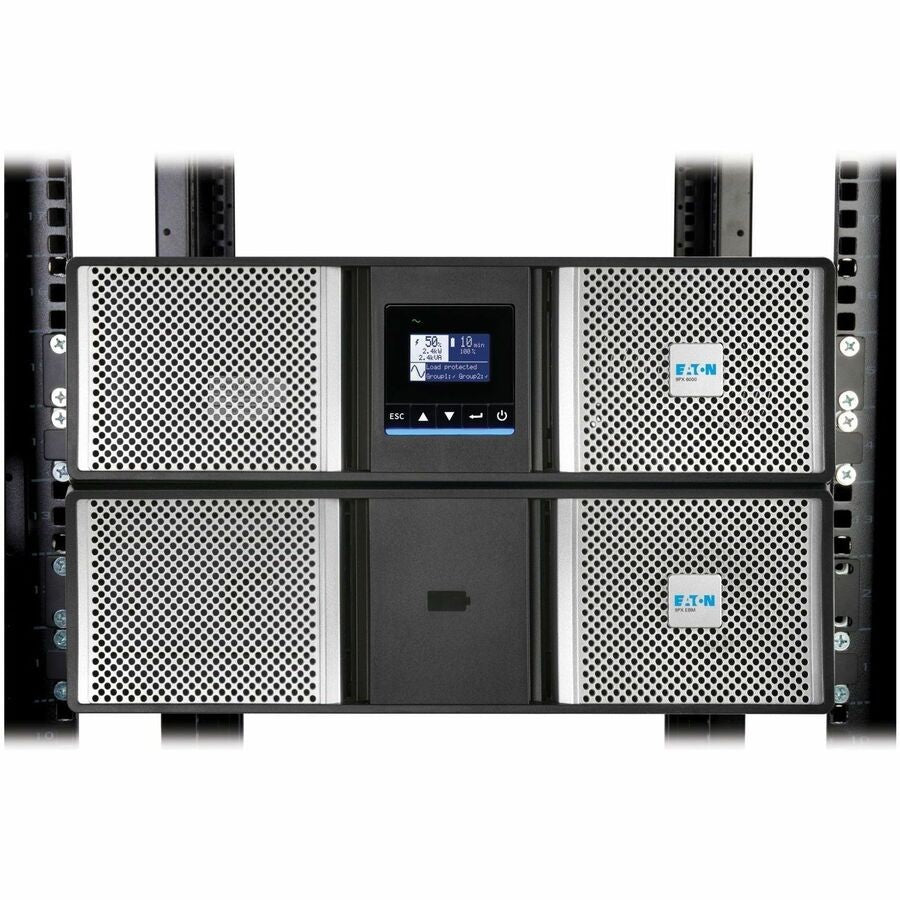

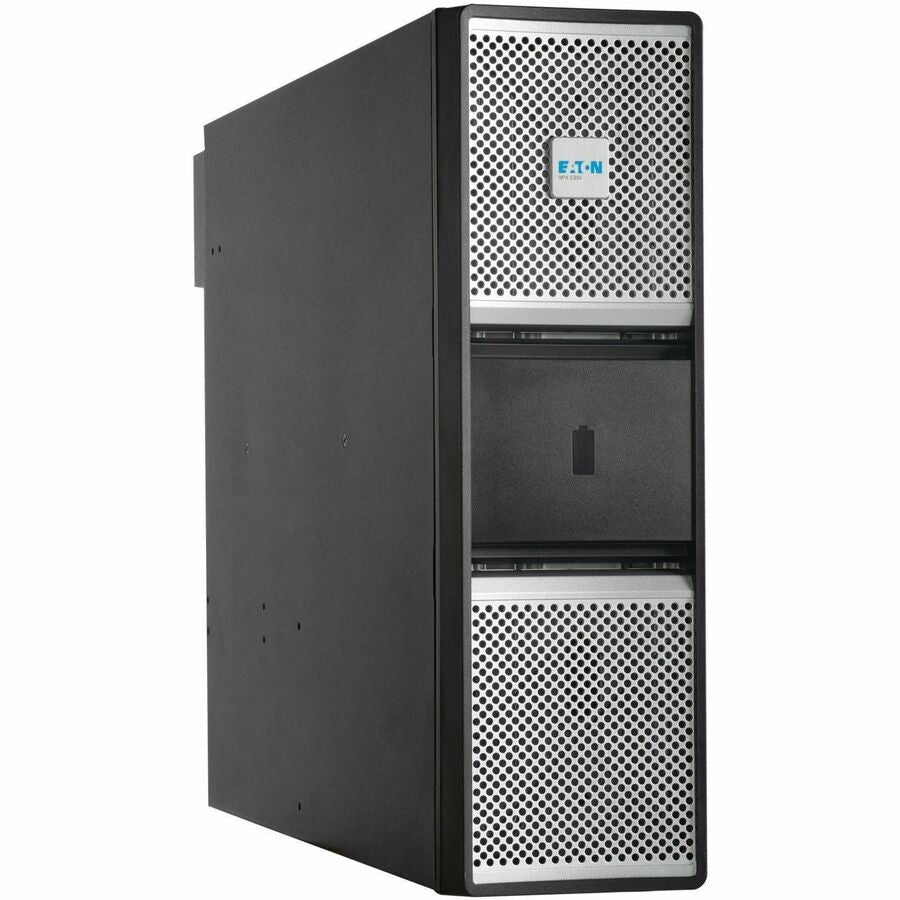

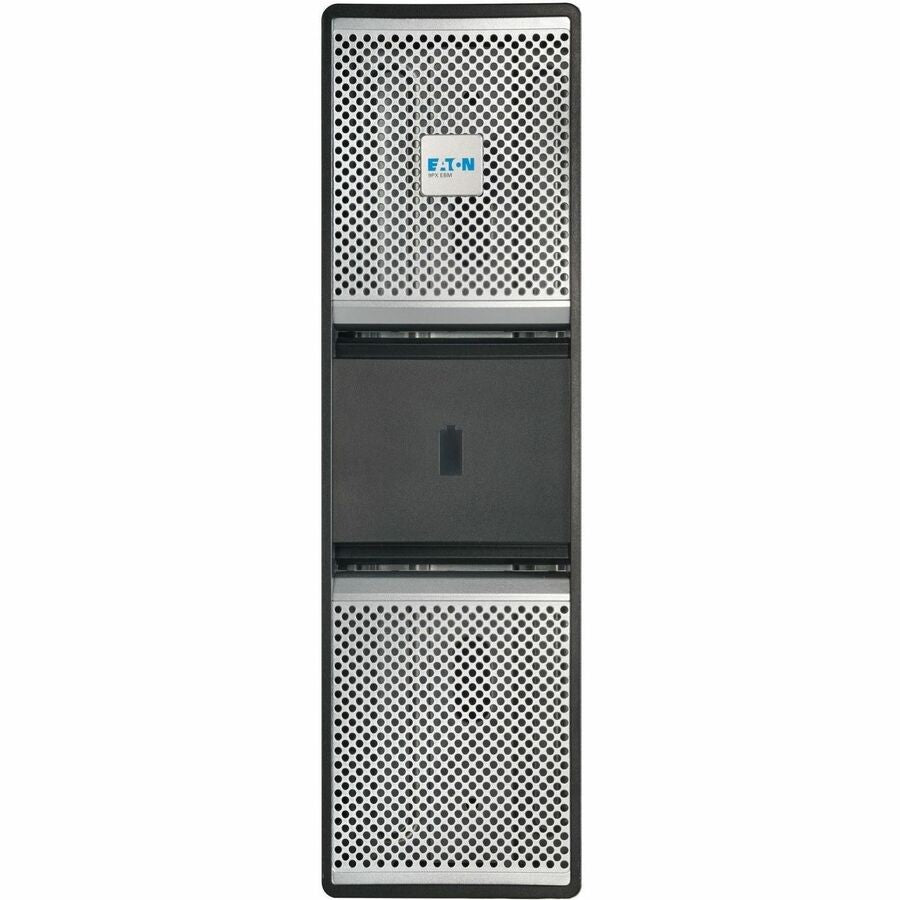

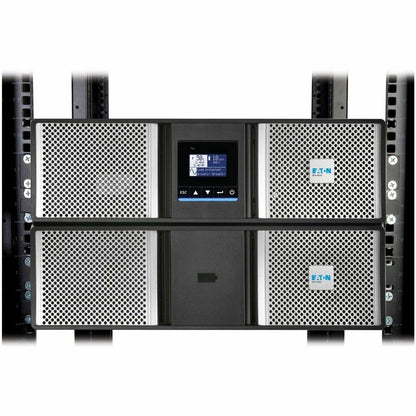

- Flexible Mounting – 3U rack or tower configuration using included hardware; multi-use form factor fits EIA-standard 19-inch racks.

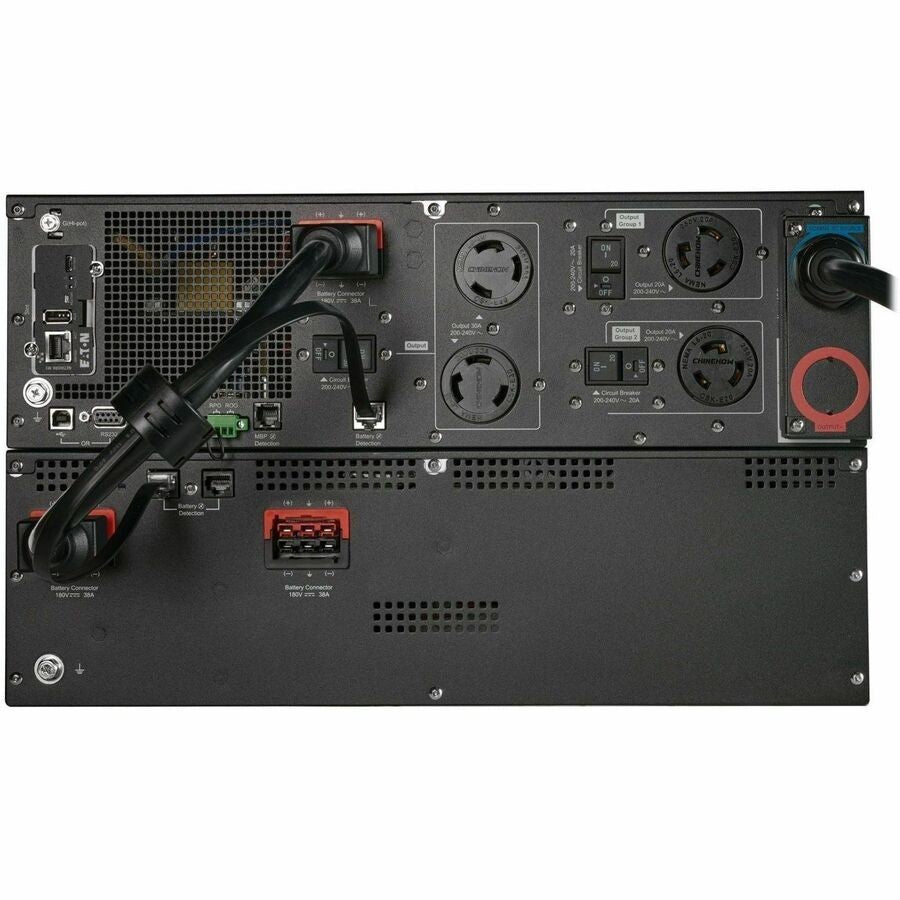

- Safe Installation – Heavy-gauge cabling and high-current DC connectors included for secure connection.
- Environmental Compliance – RoHS compliant with Energy Star certification.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Eaton |
| Manufacturer Part Number | 9PXEBM180RTG2 |
| UPC | 786689860073 |
| Product Type | Battery Unit |
| Output Voltage | 180 V DC |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Valve-regulated/User Replaceable |
| Hot Swappable | Yes |
| Battery Size | Proprietary |
| Physical Height | 5.1" |
| Physical Width | 17.3" |
| Physical Depth | 25" |
| Physical Weight | 150 lb |
| Shipping Height | 12.3" |
| Shipping Width | 23.4" |
| Shipping Depth | 37.8" |
| Shipping Weight | 169.8 lb |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Country of Origin | Philippines |
| Energy Star | Yes |
| Certifications | cUL Listed, EN 62040-2, NOM (Mexico), FCC Part 15 Class A (USA), FCC (USA), CE (Europe) |
| Environmental Compliance | RoHS |
Package Contents
- 9PXEBM180RTG2 Battery Unit
- External Battery Cable, 1 ft. (0.3 m)
- Tower Support Stands
- Rack-mounting Hardware
- Quick Start Guide
Eaton 9PXEBM180RTG2 180V Extended Battery Module for compatible 9PX G2 UPS systems.
Brand: Eaton
Type: Battery
MPN: 9PXEBM180RTG2
UPC: 786689860073
