Eaton 9PX1500RTN 1500VA 1350W 120V Online UPS 2U Rack/Tower

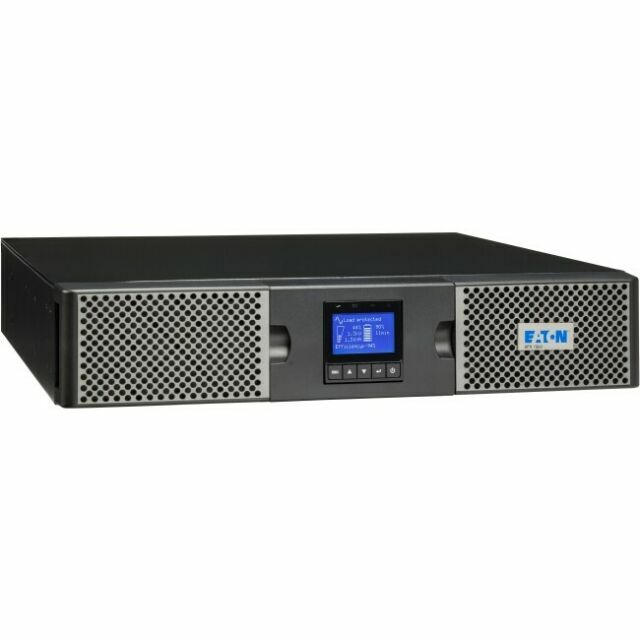

This is a Eaton 9PX1500RTN 1500 VA Double Conversion Online UPS that delivers 1350 W of power protection for IT installations and edge networks. The unit supplies pure sine wave output through eight managed NEMA 5-15R outlets and includes a pre-installed NETWORK-M3 Gigabit network card for remote management and cybersecurity compliance.
Key Features
- Online double-conversion topology with 0 ns transfer time provides continuous power ing against blackouts, brownouts, surges, and line noise.

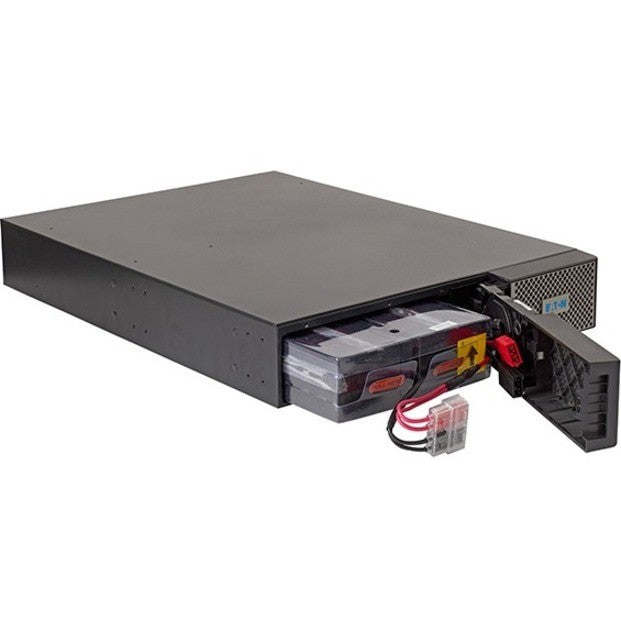

- Field-replaceable hot-swappable VRLA battery modules with ABM technology extend battery life by up to 50 percent and provide advance replacement notification.
- NETWORK-M3 Gigabit network card supports full remote configuration, load shedding, reboots, safe shutdowns, and remote firmware updates without dropping the load.
- Eight managed 5-15R outlets allow outlet-level power monitoring and are divided into two load banks for selective load shedding.

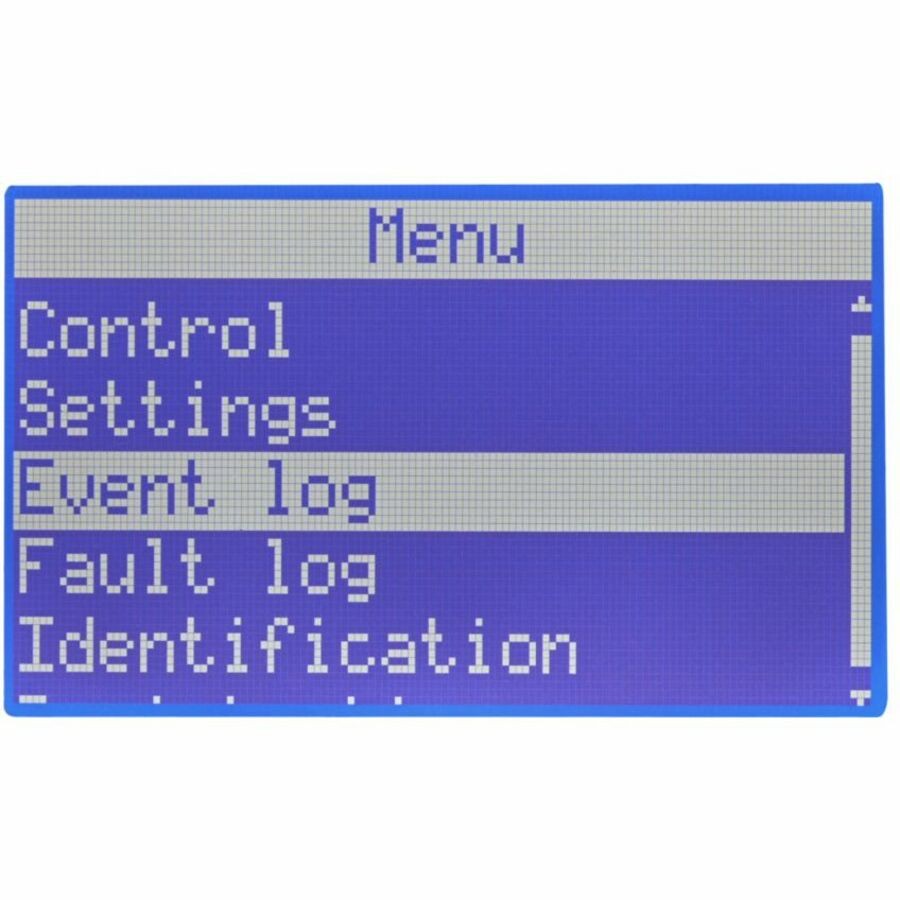

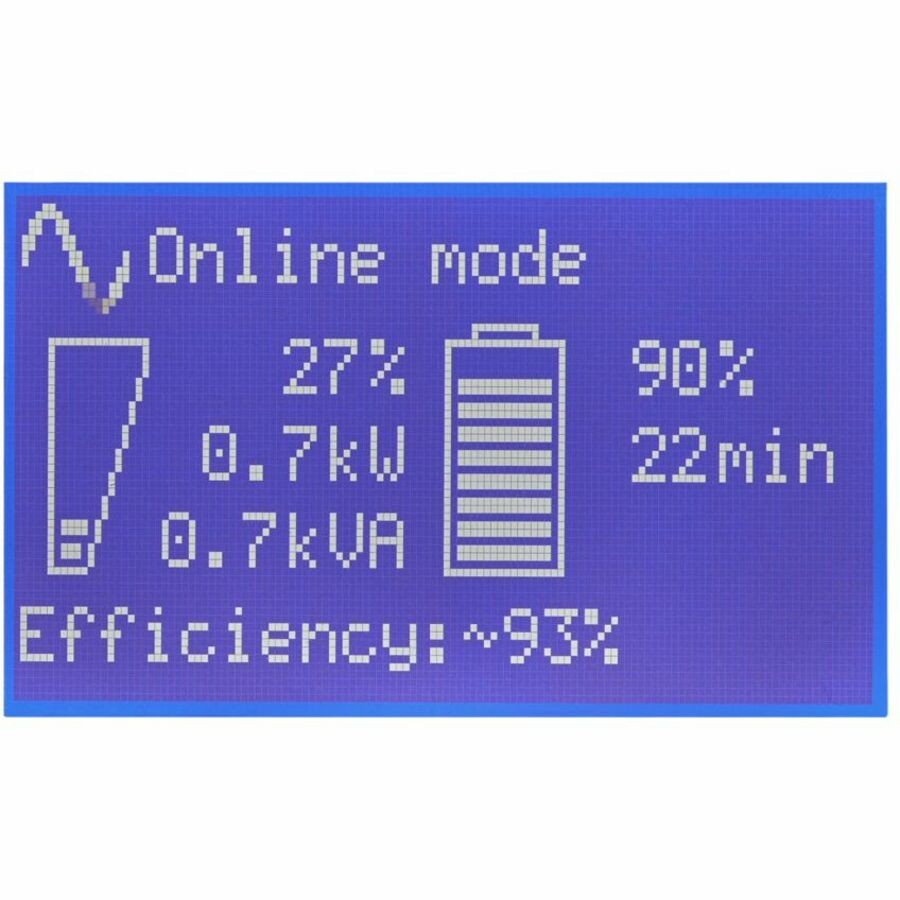

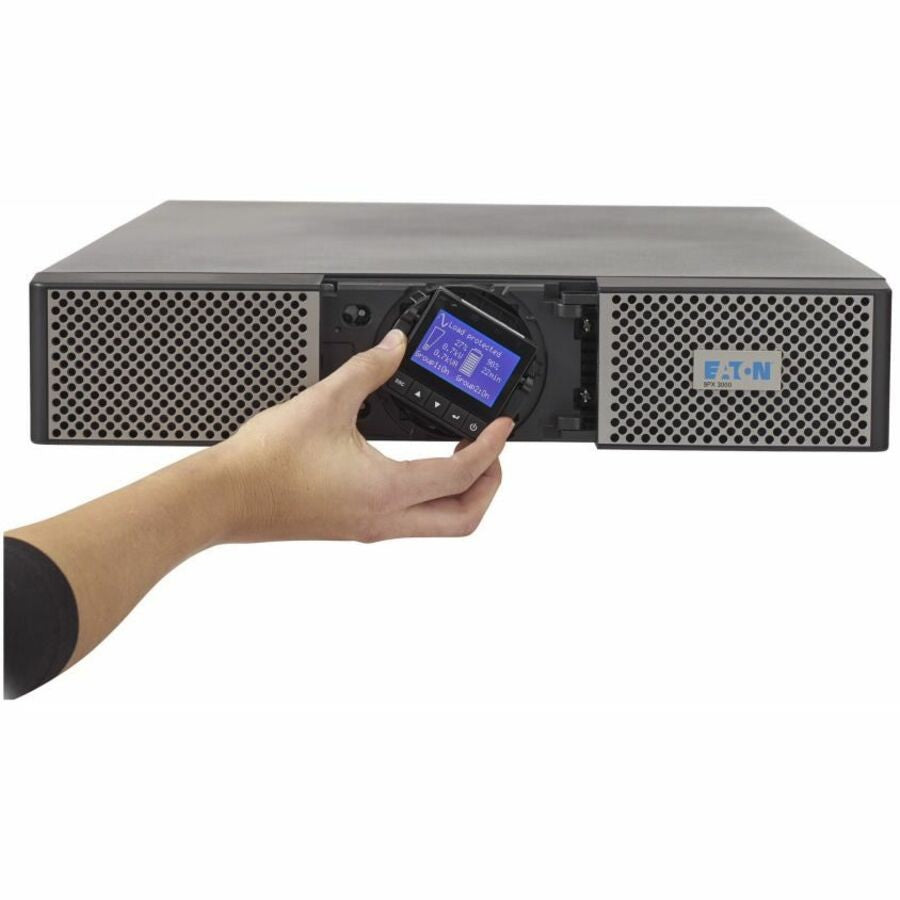

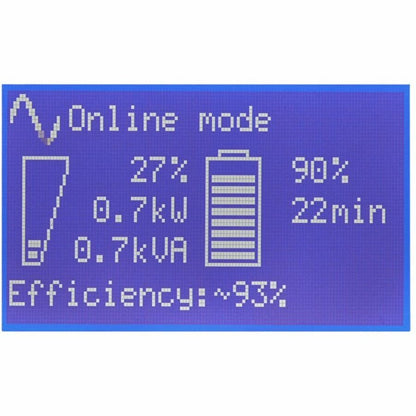

- Rotating and tilting LCD interface displays status and diagnostics in both rack and tower orientations.
- RS-232, USB, dry-contact relay, and RPO/ROO ports enable integration with automation systems and emergency shutdown procedures.

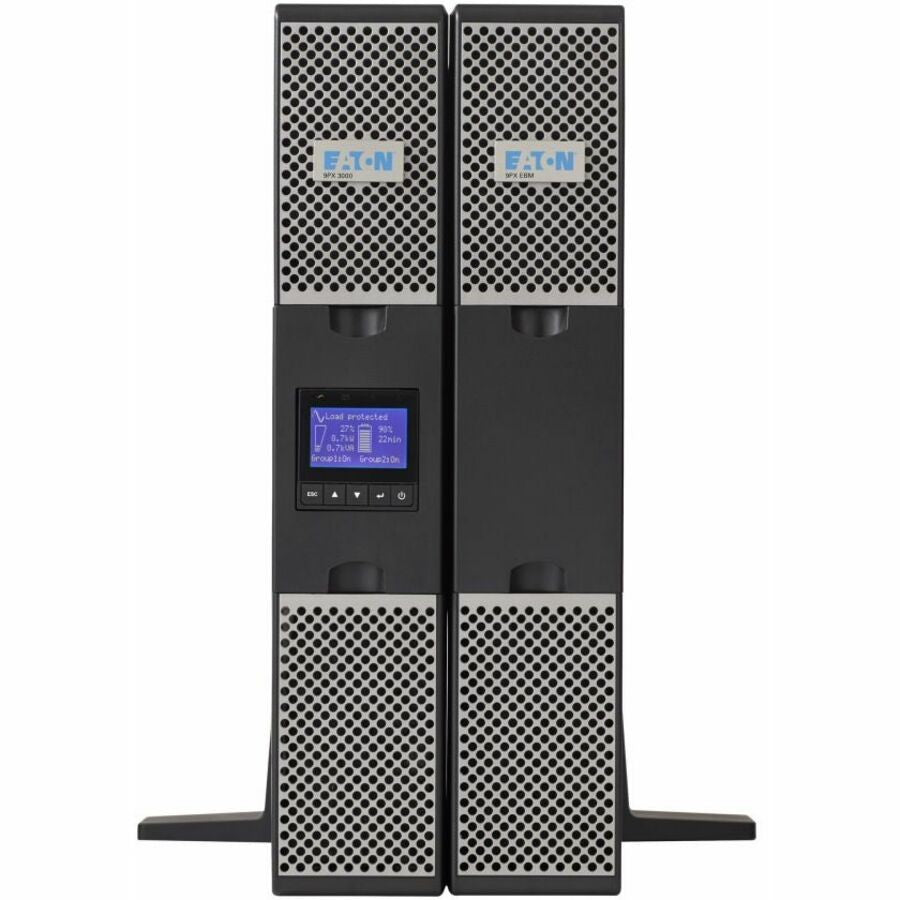

- Supports up to four optional 9PXEBM48RT extended battery modules for extended runtime.
- Energy Star and RoHS compliant; manufactured in the Philippines.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Eaton |
| Manufacturer Part Number | 9PX1500RTN |
| Model | 9PX |
| Product Type | Double Conversion Online UPS |
| Load Capacity | 1500 VA / 1350 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Transfer Time | 0 ns |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Physical Dimensions | 3.4" H x 17.3" W x 17.7" D |
| Weight | 42.55 lb |
| Network Card | NETWORK-M3 Gigabit with UL 2900-1 and IEC 62443-4-2 cybersecurity standards |
| Communications Ports | RS-232, USB, dry-contact relay, RPO/ROO |
| Included Accessories | 4-post rail kit, tower pedestals, RS-232 cable, USB cable, Network-M3 card, safety manual, user manual, Intelligent Power Software Suite CD |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmental Compliance | RoHS |
| UPC | 743172081629 |
Installation Options

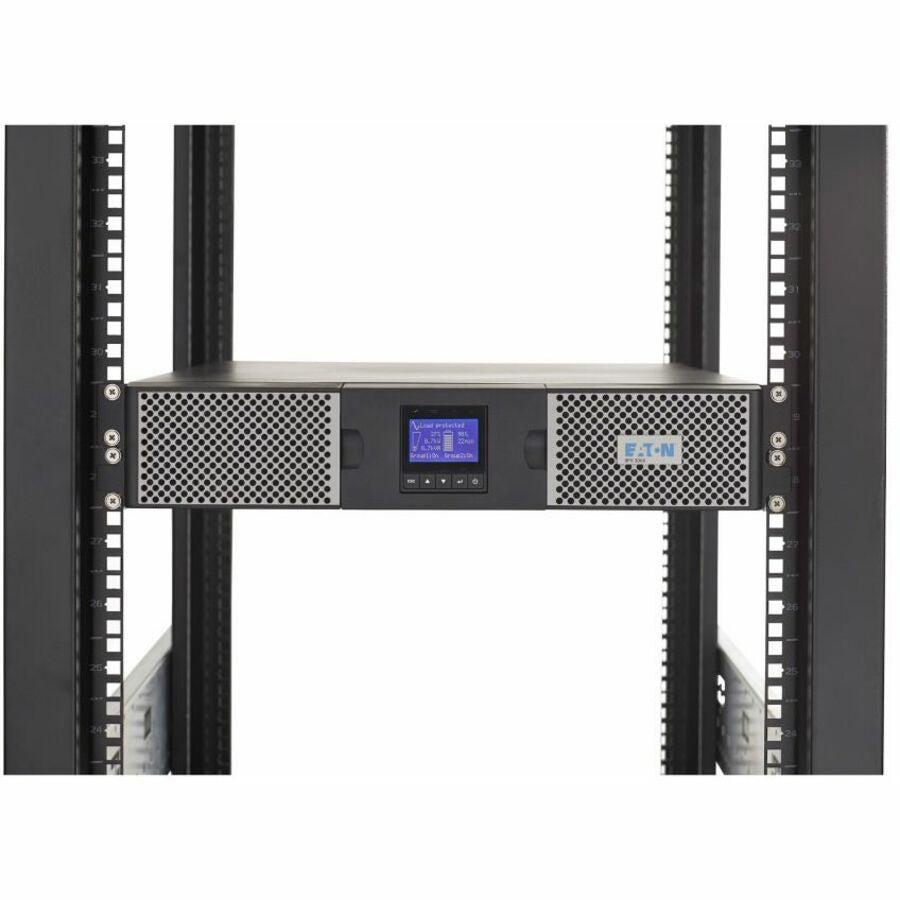

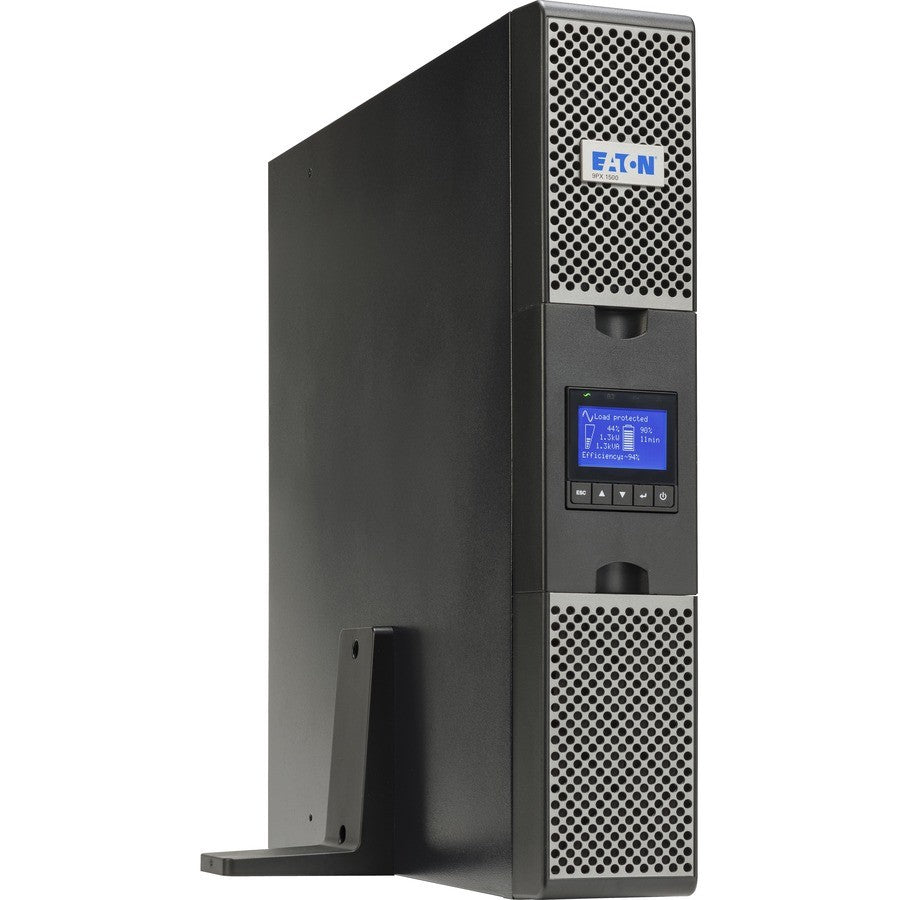

The UPS mounts in 2U of a standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit. Tower installation is supported with the included pedestals. An 8-foot power cord with NEMA 5-15P plug is provided for connection to a compatible AC outlet.
Eaton 9PX1500RTN 1500VA 1350W 120V Online UPS 2U Rack/Tower
Mounting Style: Rack Mount
Nominal Voltage Rating (AC): 120 V
Color: Black
Country of Origin: Philippines
UPC: 743172081629
MPN: 9PX1500RTN
Item Length: 17.7 in
Maximum Power: 1500 W
Item Height: 3.4 in
Number of Outlets: 8
Item Width: 17.3 in
Voltage Compatibility: 120 V
Brand: Eaton
Maximum Wattage: 1350 W
Features: Rack Mountable
Type: Enterprise/Data Center UPS
Model: 9PX1500RTN
