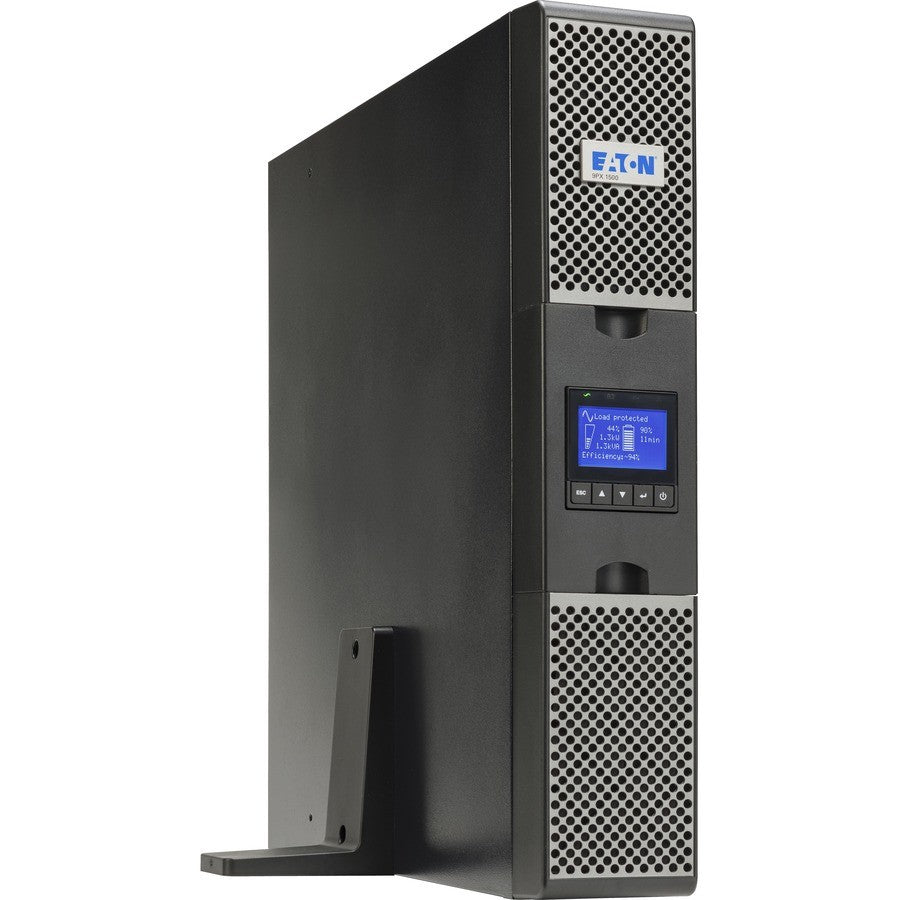

Eaton 9PX 1500VA 1350W 120V Online Double-Conversion UPS - 5-15P, 8x 5-15R Outlets, Cybersecure Network Card Option, Extended Run, 2U Rack/Tower

This is a double conversion online UPS from the Eaton 9PX series. It delivers 1500 VA / 1350 W of battery backup and AC power protection at 120 V for IT installations and edge networks.

The unit supplies pure sine wave output through eight managed NEMA 5-15R outlets. It supports optional NETWORK-M2 Gigabit network card for remote management and up to four 9PXEBM48RT extended battery modules for additional runtime.

Key Features

• Online double-conversion topology with 0 ns transfer time
• 1.5 kVA / 1.35 kW capacity at 120 V AC input and output

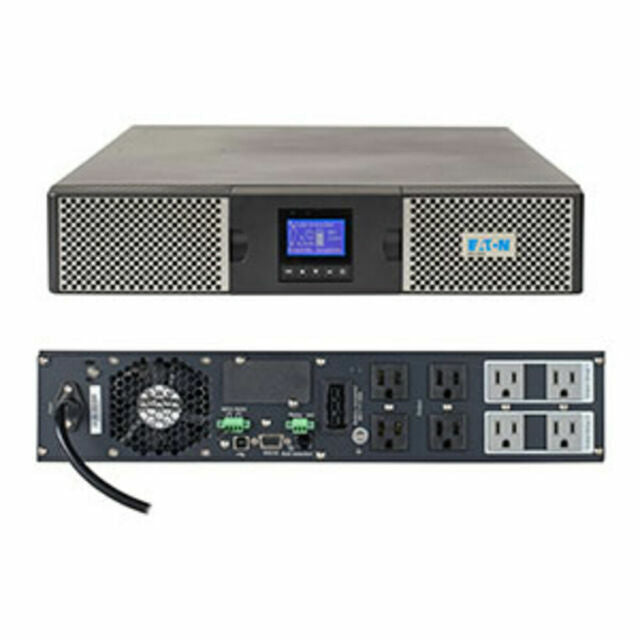

• Eight managed NEMA 5-15R outlets with outlet-level power monitoring
• Two load banks for shedding non-critical loads to extend runtime

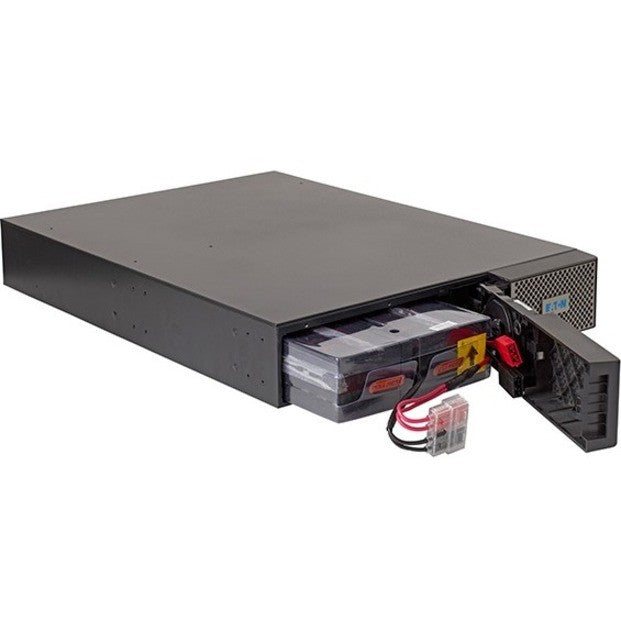

• Field-replaceable hot-swappable VRLA battery modules with ABM technology

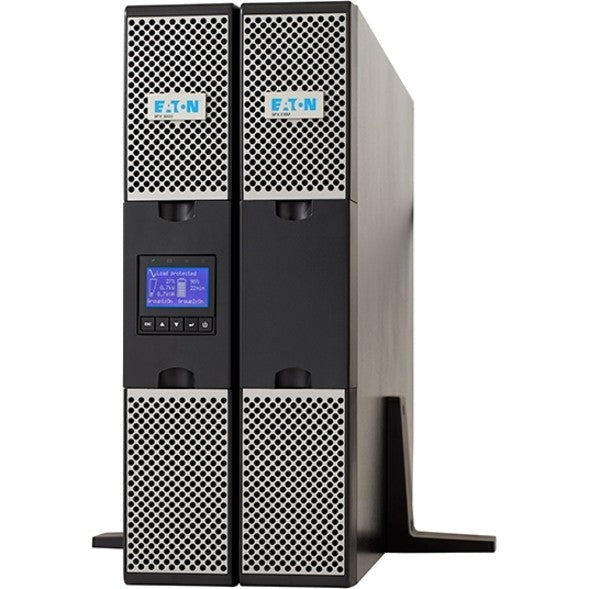

• Support for up to four 9PXEBM48RT extended battery modules
• Optional NETWORK-M2 card meets UL 2900-1 and IEC 62443-4-2 cybersecurity standards
• Optional EMPDT1H1C2 environmental monitoring probe for temperature and humidity

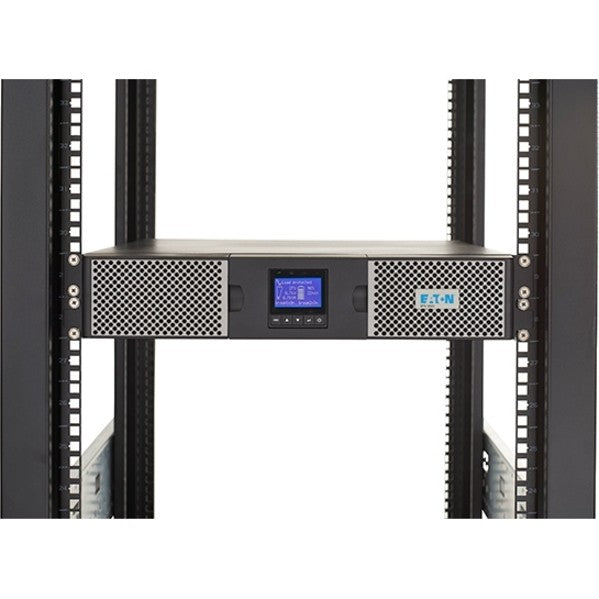

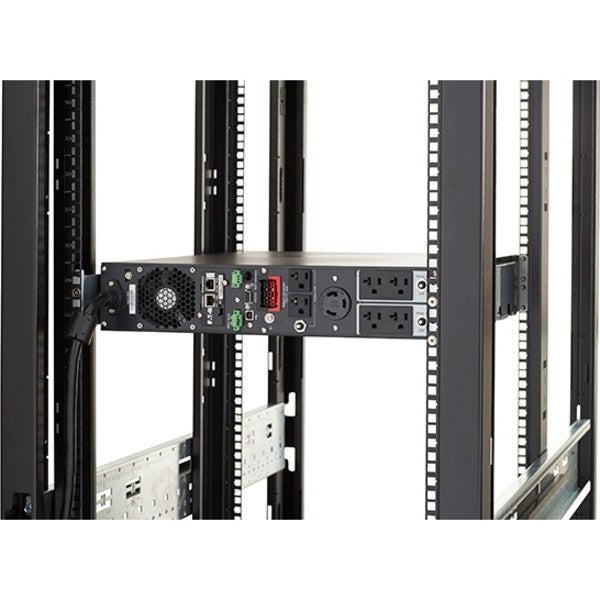

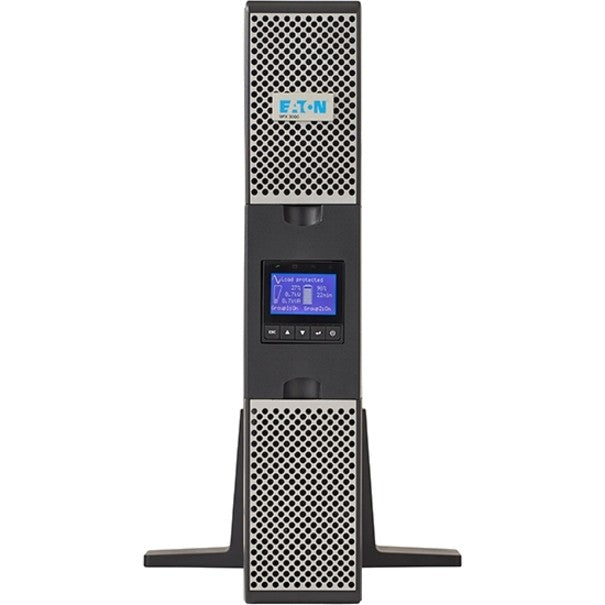

• 2U rack/tower form factor with 4-post rail kit included
• Energy Star and RoHS compliant

Comprehensive Technical Specifications

Package Contents

• 9PX1500RT 1500 VA UPS
• 4-post Rail Kit
• Safety Manual
• User Manual
• Tower Pedestals
• RS-232 Serial Cable
• USB Cable
• Intelligent Power Software Suite CD
