Eaton Tripp Lite INTERNET600U 600VA 325W Standby UPS
This is a Standby UPS system that provides 600VA/325W battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise. The unit features 10 NEMA 5-15R outlets, a NEMA 5-15P plug, USB connectivity and supports desktop, tower or wall-mount installation.
The INTERNET600U delivers reliable protection for home office, media center and digital signage equipment including computers, routers, printers, NAS drives, HDTVs, Blu-ray players, game consoles, media players, DVRs and audio receivers. It maintains an energy-efficient desktop computer with small LCD monitor for up to 16 minutes during blackout s.
Key Features

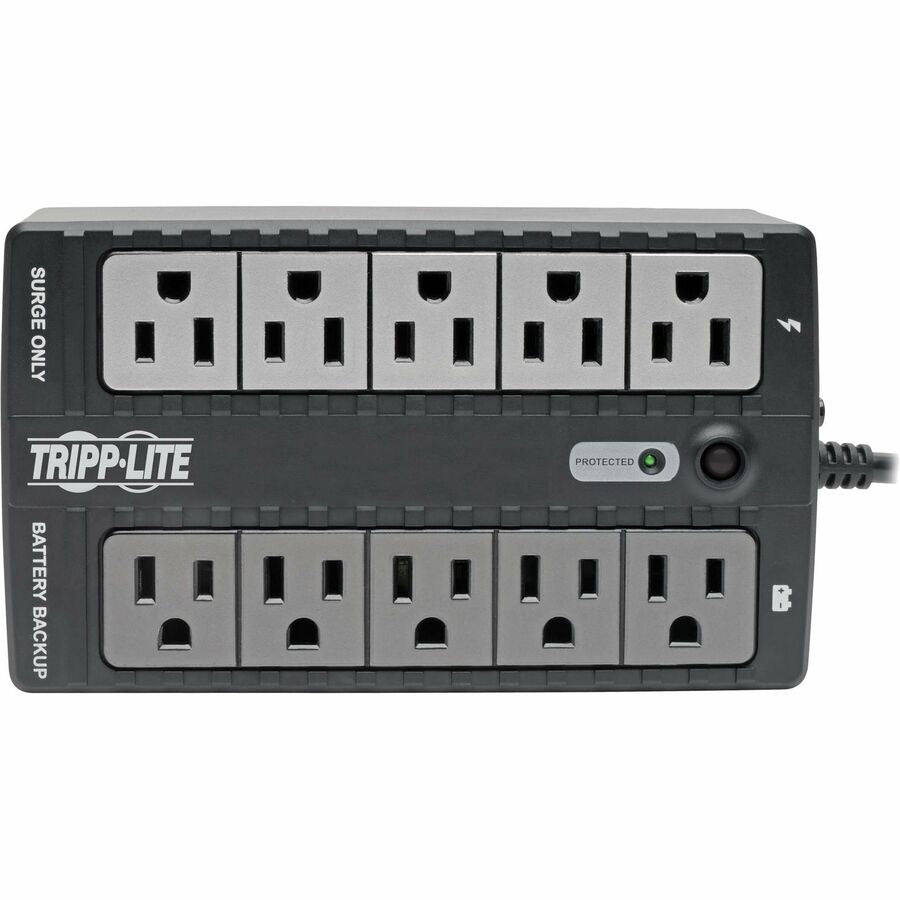

- 10 NEMA 5-15R outlets with five providing battery backup and surge protection and five providing surge suppression only
- 316-joule surge suppression rating and dual RJ-11/RJ-45 network data line surge suppression
- HID-compliant USB port for connection to PowerAlert software enabling automatic file saves and system shutdown
- EMI/RFI noise filtering to reduce electromagnetic and radio frequency interference
- Front-panel green LED status indicator and audible alarm for low battery or fault s

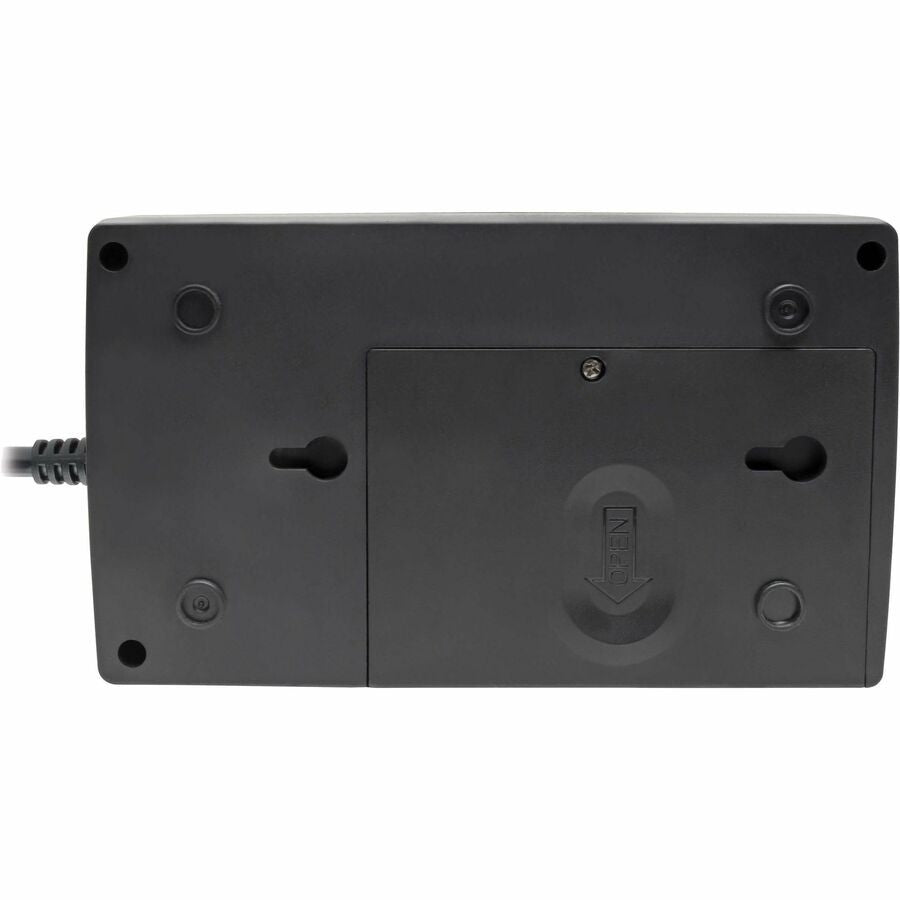

- Ultra-compact ABS housing with keyhole mounting tabs for wall installation
- Five-foot power cord and greater than 98 percent line mode efficiency
- Valve-regulated lead acid battery with cold start function and replaceable design
Comprehensive Technical Specifications
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Line | Internet Office |
| Product Model | INTERNET600U |
| Manufacturer Item Number | INTERNET600U |
| UPC | 037332211033 |
| Product Type | Standby UPS |
| Load Capacity (VA) | 600 VA |
| Load Capacity (Watt) | 325 W |
| Input Voltage | 120 V AC |
| Input Current | 6 A |
| Output Voltage | 120 V AC, 110 V AC, 115 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 50 Hz, 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
| Number of Surge-only Outlets | 5 |
| Receptacle Detail | 10 x NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 5 ft |
| Transfer Time | 10 ms |
| Dataline Protection | RJ-11/RJ-45 |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Circuit Breaker | Yes |
| Phase | Single Phase |
| Display | LCD |
| Status Indicators | LED Indicators: Operating Mode, Fault Status |
| Alarm | Low Battery, Fault, Overload, Replace Battery |
| Network (RJ-45) | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| DC System Voltage | 12 V DC |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Valve-regulated |
| Backup/Run Time (Full Load) | 1 Minute |
| Backup/Run Time (Half Load) | 4.50 Minute |
| Typical Battery Recharge Time | 6.50 Hour |
| Replaceable Battery | Yes |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Height | 4.1" |
| Width | 4.3" |
| Depth | 7.3" |
| Weight (Approximate) | 3.96 lb |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Thermal Dissipation | 3.84 W |
| Software Included | PowerAlert UPS Monitoring Software |
| Country of Origin | Vietnam |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Certifications & Standards | RETIE, CSA, NOM, UL 1778, FCC Part 15 Class B |
Package Contents
- Internet Office INTERNET600U 600VA Ultra-compact desktop/tower/wall mount UPS
- USB Cable
- Owner's Manual
Brand: ITE
Type: Standby UPS
Color: Black
Nominal Voltage Rating (AC): 120 V
Nominal Current Rating: 6 A
Output Voltage Rating (AC): 120 V
Mounting Style: Wall Mount
Country of Origin: Vietnam
Minimum Operating Temperature: 0 °C (32 °F)
Maximum Operating Temperature: 40 °C (104 °F)
Protection Properties: Overload Protection
MPN: INTERNET600U
UPC: 037332211033
