Eaton Tripp Lite BC600R 600VA 300W Standby UPS

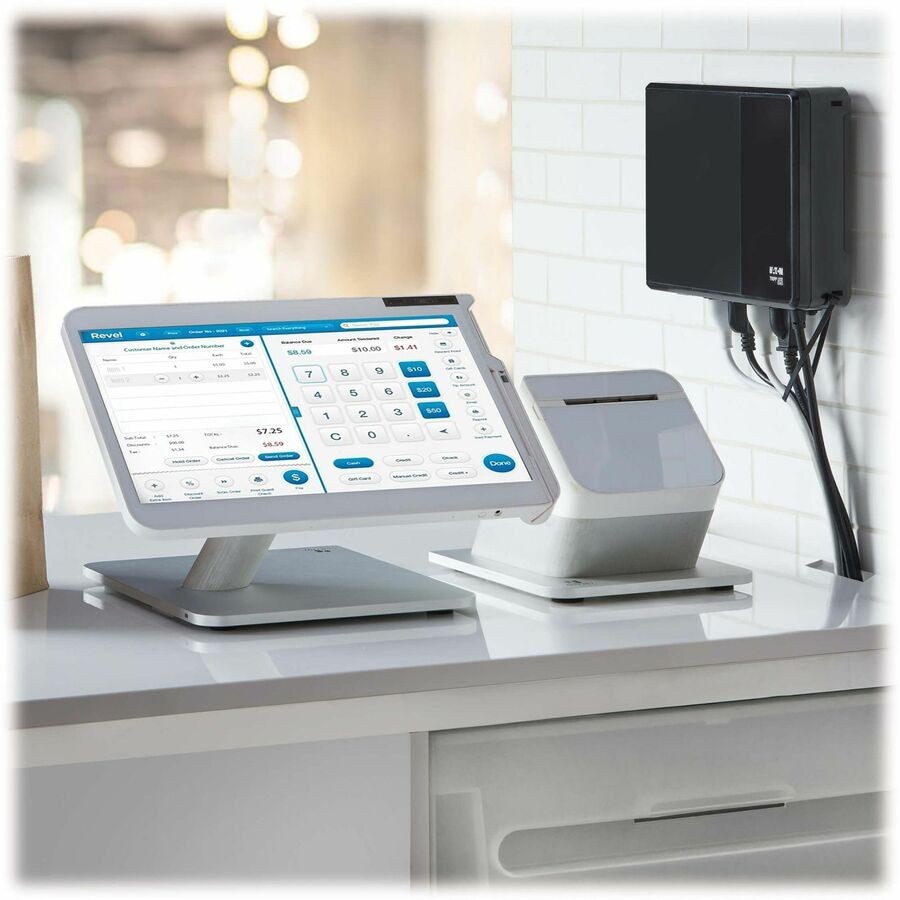

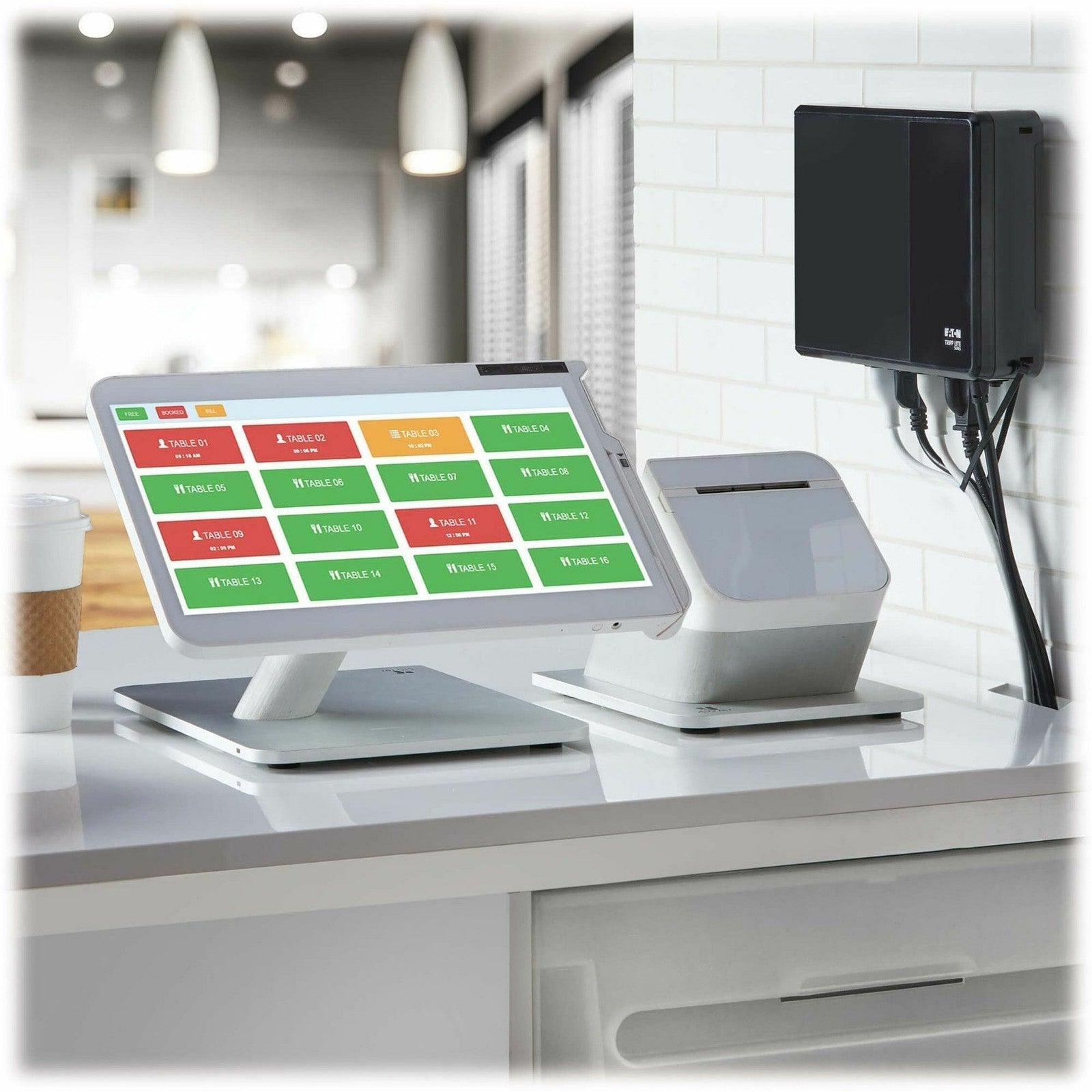

This is a Standby UPS that provides 600VA battery backup and 300W power protection for PCs, retail point-of-sale systems, networking equipment, kiosks, and light industrial applications. The Eaton Tripp Lite Series 600VA 300W 120V Standby UPS - 4 NEMA 5-15R Outlets (Surge + Battery Backup), 5-15P Plug, Desktop model BC600R delivers reliable AC power protection against blackouts, brownouts, overvoltages, surges, and line noise.
Key Features of Eaton Tripp Lite BC600R Standby UPS
- 600VA / 300W Capacity – Supports home/office computing, POS terminals, wireless access points, and desktop peripherals with 97% efficiency in AC mode.

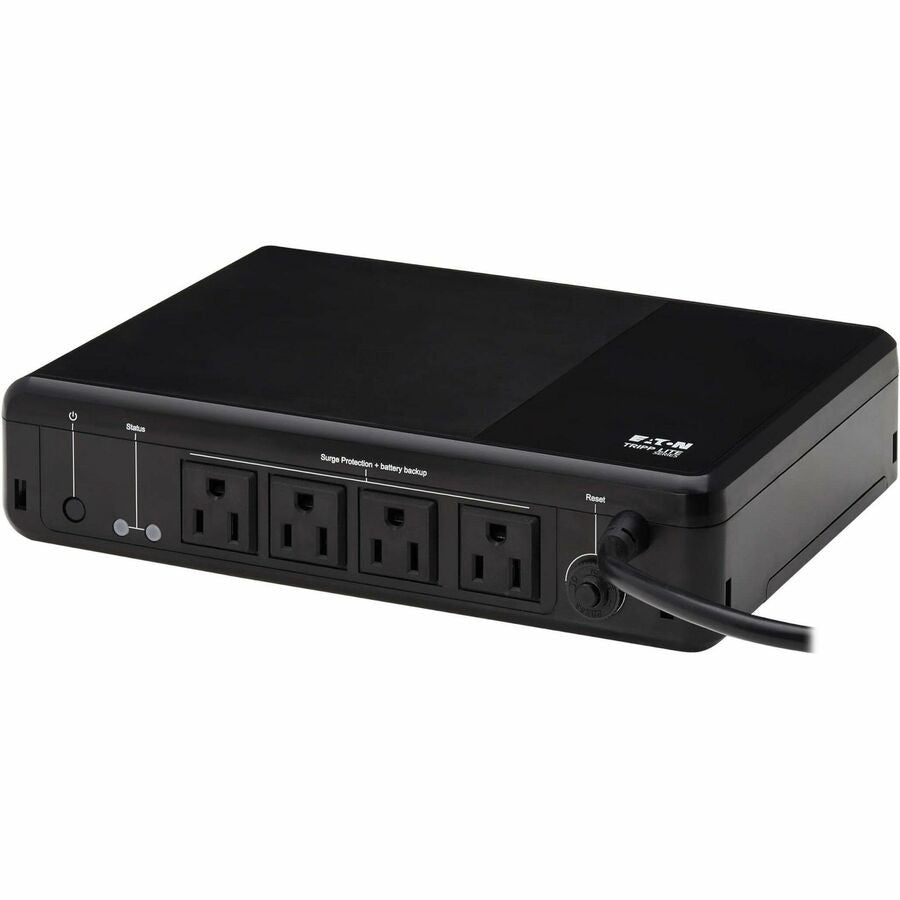

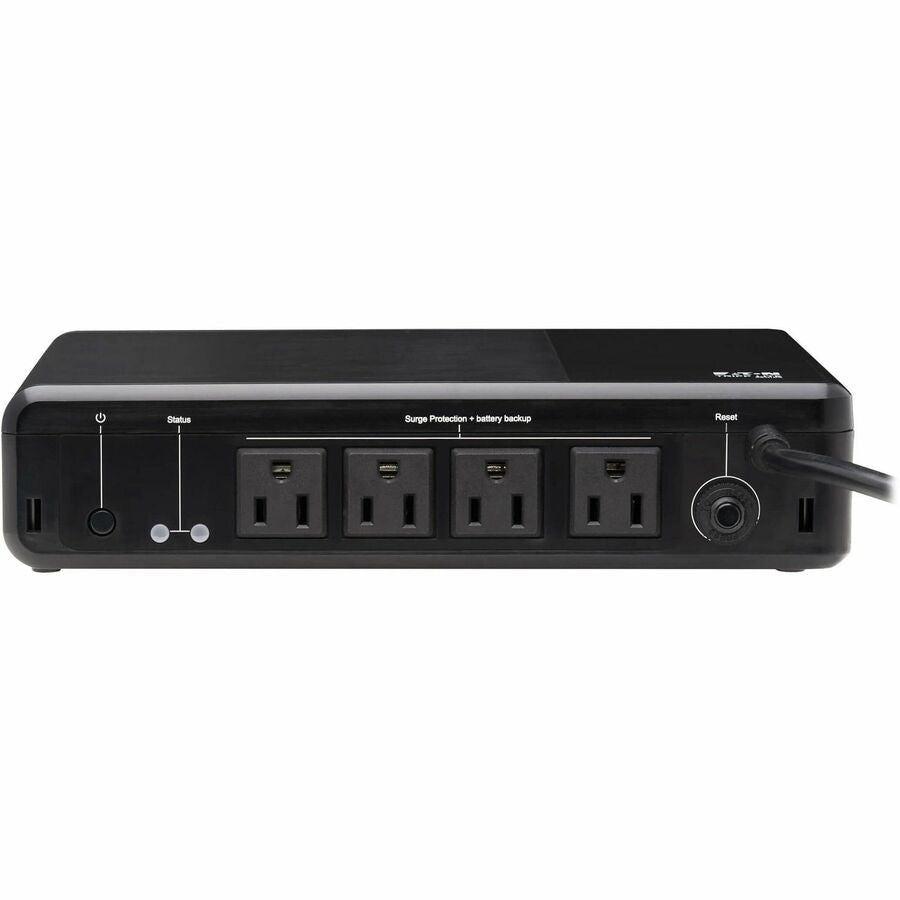

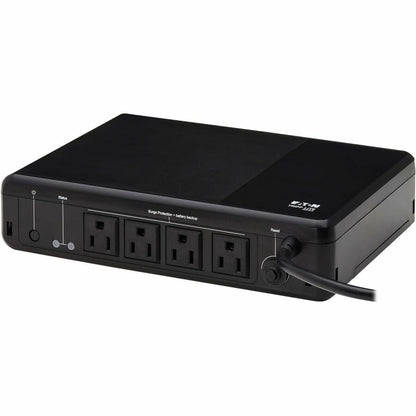

- 4 NEMA 5-15R Outlets – Provides battery backup and surge protection; NEMA 5-15P plug with 5 ft cord for easy connection.
- 10 ms Transfer Time – Switches instantly to battery during outages; includes EMI/RFI noise filter and circuit breaker.

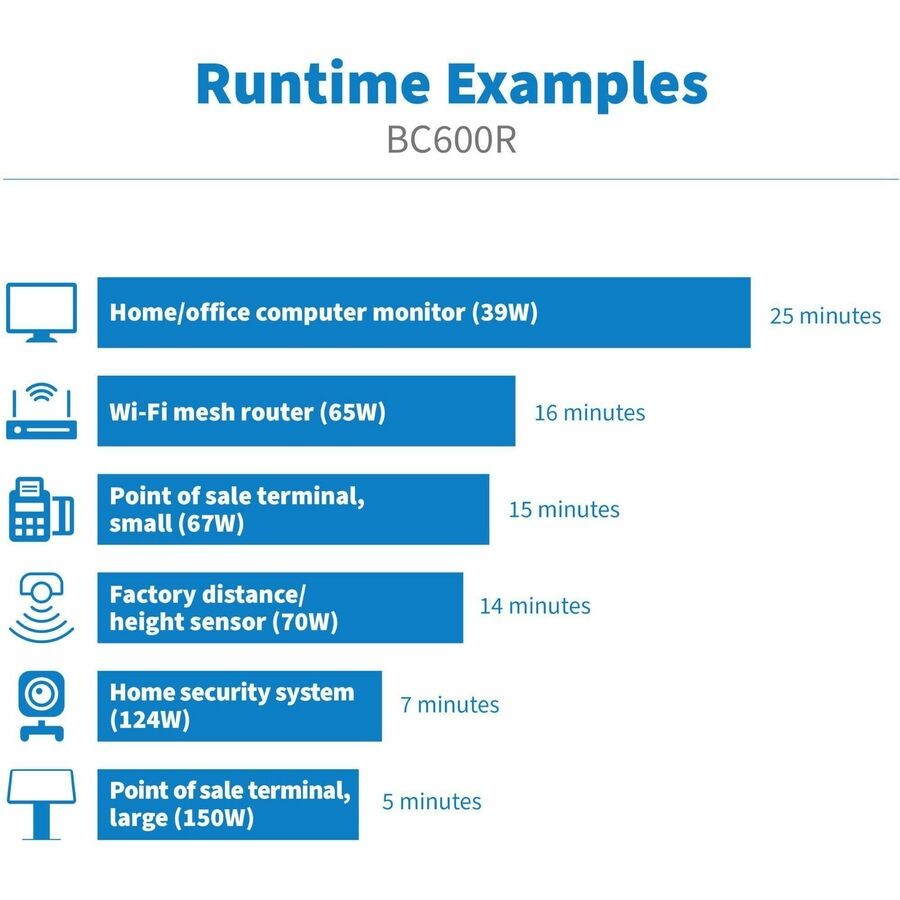

- Replaceable Lead Acid Battery – 12V DC valve-regulated battery offers 1.5 minutes runtime at full load and 5 minutes at half load; recharges in 8 hours.
- Audible Alarm & LED Indicators – Alerts for low battery or fault s; shows power and line/battery mode status.
- Cold Start Function & Green Energy Saving – Enables operation without utility power; supports automatic restart after power restoration.
- 190 Joule Surge Rating – Protects connected equipment from voltage spikes; single-phase operation at 120V 60Hz input/output.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Eaton / Tripp Lite series |
| Manufacturer | Eaton Corporation |
| Model | BC600R |
| MPN | BC600R |
| UPC | 037332282071 |
| Product Type | Standby UPS |
| Load Capacity (VA) | 600 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 120 V AC |
| Input Current | 5 A |
| Input Frequency | 60 Hz |
| Output Voltage | 120 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Cord Length | 5 ft |
| Transfer Time | 10 ms |
| Surge Energy Rating | 190 J |
| Efficiency Detail | 97% (AC Mode) |
| EMI/RFI Noise Filter | Yes |
| Circuit Breaker | Yes |
| Output Power Factor | 0.5 |
| DC System Voltage | 12 V DC |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Valve-regulated |
| Replaceable Battery | Yes |
| Backup/Run Time (Full Load) | 1.50 Minute |
| Backup/Run Time (Half Load) | 5 Minute |
| Typical Battery Recharge Time | 8 Hour |

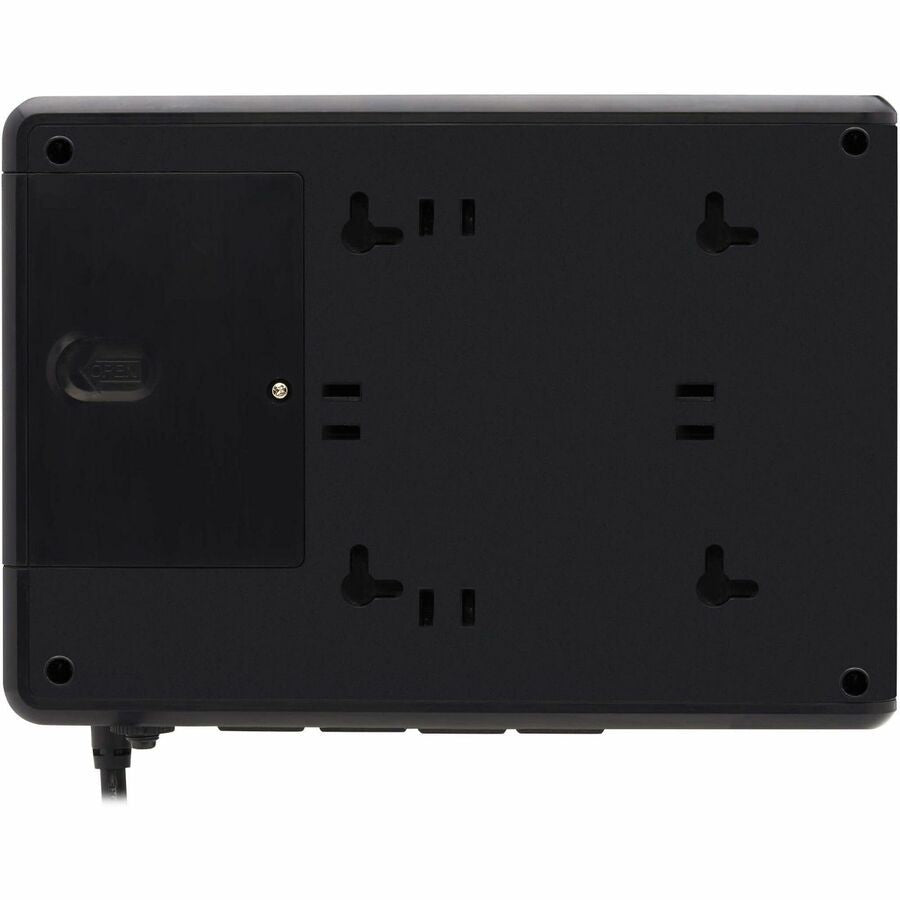

| Form Factor | Desktop/Surface/Wall Mountable |
| Physical Dimensions | Height: 2.3"; Width: 10"; Depth: 7.1" |
| Weight (Approximate) | 4.41 lb |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Elevation | 6561.68 ft |
| Sound Emission | 40 dB |
| Phase | Single Phase |
| Features | Audible Alarm, Cold Start Function, Green Energy Saving |
| Application/Usage | POS, Network, Retail, Kiosk, Industrial, Food Service, Home Network, Wireless Access Point, Desktop Computer, Computer Peripheral, Home/Office, Hospital |
| Certifications & Standards | CAN/CSA-C22.2 No. 107.3, NOM, ICES, UL 1778 |
| Energy Star | Yes |
| Country of Origin | Vietnam |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Packaged Quantity | 1 Each |
Package Contents
- BC600R 600VA Desktop/Surface/Wall Mountable UPS
- 4 x M4 x 12 mm Screws
- 4 x M4 x 20 mm Screws
- Quick Start Guide
Brand: Eaton
Type: Standby UPS
MPN: BC600R
Color: Black
Nominal Current Rating: 5 A
Nominal Power Rating: 300 W
Country of Origin: Vietnam
Item Depth: 7 in
Minimum Operating Temperature: 0 °C (32 °F)
Maximum Operating Temperature: 50 °C (122 °F)
UPC: 037332282071
