Description

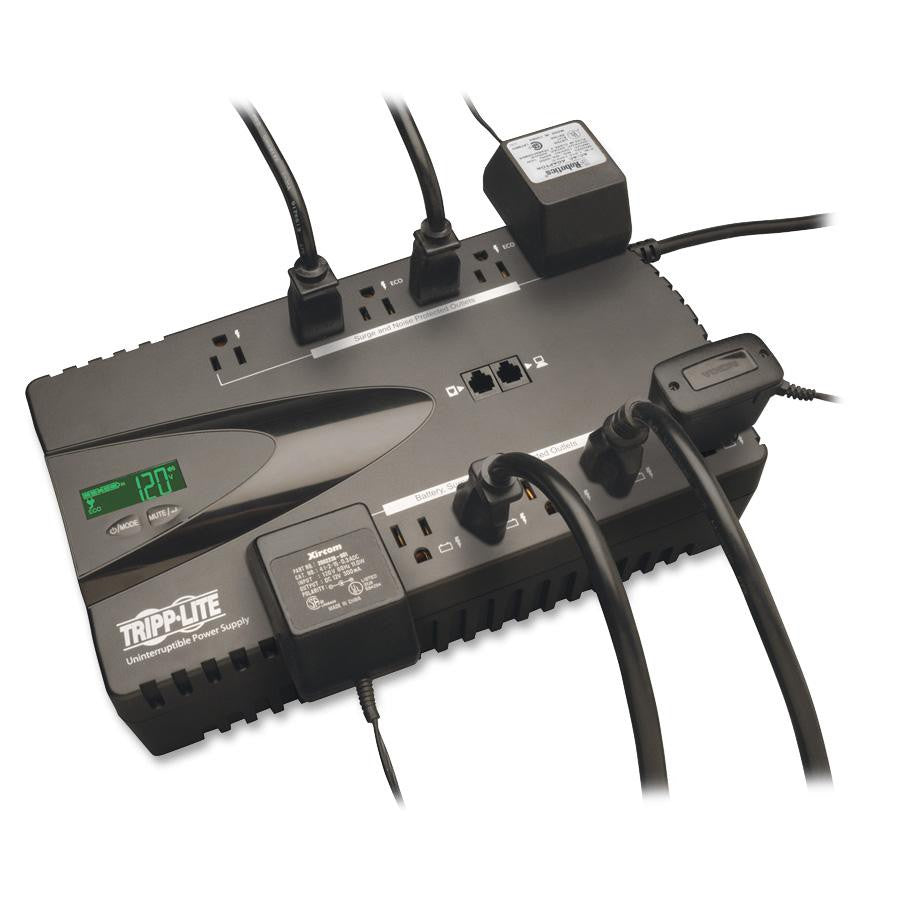

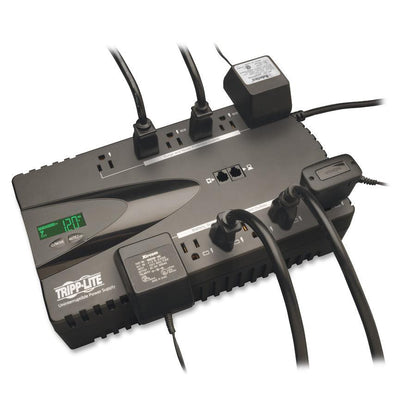

Eaton Tripp Lite ECO850LCD 850VA LCD Standby UPS
This is a Standby UPS manufactured by Eaton Corporation under the Tripp Lite series ECO product line. The Eaton Tripp Lite Series 850VA 425W Standby UPS provides complete protection against blackouts, brownouts and power surges for entry-level PC systems and other home or office equipment. It supports up to 45 minutes of runtime at full load with 99 percent power efficiency and includes an interactive LCD screen for monitoring and settings adjustment.

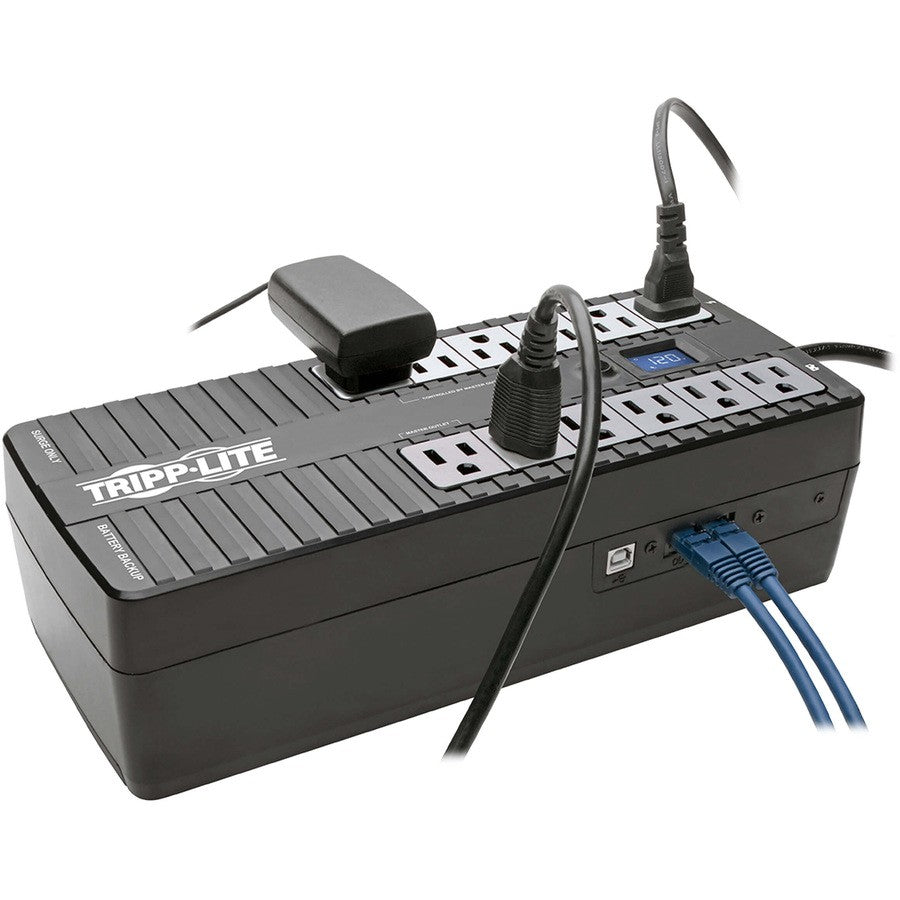

The unit features twelve NEMA 5-15R outlets total, with six battery-supported outlets and six surge-only outlets including four configurable ECO outlets that automatically power off unused accessories. Additional protection includes built-in RJ-11 tel/DSL jacks, EMI/RFI noise filtering, and a USB port with included cable for use with PowerAlert software.
Key Features
- 850VA / 425W load capacity with 6 ms transfer time

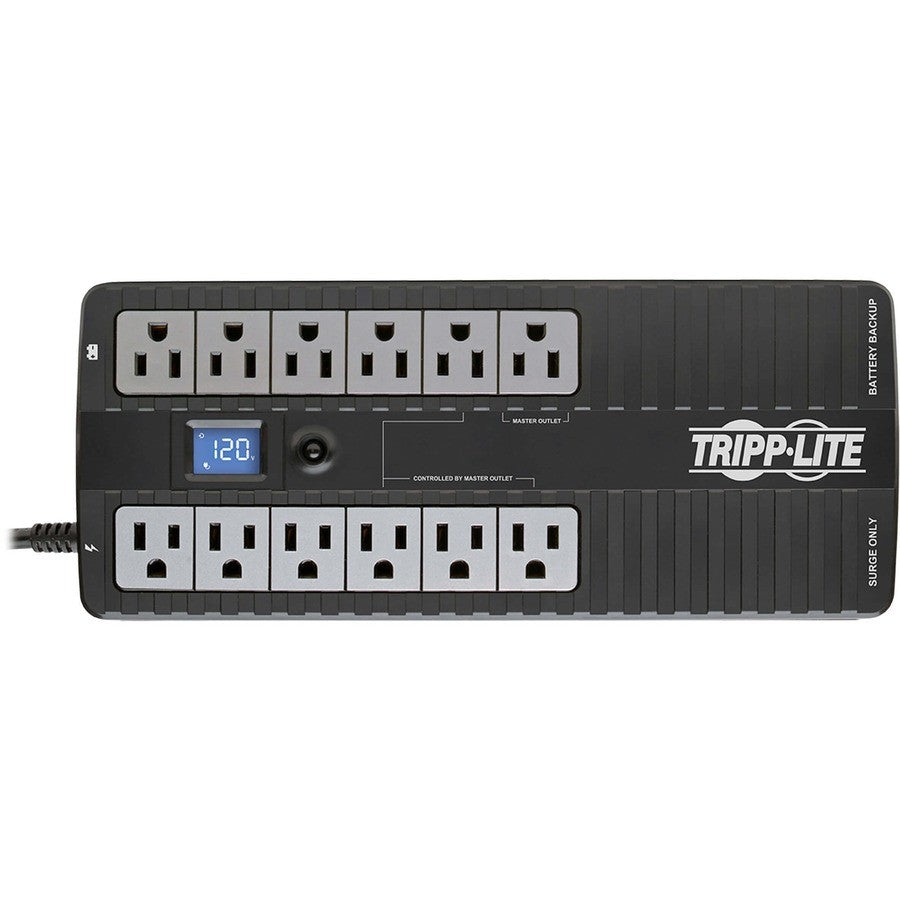

- 12 total NEMA 5-15R outlets: 6 battery backup plus 6 surge suppression
- Four ECO outlets that can be set to auto-power off unused devices

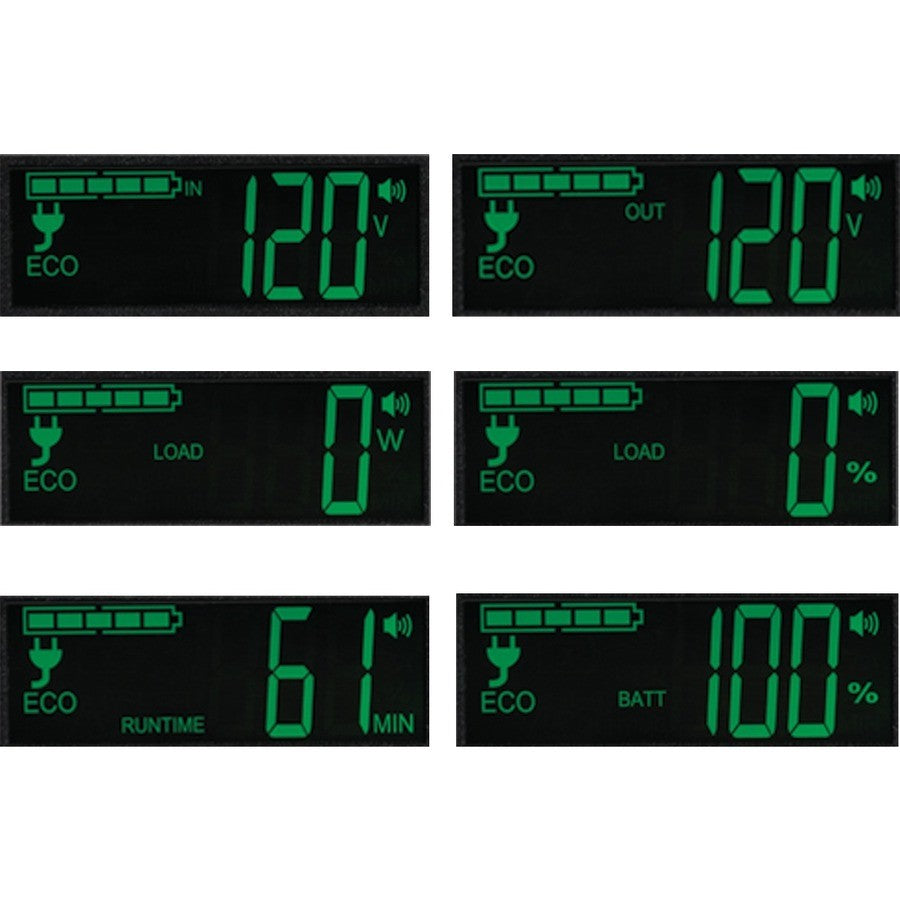

- Interactive LCD touchscreen displays operating mode, voltage, frequency and load
- Single-line RJ-11 dataline protection for modem, fax or phone

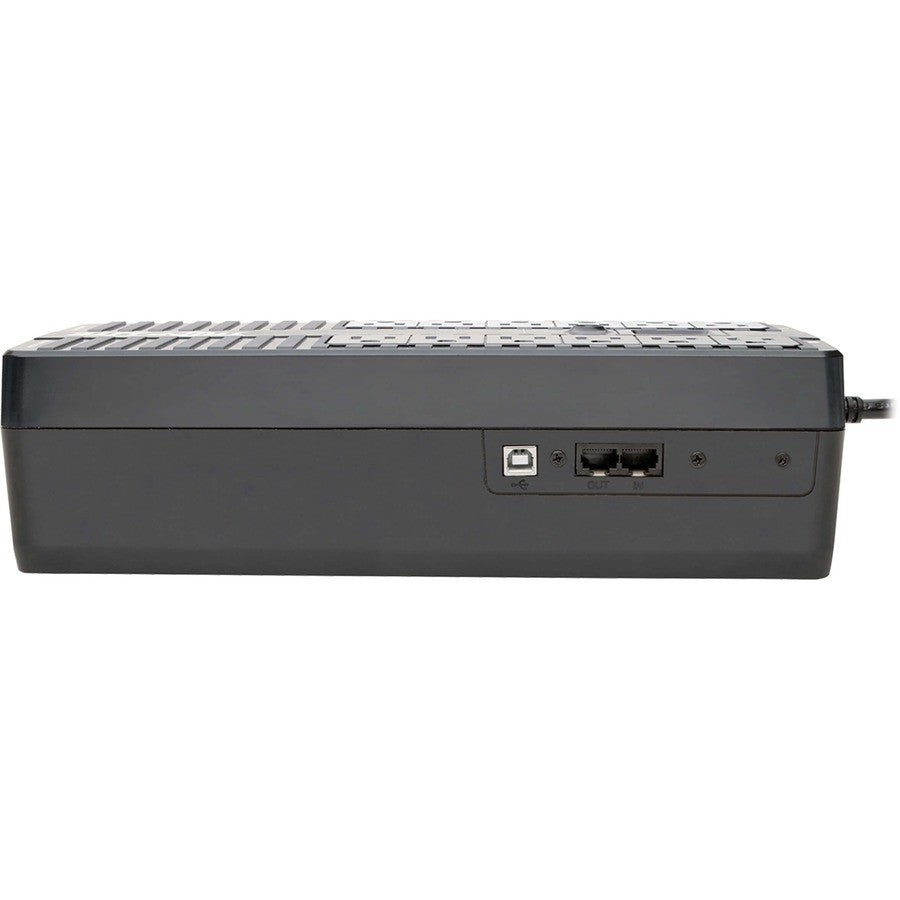

- USB HID compliant port with included cable and PowerAlert software
- Pulse-width modulated sine wave output at 60 Hz
- 316 joule surge energy rating with black out and surge protection
- Replaceable 12V DC battery with 8-hour typical recharge time

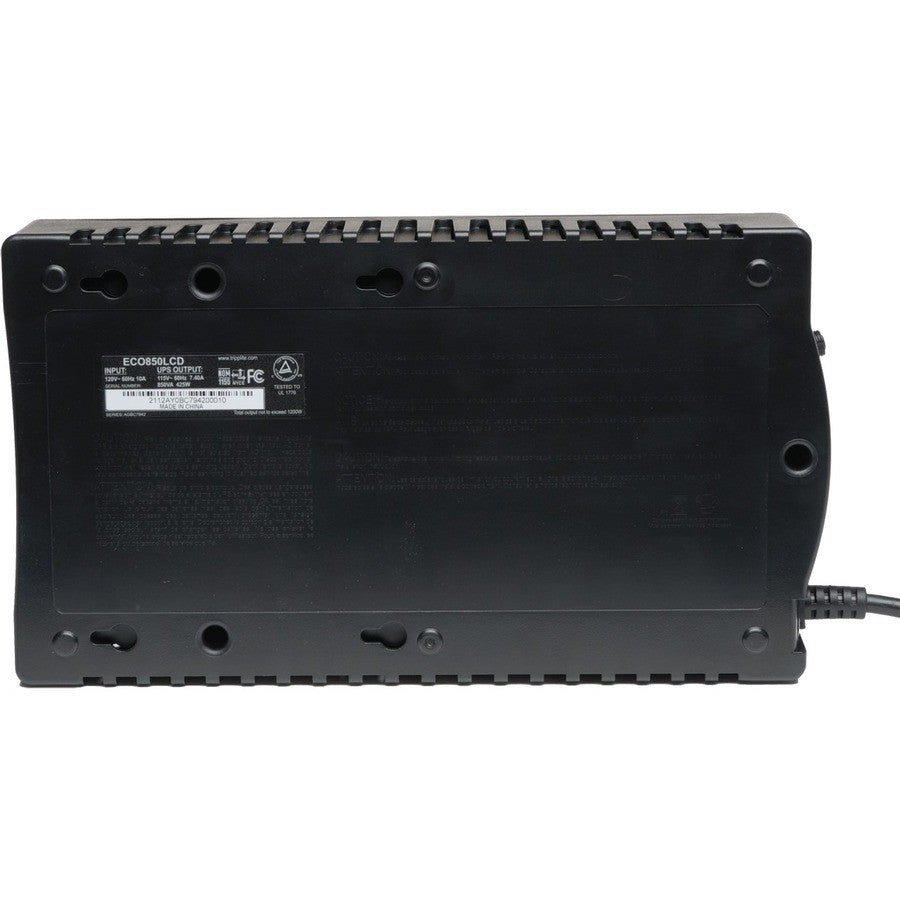

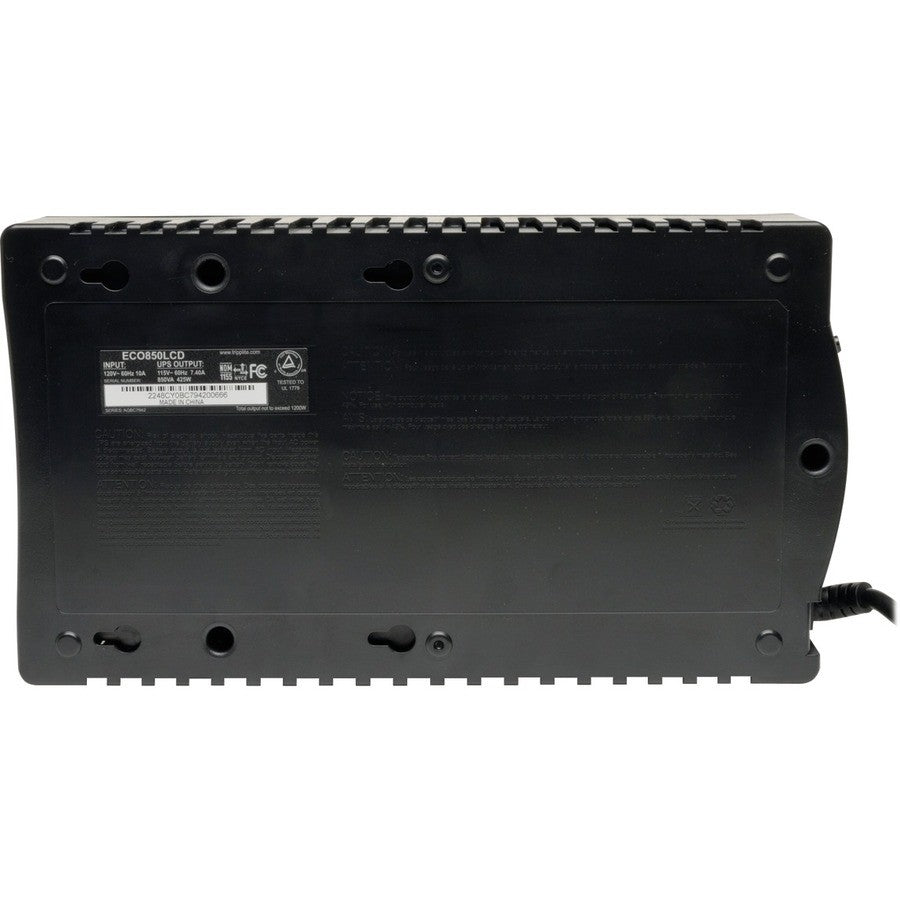

- Ultra-compact form factor for desktop, tower or wall mount installation
- ENERGY STAR with Restriction of Hazardous Substances compliance
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Series | ECO |
| Product Model | ECO850LCD |
| Manufacturer Part Number | ECO850LCD |
| UPC | 037332211132 |
| Product Type | Standby UPS |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Number of Battery and Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Dataline Protection | RJ-11 |
| Protection Type | Black Out, Surge |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Load Capacity (VA) | 850 VA |
| Load Capacity (Watt) | 425 W |
| Input Voltage | 120 V AC |
| Input Current | 10 A |
| Output Voltage | 110 V AC, 115 V AC, 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 2.30 Minute |
| Backup/Run Time (Half Load) | 9 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Color | Black |
| Height | 3.5" |
| Width | 5.1" |
| Depth | 12.2" |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 6.81 lb |
| Energy Star | Yes |
| Country of Origin | Vietnam |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Certifications and Standards | UL Listed Certification |
Package Contents
- ECO850LCD 850 VA Desktop UPS
- USB Cable
- Instruction Manual
Brand: Tripp Lite
Type: Standby UPS
Voltage Compatibility: 120 V
Color: Black
MPN: ECO850LCD
Compatible Model: ECO850LCD
Features: LED Display
Model: ECO850LCD
Form Factor: Ultra-compact Desktop/Tower/Wall Mount
Number of Outlets: 12
Maximum Input Current: 10 A
Country of Origin: Vietnam
Item Height: 3.5"
Item Length: 12.2"
Item Width: 5.1"
UPC: 037332211132
