Description
Eaton Tripp Lite ECO550UPS 550VA 300W Standby UPS 10-Outlet
This is a Standby UPS manufactured by Eaton under the Tripp Lite series. The ECO550UPS model delivers 550 VA / 300 W power capacity with ten NEMA 5-15R outlets, a NEMA 5-15P plug, and ENERGY STAR certification for desktop, tower, or wall-mount use.
Key Features
- Ultra-high efficiency ECO Series design automatically powers off unused accessories when the computer is not in use.

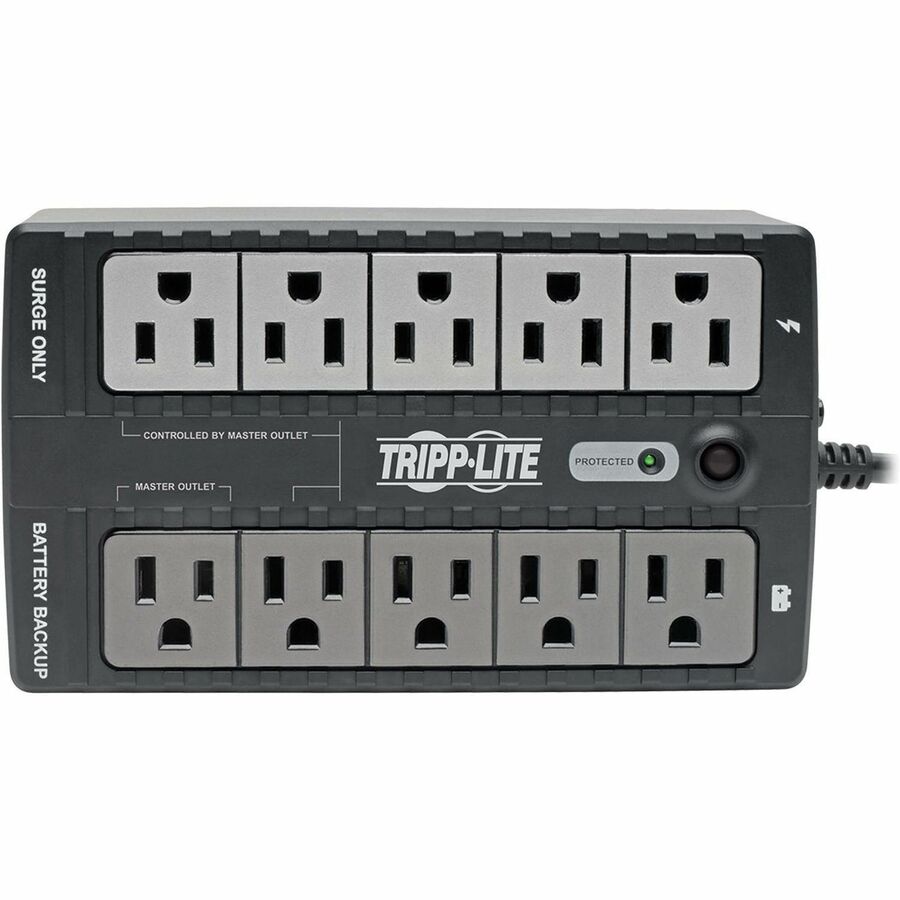

- Four battery-supported outlets for computer, monitor, and two vital peripherals plus five surge-only outlets including three configurable Eco outlets.

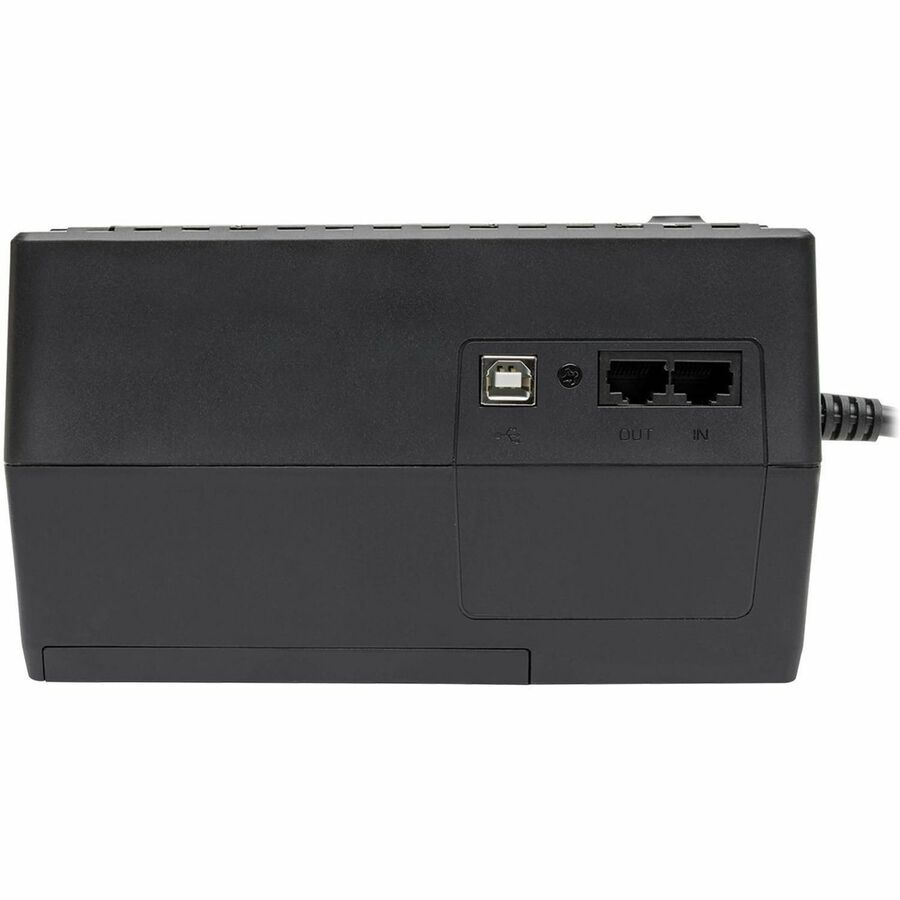

- USB HID-compliant port supports configuration and unattended shutdown during extended power failure.
- 6 ms transfer time with pure sine wave output and 316 J surge energy rating.

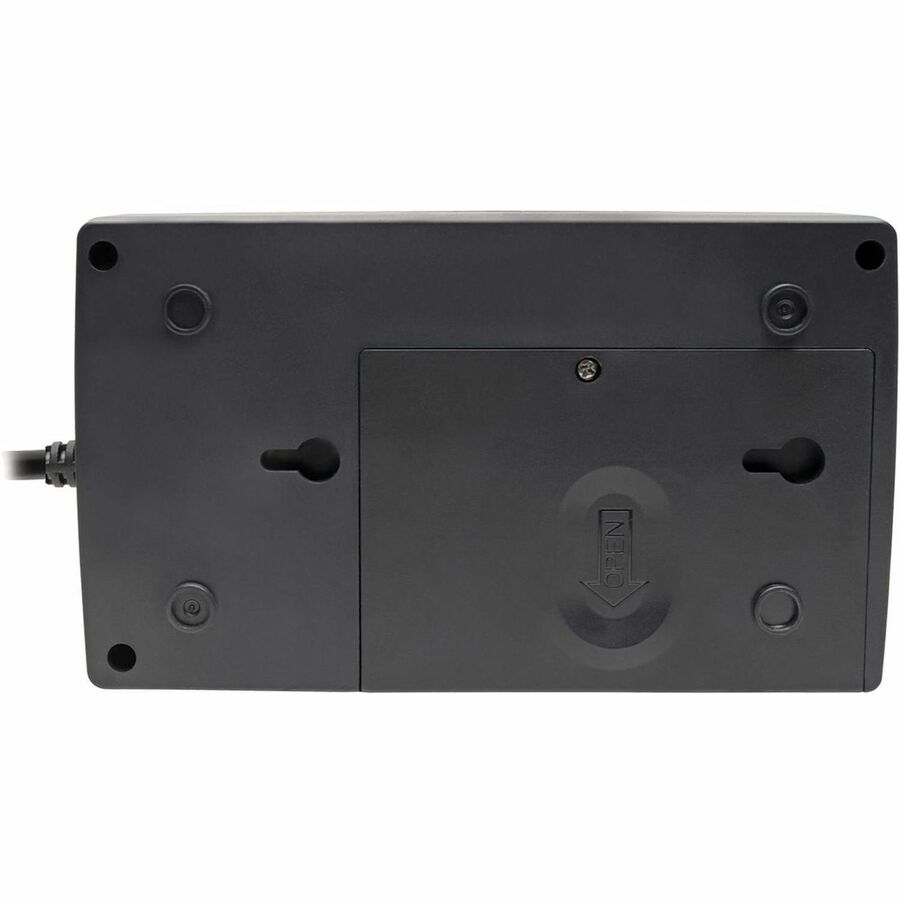

- Keyhole mounting slots enable wall-mount installation and compatibility with Tripp Lite Watchdog service for kiosk applications.
- Supports entry-level desktop PCs with 15-inch LCD monitor for up to 17 minutes during power failure.
- RoHS compliant with replaceable lead-acid battery and 6-year battery life.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Series | ECO |
| Product Model | ECO550UPS |
| Manufacturer Part Number | ECO550UPS |
| UPC | 037332211064 |
| Product Type | Standby UPS |
| Load Capacity (VA) | 550 VA |
| Load Capacity (Watt) | 300 W |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 10 x NEMA 5-15R |
| Number of Surge-only Outlets | 5 |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC, 115 V AC, 120 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 316 J |
| Transfer Time | 6 ms |
| Cord Length | 6 ft |
| Dataline Protection | RJ-11 |
| Protection Type | EMI / RFI, Brownout, Power Failure, Overload |
| DC System Voltage | 12 V DC |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Valve-regulated |
| Backup/Run Time (Full Load) | 1.20 Minute |
| Backup/Run Time (Half Load) | 5 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 6.50 Hour |
| Replaceable Battery | Yes |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Product Color | Black |
| Height | 4.1" |
| Width | 4.3" |
| Depth | 7.3" |
| Weight (Approximate) | 5.20 lb |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 133°F (56.1°C) |
| Maximum Storage Elevation | 6561 ft |
| Sound Emission | 40 dB |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Country of Origin | Vietnam |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Certifications & Standards | UL1778 (USA), CSA (Canada), NOM (Mexico), Class B (EMI), FCC Part 68 / Industry Canada (telecommunication) |
| Software Included | PowerAlert software available via free download |
| Package Contents | ECO550UPS 550VA Ultra-compact Desktop/Tower/Wall Mount UPS, USB Cable, Owner's Manual |
Additional Information
Switches to battery power as line voltage decreases to 99 volts or less and resets back to line power mode as line voltage increases to 104 V or higher. Switches to battery power as line voltage increases to 139 V or higher and resets back to line power mode when line voltage decreases to 135 V or lower. Supports retail, hospital, and computer peripheral applications. Assembly not required. Recycled content: No.
Brand: Tripp Lite
Type: Standby UPS
Color: Black
MPN: ECO550UPS
Compatible Model: ECO550UPS
Features: Surge Protection
Model: ECO550UPS
Form Factor: Ultra-compact Desktop/Tower/Wall Mount
Voltage Compatibility: 110 V
Maximum Power: 300 W
Number of Outlets: 10
Country of Origin: Vietnam
Maximum Wattage: 300 W
UPC: 037332211064
