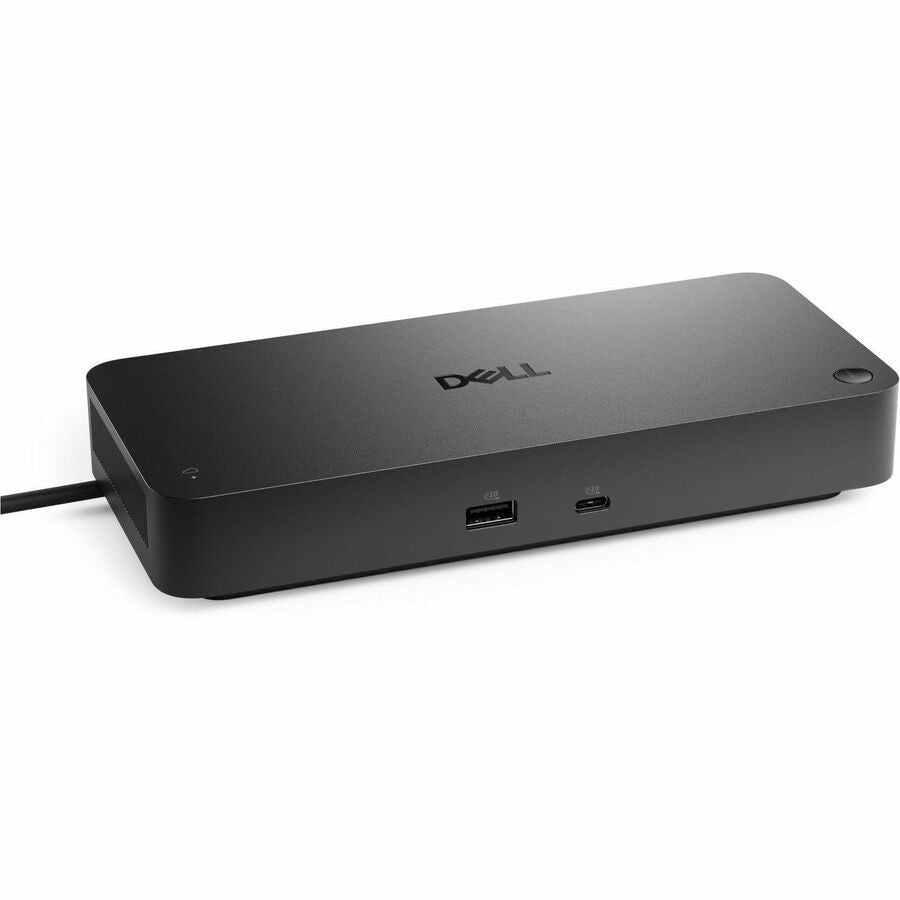

Dell Pro Thunderbolt 4 Smart Dock SD25TB4
This is a Dell Pro Thunderbolt 4 Smart Dock SD25TB4 docking station designed for premium connectivity and productivity. It supports high-resolution multi-display setups, fast charging up to 130W for Dell systems, and enterprise-grade management features. Manufacturer Part Number: DELL-SD25TB4; UPC: 884116493730. Compatible with desktops, notebooks, and operating systems including Windows 10/11, ChromeOS 137, Ubuntu 24.04, Red Hat Enterprise Linux 9.6, and macOS.
Premium Features & Capabilities
- Multi-Display Support: Native support for up to four 4K@60Hz displays, including configurations like quad 4K@60Hz, triple 4K@60Hz, dual 6K@60Hz, single 8K@60Hz, and resolutions such as 7680x4320, 6144x3456, 5120x2160.
- Power Delivery: Up to 130W for Dell Pro Premium/Max Notebooks and 96W for non-Dell PCs; includes Power Delivery Pass-through and LED Power Indicator.

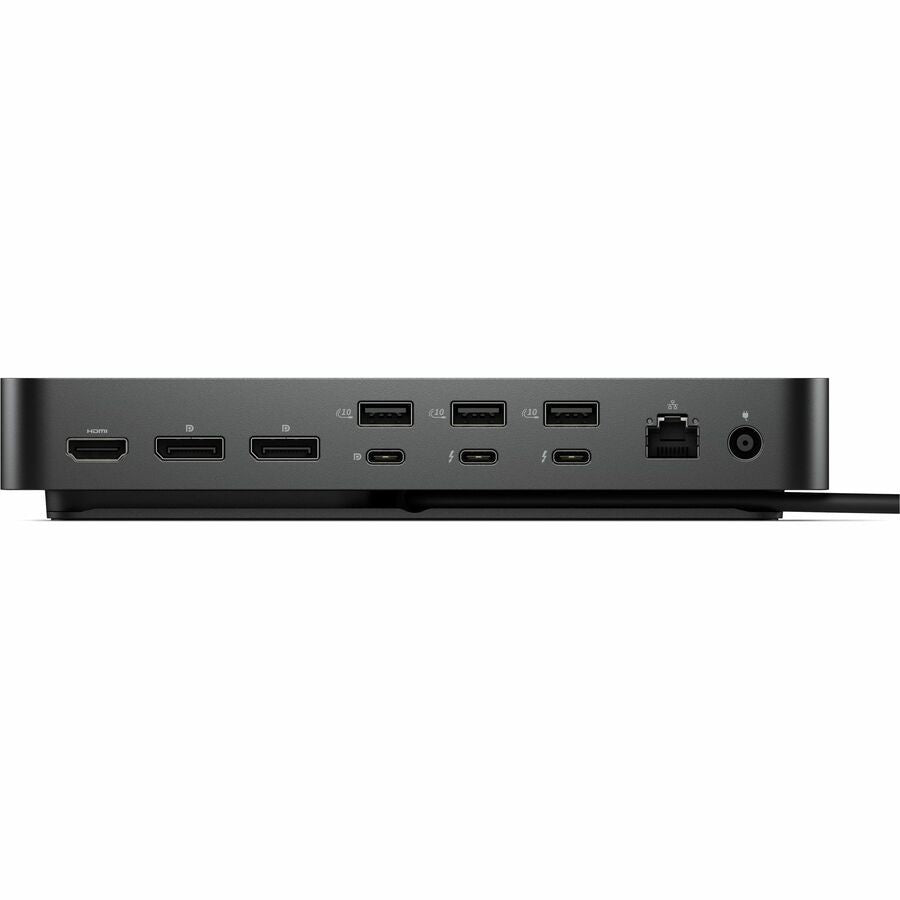

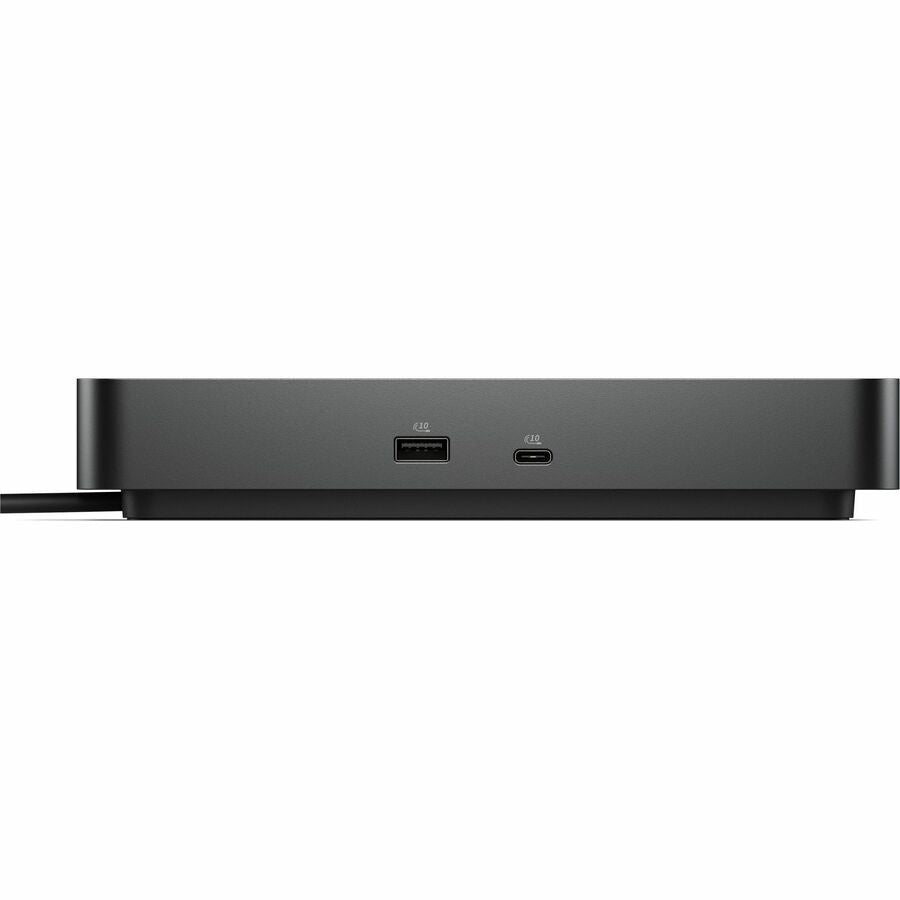

- Extensive Ports: Two Thunderbolt 4 ports, four USB 3.2 Gen 2 Type-A ports with PowerShare, two USB Type-C (one 15W USB-C 3.2 Gen 2, one 7.5W multi-function DisplayPort), two DisplayPort 1.4, one HDMI 2.1, and 2.5 Gigabit Ethernet.
- Advanced Management: Port Disablement, Dell Command Update (DCU), MAC Address Pass-through, PXE Boot, Dock Power Button Sync, Wake-on-LAN, WLAN to LAN Switch, Kernel DMA Protection, Intel AMT over Thunderbolt for select vPro PCs; remote management via Dell Device Management Console over Wi-Fi with SSO for Microsoft Intune.
- Security Features: Enterprise-grade WPA-3 192-bit encryption for Wi-Fi, tamper-resistant hardware-based encryption, Kensington Security Slot.
- Sustainable Design: Built with at least 65% post-consumer recycled plastic (two types in chassis and bumpers), 100% recycled or renewable packaging.
- Thoughtful Ergonomics: Ambidextrous 2.72 ft USB-C cable (routable left/right), robust USB-C connector for durability.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand Name | Dell |
| Manufacturer | Dell Technologies / Dell Commercial |
| Manufacturer Part Number | DELL-SD25TB4 |
| Product Model | SD25TB4 |
| Product Name | Pro Thunderbolt 4 Smart Dock SD25TB4 |
| Product Type | Docking Station |
| UPC | 884116493730 |
| Device Supported | Desktop PC, Notebook |
| Connectivity Technology | Wired |
| Host Interface | Thunderbolt 4 |
| Number of Thunderbolt 4 Ports | 2 |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| Number of USB Type-C Ports | 2 |
| USB Type-C Detail | 1 x USB-C 3.2 Gen 2 (15W), 1 x USB-C Multi-function DisplayPort (7.5W) |
| Number of DisplayPorts | 2 |
| DisplayPort Version | 1.4 |
| Number of HDMI Ports | 1 |
| HDMI Version | 2.1 |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of Displays Supported | 4 |
| Screen Modes Supported | WQHD @ 60Hz, 5K @ 60Hz, 6K @ 60Hz, 4K @ 60Hz, QHD @ 60Hz, 8K @ 60Hz |
| Supported Resolutions | 3440 x 1440, 5120 x 2160, 6144 x 3456, 3840 x 2160, 2560 x 1440, 7680 x 4320 |
| Video Resolution Details | QHD - 60 Hz (Quad Display), WQHD - 60 Hz (Triple Display), 4K - 60 Hz (Dual Display), 5K - 60 Hz (Single Display), 4K - 60 Hz (Quad Display), 4K - 60 Hz (Triple Display), 6K - 60 Hz (Dual Display), 8K - 60 Hz (Single Display) |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Power Delivery | 96W (non-Dell Systems), 130W (Dell Systems) |
| Maximum Power Supply Wattage | 180 W |
| Power Source Type | Power Adapter |
| Charging Capability | Yes |
| Cable Length | 2.72 ft |
| Height | 8.07" |
| Width | 3.54" |
| Depth | 1.39" |
| Weight (Approximate) | 1.28 lb |
| Post-consumer-waste% | 65% |
| Security Slot Type | Kensington Security Slot |
| Operating System Supported | Windows 10, Windows 11, ChromeOS 137, Ubuntu 24.04, Red Hat Enterprise Linux 9.6, macOS |
| Management Features | Port Disablement, Dell Command Update (DCU), MAC Address Pass-through, PXE Boot, Dock Power Button Sync, Wake-on-LAN, WLAN to LAN Switch, Kernel Direct Memory Access (DMA) Protection, Intel AMT over Thunderbolt with select Intel vPro PCs |
| Features | LED Power Indicator, Power Delivery Pass-through |
Why Choose Dell Pro Thunderbolt 4 Smart Dock SD25TB4
Engineered for AI PC productivity, secure enterprise environments, and sustainable innovation, this dock expands connectivity with top-tier Thunderbolt 4 performance, remote manageability without end-user presence, and eco-friendly materials to support modern workspaces.
Elevate your setup with the Dell Pro Thunderbolt 4 Smart Dock SD25TB4—order now!
Brand: Dell
Type: Docking Station
Compatible Brand: For Dell
Color: Black
Model: SD25TB4
Compatible Model: SD25TB4
MPN: DELL-SD25TB4
Ports: DisplayPort
Item Height: 8.07 in
Item Width: 3.54 in
Item Length: 1.39 in
UPC: 884116493730
