Dell Pro Smart Dock SD25 USB-C, 130W PD, 4x 4K@60Hz, HDMI 2.1+2x DP 1.4, 2.5GbE, 6x USB, Remote Mgmt, 65% Recycled (DELL-SD25)
Dell Pro Smart Dock SD25 USB-C, 130W PD, 4x 4K@60Hz, HDMI 2.1+2x DP 1.4, 2.5GbE, 6x USB, Remote Mgmt, 65% Recycled (DELL-SD25)
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Dell Pro Smart Dock SD25 USB-C Docking Station
This is a Dell Pro Smart Dock SD25 docking station designed for premium connectivity and power delivery to desktop PCs and notebooks. Featuring USB Type-C host interface, support for up to four high-resolution displays, 2.5 Gigabit Ethernet, and extensive USB ports, it enhances workspace efficiency. Manufacturer Part Number: DELL-SD25; UPC: 884116493709. Built with management capabilities via Dell Device Management Console and sustainable materials including 65% post-consumer recycled plastic.
Key Features of Dell Pro Smart Dock SD25
- Multi-Display Support – Native support for up to 4 displays with resolutions including 6K@60Hz single, 5K@60Hz dual, 4K@60Hz single, WQHD@60Hz quad.
- Power Delivery – Up to 130W for Dell AI PCs and 96W for non-Dell PCs; includes Power Delivery Pass-through.

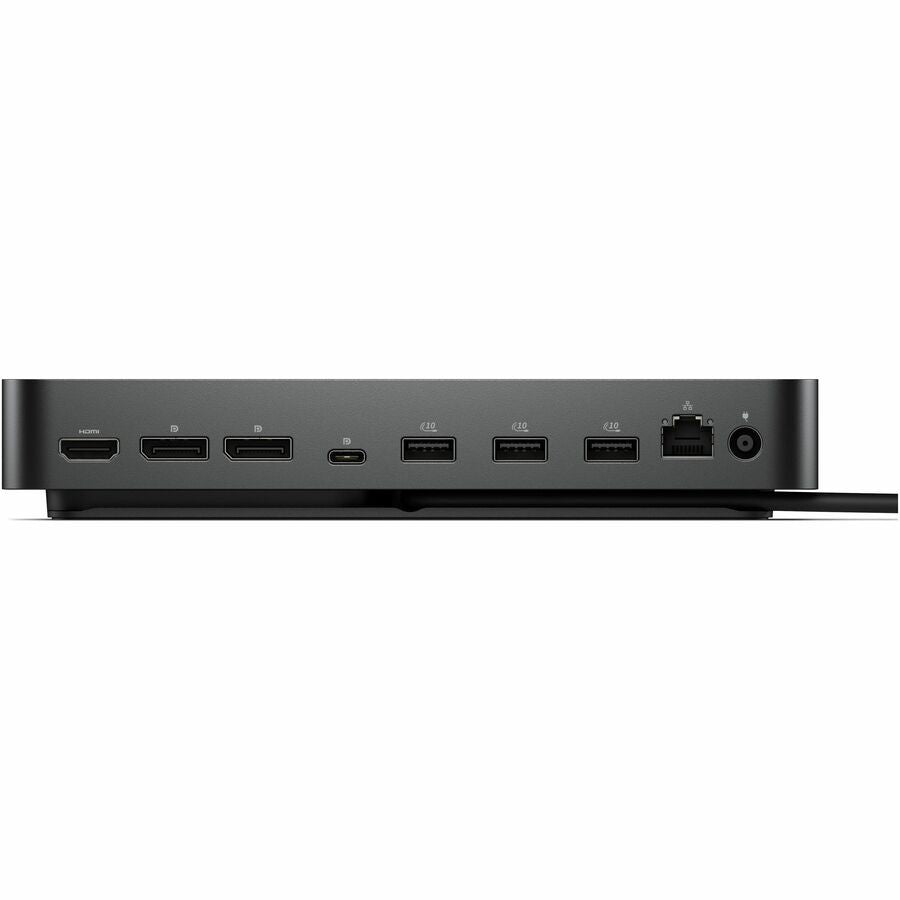

- Port Expansion – 6 USB ports (4x USB 3.2 Gen 2 Type-A, 2x USB-C), 2x DisplayPort 1.4, 1x HDMI 2.1, RJ-45 2.5GbE.
- Management Capabilities – Remote management over Wi-Fi via Dell Device Management Console; features Port Disablement, Dell Command Update (DCU), MAC Address Pass-through, PXE Boot, Wake-on-LAN, WLAN to LAN Switch.
- Security Features – WPA-3 192-bit encryption, tamper-resistant hardware encryption, Kernel DMA Protection, Kensington Security Slot.
- Design & Sustainability – Ambidextrous 2.95 ft USB-C cable, robust connector, LED Power Indicator, Dock Power Button Sync; 65% post-consumer recycled plastic, 100% recycled/renewable packaging.
- Connectivity – Maximum data transfer rate 1.25 GB/s; wired technology with charging capability.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Dell Technologies |
| Brand Name | Dell |
| Product Model | SD25 |
| Product Name | Pro Smart Dock SD25 |
| Manufacturer Part Number | DELL-SD25 |
| UPC | 884116493709 |
| Product Type | Docking Station |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Device Supported | Desktop PC, Notebook |
| Cable Length | 2.95 ft |
| Features | LED Power Indicator, Power Delivery Pass-through |
| Management Features | Port Disablement, Dell Command Update (DCU), MAC Address Pass-through, PXE Boot, Dock Power Button Sync, Wake-on-LAN, WLAN to LAN Switch, Kernel Direct Memory Access (DMA) Protection |
| Number of Displays Supported | 4 |
| Screen Modes Supported | WQHD @ 60Hz, 5K @ 60Hz, 6K @ 60Hz, 4K @ 60Hz, QHD @ 60Hz, FHD @ 60Hz, SXGA |
| Supported Resolutions | 3440 x 1440, 5120 x 2160, 6144 x 3456, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024 |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Security Slot Type | Kensington Security Slot |
| Power Delivery | 96W (non-Dell Systems), 130W (Dell Systems) |
| Video Resolution Details | SXGA - 60 Hz (Quad Display), FHD - 60 Hz (Triple Display), QHD - 60 Hz (Dual Display), 4K - 60 Hz (Single Display), WQHD - 60 Hz (Quad Display), WQHD - 60 Hz (Triple Display), 5K - 60 Hz (Dual Display), 6K - 60 Hz (Single Display) |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Host Interface | USB Type C |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| Number of USB Type-A Ports | 4 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C 3.2 Gen 2 (15W), 1 x USB-C Multi-function DisplayPort (7.5W) |
| Number of USB Type-C Ports | 2 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Number of DisplayPorts | 2 |
| DisplayPort Version | 1.4 |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| HDMI Version | 2.1 |
| Operating System Supported | Windows 10, Windows 11, ChromeOS 137, Ubuntu 24.04, Red Hat Enterprise Linux 9.6 |
| Maximum Power Supply Wattage | 180 W |
| Power Source Type | Power Adapter |
| Height | 8.07" |
| Width | 3.54" |
| Depth | 1.39" |
| Weight (Approximate) | 1.24 lb |
| Kensington Security Slot | Yes |
| Post-consumer-waste% | 65% |
Why Choose Dell Pro Smart Dock SD25
Engineered for IT efficiency with remote fleet management, enterprise-grade security, and sustainable design. Supports modern AI PC workflows with high-power delivery, extensive port options, and multi-display capabilities for enhanced productivity.
Elevate your setup with Dell Pro Smart Dock SD25—Order now!
Brand: Dell
Type: Docking Station
Compatible Brand: For Dell
Color: Black
Model: SD25
Compatible Model: SD25
MPN: DELL-SD25
Ports: DisplayPort
Item Height: 8.07 in
Item Width: 3.54 in
Item Length: 1.39 in
UPC: 884116493709
