Dell 280W USB-C GaN AC Adapter 492-BFCX
Dell 280W USB-C GaN AC Adapter 492-BFCX
Low stock: 5 left
Save 14%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Dell 280W USB-C GaN AC Adapter 492-BFCX

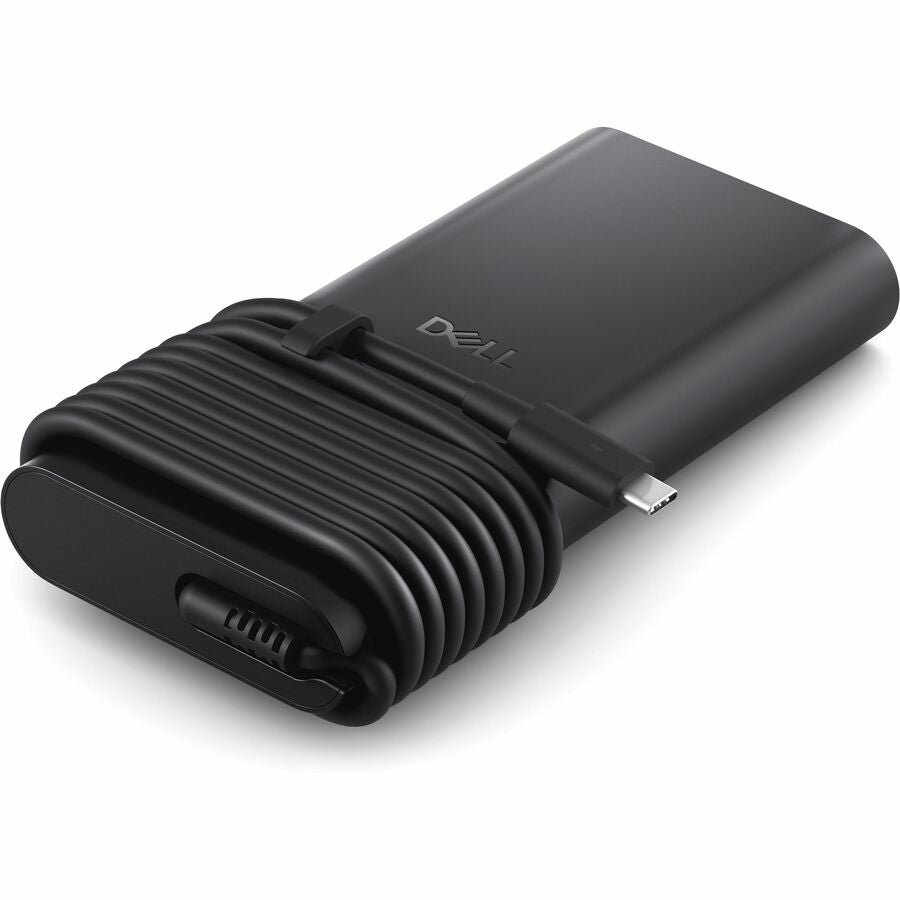

This is a 280W USB-C GaN AC Adapter from Dell designed for quick-charging notebooks. The Dell 280W USB-C GaN AC Adapter (MPN: 492-BFCX; UPC: 884116692423) supports multiple output voltages up to 280W with GaN technology for efficient, compact power delivery. It includes a 5.91 ft (1.8m) power cord and is compatible with select high-performance Dell laptops.
Key Features of Dell 280W USB-C GaN AC Adapter
- GaN Technology – Enables smaller size and higher efficiency for rapid charging.
- Multi-Voltage Output – Supports 5V, 9V, 15V, 20V, 28V, 36V, 48V DC with detailed amperage profiles up to 7A max.
- Universal Compatibility – Works with notebooks and USB Type-A devices; USB Type-C port.
- Robust Design – Includes cable clip; over-voltage protection across profiles (e.g., 48V/50V, 20V/22V).
- Wide Input Range – 100-240V AC, 50/60 Hz for global use.
- Environmental Durability – Operates up to 95°F/95% humidity and 16400 ft altitude.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dell |
| Manufacturer | Dell Technologies |
| MPN | 492-BFCX |
| UPC | 884116692423 |
| Product Type | AC Adapter |
| Maximum Output Power | 280 W |
| Maximum Output Current | 7 A |
| Maximum Input Current | 4 A |
| Input Voltage | 120 V AC / 230 V AC |
| Input Voltage Range | 100 V AC - 120 V AC / 200 V AC - 240 V AC |
| Frequency | 50 Hz / 60 Hz |
| Output Voltage | 48 V DC, 36 V DC, 28 V DC, 20 V DC, 15 V DC, 9 V DC, 5 V DC |
| Output Voltage Detail | 48 V DC @ 5.83 A; 36 V DC @ 5.83 A; 28 V @ 5.893 A; 20 V @ 6.5 A; 15 V @ 3 A; 9 V @ 3 A; 5 V @ 3 A; 12 V - 48 V @ 5.3 A |
| Output Current Limit | 5 V / >3 A; 9 V / >3 A; 15 V / >3 A; 20 V / >4 A; 28 V / >7 A; 36 V / >7 A; 48 V / >7 A |
| Over-voltage Protection Range | 48 V / 50 V; 36 V / 40 V; 28 V / 30 V; 20 V / 22 V; 15 V / 17 V; 9 V / 11 V |
| Interfaces/Ports | USB Type-C: Yes |
| Cable Length | 5.91 ft |
| Device Supported | Notebook; USB Type A Device |
| Universal Adapter | Yes |
| Features | GaN Technology; Cable Clip; Robust |
| Height | 6.4" |
| Width | 3.1" |
| Depth | 0.9" |
| Weight (Approximate) | 1.54 lb |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 95°F (35°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 158°F (70°C) |
| Maximum Operating Humidity | 95% |
| Maximum Non-operating Humidity | 95% |
| Minimum Operating Altitude | 0 mil |
| Maximum Operating Altitude | 16400 ft |
| Certifications & Standards | IEC; EN; UL 62368-1 |
| Country of Origin | China |
| Post-consumer-waste | 95% |
Package Contents
- 280W USB-C GaN AC Adapter
- 5.9 ft (1.8 m) Power Cord
Why Choose Dell 280W USB-C GaN AC Adapter
Provides high-power 280W charging with GaN efficiency, broad voltage support, and robust protections for reliable performance with compatible Dell notebooks.
Power up with the Dell 280W USB-C GaN AC Adapter—order 492-BFCX today!
Brand: Dell
Type: AC Adapter
Color: Black
MPN: 492-BFCX
Country of Origin: China
Compatible Product Line: Universal
Voltage: 12 V
Item Height: 6.4 in
Item Length: 0.9 in
Item Width: 3.1 in
Compatible Brand: Does not apply
UPC: 884116692423
