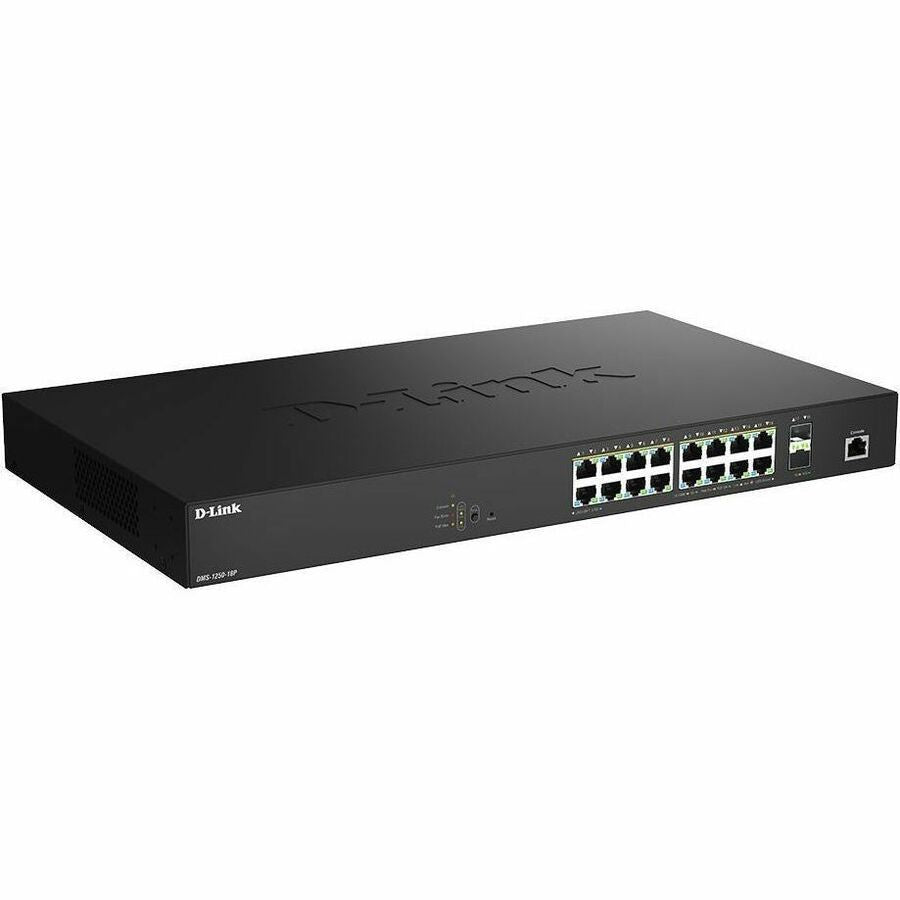

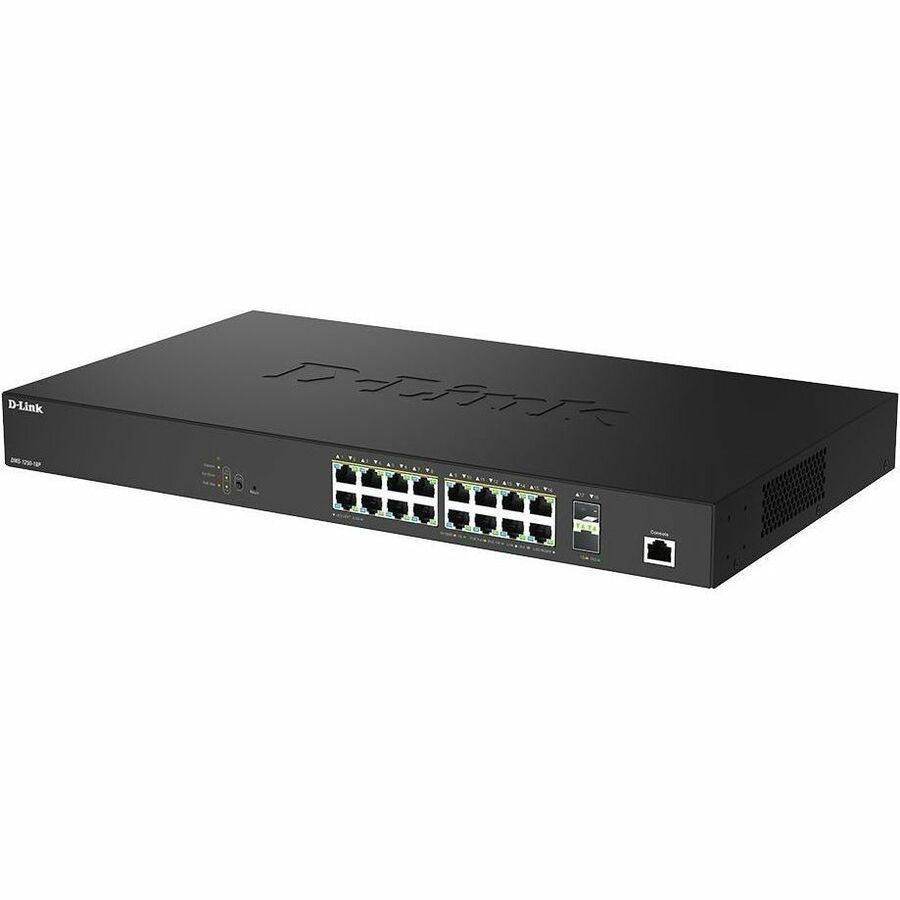

D-Link DMS-1250-18P Ethernet Switch

This is a D-Link DMS-1250-18P Ethernet Switch, a 16-port manageable smart managed switch with 2.5 Gigabit Ethernet and 10 Gigabit Ethernet ports. It supports multi-Gigabit connectivity, Power over Ethernet capability, multiple management interfaces, and advanced Layer 2 features for expanding networks in business environments.

The switch provides full 2.5 Gbps Ethernet ports suitable for Wi-Fi 6 applications, additional 10 Gbps Ethernet ports and SFP+ ports for high-speed uplinks, and supports 802.3at and 802.3bt PoE standards with a 370 W PoE budget. It includes Perpetual PoE and Fast PoE functions along with Safeguard Engine protection, 802.1X authentication, ACL, DHCP server screening, and intelligent fan operation with five adjustable cooling levels.

Key Features

• 16 x 2.5 Gigabit Ethernet PoE++ ports and 2 x 10 Gigabit Ethernet expansion slots
• Supports 2.5GBase-T and 10GBase-X network technology with maximum data transfer rate of 1.25 GB/s
• Layer 3 supported with IEEE 802.3u, 802.3ab, 802.3bz, 802.3an, 802.3ae, 802.3z, 802.3az, 802.3ad, 802.1Q, 802.1p, 802.1D, 802.1w, 802.1s, 802.3x, 802.1x, 802.3af, 802.3at, and 802.3bt standards
• PoE budget of 370 W and power consumption of 443.84 W from 120 V AC or 230 V AC at 50/60 Hz
• Built-in fan with manual Fan Off or Quiet mode options when temperature and PoE load permit
• Management via D-Link Nuclias Connect, D-View 8, full CLI through console or Telnet, and SNMP
• Features include Access Control List, Broadcast Storm Control, Safeguard Engine, RMON, Dual Image, DHCP Relay, Surge Protection, Loopback Detection, Dynamic ARP Inspection, DHCP Snooping, VLAN Segmentation
• Media support for Twisted Pair and Optical Fiber
• Applications include Network, Business, Server, Security, Surveillance, Traffic Camera, Wireless Access Point, Multi Dwelling Unit, Small Business, and Medium Business

Comprehensive Technical Specifications
