CyberPower RMCARD400 Gigabit SNMP Remote Management Card for UPS Systems
CyberPower RMCARD400 Gigabit SNMP Remote Management Card for UPS Systems
Low stock: 5 left
Save 10%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

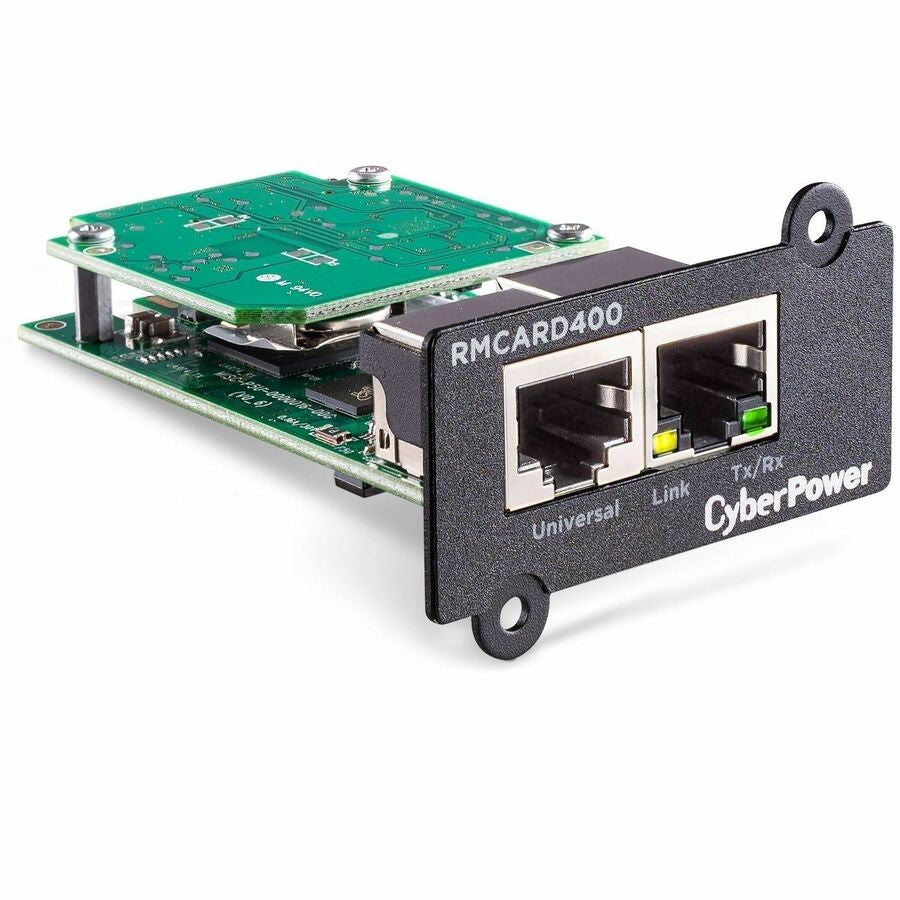

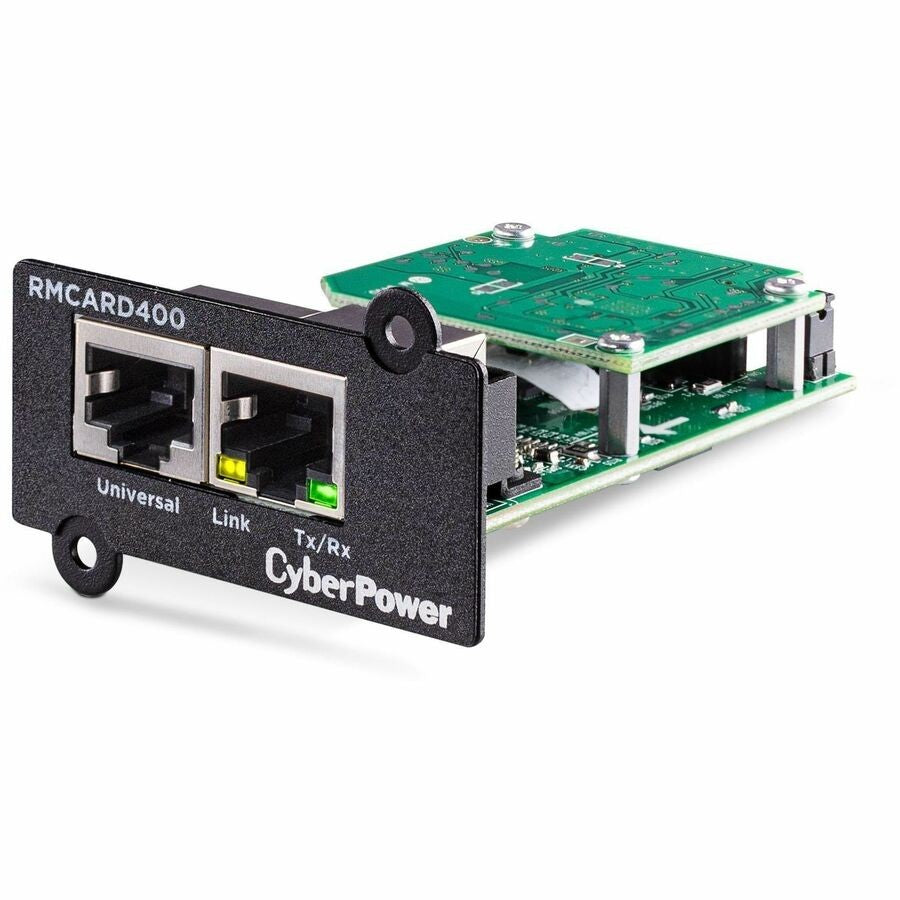

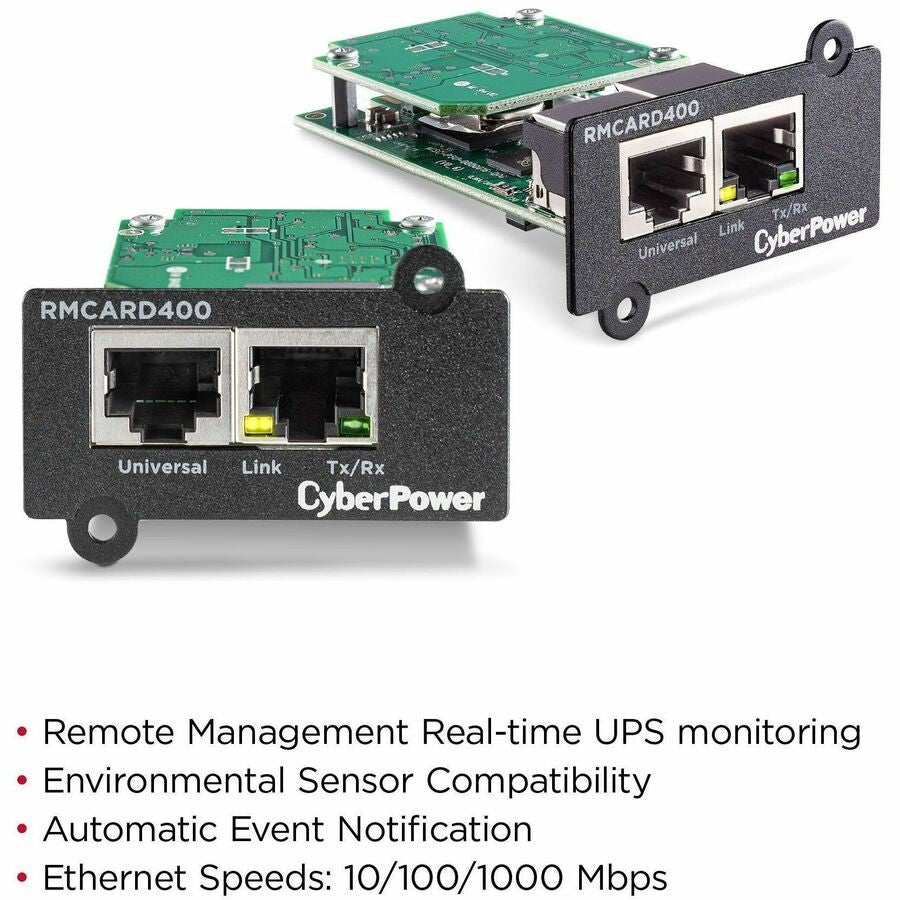

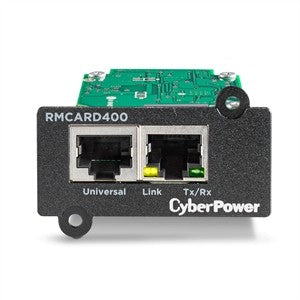

CyberPower RMCARD400 Gigabit SNMP Remote Management Card
This is a full-featured Gigabit SNMP network management card, the CyberPower RMCARD400 Remote Management Card, designed to remotely manage, monitor, and control select CyberPower UPS systems using a standard web browser, command line interface (CLI), SNMP, or network management system (NMS). MPN: RMCARD400; UPC: 649532934898. Suited for enterprise installations, it enables scheduling for UPS shutdown, startup, and rebooting, event logging, status recording, and automatic notifications via email, SMS, SNMP traps, or Syslog. PowerPanel® Business Edition software supports auto-shutdown to protect servers and workstations from power failures.
Advanced Management and Monitoring Features
- Comprehensive Remote Control: Manage UPS via web interface, CLI, SNMP, or NMS for enterprise-grade oversight.
- Scheduling Capabilities: Programmed shutdown, startup, and reboot sequences with event actions.
- Event Notifications: Automatic alerts through email, SMS, SNMP traps, or Syslog for proactive response.
- PowerPanel® Business Edition: Client software initiates safe auto-shutdown during power events to prevent data loss.
- Gigabit Ethernet Connectivity: Supports high-speed data link protocols including Ethernet 10/100/1000Base-T and 100Base-TX.
- Optional ENVIROSENSOR: Universal port for environmental monitoring add-on.
- LED Indicators: Tx/Rx status lights for quick network diagnostics.
- Cisco EnergyWise Support: Compatible with v1.2.0 and newer for energy management integration.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Brand Name | CyberPower |
| Manufacturer Part Number | RMCARD400 |
| Product Name | RMCARD400 Remote Management Card |
| Product Type | UPS Management Adapter |
| Product Series | UPS Hardware |
| Product Model | RMCARD400 |
| UPC | 649532934898 |
| Ethernet Technology | Gigabit Ethernet |
| Data Link Protocol | Ethernet 100Base-TX, Ethernet 10/1000Base-T |
| Supported Protocols | TCP/IP, UDP, FTP, SCP, DHCP, DNS, SSH, Telnet, HTTP, HTTPS, SNMP v1, SNMP v3, IPv4, IPv6, NTP, SMTP, Syslog, CLI, SNMP, NMS, SMS (Short Message Service), LDAPS, LDAP, MIB, RADIUS, SMTPS, SSL, TLS |
| Management Features | UPS Network Management, Automatic Shutdown, Schedule Shutdown/Startup/Reboot |
| Interfaces/Ports | Network (RJ-45): Yes; USB: No |
| LED Indicators | Tx/Rx |
| Color | Black |

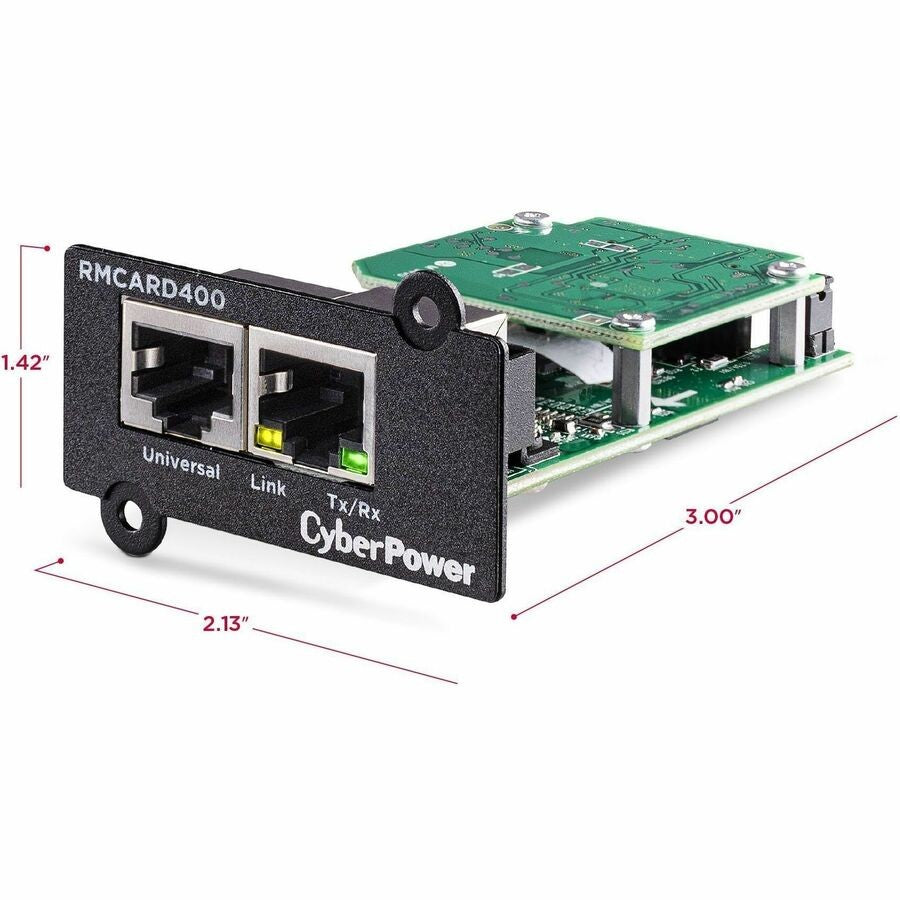

| Product Dimensions (H x W x D) | 1.4" x 2.1" x 3" (3.61 x 5.41 x 7.62 cm; 36 x 54 x 76 mm) |
| Product Weight (Approximate) | 1.41 oz (0.04 kg; 0.08 lb) |
| Shipping Dimensions (H x W x D) | 2.3" x 6.7" x 6.5" (5.84 x 16.51 x 16.76 cm; 58.42 x 165.1 x 167.64 mm) |
| Shipping Weight | 0.60 lb (0.26 kg; 0.57 lb) |
| Operating Temperature | 32 - 104 °F (0 - 40 °C) |
| Operating Relative Humidity | 0 - 90% (non-condensing) |
| Operating Elevation | 0 - 10000 ft (0 - 3048 m) |
| Storage Temperature | 14 - 122 °F (-10 - 50 °C) |
| Storage Relative Humidity | 0 - 95% (non-condensing) |
| Storage Elevation | 0 - 50000 ft (0 - 15239 m) |
| Certifications & Standards | FCC DoC Class A, CE |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Warranty | 3 Year Limited Warranty |
| Country of Origin | China |
| Compatibility | CyberPower UPS Systems |
Standards Compliance Details
- DHCP: RFC 2131
- DNS: RFC 1035
- FTP: RFC 959
- HTTP: v1.1 RFC 2616
- HTTPS: RFC 2818
- LDAP: v3 RFC 2251
- LDAPS: v3 RFC 4513
- MIB: RFC 1213, RFC 1628
- NTP: RFC 958
- RADIUS: RFC 2865
- SCP/SSH: v2 RFC 4253, RFC 4254
- SMTP: RFC 2821
- SMTPS: RFC 3207
- SNMP v1: RFC 1155, RFC 1156, RFC 1157
- Syslog: RFC 5424
- TCP/IP v4: RFC 791
- Telnet: RFC 854
- TLS v1.1: RFC 4346
Upgrade your UPS remote management—Order the CyberPower RMCARD400 today!
Brand: CyberPower
Mounting Style: Panel Mount
Type: Adapter
MPN: RMCARD400
Country of Origin: China
Material: Green PCB, black faceplate
Suitable For: Uninterruptible Power Supply
UPC: 649532934898
